NLP22L-CHMRXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0211)

Click highlighted areas on diagram

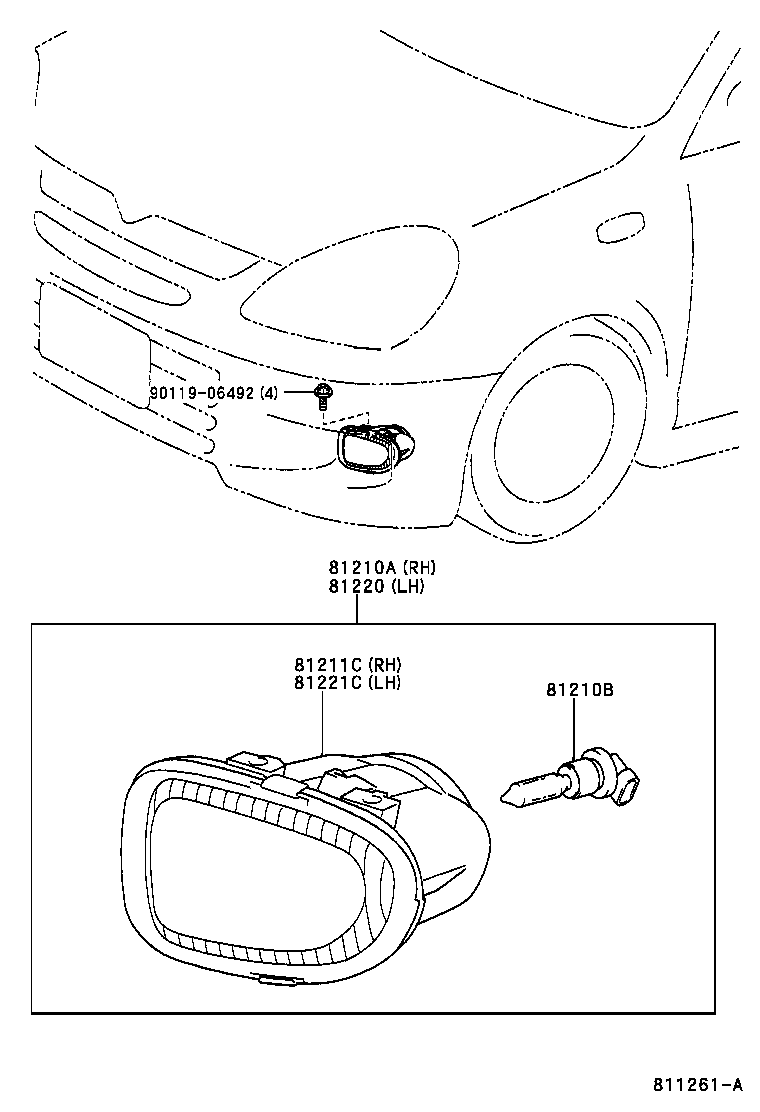

diagram 81210A 81210B 81211C 81220 81221C 9011906492
Part # Description Qty Price
81210B - BULB, FOG LAMP
90080-81040

NCP2#,NLP2#

12V 51W

 2
90981-13047

NCP2#,NLP2#

12V 51W,HALOGEN

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-52050

NCP2#,NLP2#

 1
81211-52051

NCP2#,NLP2#

RH

 1
81211-52010

NCP2#,NLP2#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-52010

NCP2#,NLP2#

 1
81221-52050

NCP2#,NLP2#

 1
81221-52051

NCP2#,NLP2#

LH

 1
Common parts
90119-06492

(0211-0509)

Click highlighted areas on diagram

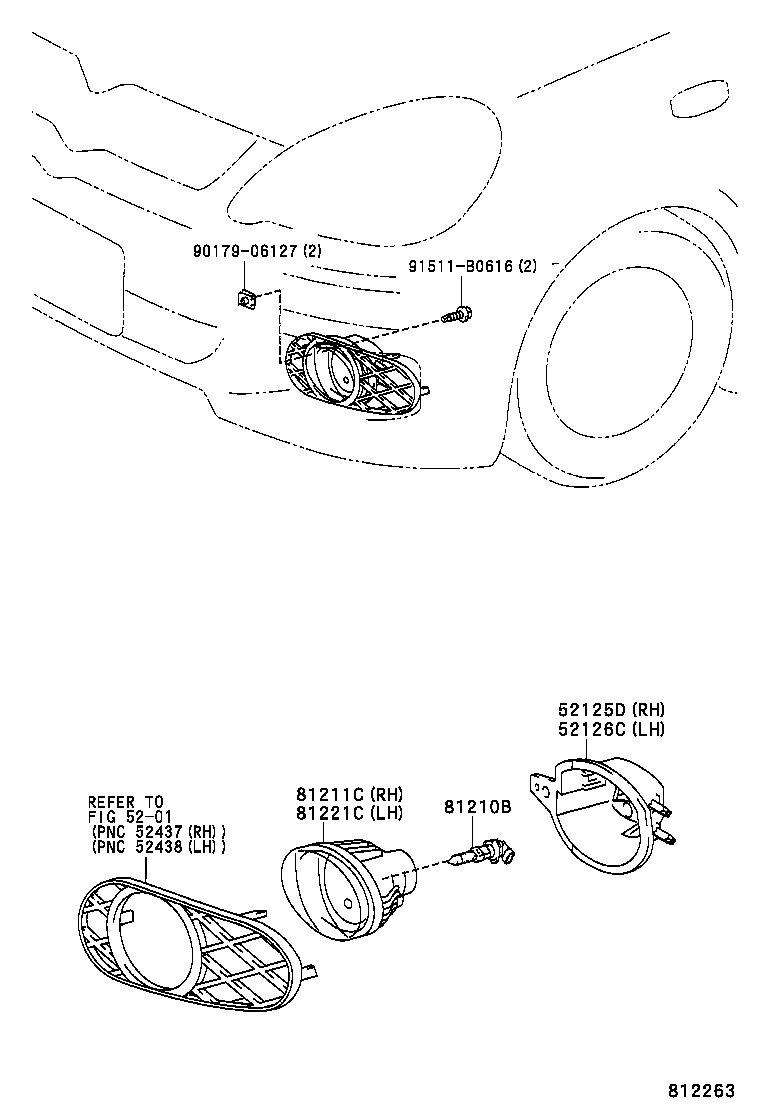

diagram 5201 52125D 52126C 81210B 81211C 81221C 9017906127 91511B0616
Part # Description Qty Price
52125D - BRACKET, FOG LAMP MOUNTING, RH
52125-52010

NCP2#,NLP2#

 1
52126C - BRACKET, FOG LAMP MOUNTING, LH
52126-52010

NCP2#,NLP2#

 1
81210B - BULB, FOG LAMP
90080-81040

NCP2#,NLP2#

12V 51W

 2
90981-13047

NCP2#,NLP2#

12V 51W,HALOGEN

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-52050

NCP2#,NLP2#

 1
81211-52051

NCP2#,NLP2#

RH

 1
81211-52010

NCP2#,NLP2#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-52010

NCP2#,NLP2#

 1
81221-52050

NCP2#,NLP2#

 1
81221-52051

NCP2#,NLP2#

LH

 1
Common parts
90179-06127
91511-B0616
Linked diagrams
5201
