NLP20R-CHMNXW (2001)
Toyota Yaris/Echo Verso
Production
Oct 2001
-
Sep 2005
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0211)

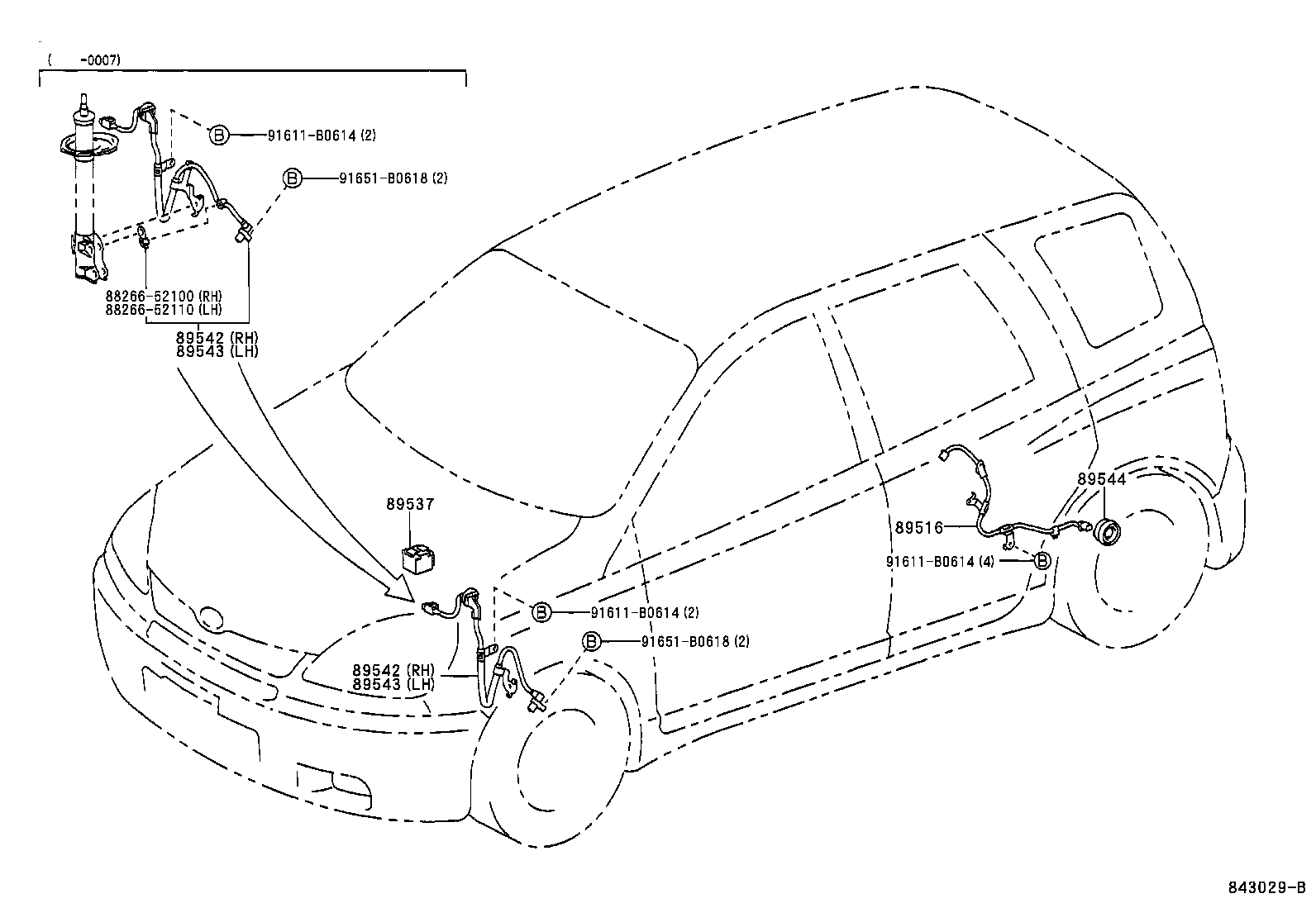

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-52010 |
NCP2#,NLP2# RH |
1 | ||
| 89516-52020 |
NCP2#,NLP2# LH |
1 | ||
| 89516-52010 |
NCP2#,NLP2# RH |
1 | ||
| 89516-52020 |
NCP2#,NLP2# LH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-52010 |
NCP2#,NLP2# |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-52010 |
NCP2#,NLP2# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-52010 |
NCP2#,NLP2# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-52010 |
NCP2#,NLP2# |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-52030 |
NCP2#,NLP2# NSK |
2 | ||
| 89544-52020 |
NCP2#,NLP2# NSK |
2 | ||
| 89544-12010 |
NCP2#,NLP2# KOYO |
2 | ||
| 89544-52010 |
NCP2#,NLP2# KOYO |
2 | ||
| Common parts | ||||
| 88266-52100 | ||||
| 88266-52110 | ||||
| 91611-B0614 | ||||
| 91651-B0618 | ||||
(0211-0509)

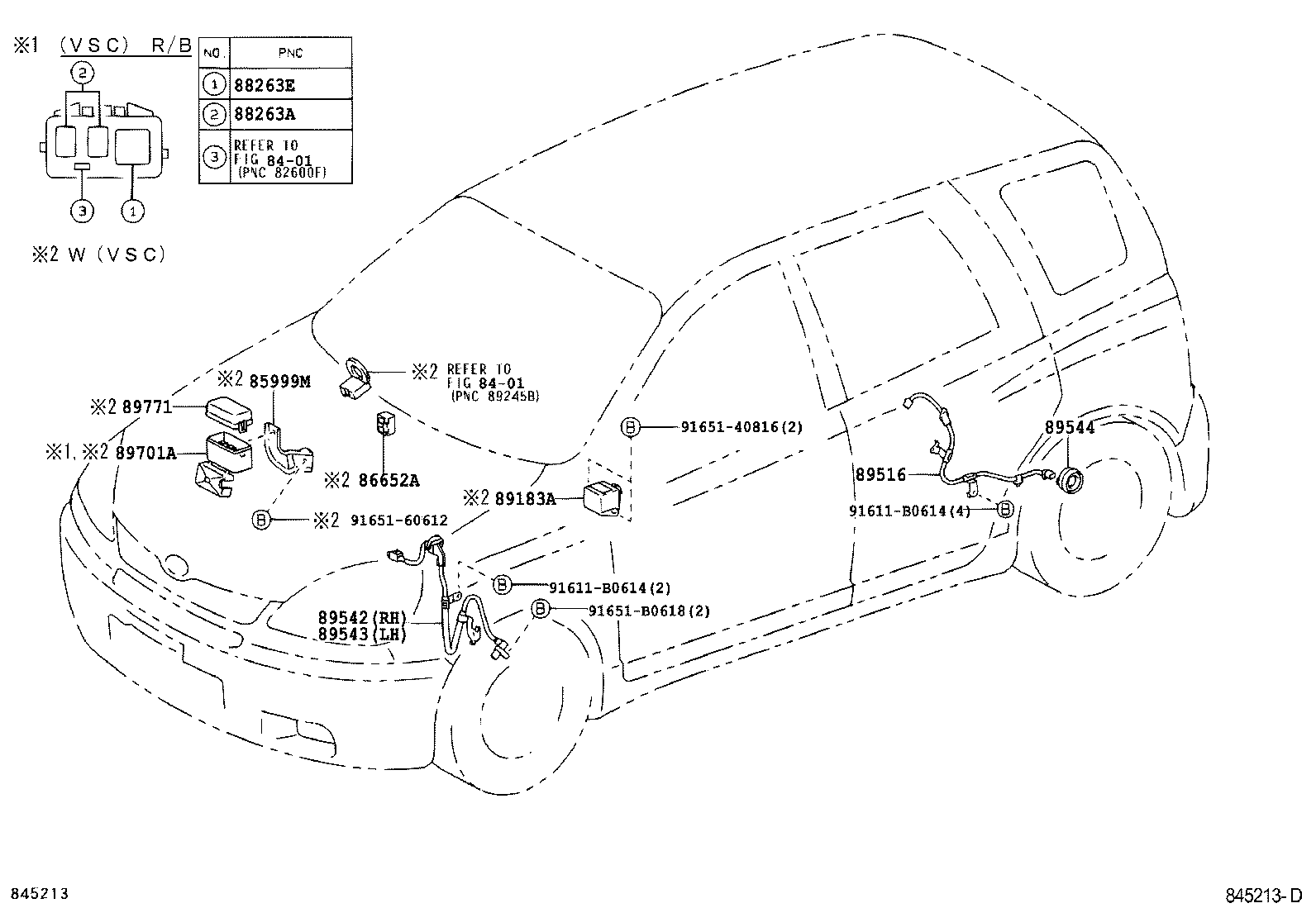

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-52010 |
NCP2#,NLP2# RH |
1 | ||
| 89516-52020 |
NCP2#,NLP2# LH |
1 | ||
| 89516-52010 |
NCP2#,NLP2# RH |
1 | ||
| 89516-52020 |
NCP2#,NLP2# LH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-52010 |
NCP2#,NLP2# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-52010 |
NCP2#,NLP2# |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-52030 |
NCP2#,NLP2# NSK |
2 | ||
| 89544-52020 |
NCP2#,NLP2# NSK |
2 | ||
| 89544-12010 |
NCP2#,NLP2# KOYO |
2 | ||
| 89544-52010 |
NCP2#,NLP2# KOYO |
2 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 8401 | ||||
