NLP20R-CHMNXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )1NDTV

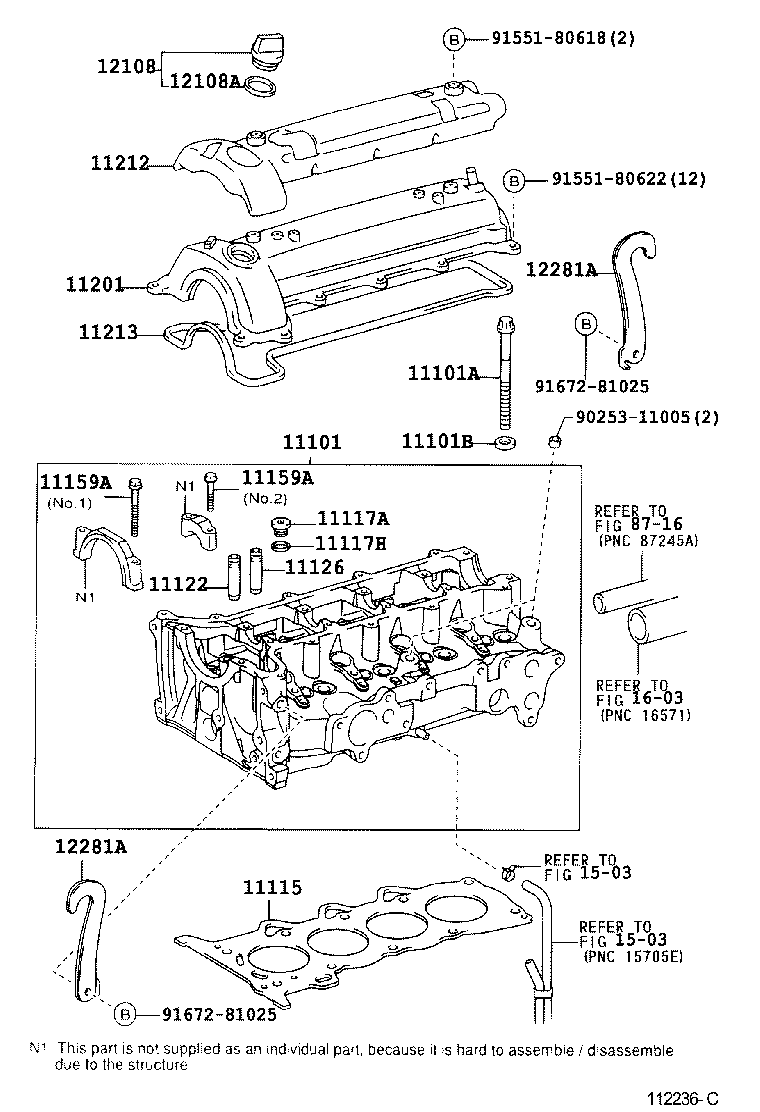

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11117A 11117H 11122 11126 11159A 11159A 11201 11212 11213 12108 12108A 12281A 12281A 1503 1503 1603 8716 9025311005 9155180618 9155180622 9167281025 9167281025
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-33030

1NDTV..NLP2#

 1
11101-33030

1NDTV..NLP2#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02148

1NDTV..NLP2#

 10
90910-02148

1NDTV..NLP2#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13021

1NDTV..NLP2#

 10
90201-13021

1NDTV..NLP2#

 10
11115 - GASKET, CYLINDER HEAD
11115-33020C0

1NDTV..NLP2#

MARK C,MARK C

 1
11115-33020D0

1NDTV..NLP2#

MARK D,MARK D

 1
11115-33020B0

1NDTV..NLP2#

MARK B

 1
11115-33020E0

1NDTV..NLP2#

MARK E

 1
11115-33020A0

1NDTV..NLP2#

MARK A,MARK A

 1
11115-33020B0

1NDTV..NLP2#

MARK B,MARK B

 1
11115-33020D0

1NDTV..NLP2#

MARK D

 1
11115-33021E0

1NDTV..NLP2#

MARK E

 1
11115-33021D0

1NDTV..NLP2#

MARK D

 1
11115-33022E0

1NDTV..NLP2#

MARK E

 1
11115-33022D0

1NDTV..NLP2#

MARK D

 1
11115-33021C0

1NDTV..NLP2#

MARK C

 1
11115-33020E0

1NDTV..NLP2#

MARK E,MARK E

 1
11115-33020A0

1NDTV..NLP2#

MARK A

 1
11115-33022C0

1NDTV..NLP2#

MARK C

 1
11115-33020C0

1NDTV..NLP2#

MARK C

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14008

1NDTV..NLP2#

 3
90341-14008

1NDTV..NLP2#

 3
11117H - GASKET(FOR WATER HOLE)
90430-14008

1NDTV..NLP2#

 3
90430-14008

1NDTV..NLP2#

 3
11122 - BUSH, INTAKE VALVE GUIDE
11122-30020

1NDTV..NLP2#

O/S 0.05

 4
11123-30020

1NDTV..NLP2#

STD

 4
11122-30020

1NDTV..NLP2#

O/S 0.05

 4
11123-30020

1NDTV..NLP2#

STD

 4
11122-33030

1NDTV..NLP2#

STD

 4
11123-33030

1NDTV..NLP2#

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-30020

1NDTV..NLP2#

O/S 0.05

 4
11123-30020

1NDTV..NLP2#

STD

 4
11122-33030

1NDTV..NLP2#

STD

 4
11123-30020

1NDTV..NLP2#

STD

 4
11123-33030

1NDTV..NLP2#

O/S 0.05

 4
11122-30020

1NDTV..NLP2#

O/S 0.05

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07009

1NDTV..NLP2#

NO.2

 8
90119-07008

1NDTV..NLP2#

NO.1

 4
90119-07008

1NDTV..NLP2#

NO.1

 4
90119-07009

1NDTV..NLP2#

NO.2

 8
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07009

1NDTV..NLP2#

NO.2

 8
90119-07008

1NDTV..NLP2#

NO.1

 4
90119-07008

1NDTV..NLP2#

NO.1

 4
90119-07009

1NDTV..NLP2#

NO.2

 8
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-33020

1NDTV..NLP2#

 1
11201-33020

1NDTV..NLP2#

 1
11212 - COVER, CYLINDER HEAD, NO.2
11212-33010

1NDTV..NLP2#

 1
11212-33010

1NDTV..NLP2#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-33021

1NDTV..NLP2#

 1
11213-33020

1NDTV..NLP2#

 1
11213-33020

1NDTV..NLP2#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010

1N#,2NZFE..NCP2#,NLP2#

 1
12180-28010

1NDTV..NLP2#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1N#,2NZFE..NCP2#,NLP2#

 1
90430-37004

1NDTV..NLP2#

 1
12281A - HANGER, ENGINE, NO.1
12281-21010

1NDTV..NLP2#

 2
12281-21010

1NDTV..NLP2#

 2
12281A - HANGER, ENGINE, NO.1
12281-21010

1NDTV..NLP2#

 2
12281-21010

1NDTV..NLP2#

 2
Common parts
90253-11005
91551-80618
91551-80622
91672-81025
Linked diagrams
1503
1603
8716
