NLP20R-CHMGXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0509)

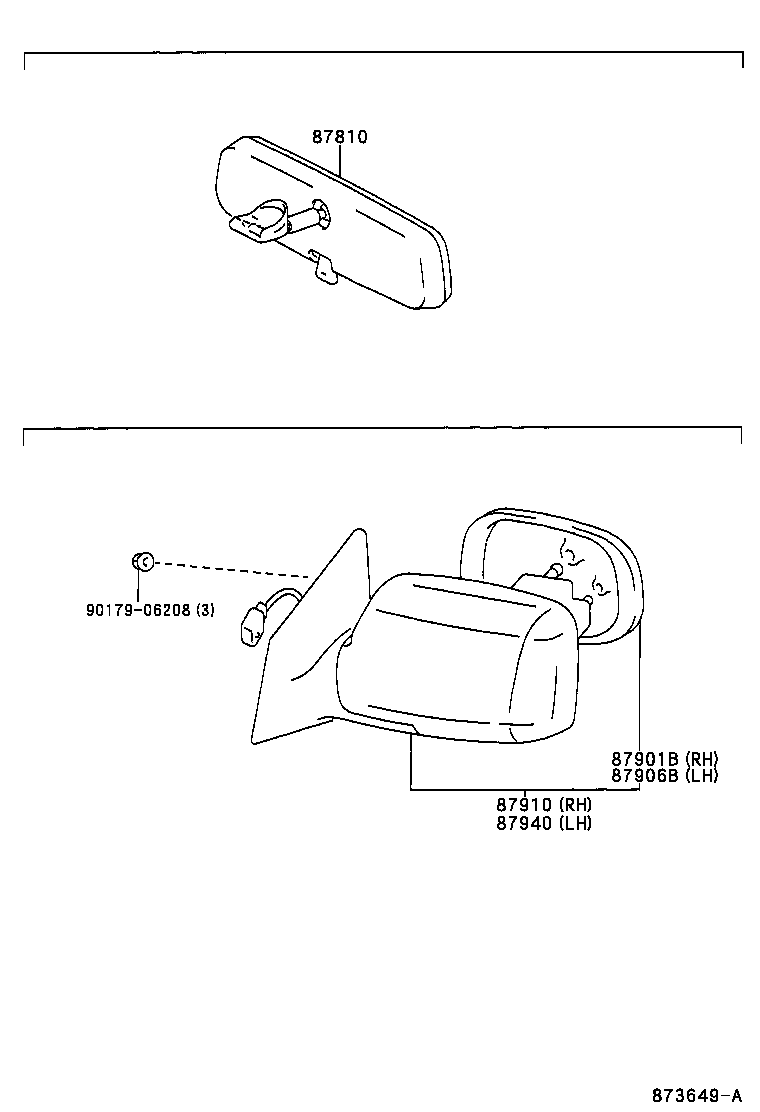

Click highlighted areas on diagram

diagram 87810 87901B 87906B 87910 87940 9017906208
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0W030

NCP2#,NLP2#

 1
87810-52040

NCP2#,NLP2#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-44010

NCP2#,NLP2#

 1
87931-44010

NCP2#,NLP2#

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-44010

NCP2#,NLP2#

 1
87961-44010

NCP2#,NLP2#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-52010

NCP2#,NLP2#..RHD

ELECTRIC REMOTE CONTROL

 1
87910-52010

NCP2#,NLP2#..RHD

ELECTRIC REMOTE CONTROL

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-52010

NCP2#,NLP2#..RHD

ELECTRIC REMOTE CONTROL

 1
87940-52010

NCP2#,NLP2#..RHD

ELECTRIC REMOTE CONTROL

 1
Common parts
90179-06208
