NLP20R-CHMGXW (2001)
Toyota Yaris/Echo Verso
Production
Oct 2001
-
Sep 2005
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0509)

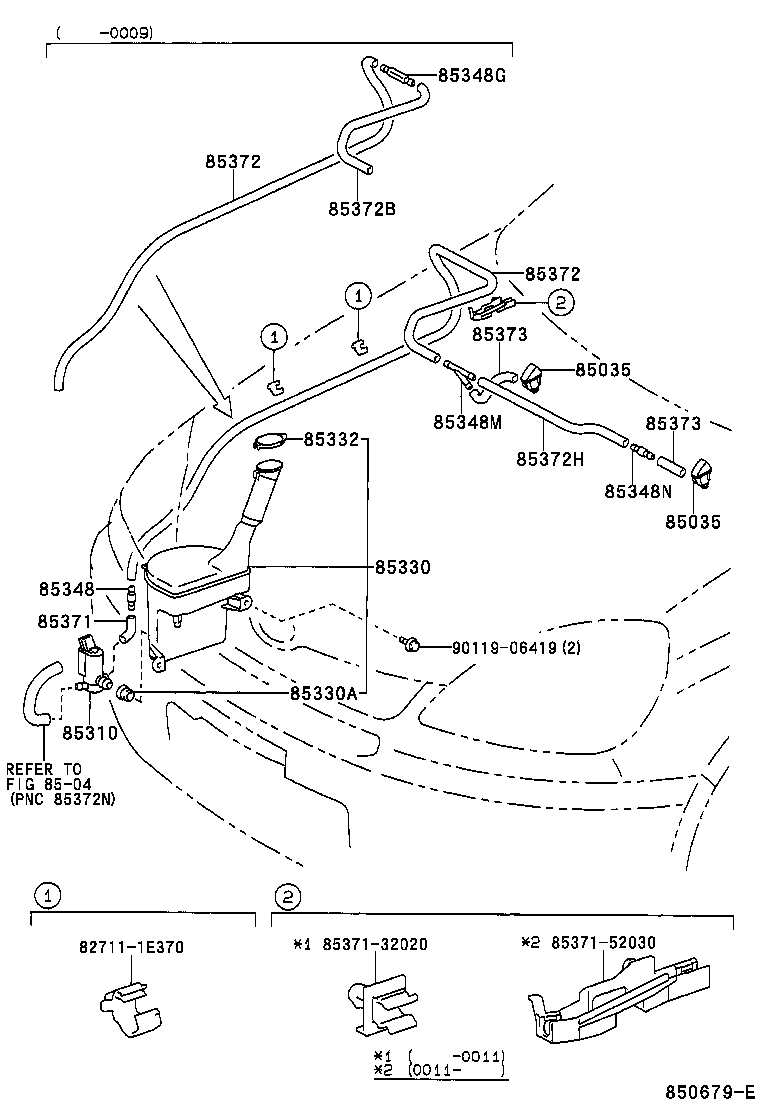

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-52050 |
NCP2#,NLP2#..RHD |
2 | ||
| 85381-52050 |
NCP2#,NLP2#..RHD |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-52050 |
NCP2#,NLP2#..RHD |
2 | ||
| 85381-52050 |
NCP2#,NLP2#..RHD |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-20460 |
NCP2#,NLP2# W(REAR WIPER) |
1 | ||
| 85330-20460 |
NCP2#,NLP2# W(REAR WIPER) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-52050 |
NCP2#,NLP2# |
1 | ||
| 85315-52050 |
NCP2#,NLP2# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
NCP2#,NLP2# |
1 | ||
| 90099-32089 |
NCP2#,NLP2# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-42011 |
NCP2#,NLP2# |
1 | ||
| 85316-42011 |
NCP2#,NLP2# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NCP2#,NLP2# |
1 | ||
| 85349-89122 |
NCP2#,NLP2# |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85348-12250 |
NCP2#,NLP2# |
1 | ||
| 85348-12250 |
NCP2#,NLP2# |
1 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85349-89122 |
NCP2#,NLP2# |
1 | ||
| 85349-89122 |
NCP2#,NLP2# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
NCP2#,NLP2# *H,L=50 |
1 | ||
| 90099-33080 |
NCP2#,NLP2# *H,L=50 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
NCP2#,NLP2# *H,L=1600 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
NCP2#,NLP2# *H,L=1600 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
NCP2#,NLP2# *H,L=580 |
1 | ||
| 90446-07001 |
NCP2#,NLP2# *H,L=580 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NCP2#,NLP2# *H,L=50 |
1 | ||
| 90099-33080 |
NCP2#,NLP2# *H,L=50 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NCP2#,NLP2# *H,L=50 |
1 | ||
| 90099-33080 |
NCP2#,NLP2# *H,L=50 |
1 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 85371-32020 | ||||
| 85371-52030 | ||||
| 90119-06419 | ||||
| Linked diagrams | ||||
| 8504 | ||||
