NLP20R-CHMGXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

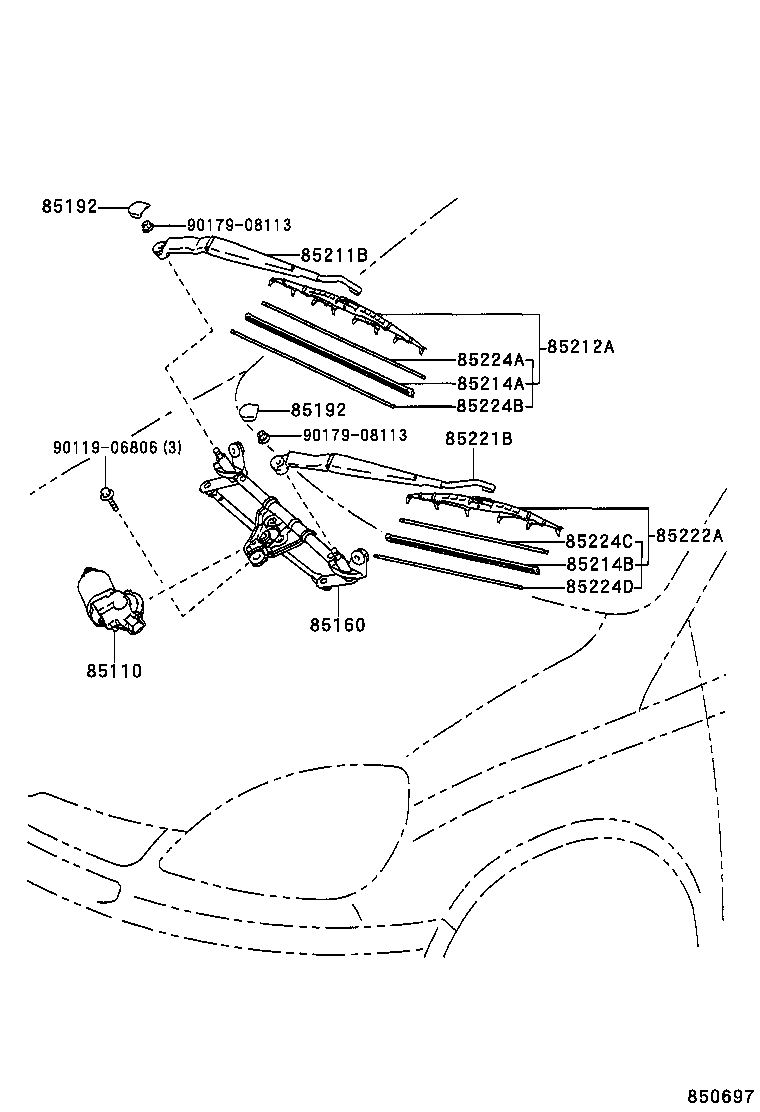

(9908-0211)RHD

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 9011906806 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-52080

NCP2#,NLP2#..RHD

 1
85110-52080

NCP2#,NLP2#..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-52050

NCP2#,NLP2#..RHD

 1
85150-52050

NCP2#,NLP2#..RHD

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

NCP2#,NLP2#

 2
85192-12800

NCP2#,NLP2#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

NCP2#,NLP2#

 2
85192-12800

NCP2#,NLP2#

 2
85211B - ARM, FRONT WIPER, RH
85211-52070

NCP2#,NLP2#..RHD

 1
85211-52070

NCP2#,NLP2#..RHD

 1
85212A - BLADE, FR WIPER, RH
85212-52050

NCP2#,NLP2#..RHD

 1
85212-52070

NCP2#,NLP2#..RHD

 1
85212-52070

NCP2#,NLP2#..RHD

 1
85214A - RUBBER, WIPER, RH
85214-48010

NCP2#,NLP2#..RHD

 1
85214-33100

NCP2#,NLP2#..RHD

 1
85214B - RUBBER, WIPER, LH
85214-50060

NCP2#,NLP2#..RHD

 1
85214-44020

NCP2#,NLP2#..RHD

 1
85214-50130

NCP2#,NLP2#..RHD

 1
85221B - ARM, FRONT WIPER, LH
85221-52070

NCP2#,NLP2#..RHD

 1
85221-52070

NCP2#,NLP2#..RHD

 1
85222A - BLADE, FR WIPER, LH
85222-52040

NCP2#,NLP2#..RHD

 1
85222-52150

NCP2#,NLP2#..RHD

 1
85222-52040

NCP2#,NLP2#..RHD

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-33040

NCP2#,NLP2#..RHD

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-33040

NCP2#,NLP2#..RHD

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-44020

NCP2#,NLP2#..RHD

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-44020

NCP2#,NLP2#..RHD

 1
Common parts
90119-06806
90179-08113

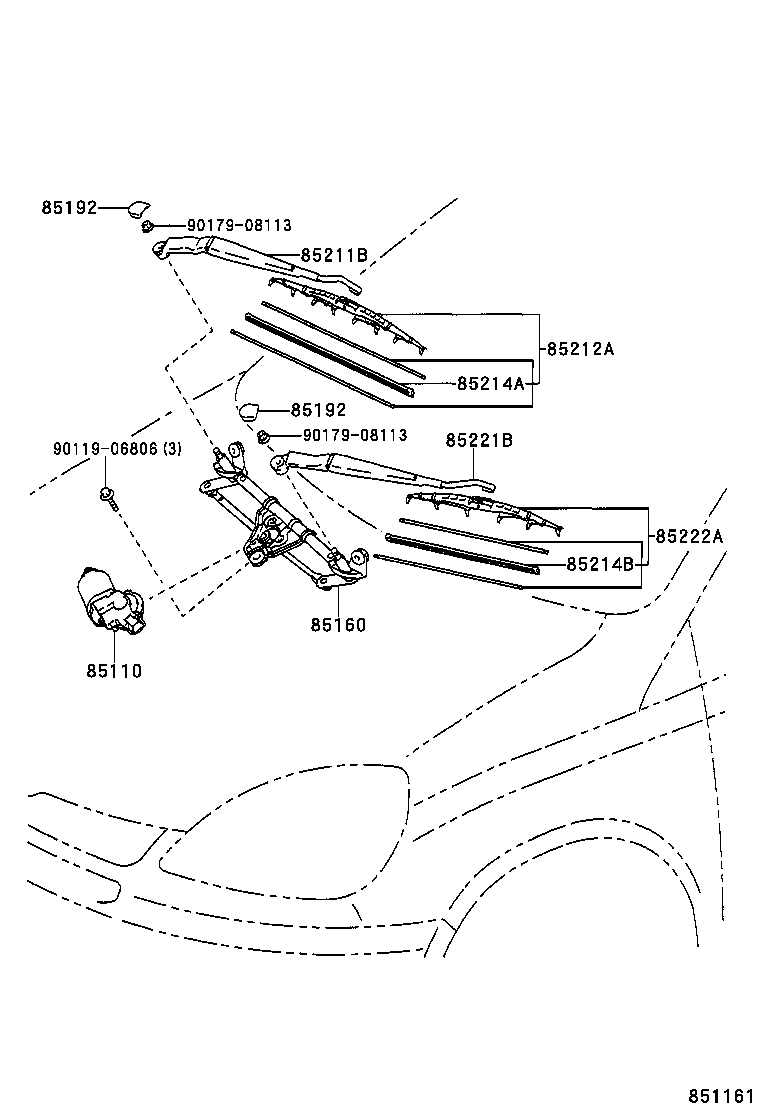

(0211-0509)RHD

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 9011906806 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-52080

NCP2#,NLP2#..RHD

 1
85110-52080

NCP2#,NLP2#..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-52050

NCP2#,NLP2#..RHD

 1
85150-52050

NCP2#,NLP2#..RHD

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

NCP2#,NLP2#

 2
85192-12800

NCP2#,NLP2#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

NCP2#,NLP2#

 2
85192-12800

NCP2#,NLP2#

 2
85211B - ARM, FRONT WIPER, RH
85211-52070

NCP2#,NLP2#..RHD

 1
85211-52070

NCP2#,NLP2#..RHD

 1
85212A - BLADE, FR WIPER, RH
85212-52050

NCP2#,NLP2#..RHD

 1
85212-52070

NCP2#,NLP2#..RHD

 1
85212-52070

NCP2#,NLP2#..RHD

 1
85214A - RUBBER, WIPER, RH
85214-48010

NCP2#,NLP2#..RHD

 1
85214-33100

NCP2#,NLP2#..RHD

 1
85214B - RUBBER, WIPER, LH
85214-50130

NCP2#,NLP2#..RHD

 1
85214-50060

NCP2#,NLP2#..RHD

 1
85214-44020

NCP2#,NLP2#..RHD

 1
85221B - ARM, FRONT WIPER, LH
85221-52070

NCP2#,NLP2#..RHD

 1
85221-52070

NCP2#,NLP2#..RHD

 1
85222A - BLADE, FR WIPER, LH
85222-52040

NCP2#,NLP2#..RHD

 1
85222-52150

NCP2#,NLP2#..RHD

 1
85222-52040

NCP2#,NLP2#..RHD

 1
Common parts
90119-06806
90179-08113
