NLP20R-CHMGXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )1NDTV

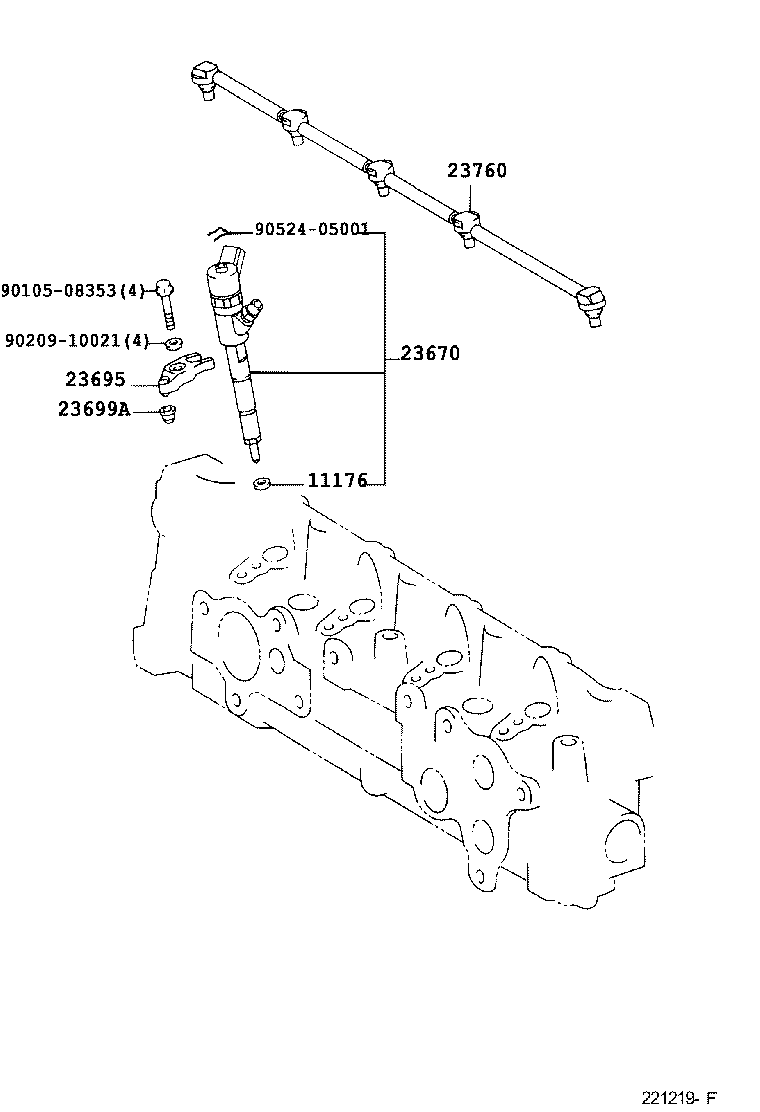

Click highlighted areas on diagram

diagram 11176 23670 23695 23699A 23760 9010508353 9020910021 9052405001
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-33010

1NDTV..NLP2#

 4
11176-33010

1NDTV..NLP2#

 4
23670 - INJECTOR ASSY
23670-39055B0

1NDTV..NLP2#

REFER TO REPAIR MANUAL,MARK B

 4
23670-39055A0

1NDTV..NLP2#

REFER TO REPAIR MANUAL,MARK A

 4
23670-39055C0

1NDTV..NLP2#

REFER TO REPAIR MANUAL,MARK C

 4
23670-39115A0

1NDTV..NLP2#

REFER TO REPAIR MANUAL,MARK A

 1
23670-39055C0

1NDTV..NLP2#

REFER TO REPAIR MANUAL,MARK C

 4
23670-39115B0

1NDTV..NLP2#

REFER TO REPAIR MANUAL,MARK B

 1
23670-39055A0

1NDTV..NLP2#

REFER TO REPAIR MANUAL,MARK A

 4
23670-39055B0

1NDTV..NLP2#

REFER TO REPAIR MANUAL,MARK B

 4
23670-39115C0

1NDTV..NLP2#

REFER TO REPAIR MANUAL,MARK C

 1
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-33010

1NDTV..NLP2#

 4
23695-33010

1NDTV..NLP2#

 4
23699A - SEAT, NOZZLE HOLDER CLAMP
23699-33010

1NDTV..NLP2#

 4
23699-74010

1NDTV..NLP2#

 4
23699-74010

1NDTV..NLP2#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-33010

1NDTV..NLP2#

 1
23760-33010

1NDTV..NLP2#

 1
Common parts
90105-08353
90209-10021
90524-05001
