NLP20L-CHMNXW (2001)
Toyota Yaris/Echo Verso

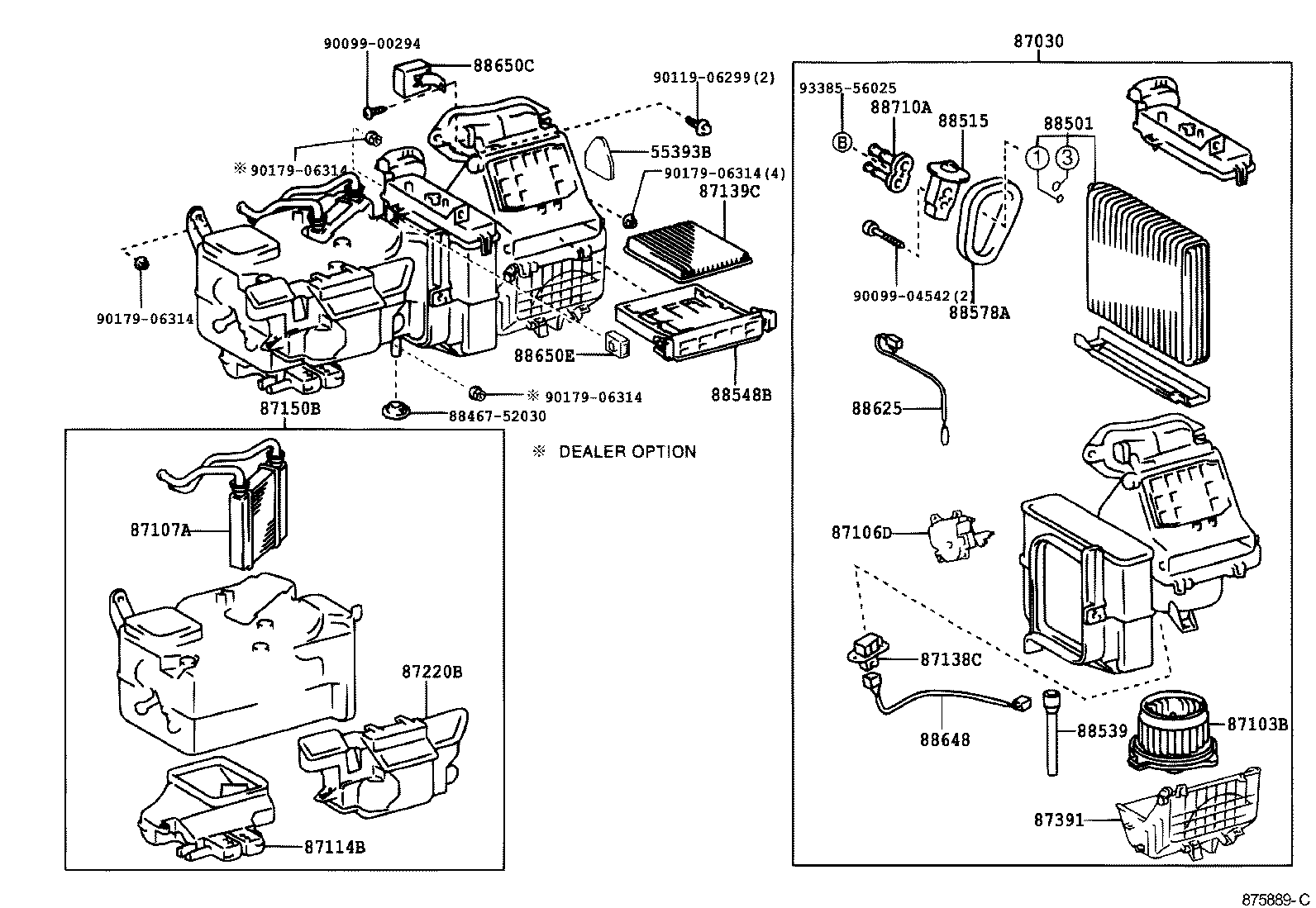

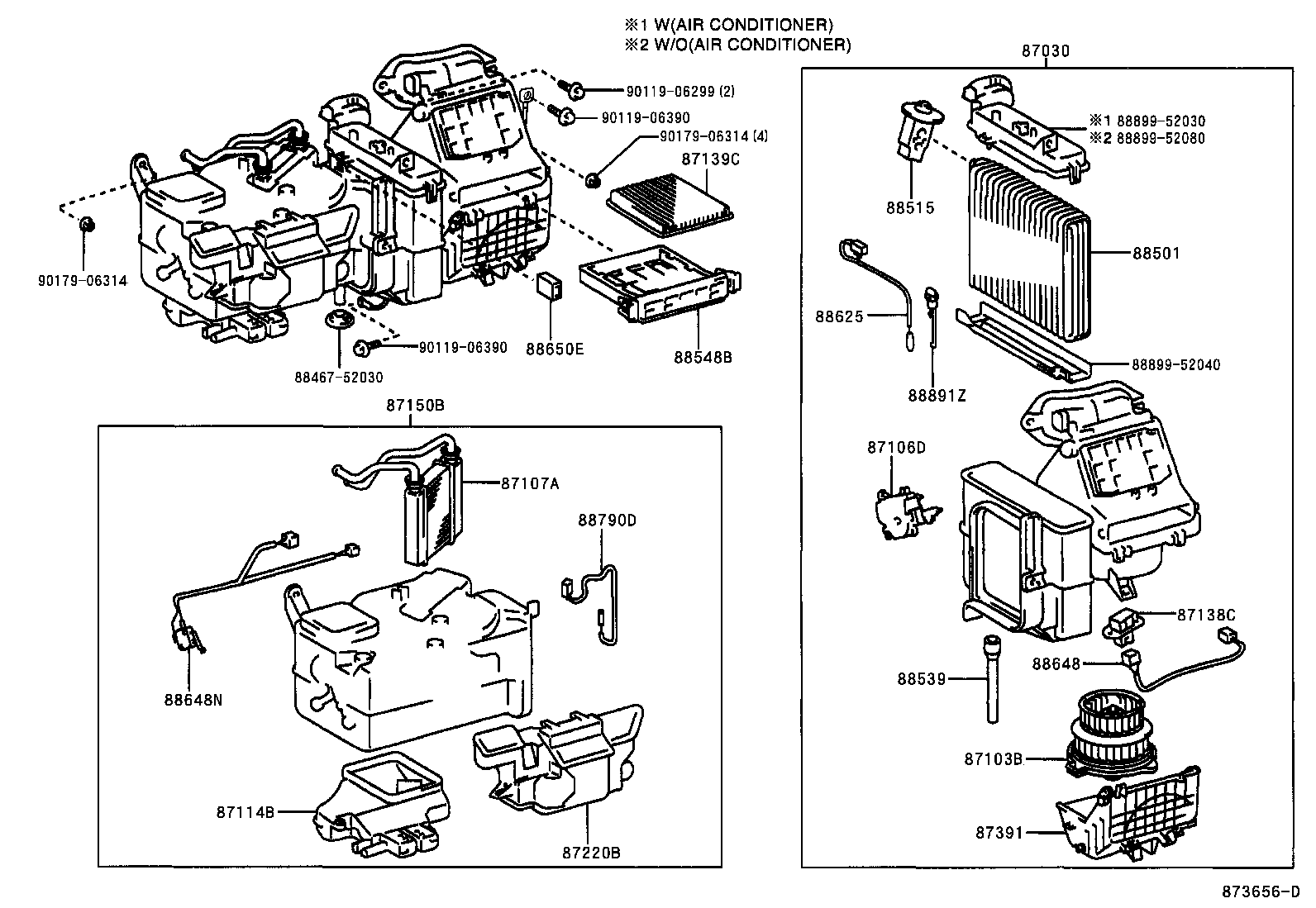

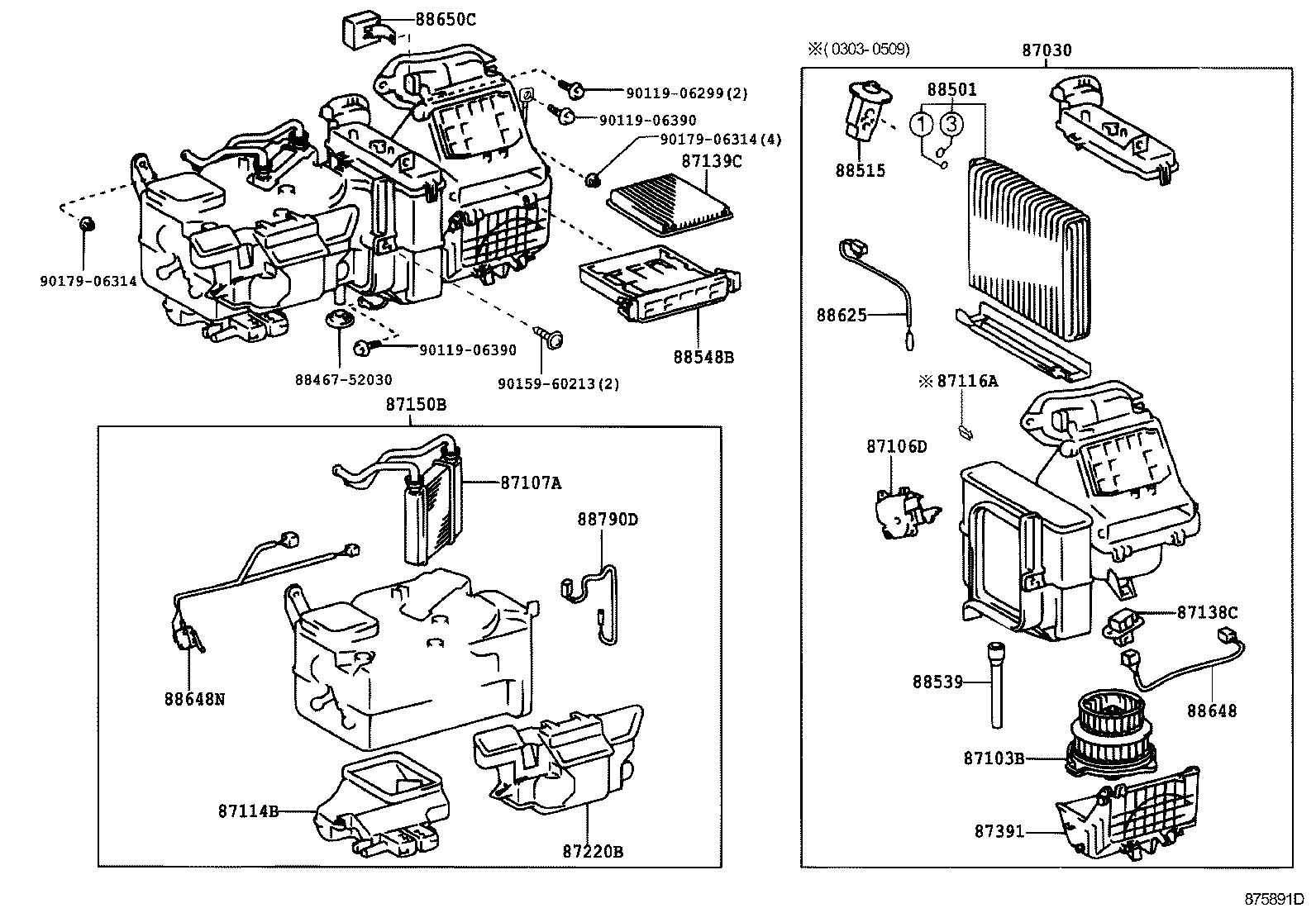

ILLUST NO. 1 OF 2(9908-0211)LHD
COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52100 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52251 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52271 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52101 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52080 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87106-52040 |
NLP2#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87107-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87107-52040 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87107-52040 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138-52010 |
NCP2#,NLP2# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52150 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87150-52140 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52070 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52140 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52110 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52070 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52141 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52110 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52111 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52150 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87150-52071 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52151 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87220-52050 |
NCP2#,NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391-52021 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52041 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501-52080 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP2#,NLP2# |
1 | ||
| 88515-52050 |
NLP2# |
1 | ||
| 88515-52010 |
NLP2#..LHD |
1 | ||
| 88515-52010 |
NLP2# |
1 | ||
| 88515-52050 |
NLP2#..LHD DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP2#,NLP2# |
1 | ||
| 88625-52100 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88625-52020 |
NLP2#;NCP2#..LHD DEALER OPTION |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP2#,NLP2# |
1 | ||
| 88648-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-52010 |
NCP2#,NLP2#..LHD |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52180 |
NLP2#..LHD |
1 | ||
| 88650-52180 |
NLP2#..LHD |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
NCP2#,NLP2# |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88899-52030 | ||||
| 88899-52040 | ||||
| 88899-52080 | ||||
| 90119-06299 | ||||
| 90119-06390 | ||||
| 90179-06314 | ||||

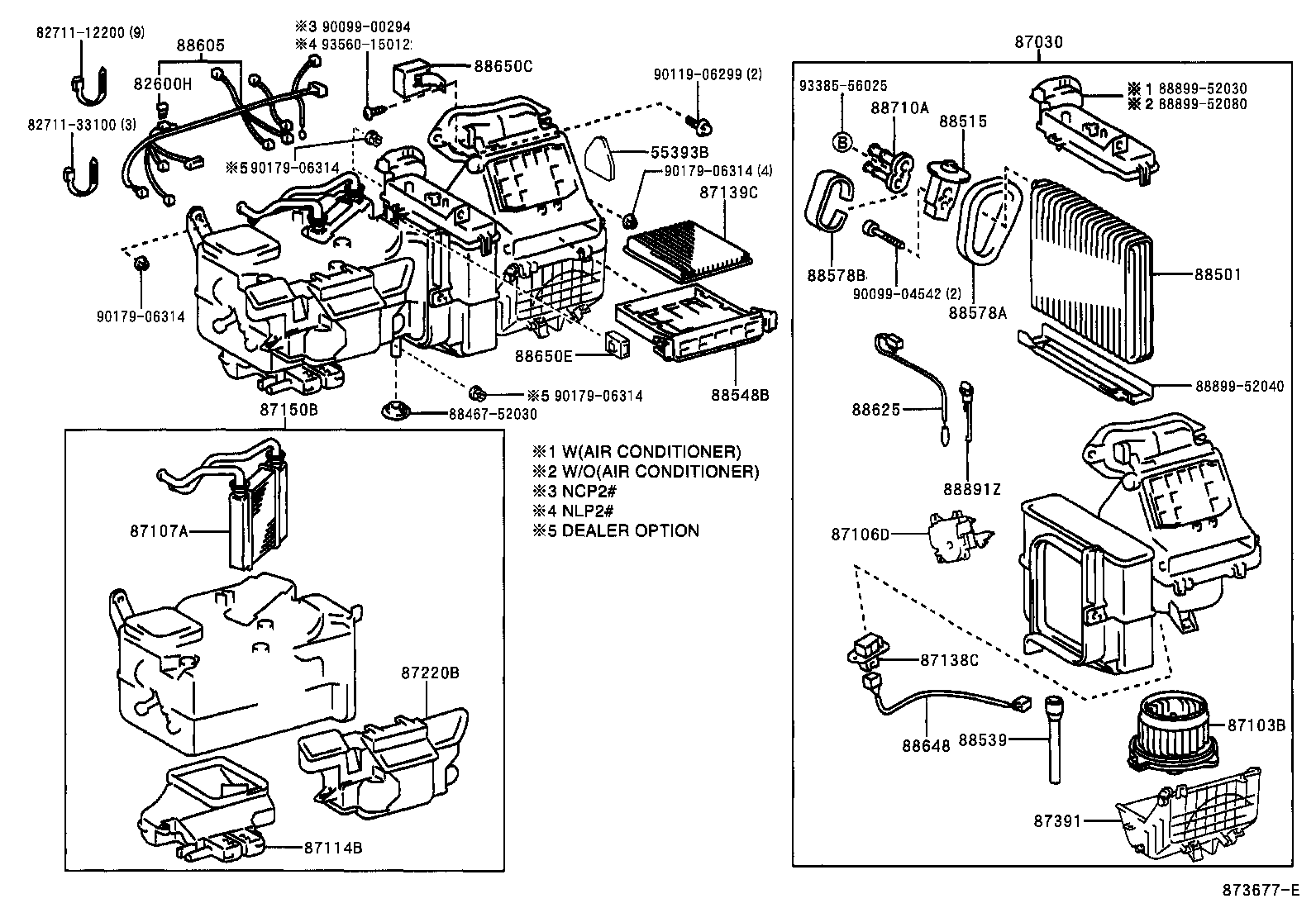

ILLUST NO. 1 OF 2(9908-0211)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55393B - CUSHION, AIR CONDITIONING COOLER UNIT | ||||
| 55393-52010 |
NLP2# |
1 | ||
| 55393-52010 |
NLP2# |
1 | ||
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52100 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52251 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52271 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52101 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52080 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87106-52040 |
NLP2#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87107-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87107-52040 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87107-52040 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138-52010 |
NCP2#,NLP2# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52150 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87150-52140 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52070 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52140 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52110 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52070 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52141 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52110 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52111 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52150 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87150-52071 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52151 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87220-52050 |
NCP2#,NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391-52021 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52041 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501-52080 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP2#,NLP2# |
1 | ||
| 88515-52050 |
NLP2# |
1 | ||
| 88515-52010 |
NLP2#..LHD |
1 | ||
| 88515-52010 |
NLP2# |
1 | ||
| 88515-52050 |
NLP2#..LHD DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88578-52020 |
NLP2#..LHD |
1 | ||
| 88578-52020 |
NLP2#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP2#,NLP2# |
1 | ||
| 88625-52100 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88625-52020 |
NLP2#;NCP2#..LHD DEALER OPTION |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP2#,NLP2# |
1 | ||
| 88648-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52180 |
NLP2#..LHD |
1 | ||
| 88650-52180 |
NLP2#..LHD |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
NCP2#,NLP2# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-33100 | ||||
| 88467-52030 | ||||
| 88899-52030 | ||||
| 88899-52040 | ||||
| 88899-52080 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90179-06314 | ||||
| 93385-56025 | ||||
| 93560-15012 | ||||

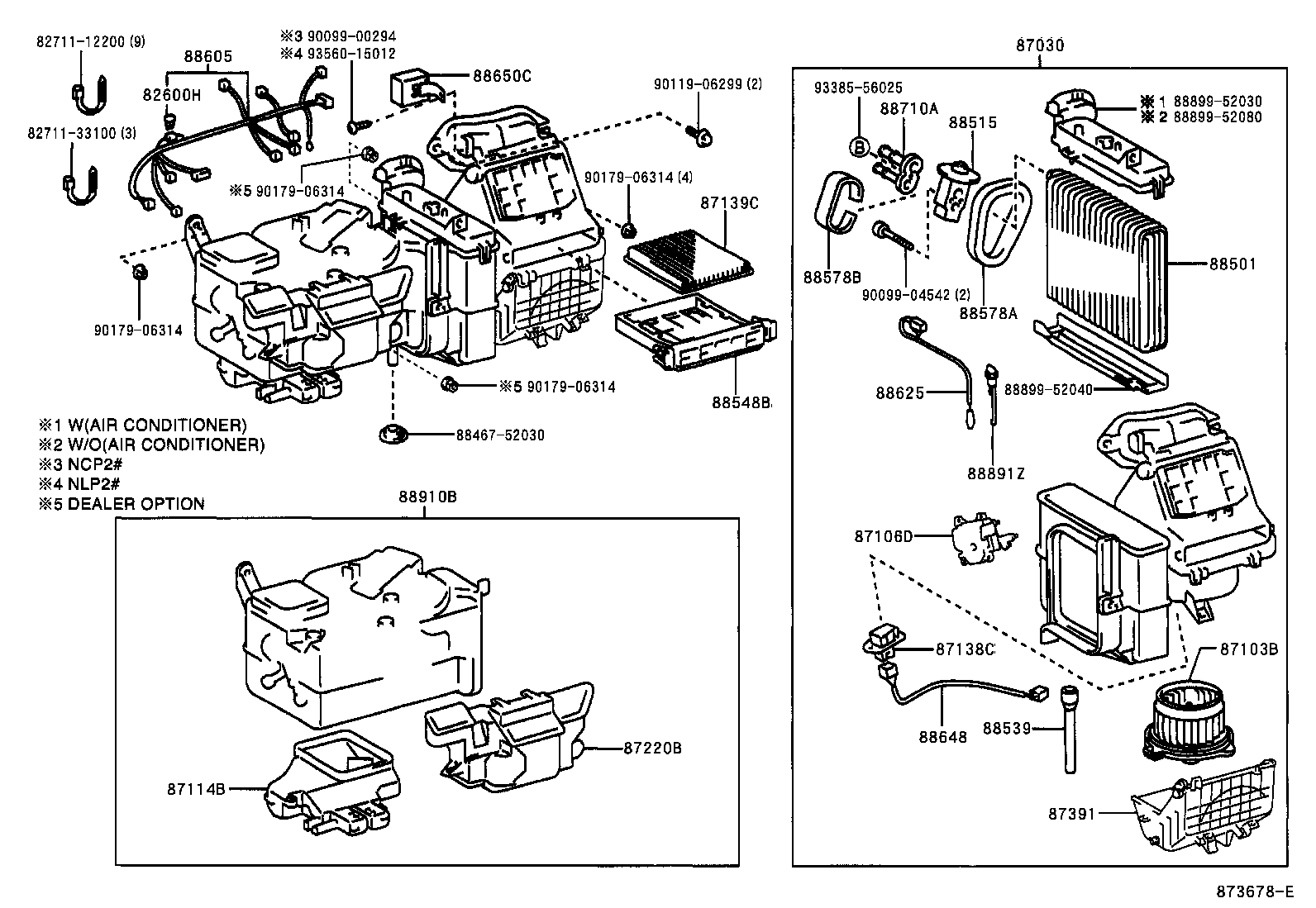

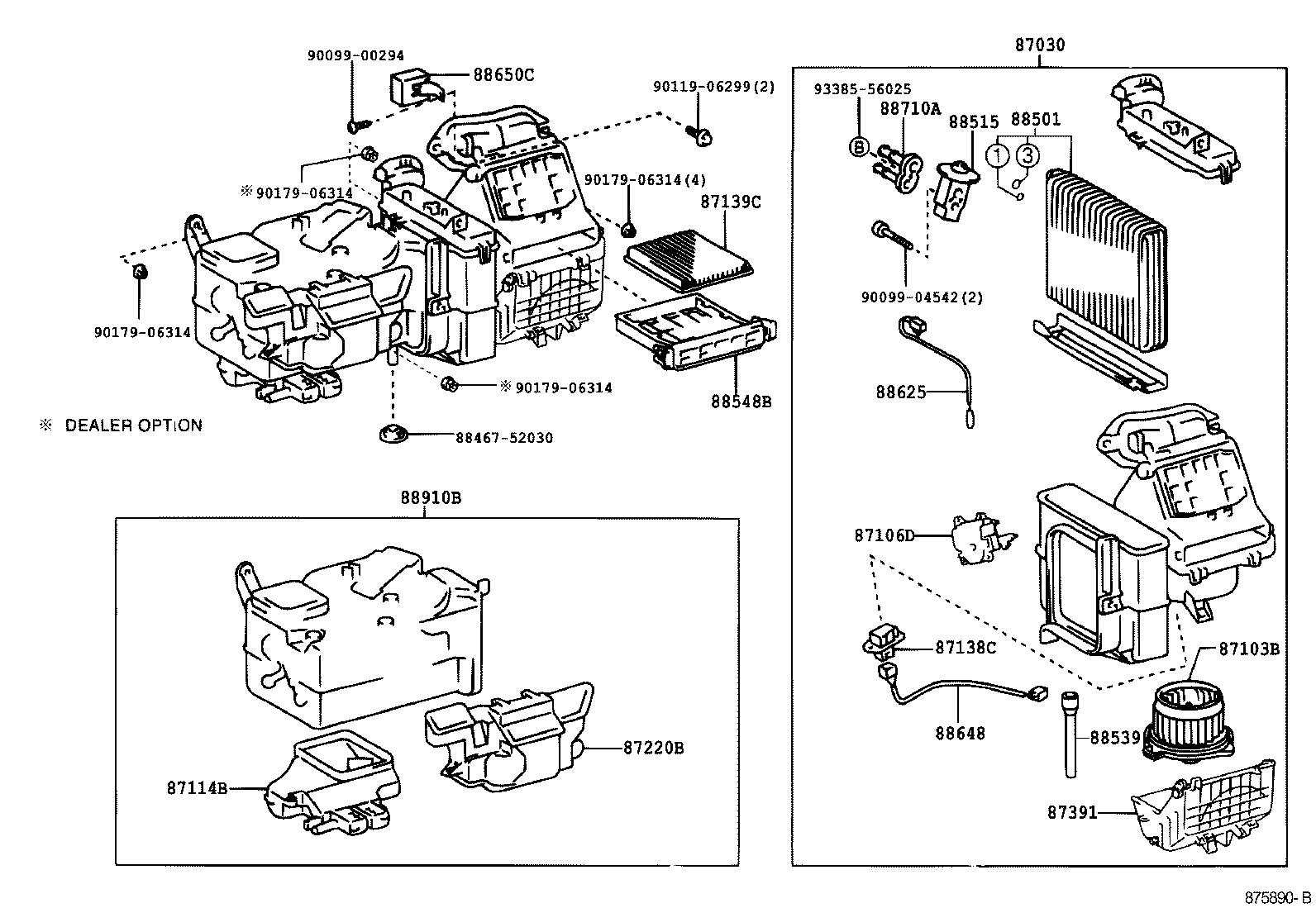

ILLUST NO. 1 OF 2(9908-0211)LHD
W(BOOST VENTILATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52100 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52251 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52271 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52101 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52080 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87106-52040 |
NLP2#..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138-52010 |
NCP2#,NLP2# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87220-52050 |
NCP2#,NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391-52021 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52041 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501-52080 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP2#,NLP2# |
1 | ||
| 88515-52050 |
NLP2# |
1 | ||
| 88515-52010 |
NLP2#..LHD |
1 | ||
| 88515-52010 |
NLP2# |
1 | ||
| 88515-52050 |
NLP2#..LHD DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88578-52020 |
NLP2#..LHD |
1 | ||
| 88578-52020 |
NLP2#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP2#,NLP2# |
1 | ||
| 88625-52100 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88625-52020 |
NLP2#;NCP2#..LHD DEALER OPTION |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP2#,NLP2# |
1 | ||
| 88648-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
NCP2#,NLP2# |
1 | ||
| 88910B - VENTILATOR ASSY, BOOST | ||||
| 88910-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88910-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-33100 | ||||
| 88467-52030 | ||||
| 88899-52030 | ||||
| 88899-52040 | ||||
| 88899-52080 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90179-06314 | ||||
| 93385-56025 | ||||
| 93560-15012 | ||||
ILLUST NO. 1 OF 2(0211- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55393B - CUSHION, AIR CONDITIONING COOLER UNIT | ||||
| 55393-52010 |
NLP2# |
1 | ||
| 55393-52010 |
NLP2# |
1 | ||
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52100 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52251 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52271 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52101 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52080 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87106-52040 |
NLP2#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87107-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87107-52040 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87107-52040 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138-52010 |
NCP2#,NLP2# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52150 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87150-52140 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52070 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52140 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52110 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52070 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52141 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52110 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52111 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52150 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87150-52071 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52151 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87220-52050 |
NCP2#,NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391-52021 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52041 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501-52080 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP2#,NLP2# |
1 | ||
| 88515-52050 |
NLP2# |
1 | ||
| 88515-52010 |
NLP2#..LHD |
1 | ||
| 88515-52010 |
NLP2# |
1 | ||
| 88515-52050 |
NLP2#..LHD DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88578-52020 |
NLP2#..LHD |
1 | ||
| 88578-52020 |
NLP2#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP2#,NLP2# |
1 | ||
| 88625-52100 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88625-52020 |
NLP2#;NCP2#..LHD DEALER OPTION |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP2#,NLP2# |
1 | ||
| 88648-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52180 |
NLP2#..LHD |
1 | ||
| 88650-52180 |
NLP2#..LHD |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90179-06314 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 2(0211- )LHD
W(BOOST VENTILATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52100 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52251 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52271 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52101 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52080 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87106-52040 |
NLP2#..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138-52010 |
NCP2#,NLP2# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87220-52050 |
NCP2#,NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391-52021 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52041 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501-52080 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP2#,NLP2# |
1 | ||
| 88515-52050 |
NLP2# |
1 | ||
| 88515-52010 |
NLP2#..LHD |
1 | ||
| 88515-52010 |
NLP2# |
1 | ||
| 88515-52050 |
NLP2#..LHD DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP2#,NLP2# |
1 | ||
| 88625-52100 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88625-52020 |
NLP2#;NCP2#..LHD DEALER OPTION |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP2#,NLP2# |
1 | ||
| 88648-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88910B - VENTILATOR ASSY, BOOST | ||||
| 88910-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88910-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 90099-00294 | ||||
| 90099-04542 | ||||
| 90119-06299 | ||||
| 90179-06314 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 2(0211- )LHD
COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52270 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52100 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87030-52250 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52251 |
NLP2#..LHD COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 87030-52180 |
NCP2#,NLP2#..LHD |
1 | ||
| 87030-52271 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87030-52101 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52040 |
NLP2#..LHD COLD SPEC OR W(AIR CONDITIONER) |
1 | ||
| 87103-52060 |
NCP2#,NLP2#..LHD |
1 | ||
| 87103-52080 |
NCP2#,NLP2#..LHD COLD SPEC |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87106-52040 |
NLP2#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87107-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87107-52040 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87107-52040 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52040 |
NCP2#,NLP2#..LHD |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP2#,NLP2#..LHD |
1 | ||
| 87138-52010 |
NCP2#,NLP2# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 88568-52010 |
NCP2#,NLP2# |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52150 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87150-52140 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52070 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52140 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52110 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52070 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52141 |
NLP2#..LHD COLD SPEC |
1 | ||
| 87150-52110 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52111 |
NCP2#,NLP2#..LHD |
1 | ||
| 87150-52150 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87150-52071 |
NLP2#..LHD W(AIR CONDITIONER) |
1 | ||
| 87150-52151 |
NLP2#..LHD W(REAR HEATER DUCT) |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87220-52050 |
NCP2#,NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 87220-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 87391-52021 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52041 |
NCP2#,NLP2#..LHD |
1 | ||
| 88501-52080 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP2#,NLP2# |
1 | ||
| 88515-52050 |
NLP2# |
1 | ||
| 88515-52010 |
NLP2#..LHD |
1 | ||
| 88515-52010 |
NLP2# |
1 | ||
| 88515-52050 |
NLP2#..LHD DEALER OPTION |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88539-52010 |
NCP2#,NLP2# |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88548-52010 |
NCP2#,NLP2# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP2#,NLP2# |
1 | ||
| 88625-52100 |
NCP2#,NLP2#..LHD MAKER OPTION |
1 | ||
| 88625-52020 |
NLP2#;NCP2#..LHD DEALER OPTION |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP2#,NLP2# |
1 | ||
| 88648-52020 |
NCP2#,NLP2#..LHD |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-52010 |
NCP2#,NLP2#..LHD |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| 88650-52190 |
NLP2# W(AIR CONDITIONER) |
1 | ||
| 88650-52200 |
NLP2#..LHD W(BOOST VENTILATOR) |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 90119-06299 | ||||
| 90119-06390 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
