NLP20L-CHMNXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0509)

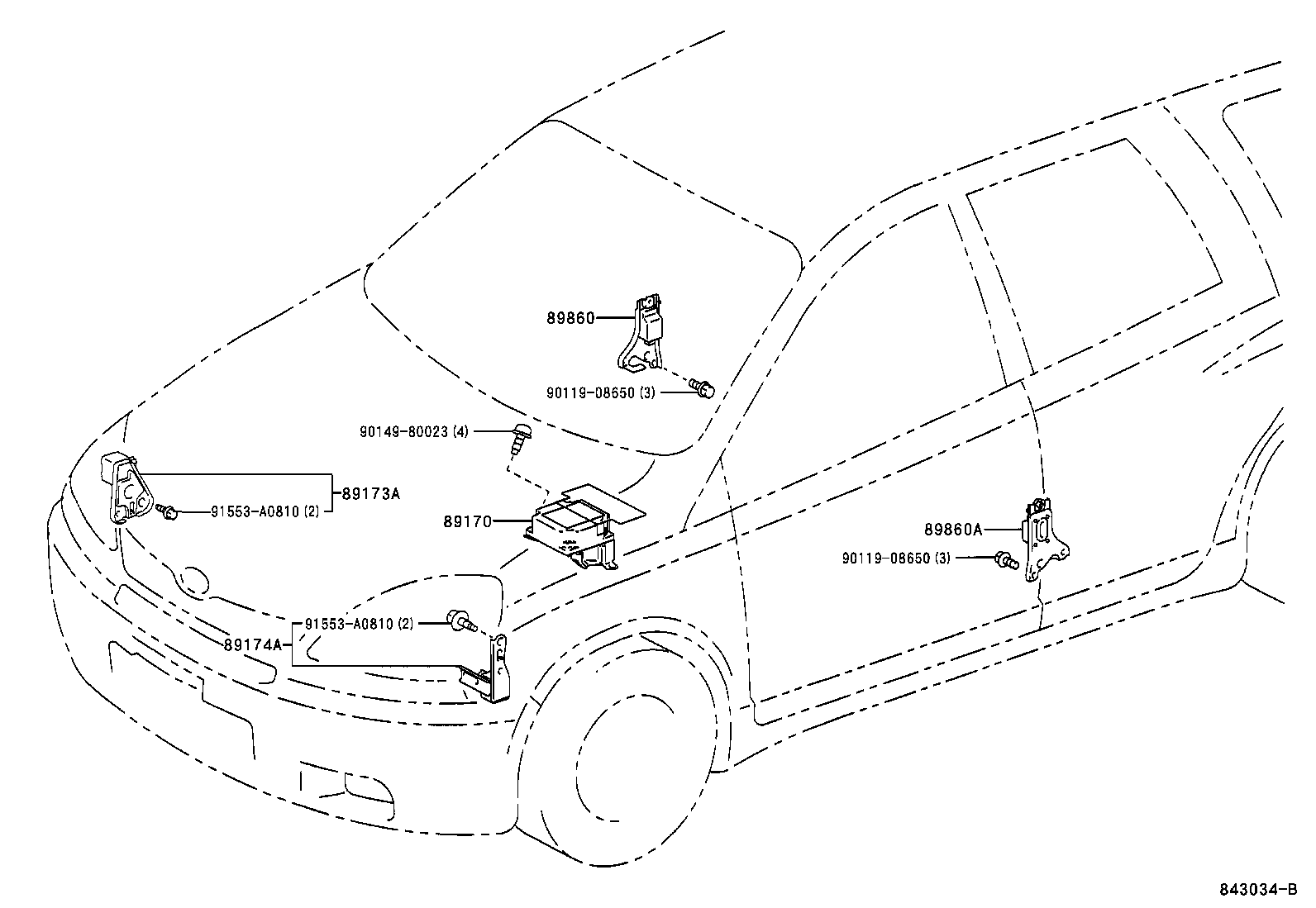

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89860 89860A 9011908650 9011908650 9014980023 91553A0810 91553A0810
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-52060

NCP2#,NLP2#..4FC,5F

 1
89170-52070

NCP2#,NLP2#

*80,DRIVER SIDE & PASSENGER SIDE

 1
89170-52340

NCP2#,NLP2#

*80,DRIVER SIDE & PASSENGER SIDE

 1
89170-52080

NCP2#,NLP2#..4FC,5F

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

 1
89170-52330

NCP2#,NLP2#..4FC,5F

 1
89170-52350

NCP20,21,NLP20..4FC,5F

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-59225

NCP2#,NLP2#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-59155

NCP2#,NLP2#

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-52050

NCP20,21,NLP20..4FC,5F

 1
89860-52010

NCP2#,NLP2#..4FC,5F

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-52050

NCP20,21,NLP20..4FC,5F

 1
89830-52010

NCP2#,NLP2#..4FC,5F

 1
Common parts
90119-08650
90149-80023
91553-A0810
