NLP20L-CHMGXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0509)

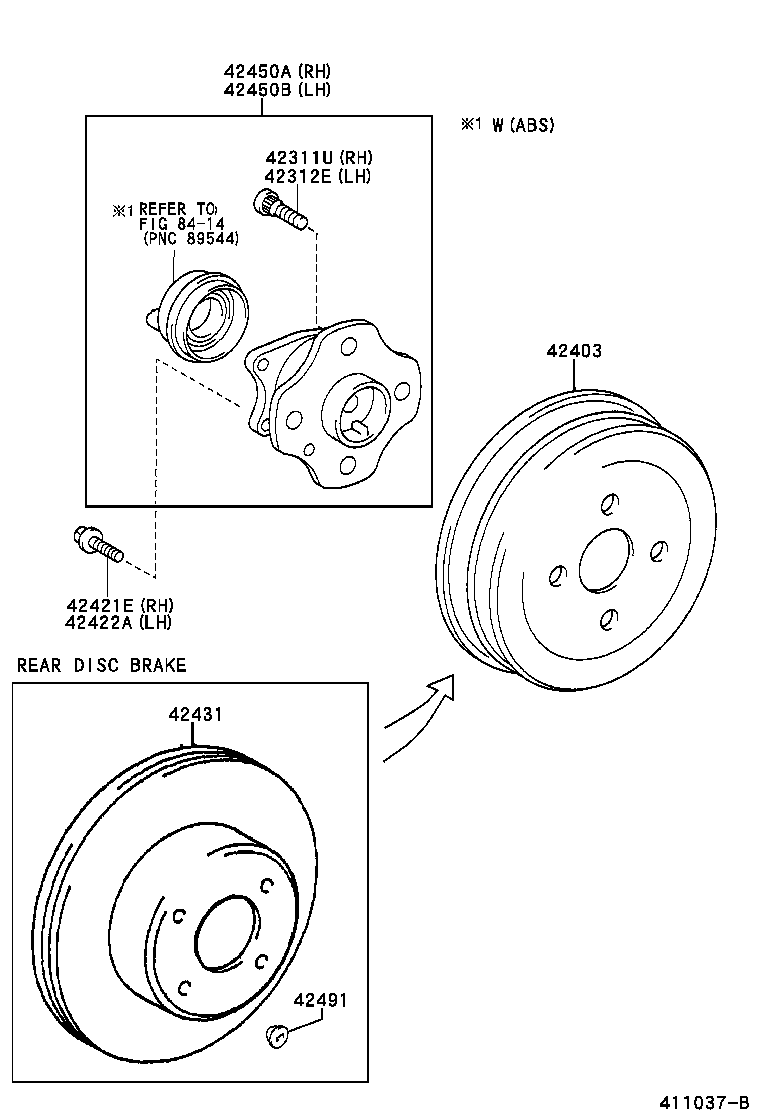

Click highlighted areas on diagram

diagram 42311U 42312E 42403 42421E 42422A 42431 42450A 42450B 42491 8414
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02047

NCP2#,NLP2#

 4
90942-02047

NCP2#,NLP2#

 4
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

NCP2#,NLP2#

 4
90942-02047

NCP2#,NLP2#

 4
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-52021

NCP2#,NLP2#

 2
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-10507

NCP2#,NLP2#

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-10507

NCP2#,NLP2#

 4
42431 - DISC, REAR
42431-52050

NLP20..LHD;NCP20,21..4FC,5F

 2
42431-52050

NLP2#..LHD;NCP2#..4FC,5F

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42410-52020

NCP2#,NLP2#..4FC,5F

 1
42410-52021

NCP2#,NLP2#..4FC,5F

 1
42450-52021

NCP2#,NLP2#..4FC,5F

W(ABS)

 1
42450-52020

NCP2#,NLP2#..4FC,5F

W(ABS)

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42410-52021

NCP2#,NLP2#..4FC,5F

 1
42450-52020

NCP2#,NLP2#..4FC,5F

W(ABS)

 1
42410-52020

NCP2#,NLP2#..4FC,5F

 1
42450-52021

NCP2#,NLP2#..4FC,5F

W(ABS)

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

NLP2#..LHD;NCP2#..4FC,5F

 2
47491-22020

NLP20..LHD;NCP20,21..4FC,5F

 2
Linked diagrams
8414
