NLP20L-CHMGXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )1NDTV

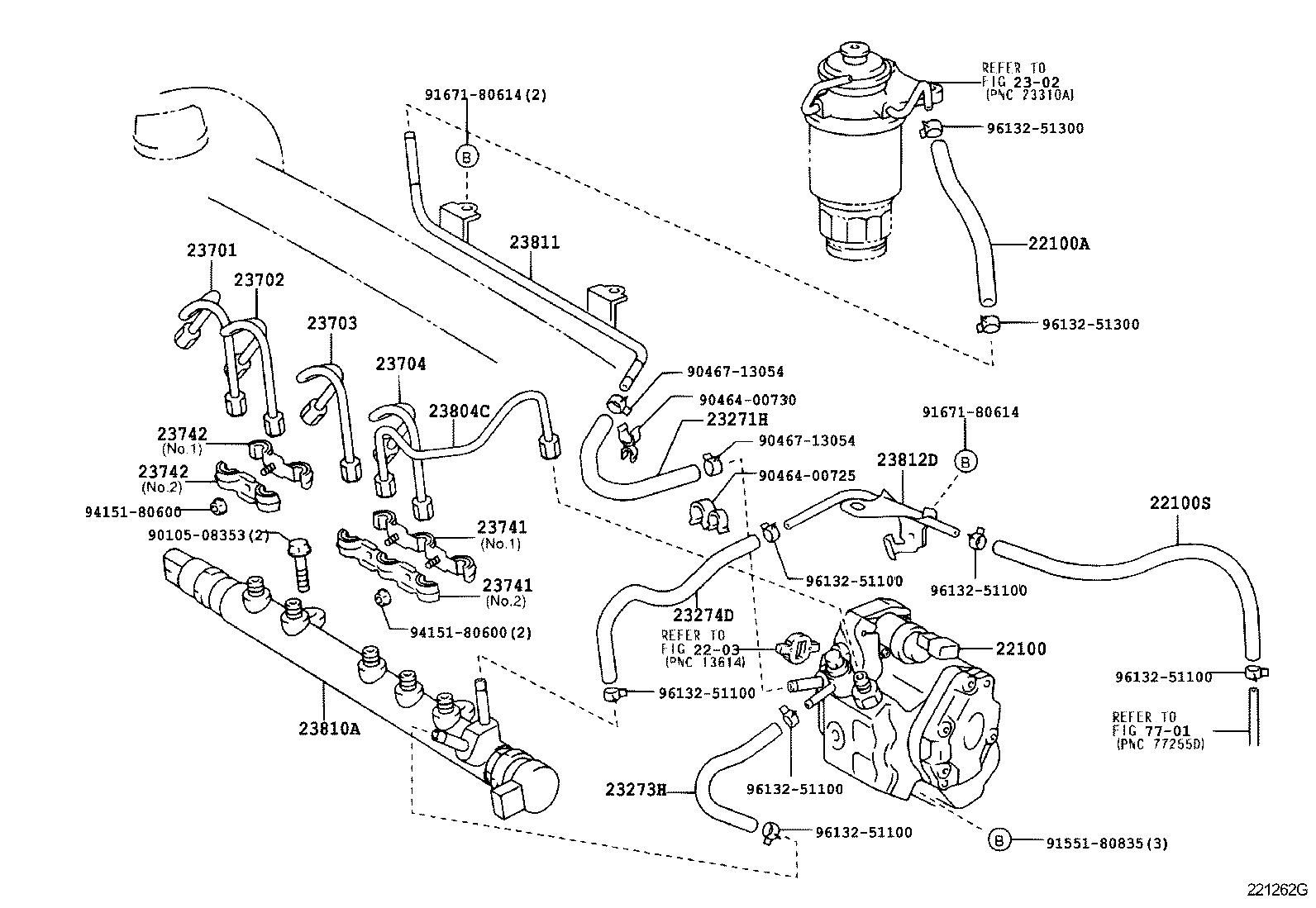

Click highlighted areas on diagram

diagram 2203 22100 22100A 22100S 2302 23271H 23273H 23274D 23701 23702 23703 23704 23741 23741 23742 23742 23804C 23810A 23811 23812D 7701 9010508353 9046400725 9046400730 9046713054 9046713054 9155180835 9167180614 9167180614 9415180600 9415180600 9613251100 9613251100 9613251100 9613251100 9613251100 9613251100 9613251300 9613251300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-33011

1NDTV..NLP2#

 1
22100-33010

1NDTV..NLP2#

 1
22100-33010

1NDTV..NLP2#

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95333-08030

1NDTV..NLP2#

*H,L=260,ID=7.6

 1
95333-08030

1NDTV..NLP2#

*H,L=260,ID=7.6

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23273-33010

1NDTV..NLP2#

 1
23273-33010

1NDTV..NLP2#

 1
23271H - HOSE, FUEL, NO.1
23271-33010

1NDTV..NLP2#

 1
23271-33010

1NDTV..NLP2#

 1
23273H - HOSE, FUEL, NO.2
23273-33020

1NDTV..NLP2#

 1
23273-33020

1NDTV..NLP2#

 1
23273-33060

1NDTV..NLP2#

 1
23274D - HOSE, FUEL, NO.3
23274-33010

1NDTV..NLP2#

 1
23274-33010

1NDTV..NLP2#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-33010

1NDTV..NLP2#

 1
23701-33010

1NDTV..NLP2#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23701-33020

1NDTV..NLP2#

 1
23701-33020

1NDTV..NLP2#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23701-33020

1NDTV..NLP2#

 1
23701-33020

1NDTV..NLP2#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23701-33020

1NDTV..NLP2#

 1
23701-33020

1NDTV..NLP2#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-33020

1NDTV..NLP2#

NO.2

 1
23741-33020

1NDTV..NLP2#

NO.2

 1
23741-33010

1NDTV..NLP2#

NO.1

 1
23741-33010

1NDTV..NLP2#

NO.1

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-33020

1NDTV..NLP2#

NO.2

 1
23741-33020

1NDTV..NLP2#

NO.2

 1
23741-33010

1NDTV..NLP2#

NO.1

 1
23741-33010

1NDTV..NLP2#

NO.1

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-33020

1NDTV..NLP2#

NO.2

 1
23742-33010

1NDTV..NLP2#

NO.1

 1
23742-33020

1NDTV..NLP2#

NO.2

 1
23742-33010

1NDTV..NLP2#

NO.1

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-33020

1NDTV..NLP2#

NO.2

 1
23742-33010

1NDTV..NLP2#

NO.1

 1
23742-33020

1NDTV..NLP2#

NO.2

 1
23742-33010

1NDTV..NLP2#

NO.1

 1
23804C - PIPE SUB-ASSY, FUEL INLET
23804-33010

1NDTV..NLP2#

 1
23804-33010

1NDTV..NLP2#

 1
23810A - RAIL ASSY, COMMON
23810-33010

1NDTV..NLP2#

 1
23810-33010

1NDTV..NLP2#

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-33050

1NDTV..NLP2#

 1
23811-33050

1NDTV..NLP2#

 1
23812D - PIPE, FUEL, NO.2
23812-33010

1NDTV..NLP2#

 1
23812-33010

1NDTV..NLP2#

 1
Common parts
90105-08353
90464-00725
90464-00730
90467-13054
91551-80835
91671-80614
94151-80600
96132-51100
96132-51300
