NLP20L-CHMGXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0509)1NDTV

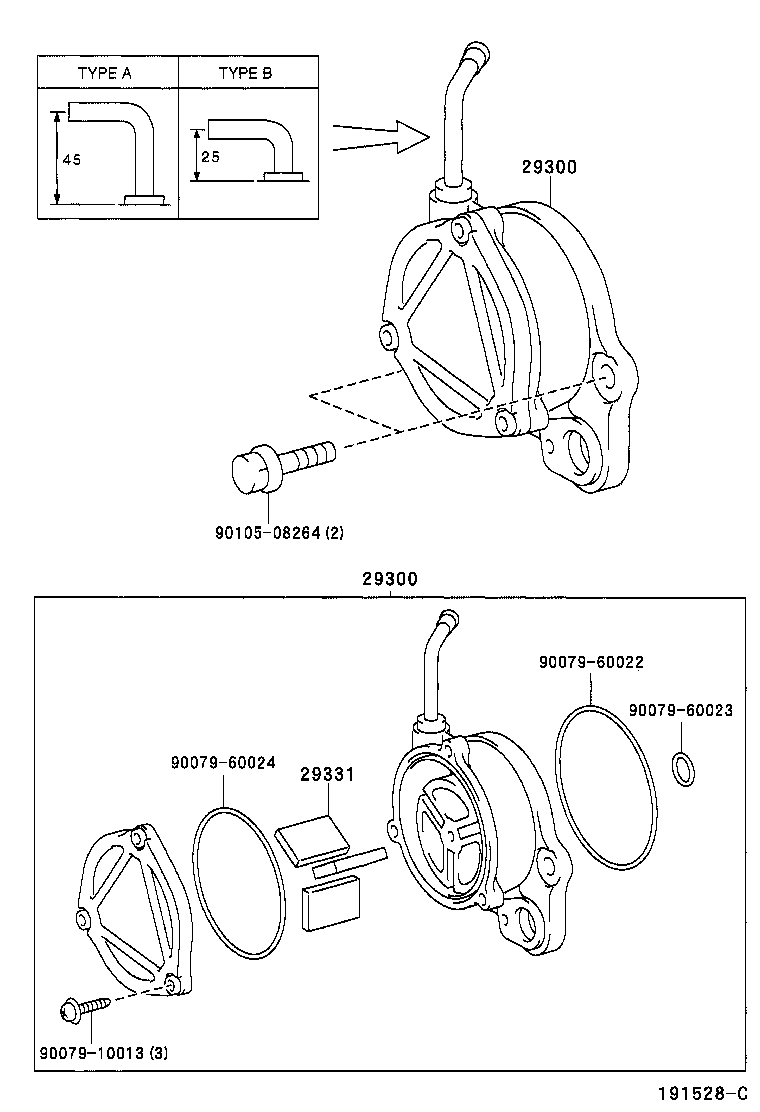

Click highlighted areas on diagram

diagram 29300 29300 29331 9007910013 9007960022 9007960023 9007960024 9010508264
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-33011

1NDTV..NLP2#

TYPE A:REFER TO ILLUSTRATION

 1
29300-33012

1NDTV..NLP2#

TYPE B:REFER TO ILLUSTRATION

 1
29300-33012

1NDTV..NLP2#

TYPE B:REFER TO ILLUSTRATION

 1
29300 - PUMP ASSY, VACUUM
29300-33011

1NDTV..NLP2#

TYPE A:REFER TO ILLUSTRATION

 1
29300-33012

1NDTV..NLP2#

TYPE B:REFER TO ILLUSTRATION

 1
29300-33012

1NDTV..NLP2#

TYPE B:REFER TO ILLUSTRATION

 1
29331 - BLADE, VACUUM PUMP, A
29331-33010

1NDTV..NLP2#

 3
29331-33010

1NDTV..NLP2#

 3
Common parts
90079-10013
90079-60022
90079-60023
90079-60024
90105-08264
