NCP21R-CHMGKW (2000)

Toyota Yaris/Echo Verso

Production Mar 2000 - Sep 2005
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0211)RHD

Click highlighted areas on diagram

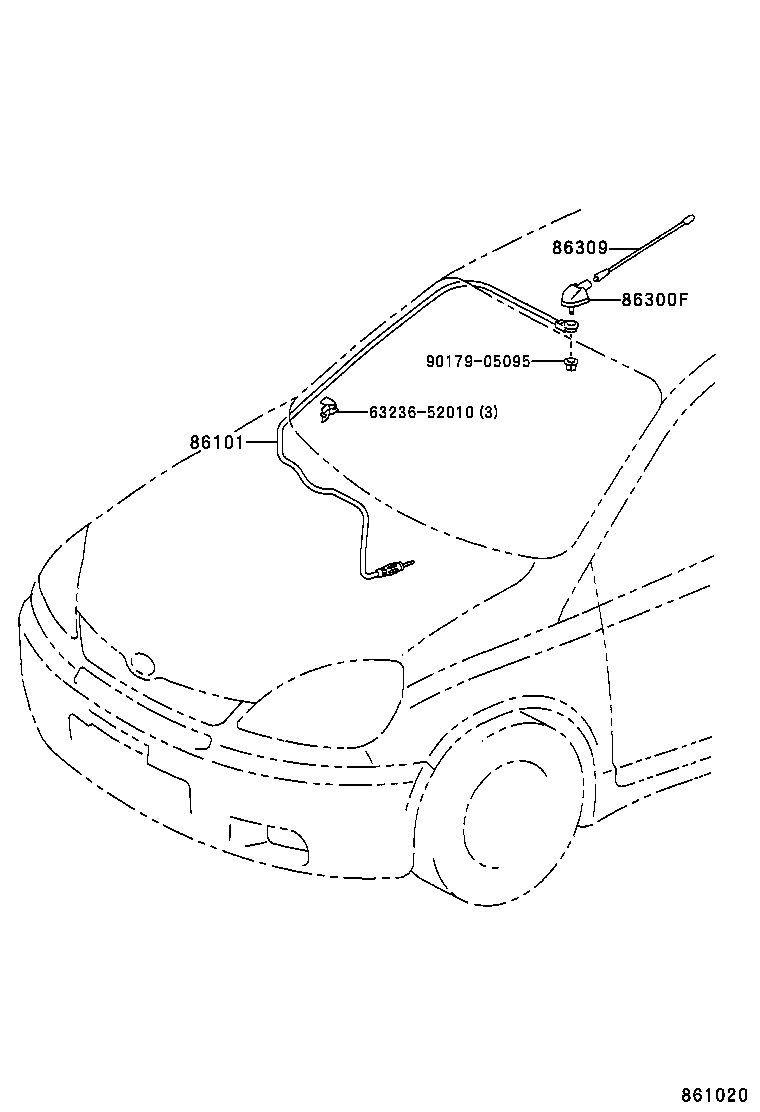

diagram 6323652010 86101 86300F 86309 9017905095
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0W030

NCP2#,NLP2#..RHD

 1
86101-52180

NCP20,21,NLP20..RHD

W(MOON ROOF)

 1
86101-52160

NCP2#,NLP2#..RHD

 1
86300F - HOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)
86300-0W020

NCP2#,NLP2#

 1
86309 - POLE SUB-ASSY, PILLAR ANTENNA
86309-0W020

NCP2#

 1
86309-0W040

NCP2#,NLP2#

 1
Common parts
63236-52010
90179-05095

(0211- )

Click highlighted areas on diagram

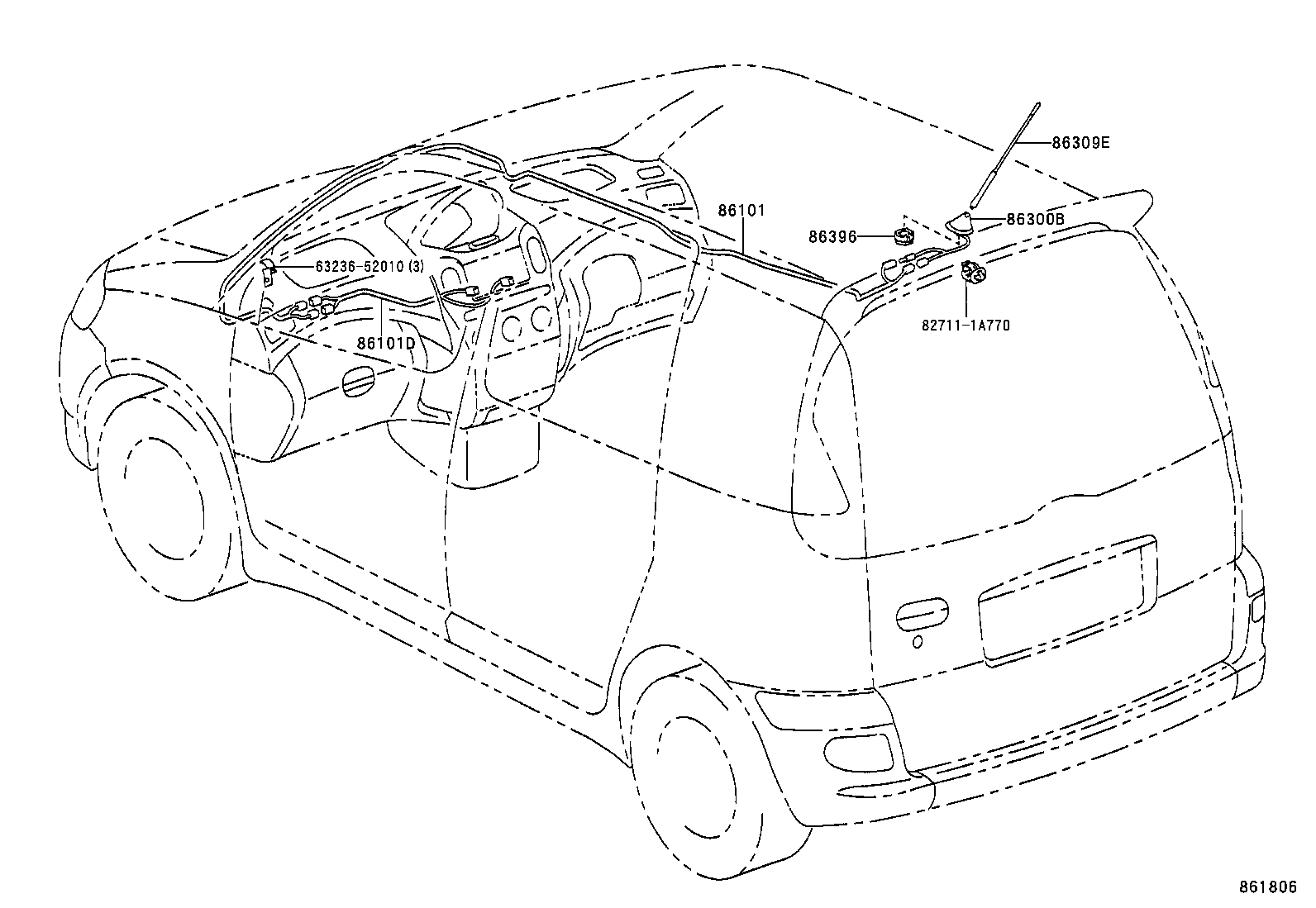

diagram 6323652010 827111A770 86101 86101D 86300B 86309E 86396
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0W030

NCP2#,NLP2#..RHD

 1
86101-52180

NCP20,21,NLP20..RHD

W(MOON ROOF)

 1
86101-52160

NCP2#,NLP2#..RHD

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-52200

NCP2#,NLP2#..RHD

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-52110

NCP2#,NLP2#

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-52040

NCP2#,NLP2#

 1
86396 - NUT, ANTENNA
86396-20040

NCP2#,NLP2#

 1
Common parts
63236-52010
82711-1A770
