NCP20R-CHSNKW (2000)

Toyota Yaris/Echo Verso

Production Aug 2000 - Sep 2005
Engine 2NZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9908-0211)RHD

Click highlighted areas on diagram

CONTROL

diagram 5501 55905A 55905A 55905A 55906A 55908A 55909A 55910 55918A 5593352010 55936B 55936D 55936D 55936D 55937H 55937J 55937K 81940D 81942A 81942B 81942H 81942J 81942K 81950C 84660H 9356014014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-52080

NCP2#,NLP2#..LUNA,STD

BLACK

 3
55905-52090

NCP20,21,NLP20

SILVER

 3
55905-52010

NCP2#,NLP2#

W(AIR CONDITIONER)

 3
55905A - KNOB, HEATER CONTROL
55905-52080

NCP2#,NLP2#..LUNA,STD

BLACK

 3
55905-52090

NCP20,21,NLP20

SILVER

 3
55905-52010

NCP2#,NLP2#

W(AIR CONDITIONER)

 3
55905A - KNOB, HEATER CONTROL
55905-52080

NCP2#,NLP2#..LUNA,STD

BLACK

 3
55905-52090

NCP20,21,NLP20

SILVER

 3
55905-52010

NCP2#,NLP2#

W(AIR CONDITIONER)

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52010

NCP2#,NLP2#

 1
55906-52010

NCP2#,NLP2#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52020

NCP2#,NLP2#..RHD

 1
55908-52020

NCP2#,NLP2#..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52020

NCP2#,NLP2#..RHD

 1
55909-52020

NCP2#,NLP2#..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-52030

NCP2#,NLP2#..RHD

 1
55910-52030

NCP2#,NLP2#..RHD

 1
55918A - LEVER, AIR INLET DAMPER CONTROL
55918-52010

NCP2#,NLP2#

 1
55918-52070

NCP2#,NLP2#

 1
55918-52060

NCP2#,NLP2#

 1
55936B - SWITCH, CENTER CLUSTER MODULE
84010-52420

NCP2#,NLP2#

 1
84010-52440

NCP2#,NLP2#

W(AIR CONDITIONER)

 1
84010-52120

NCP2#,NLP2#

W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER)

 1
84010-52100

NCP2#,NLP2#

W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER)

 1
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
55937H - KNOB, CENTER CLUSTER MODULE, NO.5
55937-52020

NCP2#,NLP2#

 1
55937-52300

NCP2#,NLP2#

 1
55937-52260

NCP2#,NLP2#

W(AIR CONDITIONER)

 1
55937-52010

NCP2#,NLP2#

W(AIR CONDITIONER)

 1
55937J - KNOB, CENTER CLUSTER MODULE, NO.6
55937-52030

NCP2#,NLP2#

 1
55937-52290

NCP2#,NLP2#

 1
55937K - KNOB, CENTER CLUSTER MODULE, NO.7
55937-52060

NCP2#,NLP2#

 1
55937-52270

NCP2#,NLP2#

 1
81940D - LENS ASSY, HEATER CONTROL
81940-52020

NCP2#,NLP2#

 1
81940-52080

NCP2#,NLP2#..RHD

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-52010C0

NCP2#,NLP2#

BLACK,TRIM9#

 1
81942-52010B2

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
81942-52010H1

NCP2#,NLP2#

DARK TORQUOISE,TRIM7#

 1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-52020C0

NCP2#,NLP2#

BLACK,TRIM9#

 1
81942-52020B2

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
81942-52020H1

NCP2#,NLP2#

DARK TORQUOISE,TRIM7#

 1
81942H - SHEET, HEATER CONTROL NAME, NO.3
81942-52030C0

NCP2#..RHD

BLACK,TRIM9#

 1
81942-52080C0

NCP2#,NLP2#

W(HEATER),BLACK,TRIM9#

 1
81942-52030H1

NCP2#..RHD

DARK TORQUOISE,TRIM7#

 1
81942-52080H1

NCP2#,NLP2#

W(HEATER),DARK TORQUOISE,TRIM7#

 1
81942J - SHEET, HEATER CONTROL NAME, NO.4
81942-52040H1

NCP2#,NLP2#

DARK TORQUOISE,TRIM7#

 1
81942-52040C0

NCP2#,NLP2#

BLACK,TRIM9#

 1
81942K - SHEET, HEATER CONTROL NAME, NO.5
81942-52140H0

NCP2#,NLP2#

W(HEATER),DARK TORQUOISE,TRIM7#

 1
81942-52140C0

NCP2#,NLP2#

W(HEATER),BLACK,TRIM9#

 1
81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR
81950-52020

NLP2#;NCP20..4HC

 1
81950-52080

NCP2#,NLP2#

 1
84660H - SWITCH ASSY, COOLER CONTROL
84660-52010

NCP2#,NLP2#

 1
84660-52010

NCP2#,NLP2#

 1
Common parts
55933-52010
93560-14014
Linked diagrams
5501

ILLUST NO. 2 OF 2(9908-0509)RHD

Click highlighted areas on diagram

AIR DUCT

diagram 55843A 55844 55845A 9356855014 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-52031

NCP2#,NLP2#..RHD

 1
55843-52030

NCP20..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-52030

NCP2#,NLP2#..RHD

 1
55844-52030

NCP2#,NLP2#..RHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-52030

NCP20..RHD

 1
55845-52031

NCP2#,NLP2#..RHD

 1
Common parts
93568-55014

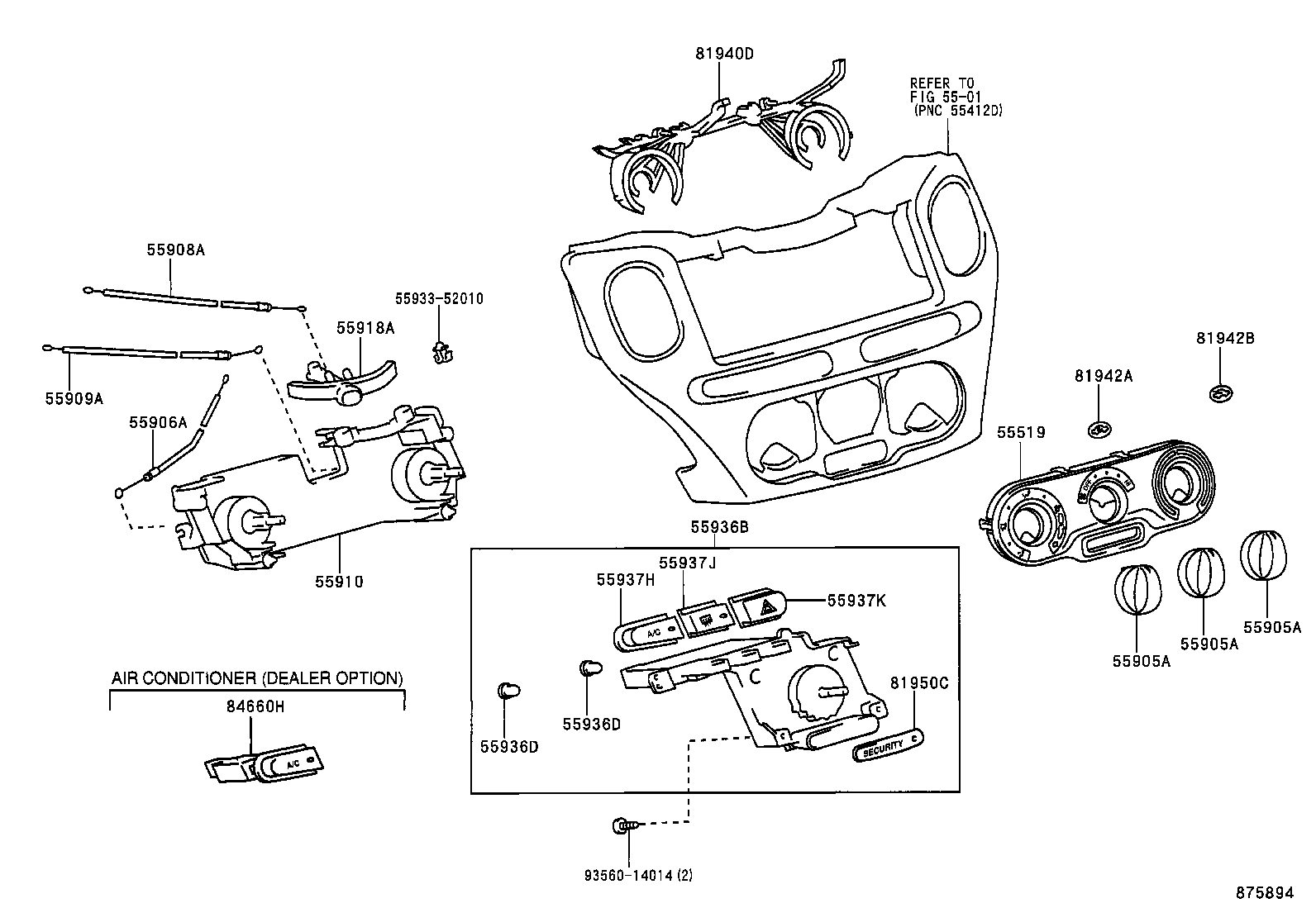

ILLUST NO. 1 OF 2(0211-0509)RHD

Click highlighted areas on diagram

CONTROL

diagram 5501 55519 55905A 55905A 55905A 55906A 55908A 55909A 55910 55918A 5593352010 55936B 55936D 55936D 55937H 55937J 55937K 81940D 81942A 81942B 81950C 84660H 9356014014
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-52010

NCP20,21,NLP20..RHD

 1
55519-52020B0

NCP2#,NLP2#..RHD..(LUNA,STD)

DK.GRAY,TRIM1#

 1
55905A - KNOB, HEATER CONTROL
55905-52080

NCP2#,NLP2#..LUNA,STD

BLACK

 3
55905-52090

NCP20,21,NLP20

SILVER

 3
55905-52010

NCP2#,NLP2#

W(AIR CONDITIONER)

 3
55905A - KNOB, HEATER CONTROL
55905-52080

NCP2#,NLP2#..LUNA,STD

BLACK

 3
55905-52090

NCP20,21,NLP20

SILVER

 3
55905-52010

NCP2#,NLP2#

W(AIR CONDITIONER)

 3
55905A - KNOB, HEATER CONTROL
55905-52080

NCP2#,NLP2#..LUNA,STD

BLACK

 3
55905-52090

NCP20,21,NLP20

SILVER

 3
55905-52010

NCP2#,NLP2#

W(AIR CONDITIONER)

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52010

NCP2#,NLP2#

 1
55906-52010

NCP2#,NLP2#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52020

NCP2#,NLP2#..RHD

 1
55908-52020

NCP2#,NLP2#..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52020

NCP2#,NLP2#..RHD

 1
55909-52020

NCP2#,NLP2#..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-52030

NCP2#,NLP2#..RHD

 1
55910-52030

NCP2#,NLP2#..RHD

 1
55918A - LEVER, AIR INLET DAMPER CONTROL
55918-52010

NCP2#,NLP2#

 1
55918-52070

NCP2#,NLP2#

 1
55918-52060

NCP2#,NLP2#

 1
55936B - SWITCH, CENTER CLUSTER MODULE
84010-52420

NCP2#,NLP2#

 1
84010-52440

NCP2#,NLP2#

W(AIR CONDITIONER)

 1
84010-52120

NCP2#,NLP2#

W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER)

 1
84010-52100

NCP2#,NLP2#

W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER)

 1
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
55936D - BLUB, CENTER CLUSTER MODULE SWITCH
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
84999-10530

NCP2#,NLP2#

14V 1.8W

 2
55937H - KNOB, CENTER CLUSTER MODULE, NO.5
55937-52020

NCP2#,NLP2#

 1
55937-52300

NCP2#,NLP2#

 1
55937-52260

NCP2#,NLP2#

W(AIR CONDITIONER)

 1
55937-52010

NCP2#,NLP2#

W(AIR CONDITIONER)

 1
55937J - KNOB, CENTER CLUSTER MODULE, NO.6
55937-52030

NCP2#,NLP2#

 1
55937-52290

NCP2#,NLP2#

 1
55937K - KNOB, CENTER CLUSTER MODULE, NO.7
55937-52060

NCP2#,NLP2#

 1
55937-52270

NCP2#,NLP2#

 1
81940D - LENS ASSY, HEATER CONTROL
81940-52020

NCP2#,NLP2#

 1
81940-52080

NCP2#,NLP2#..RHD

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-52010C0

NCP2#,NLP2#

BLACK,TRIM9#

 1
81942-52010B2

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
81942-52010H1

NCP2#,NLP2#

DARK TORQUOISE,TRIM7#

 1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-52020C0

NCP2#,NLP2#

BLACK,TRIM9#

 1
81942-52020B2

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
81942-52020H1

NCP2#,NLP2#

DARK TORQUOISE,TRIM7#

 1
81950C - LENS ASSY, CENTER CLUSTER MODULE INDICATOR
81950-52020

NLP2#;NCP20..4HC

 1
81950-52080

NCP2#,NLP2#

 1
84660H - SWITCH ASSY, COOLER CONTROL
84660-52010

NCP2#,NLP2#

 1
84660-52010

NCP2#,NLP2#

 1
Common parts
55933-52010
93560-14014
Linked diagrams
5501
