NCP20R-CHPNKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

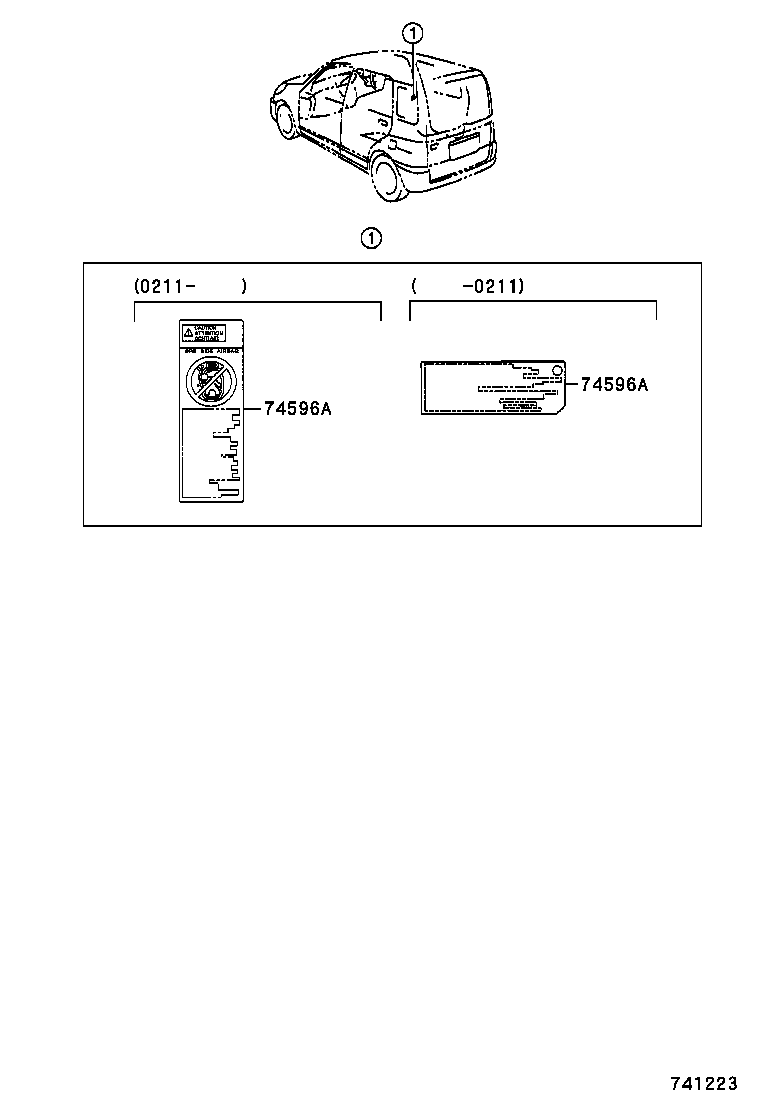

ILLUST NO. 2 OF 2(9908- )

Click highlighted areas on diagram

diagram 74596A 74596A
Part # Description Qty Price
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12011

NCP2#,NLP2#..4FC,5F

 2
74596-12020

NCP20,21,NLP20..4FC,5F

 2
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12011

NCP2#,NLP2#..4FC,5F

 2
74596-12020

NCP20,21,NLP20..4FC,5F

 2

ILLUST NO. 2 OF 2(9908- )

Click highlighted areas on diagram

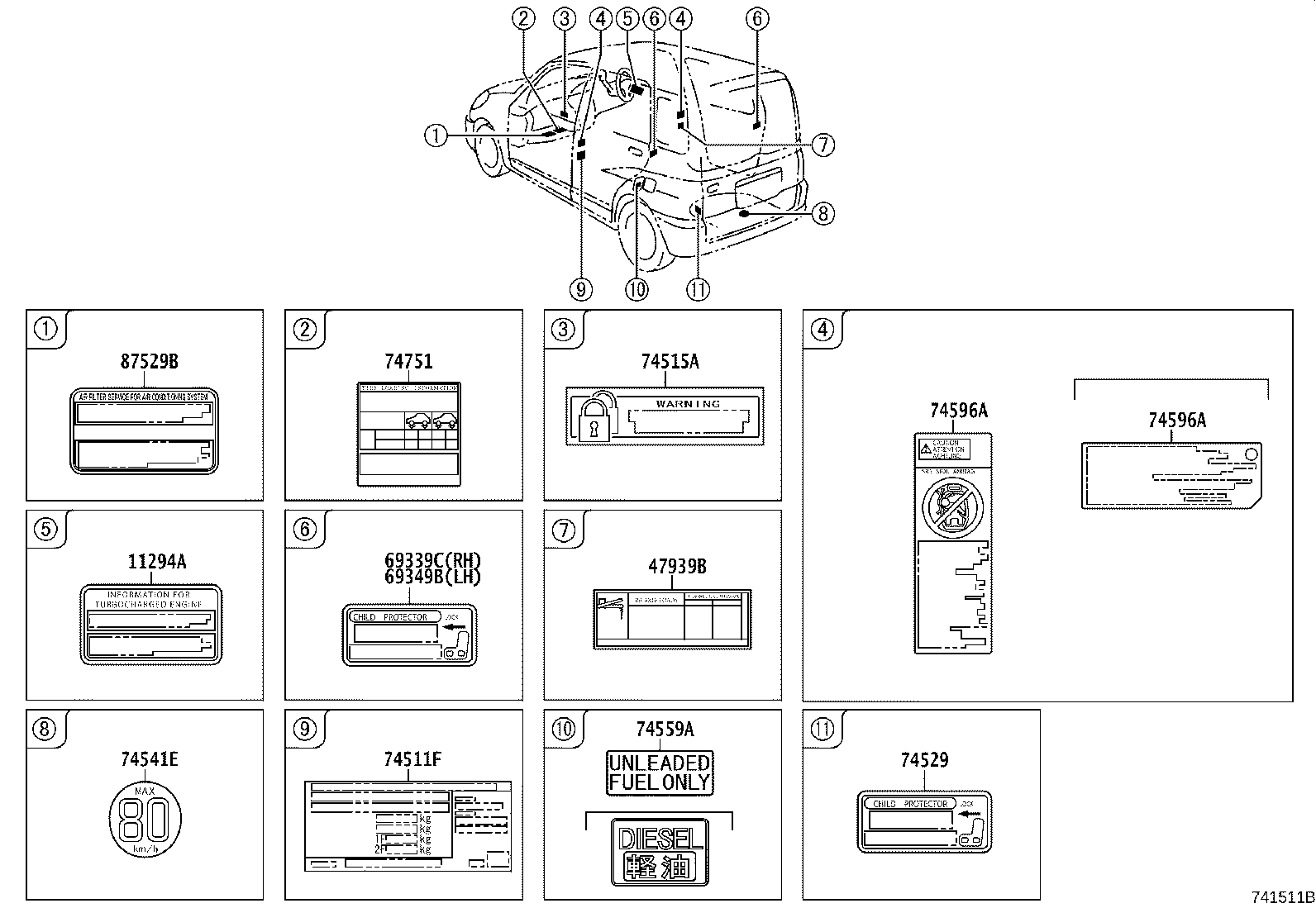

EXTERIOR & INTERIOR

diagram 11294A 47939B 69339C 69349B 74511F 74515A 74529 74541E 74559A 74596A 74596A 74751 87529B
Part # Description Qty Price
47939B - LABEL, LOAD SENSING VALVE MARKING INFORMATION
47939-52030

NCP2#,NLP2#..4FC,5F

 1
47939-52030

NCP2#,NLP2#..4FC,5F

 1
47939-52010

NCP2#..4FC,5F

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-52010

NCP2#,NLP2#

 1
69339-52010

NCP2#,NLP2#

 1
69349B - LABEL, CHILD PROTECTOR INFORMATION, LH
69349-52010

NCP2#,NLP2#

 1
69349-52010

NCP2#,NLP2#

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-48010

NCP20,21,NLP20..4FC,5F

*111

 1
74511-2B300

NCP2#

*111,FOR GENERAL

 1
74511-48020

NCP2#,NLP2#

*111,EUROPE EXCEPT WVTA

 1
74515A - PLATE, THEFT WARNING
74515-52010

NCP2#,NLP2#..RHD..(4FC,5F)

 2
74515-52010

NCP2#,NLP2#..RHD..(4FC,5F)

 2
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-52010

NCP2#,NLP2#

 1
69339-52010

NCP2#,NLP2#

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-20020

NCP2#,NLP2#

 1
42668-20020

NCP2#,NLP2#

 1
74559A - PLATE, FUEL CAUTION
74559-14050

NCP2#

 1
74559-14050

NCP2#

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12011

NCP2#,NLP2#..4FC,5F

 2
74596-12020

NCP20,21,NLP20..4FC,5F

 2
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12011

NCP2#,NLP2#..4FC,5F

 2
74596-12020

NCP20,21,NLP20..4FC,5F

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-52130

NCP2#,NLP2#

 1
42661-52130

NCP2#,NLP2#

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

NCP2#,NLP2#

 1
87529-50010

NCP2#,NLP2#

 1

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

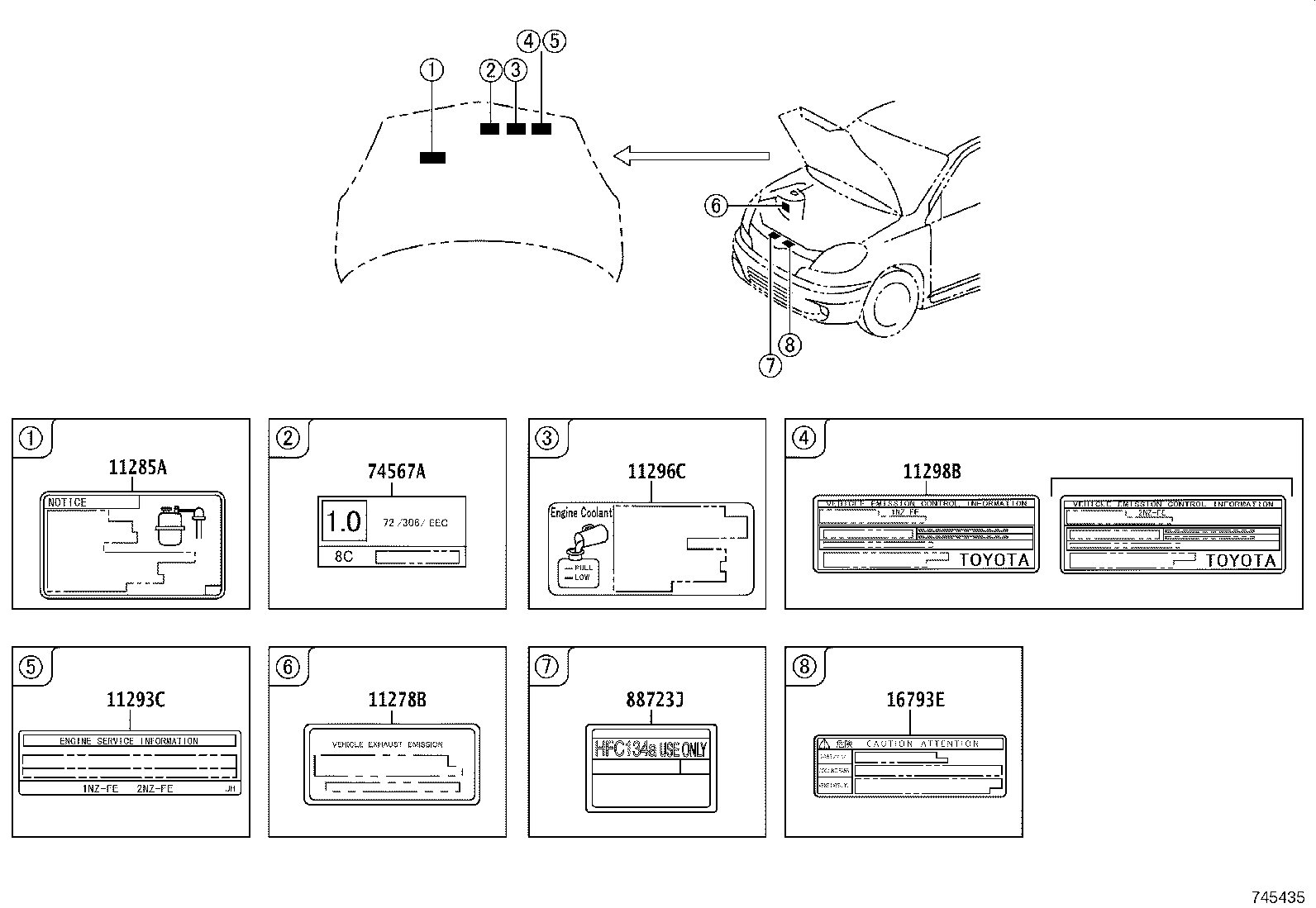

ENGINE ROOM

diagram 11278B 11285A 11293C 11296C 11298B 16793E 74567A 88723J
Part # Description Qty Price
11278B - LABEL, ENGINE EMISSION COMPLIANCE INFORMATION
11278-16050

2NZFE..NCP20,22..RHD..(4FC,5F)..(LUNA,STD)

 1
11293C - LABEL, TUNE-UP SPECIFICATION INFORMATION
11293-21040

1NZFE,2NZFE..NCP2#

 1
11293-21040

1NZFE,2NZFE..NCP2#

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

1N#,2NZFE..NCP2#,NLP2#

 1
16793E - LABEL, COOLING FAN CAUTION
16793-46010

1N#,2NZFE..NCP2#,NLP2#

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-52010

NCP2#,NLP2#

 1
88723-52010

NCP2#,NLP2#

 1
