NCP20R-CHPNKW (1999)
Toyota Yaris/Echo Verso
Production
Aug 1999
-
Sep 2005
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

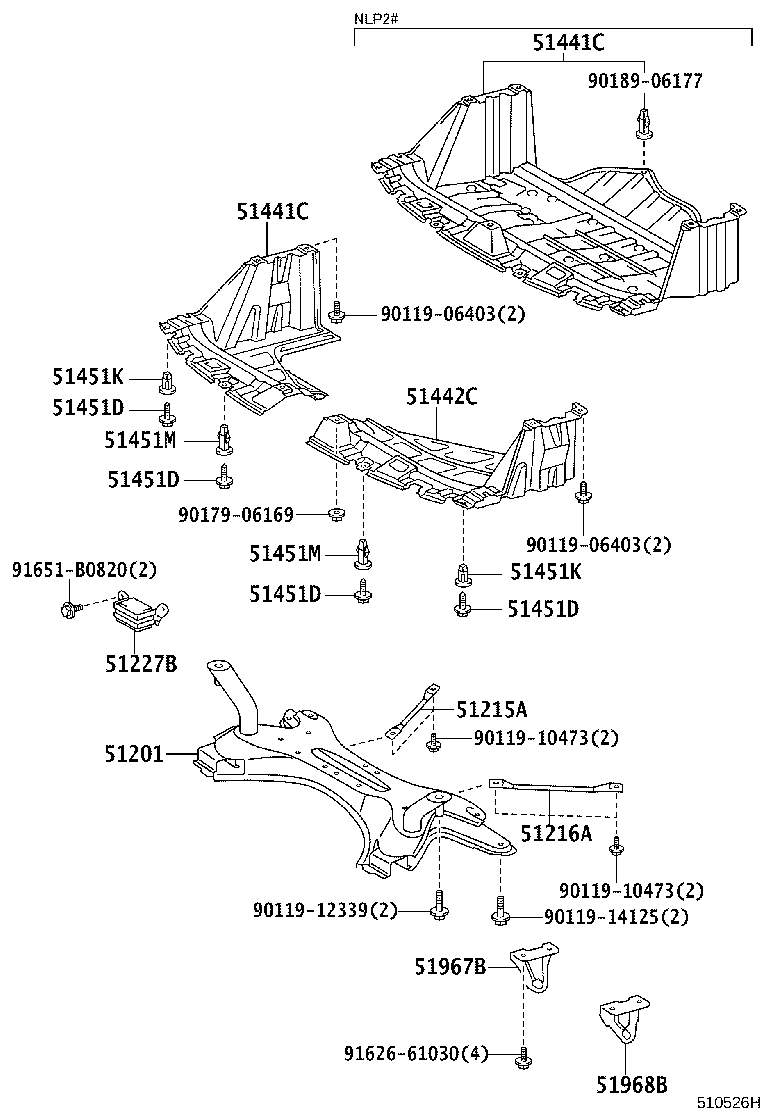

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-52010 |
NCP20 |
1 | ||
| 51201-52013 |
NCP2#,NLP2# |
1 | ||
| 51201-52012 |
NCP2#,NLP2# |
1 | ||
| 51201-52013 |
NCP2#,NLP2# |
1 | ||
| 51201-52011 |
NCP2#,NLP2# |
1 | ||
| 51201-52014 |
NCP2#,NLP2# |
1 | ||
| 51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51215-52010 |
NCP2#,NLP2# |
1 | ||
| 51215-52010 |
NCP2#,NLP2# |
1 | ||
| 51216A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51215-52010 |
NCP2#,NLP2# |
1 | ||
| 51215-52010 |
NCP2#,NLP2# |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-52010 |
NCP2# |
1 | ||
| 51227-52010 |
NCP2# |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-52010 |
NCP2# |
1 | ||
| 51441-52010 |
NCP2# |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-52010 |
NCP2# |
1 | ||
| 51441-52010 |
NCP2# |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-52010 |
NCP20..ATM |
1 | ||
| 51442-52010 |
NCP20..ATM |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
NCP2# |
4 | ||
| 90159-60383 |
NCP2# |
4 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
NCP2# |
4 | ||
| 90159-60383 |
NCP2# |
4 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
NCP2# |
4 | ||
| 90159-60383 |
NCP2# |
4 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
NCP2# |
4 | ||
| 90159-60383 |
NCP2# |
4 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP2#,NLP2# |
2 | ||
| 90189-06076 |
NCP2#,NLP2# |
2 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
NCP2#,NLP2# |
2 | ||
| 90189-06076 |
NCP2#,NLP2# |
2 | ||
| 51451M - GROMMET, SCREW, NO.2 | ||||
| 90189-06177 |
NCP2#,NLP2# |
2 | ||
| 90189-06177 |
NCP2#,NLP2# |
2 | ||
| 51451M - GROMMET, SCREW, NO.2 | ||||
| 90189-06177 |
NCP2#,NLP2# |
2 | ||
| 90189-06177 |
NCP2#,NLP2# |
2 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-10090 |
NCP2#,NLP2# |
1 | ||
| 51967-10090 |
NCP2#,NLP2# |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51967-48010 |
NCP2#,NLP2# |
1 | ||
| 51967-48010 |
NCP2#,NLP2# |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90119-10473 | ||||
| 90119-12339 | ||||
| 90119-14125 | ||||
| 90179-06169 | ||||
| 90189-06177 | ||||
| 91626-61030 | ||||
| 91651-B0820 | ||||
