NCP20R-CHPNKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

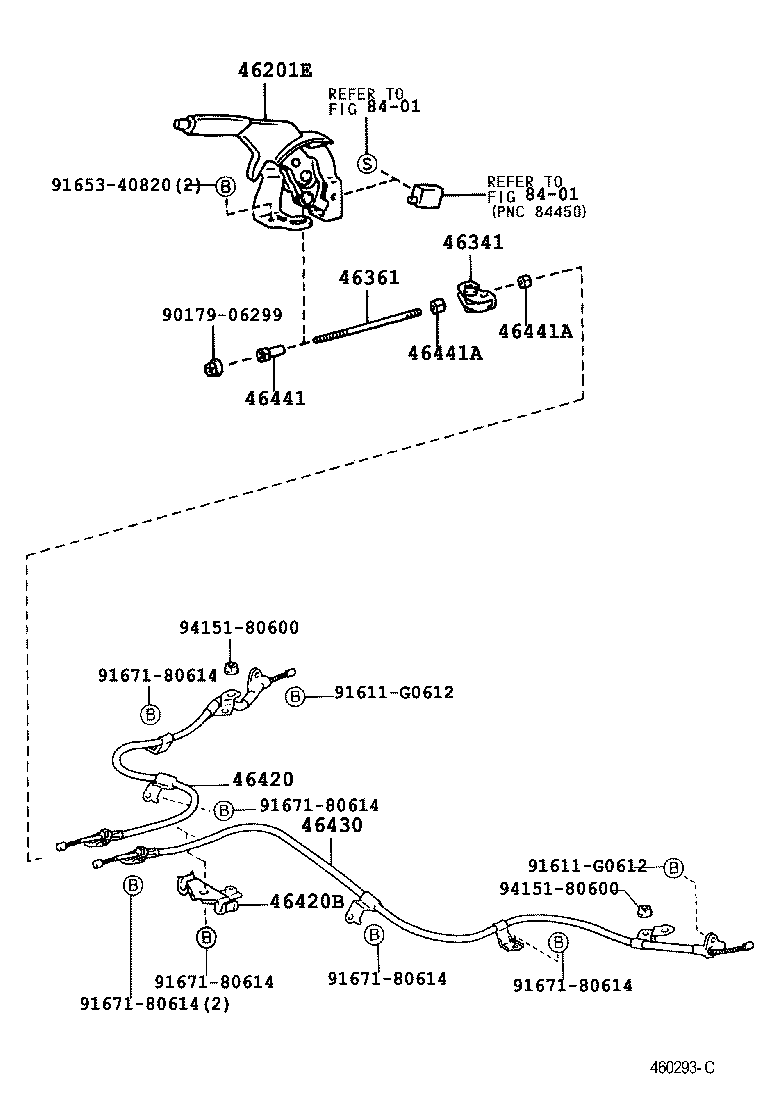

ILLUST NO. 1 OF 2(9908-0509)4FC,5F

Click highlighted areas on diagram

diagram 46201E 46341 46361 46420 46420B 46430 46441 46441A 46441A 8401 8401 9017906299 91611G0612 91611G0612 9165340820 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9415180600 9415180600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-52010G0

NCP2#,NLP2#..4FC,5F

MIST GREEN,TRIM7#

 1
46201-52010B0

NCP2#,NLP2#..4FC,5F

MD.GRAY,TRIM9#

 1
46201-52050B1

NCP20,21,NLP20..4FC,5F

CHROME PLATED,DK.GRAY,TRIM1#

 1
46201-52010B3

NCP2#,NLP2#..(4FC,5F)..(LUNA,STD)

DK.GRAY,TRIM1#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-52010

NCP2#,NLP2#

 1
46341-52010

NCP2#,NLP2#

 1
46361 - ROD, PARKING BRAKE PULL
46361-52010

NCP2#,NLP2#..4FC,5F

 1
46361-52010

NCP2#,NLP2#..4FC,5F

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52070

NLP2#..LHD;NCP2#..4FC,5F

W(REAR DISC BRAKE)

 1
46420-52050

NCP2#,NLP2#..4FC,5F

 1
46420-52070

NLP20..LHD;NCP20,21..4FC,5F

W(REAR DISC BRAKE)

 1
46420-52050

NCP2#,NLP2#..4FC,5F

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46451-52010

NCP2#,NLP2#

 1
46451-52010

NCP2#,NLP2#

 1
90949-01B84

NCP2#,NLP2#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52050

NCP2#,NLP2#..4FC,5F

 1
46430-52050

NCP2#,NLP2#..4FC,5F

 1
46430-52070

NLP2#..LHD;NCP2#..4FC,5F

W(REAR DISC BRAKE)

 1
46430-52070

NLP20..LHD;NCP20,21..4FC,5F

W(REAR DISC BRAKE)

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-52010

NCP2#,NLP2#

 1
46441-52010

NCP2#,NLP2#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90170-06014

NCP2#,NLP2#..4FC,5F

 2
90170-06014

NCP2#,NLP2#..4FC,5F

 2
46441A - NUT, WIRE ADJUSTING, NO.2
90170-06014

NCP2#,NLP2#..4FC,5F

 2
90170-06014

NCP2#,NLP2#..4FC,5F

 2
Common parts
90179-06299
91611-G0612
91653-40820
91671-80614
94151-80600
Linked diagrams
8401

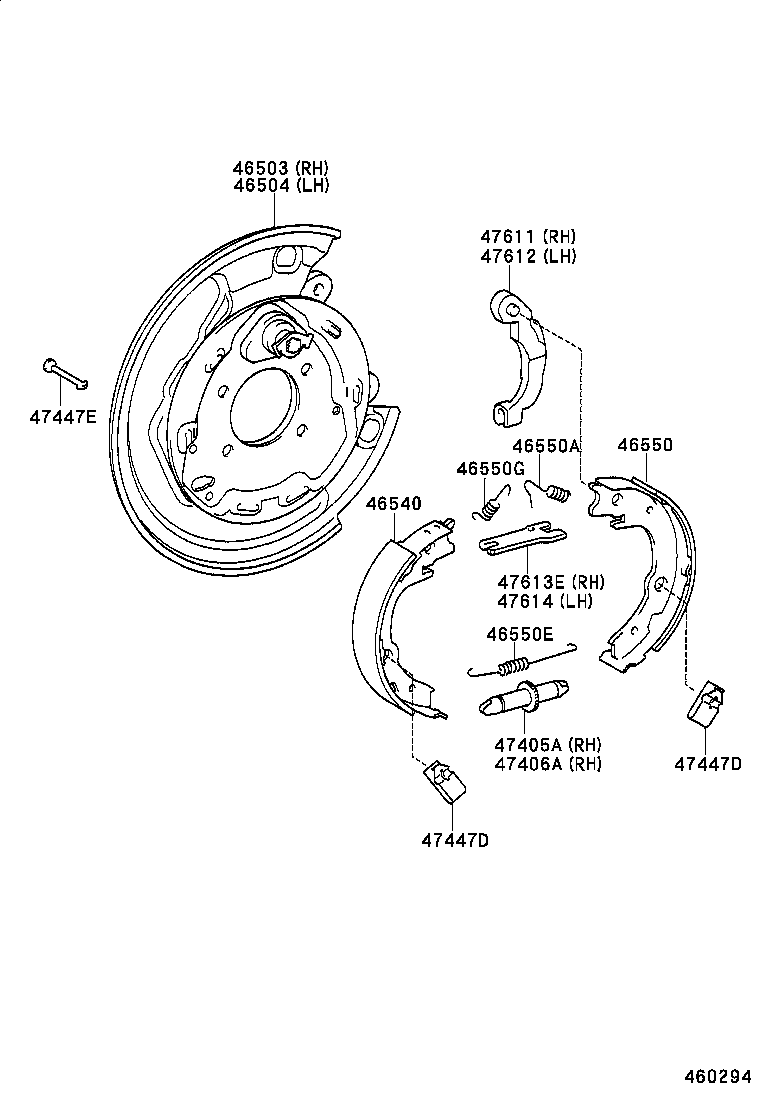

ILLUST NO. 2 OF 2(9908-0211)NCP2#..4FC,5F ; (0110-0211)NLP2#..LHD; (0211-0509)NLP20..LHD ; (0211-05

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550E 46550G 47405A 47406A 47447D 47447D 47447E 47611 47612 47613E 47614
Part # Description Qty Price
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-52012

NLP20..LHD;NCP20,21..4FC,5F

 1
46503-52011

NLP20..LHD;NCP20,21..4FC,5F

 1
46503-52011

NLP2#..LHD;NCP2#..4FC,5F

 1
46503-52010

NCP2#..4FC,5F

 1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-52010

NCP2#..4FC,5F

 1
46504-52011

NLP2#..LHD;NCP2#..4FC,5F

 1
46504-52012

NLP20..LHD;NCP20,21..4FC,5F

 1
46504-52011

NLP20..LHD;NCP20,21..4FC,5F

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-20080

NLP2#..LHD;NCP2#..4FC,5F

 2
46540-20080

NLP20..LHD;NCP20,21..4FC,5F

 2
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46540-20080

NLP2#..LHD;NCP2#..4FC,5F

 2
46540-20080

NLP20..LHD;NCP20,21..4FC,5F

 2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06045

NLP2#..LHD;NCP2#..4FC,5F

RH

 1
90905-06044

NLP2#..LHD;NCP2#..4FC,5F

LH

 1
90905-06045

NLP20..LHD;NCP20,21..4FC,5F

RH

 1
90905-06044

NLP20..LHD;NCP20,21..4FC,5F

LH

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90905-06046

NLP20..LHD;NCP20,21..4FC,5F

 2
90905-06046

NLP2#..LHD;NCP2#..4FC,5F

 2
46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
90905-06043

NLP2#..LHD;NCP2#..4FC,5F

 2
90905-06043

NLP20..LHD;NCP20,21..4FC,5F

 2
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47405-32010

NLP20..LHD;NCP20,21..4FC,5F

 1
47405-32010

NLP2#..LHD;NCP2#..4FC,5F

 1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47406-32010

NLP20..LHD;NCP20,21..4FC,5F

 1
47406-32010

NLP2#..LHD;NCP2#..4FC,5F

 1
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47446-32010

NLP20..LHD;NCP20,21..4FC,5F

 4
47446-32010

NLP2#..LHD;NCP2#..4FC,5F

 4
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47446-32010

NLP20..LHD;NCP20,21..4FC,5F

 4
47446-32010

NLP2#..LHD;NCP2#..4FC,5F

 4
47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447-11010

NLP20..LHD;NCP20,21..4FC,5F

 4
47447-11010

NLP2#..LHD;NCP2#..4FC,5F

 4
47611 - LEVER, PARKING BRAKE SHOE, RH
47601-32030

NLP2#..LHD;NCP2#..4FC,5F

 1
47601-32030

NLP20..LHD;NCP20,21..4FC,5F

 1
47612 - LEVER, PARKING BRAKE SHOE, LH
47602-32030

NLP20..LHD;NCP20,21..4FC,5F

 1
47602-32030

NLP2#..LHD;NCP2#..4FC,5F

 1
47613E - STRUT, PARKING BRAKE SHOE, RH
47613-32030

NLP20..LHD;NCP20,21..4FC,5F

 1
47613-32030

NLP2#..LHD;NCP2#..4FC,5F

 1
47614 - STRUT, PARKING BRAKE SHOE, LH
47613-32030

NLP2#..LHD;NCP2#..4FC,5F

 1
47613-32030

NLP20..LHD;NCP20,21..4FC,5F

 1
