NCP20R-CHPGKW (1999)
Toyota Yaris/Echo Verso

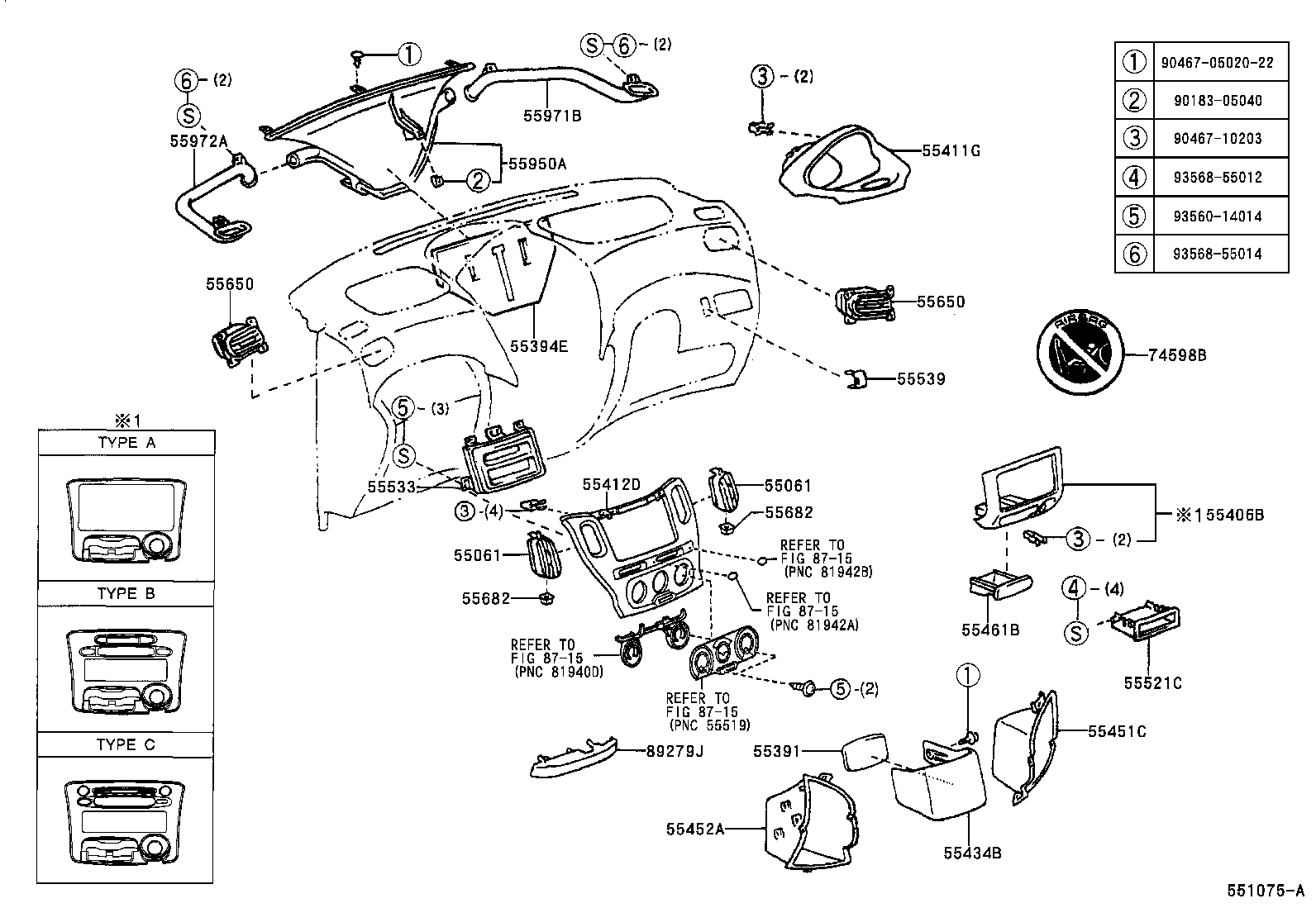

ILLUST NO. 2 OF 2(9908-0211)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55063-52010C0 |
NCP2#,NLP2# BLACK,TRIM9#,RH |
1 | ||
| 55064-52010H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7#,LH |
1 | ||
| 55064-52010B0 |
NCP2#,NLP2# DK.GRAY,TRIM1#,LH |
1 | ||
| 55063-52010B0 |
NCP2#,NLP2# DK.GRAY,TRIM1#,RH |
1 | ||
| 55063-52010H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7#,RH |
1 | ||
| 55064-52010C0 |
NCP2#,NLP2# BLACK,TRIM9#,LH |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55063-52010C0 |
NCP2#,NLP2# BLACK,TRIM9#,RH |
1 | ||
| 55064-52010H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7#,LH |
1 | ||
| 55064-52010B0 |
NCP2#,NLP2# DK.GRAY,TRIM1#,LH |
1 | ||
| 55063-52010B0 |
NCP2#,NLP2# DK.GRAY,TRIM1#,RH |
1 | ||
| 55063-52010H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7#,RH |
1 | ||
| 55064-52010C0 |
NCP2#,NLP2# BLACK,TRIM9#,LH |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 86220-52020C0 |
NCP2#,NLP2# TYPE C:REFER TO ILLUSTRATION,BLACK,TRIM9# |
1 | ||
| 86220-52010C0 |
NCP2#,NLP2# TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM9# |
1 | ||
| 55406-52011B2 |
NCP2#,NLP2# TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 86220-52010B1 |
NCP2#,NLP2# TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 55406-52010C0 |
NCP2#,NLP2# TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM9# |
1 | ||
| 55406-52010B2 |
NCP2#,NLP2# TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 86220-52020H1 |
NCP2#,NLP2# TYPE C:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7# |
1 | ||
| 86220-52011B1 |
NCP2#,NLP2# TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 86220-52020B1 |
NCP2#,NLP2# TYPE C:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 86220-52010H1 |
NCP2#,NLP2# TYPE B:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7# |
1 | ||
| 86220-52021B1 |
NCP2#,NLP2# TYPE C:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 55406-52010H1 |
NCP2#,NLP2# TYPE A:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52120B0 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55411-52030C0 |
NCP2#,NLP2#..RHD BLACK,TRIM9# |
1 | ||
| 55411-52030H0 |
NCP2#,NLP2#..RHD DARK TORQUOISE,TRIM7# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-52030H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7# |
1 | ||
| 55412-52030C0 |
NCP2#,NLP2# BLACK,TRIM9# |
1 | ||
| 55412-52200B0 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-52020G0 |
NCP2#,NLP2#..RHD MIST GREEN,TRIM7# |
1 | ||
| 55434-52020B2 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55434-52020B0 |
NCP2#,NLP2#..RHD MD.GRAY,TRIM9# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-52030B1 |
NCP2#,NLP2#..RHD SHADOW GRAY,TRIM9# |
1 | ||
| 55451-52030H0 |
NCP2#,NLP2#..RHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55451-52090B0 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-52030H0 |
NCP2#,NLP2#..RHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55452-52030B1 |
NCP2#,NLP2#..RHD SHADOW GRAY,TRIM9# |
1 | ||
| 55452-52090B0 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-52010H1 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7# |
1 | ||
| 55461-52010C0 |
NCP2#,NLP2# BLACK,TRIM9# |
1 | ||
| 55461-52010B2 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
NCP2#,NLP2# |
1 | ||
| 55521-16030 |
NCP2#,NLP2# |
1 | ||
| 55521-16030 |
NCP2#,NLP2# W/O(RADIO) |
2 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-52010H0 |
NCP2#,NLP2#..4FC,5F DARK TORQUOISE,TRIM7# |
1 | ||
| 55524-52010C0 |
NCP2#,NLP2#..4FC,5F BLACK,TRIM9# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-52020H0 |
NCP2#,NLP2# W(CLOCK),DARK TORQUOISE,TRIM7# |
1 | ||
| 55533-52020B0 |
NCP2#,NLP2# W(CLOCK),DK.GRAY,TRIM1# |
1 | ||
| 55533-52020C0 |
NCP2#,NLP2# W(CLOCK),BLACK,TRIM9# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52010B4 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
1 | ||
| 55539-52010B0 |
NCP2#,NLP2# MD.GRAY,TRIM9# |
1 | ||
| 55539-52010G0 |
NCP2#,NLP2# MIST GREEN,TRIM7# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52020H0 |
NCP2#,NLP2# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-52020B1 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
2 | ||
| 55650-52020B0 |
NCP2#,NLP2# SHADOW GRAY,TRIM9# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52020H0 |
NCP2#,NLP2# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-52020B1 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
2 | ||
| 55650-52020B0 |
NCP2#,NLP2# SHADOW GRAY,TRIM9# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP2#,NLP2# |
2 | ||
| 55682-52010 |
NCP2#,NLP2# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP2#,NLP2# |
2 | ||
| 55682-52010 |
NCP2#,NLP2# |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52030 |
NCP2#,NLP2#..RHD |
1 | ||
| 55950-52030 |
NCP2#,NLP2#..RHD |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-52010 |
NCP2#,NLP2# |
1 | ||
| 55971-52010 |
NCP2#,NLP2# |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-52010 |
NCP2#,NLP2# |
1 | ||
| 55972-52010 |
NCP2#,NLP2# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
NCP2#,NLP2# |
1 | ||
| 74598-20010 |
NCP2#,NLP2# |
1 | ||
| 89279J - COVER | ||||
| 89279-52020 |
NCP2#,NLP2#..RHD |
1 | ||
| 89279-52020 |
NCP2#,NLP2#..RHD |
1 | ||
| Common parts | ||||
| 90183-05040 | ||||
| 90467-0502022 | ||||
| 90467-10203 | ||||
| 93560-14014 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||

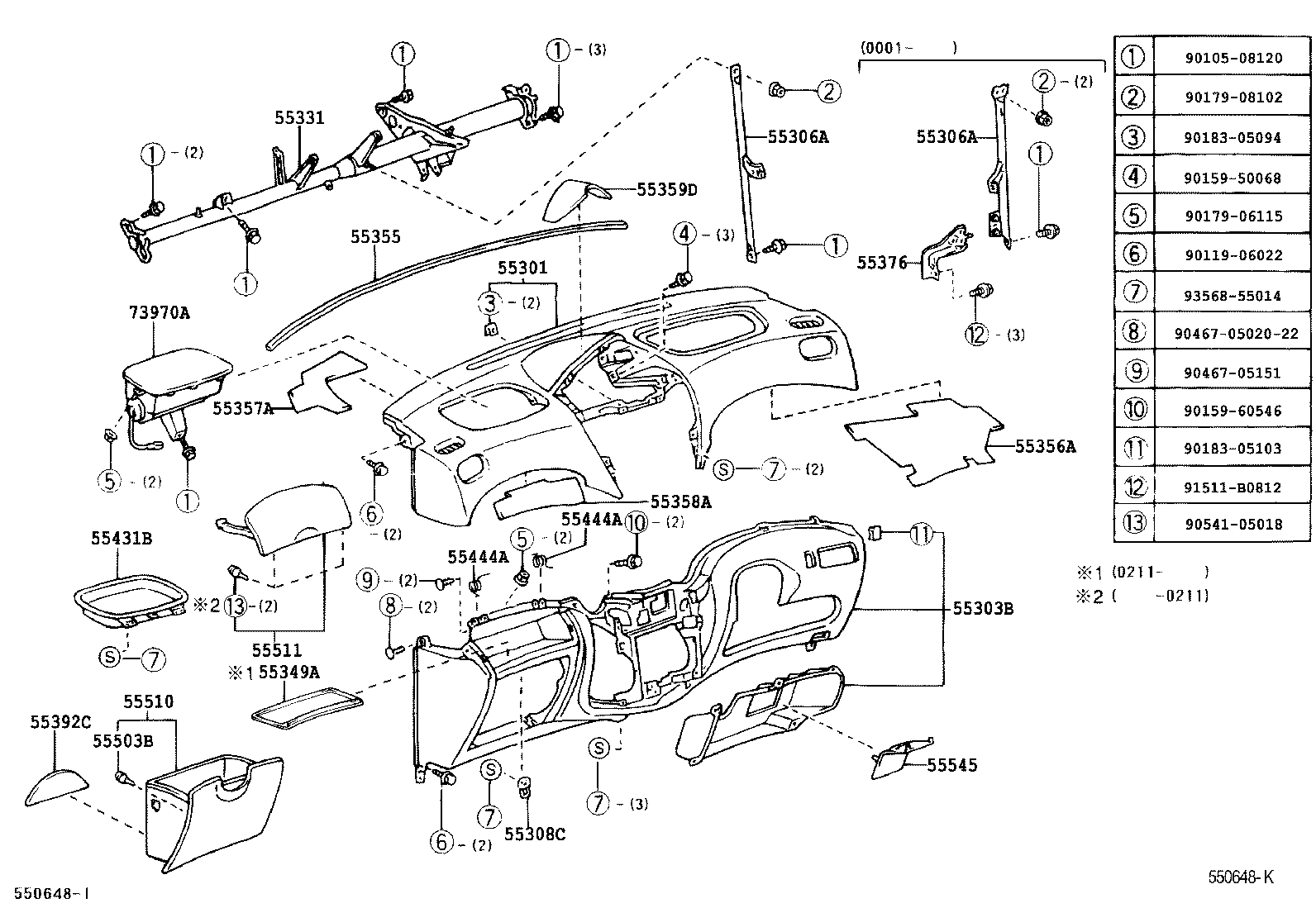

ILLUST NO. 1 OF 2(9908- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-52030B0 |
NCP2#,NLP2#..RHD SHADOW GRAY,TRIM9# |
1 | ||
| 55301-52030H0 |
NCP2#,NLP2#..RHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55301-52150B0 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52901B0 |
NCP2#,NLP2#..RHD SHADOW GRAY,TRIM9# |
1 | ||
| 55303-52901H0 |
NCP2#,NLP2#..RHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55303-52901B5 |
NCP2#,NLP2#..RHD DK. GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52070 |
NCP2#,NLP2#..RHD |
1 | ||
| 55306-52030 |
NCP20..RHD |
1 | ||
| 55306-52070 |
NCP2#,NLP2#..RHD |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52070 |
NCP2#,NLP2#..RHD |
1 | ||
| 55306-52030 |
NCP20..RHD |
1 | ||
| 55306-52070 |
NCP2#,NLP2#..RHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-52080 |
NCP2#,NLP2# |
1 | ||
| 55308-52010 |
NCP2#,NLP2# |
1 | ||
| 55308-52080 |
NCP2#,NLP2# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52151 |
NCP2#..RHD |
1 | ||
| 55330-52150 |
NCP20..RHD |
1 | ||
| 55330-52260 |
NCP2#,NLP2#..RHD |
1 | ||
| 55330-52170 |
NCP2#,NLP2#..RHD |
1 | ||
| 55330-52261 |
NCP2#,NLP2#..RHD |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52010 |
NCP2#,NLP2#..RHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52012 |
NCP2#,NLP2# |
1 | ||
| 55355-52012 |
NCP2#,NLP2# |
1 | ||
| 55356A - PLATE, INSTRUMENT PANEL, LOWER | ||||
| 55356-52030 |
NCP2#,NLP2# |
1 | ||
| 55356-52030 |
NCP2#,NLP2# |
1 | ||
| 55357A - PROTECTOR, EDGE, NO.1 | ||||
| 55357-52020 |
NCP2#,NLP2# |
1 | ||
| 55357-52020 |
NCP2#,NLP2# |
1 | ||
| 55358A - PROTECTOR, EDGE, NO.2 | ||||
| 55358-52010 |
NCP2#,NLP2# |
1 | ||
| 55358-52010 |
NCP2#,NLP2# |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-52020 |
NCP2#,NLP2#..RHD |
1 | ||
| 55376-52020 |
NCP2#,NLP2#..RHD |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-52010H0 |
NCP2#,NLP2#..4FC,5F FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55431-52070B0 |
NCP2#,NLP2#..4FC,5F DK.GRAY,TRIM1# |
1 | ||
| 55431-52010B0 |
NCP2#,NLP2#..4FC,5F SHADOW GRAY,TRIM9# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52040 |
NCP2#,NLP2#..RHD |
2 | ||
| 55444-52040 |
NCP2#,NLP2#..RHD |
2 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52040 |
NCP2#,NLP2#..RHD |
2 | ||
| 55444-52040 |
NCP2#,NLP2#..RHD |
2 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05080 |
NCP2#,NLP2# |
2 | ||
| 90541-05080 |
NCP2#,NLP2# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52020B1 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
1 | ||
| 55550-52020G0 |
NCP2#,NLP2# MIST GREEN,TRIM7# |
1 | ||
| 55550-52020B0 |
NCP2#,NLP2# MD.GRAY,TRIM9# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55501-52020G0 |
NCP2#,NLP2#..RHD MIST GREEN,TRIM7# |
1 | ||
| 55501-52020B0 |
NCP2#,NLP2#..RHD MD.GRAY,TRIM9# |
1 | ||
| 55501-52050B2 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-52010B2 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
1 | ||
| 55545-52010G0 |
NCP2#,NLP2# MIST GREEN,TRIM7# |
1 | ||
| 55545-52010B0 |
NCP2#,NLP2# MD.GRAY,TRIM9# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-52030B0 |
NCP2#,NLP2#..RHD SHADOW GRAY,TRIM9# |
1 | ||
| 73970-52150B0 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 73970-52030H0 |
NCP2#,NLP2#..RHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06022 | ||||
| 90159-50068 | ||||
| 90159-60546 | ||||
| 90179-06115 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-05151 | ||||
| 90541-05018 | ||||
| 91511-B0812 | ||||
| 93568-55014 | ||||

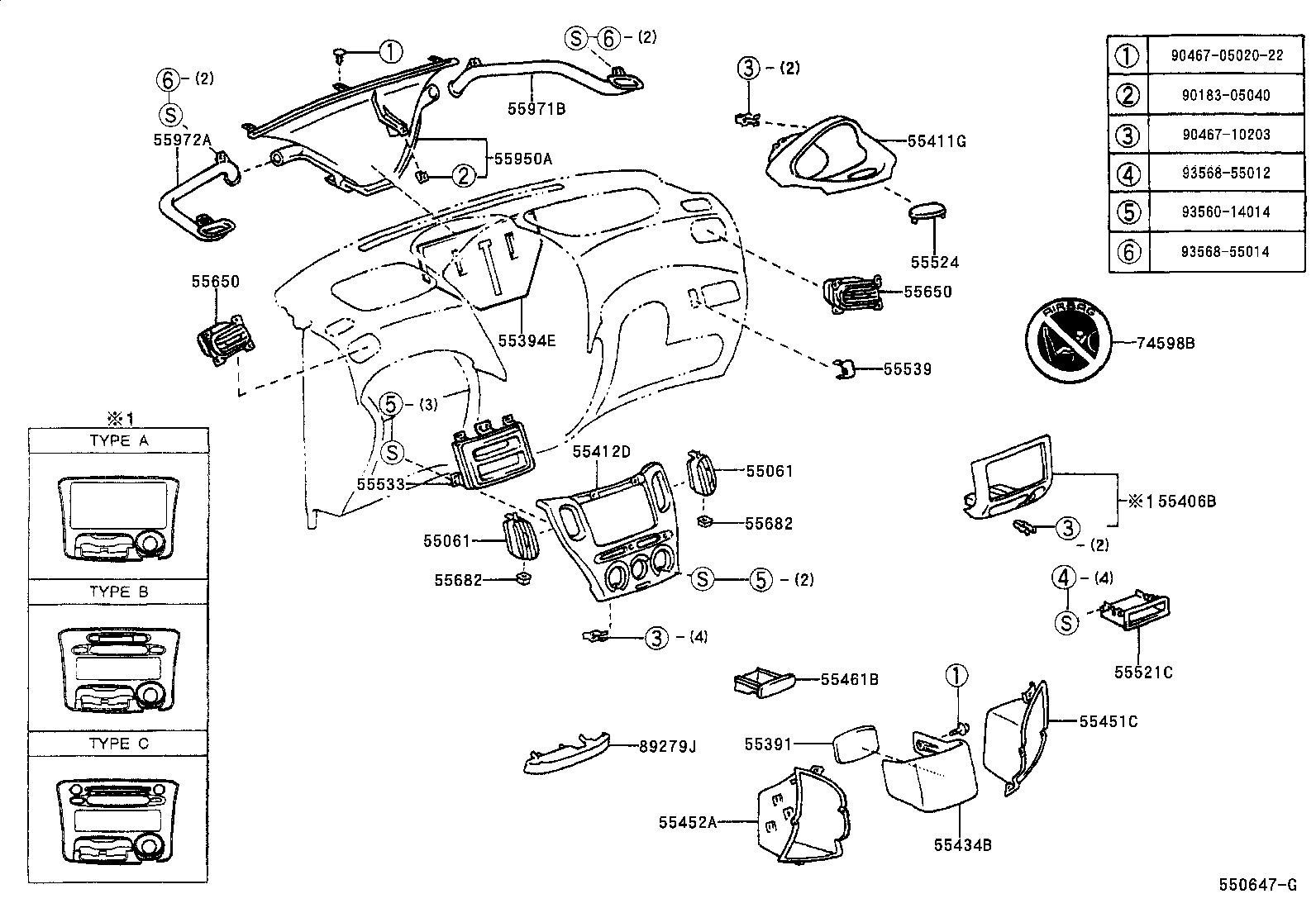

ILLUST NO. 2 OF 2(0211- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55063-52010C0 |
NCP2#,NLP2# BLACK,TRIM9#,RH |
1 | ||
| 55064-52010H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7#,LH |
1 | ||
| 55064-52010B0 |
NCP2#,NLP2# DK.GRAY,TRIM1#,LH |
1 | ||
| 55063-52010B0 |
NCP2#,NLP2# DK.GRAY,TRIM1#,RH |
1 | ||
| 55063-52010H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7#,RH |
1 | ||
| 55064-52010C0 |
NCP2#,NLP2# BLACK,TRIM9#,LH |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55063-52010C0 |
NCP2#,NLP2# BLACK,TRIM9#,RH |
1 | ||
| 55064-52010H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7#,LH |
1 | ||
| 55064-52010B0 |
NCP2#,NLP2# DK.GRAY,TRIM1#,LH |
1 | ||
| 55063-52010B0 |
NCP2#,NLP2# DK.GRAY,TRIM1#,RH |
1 | ||
| 55063-52010H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7#,RH |
1 | ||
| 55064-52010C0 |
NCP2#,NLP2# BLACK,TRIM9#,LH |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 86220-52020C0 |
NCP2#,NLP2# TYPE C:REFER TO ILLUSTRATION,BLACK,TRIM9# |
1 | ||
| 86220-52010C0 |
NCP2#,NLP2# TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM9# |
1 | ||
| 55406-52011B2 |
NCP2#,NLP2# TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 86220-52010B1 |
NCP2#,NLP2# TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 55406-52010C0 |
NCP2#,NLP2# TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM9# |
1 | ||
| 55406-52010B2 |
NCP2#,NLP2# TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 86220-52020H1 |
NCP2#,NLP2# TYPE C:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7# |
1 | ||
| 86220-52011B1 |
NCP2#,NLP2# TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 86220-52020B1 |
NCP2#,NLP2# TYPE C:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 86220-52010H1 |
NCP2#,NLP2# TYPE B:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7# |
1 | ||
| 86220-52021B1 |
NCP2#,NLP2# TYPE C:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 55406-52010H1 |
NCP2#,NLP2# TYPE A:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52120B0 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55411-52030C0 |
NCP2#,NLP2#..RHD BLACK,TRIM9# |
1 | ||
| 55411-52030H0 |
NCP2#,NLP2#..RHD DARK TORQUOISE,TRIM7# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-52030H0 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7# |
1 | ||
| 55412-52030C0 |
NCP2#,NLP2# BLACK,TRIM9# |
1 | ||
| 55412-52200B0 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-52020G0 |
NCP2#,NLP2#..RHD MIST GREEN,TRIM7# |
1 | ||
| 55434-52020B2 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55434-52020B0 |
NCP2#,NLP2#..RHD MD.GRAY,TRIM9# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-52030B1 |
NCP2#,NLP2#..RHD SHADOW GRAY,TRIM9# |
1 | ||
| 55451-52030H0 |
NCP2#,NLP2#..RHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55451-52090B0 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-52030H0 |
NCP2#,NLP2#..RHD FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55452-52030B1 |
NCP2#,NLP2#..RHD SHADOW GRAY,TRIM9# |
1 | ||
| 55452-52090B0 |
NCP2#,NLP2#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-52010H1 |
NCP2#,NLP2# DARK TORQUOISE,TRIM7# |
1 | ||
| 55461-52010C0 |
NCP2#,NLP2# BLACK,TRIM9# |
1 | ||
| 55461-52010B2 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
NCP2#,NLP2# |
1 | ||
| 55521-16030 |
NCP2#,NLP2# |
1 | ||
| 55521-16030 |
NCP2#,NLP2# W/O(RADIO) |
2 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-52020H0 |
NCP2#,NLP2# W(CLOCK),DARK TORQUOISE,TRIM7# |
1 | ||
| 55533-52020B0 |
NCP2#,NLP2# W(CLOCK),DK.GRAY,TRIM1# |
1 | ||
| 55533-52020C0 |
NCP2#,NLP2# W(CLOCK),BLACK,TRIM9# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52010B4 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
1 | ||
| 55539-52010B0 |
NCP2#,NLP2# MD.GRAY,TRIM9# |
1 | ||
| 55539-52010G0 |
NCP2#,NLP2# MIST GREEN,TRIM7# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52020H0 |
NCP2#,NLP2# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-52020B1 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
2 | ||
| 55650-52020B0 |
NCP2#,NLP2# SHADOW GRAY,TRIM9# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52020H0 |
NCP2#,NLP2# FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650-52020B1 |
NCP2#,NLP2# DK.GRAY,TRIM1# |
2 | ||
| 55650-52020B0 |
NCP2#,NLP2# SHADOW GRAY,TRIM9# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP2#,NLP2# |
2 | ||
| 55682-52010 |
NCP2#,NLP2# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP2#,NLP2# |
2 | ||
| 55682-52010 |
NCP2#,NLP2# |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52030 |
NCP2#,NLP2#..RHD |
1 | ||
| 55950-52030 |
NCP2#,NLP2#..RHD |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-52010 |
NCP2#,NLP2# |
1 | ||
| 55971-52010 |
NCP2#,NLP2# |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-52010 |
NCP2#,NLP2# |
1 | ||
| 55972-52010 |
NCP2#,NLP2# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
NCP2#,NLP2# |
1 | ||
| 74598-20010 |
NCP2#,NLP2# |
1 | ||
| 89279J - COVER | ||||
| 89279-52020 |
NCP2#,NLP2#..RHD |
1 | ||
| 89279-52020 |
NCP2#,NLP2#..RHD |
1 | ||
| Common parts | ||||
| 90183-05040 | ||||
| 90467-0502022 | ||||
| 90467-10203 | ||||
| 93560-14014 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
