NCP20R-CHMGKW (1999)
Toyota Yaris/Echo Verso
ILLUST NO. 2 OF 2(9908- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

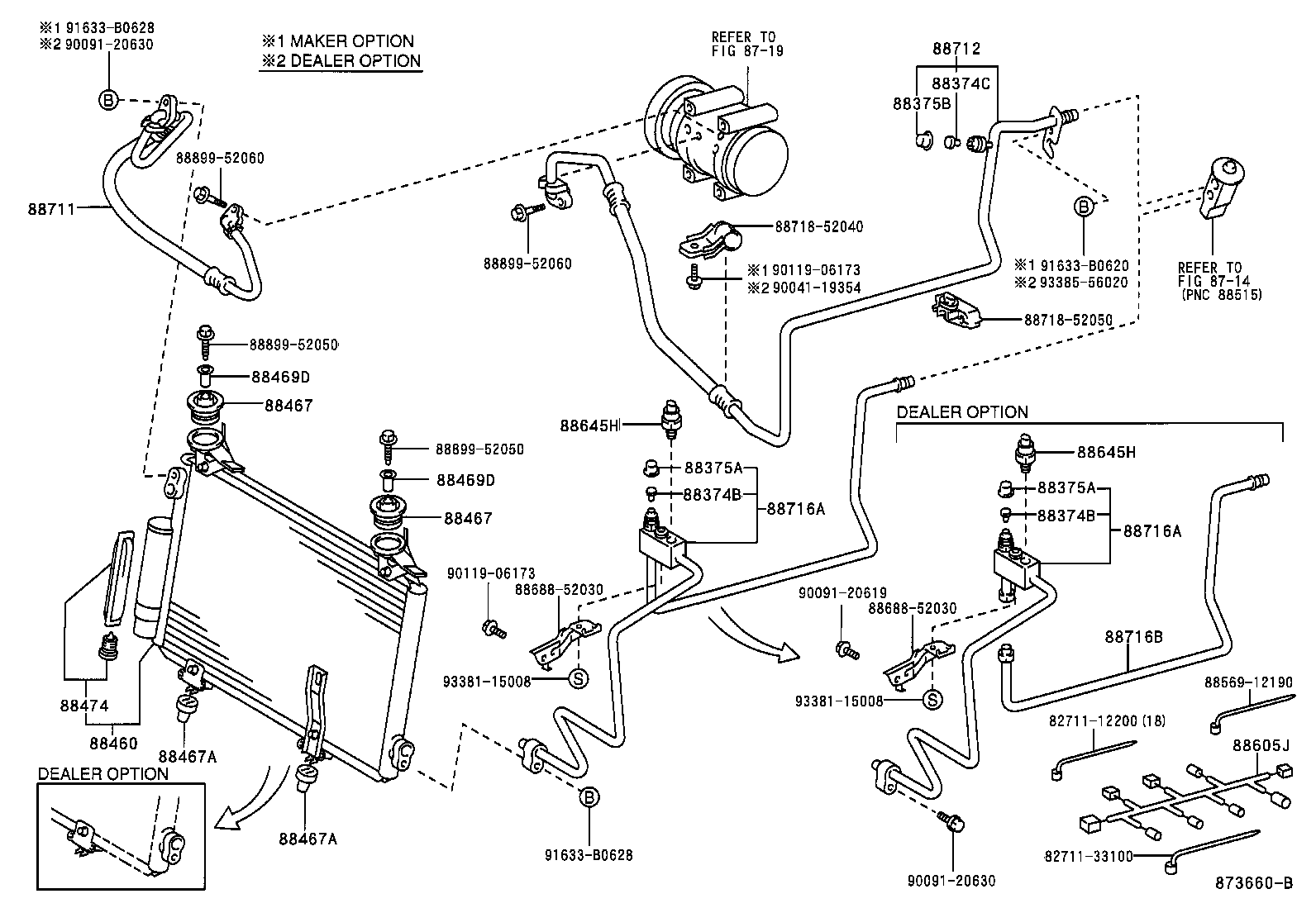

ILLUST NO. 1 OF 2(9908-0211)NCP2#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NCP2#;NLP2#..RHD |
1 | ||
| 88374-30010 |
NCP2#,NLP2# |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NCP2#;NLP2#..RHD |
1 | ||
| 88374-30010 |
NCP2#,NLP2# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP2#,NLP2# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
NCP2#,NLP2# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
NCP2#,NLP2# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
NCP2#,NLP2# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52050 |
NCP2#..RHD MAKER OPTION |
1 | ||
| 88460-52010 |
NCP2#..RHD DEALER OPTION |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP2#,NLP2#..RHD |
2 | ||
| 88467-52010 |
NCP2#,NLP2# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP2#,NLP2#..RHD |
2 | ||
| 88467-52010 |
NCP2#,NLP2# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP2#,NLP2# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-52020 |
NCP2#,NLP2# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP2#,NLP2#..RHD |
2 | ||
| 88469-52010 |
NCP2#,NLP2# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP2#,NLP2#..RHD |
2 | ||
| 88469-52010 |
NCP2#,NLP2# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
NCP2#,NLP2# DEALER OPTION |
1 | ||
| 88474-47010 |
NCP2#,NLP2# |
1 | ||
| 88474-17010 |
NCP2#,NLP2#..RHD |
1 | ||
| 88474-17010 |
NCP2#,NLP2# MAKER OPTION |
1 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-52110 |
NCP2#..RHD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP2#,NLP2# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP2#,NLP2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52021 |
NCP2#..RHD MAKER OPTION |
1 | ||
| 88711-52020 |
NCP2# |
1 | ||
| 88711-52020 |
NCP2#..RHD DEALER OPTION |
1 | ||
| 88711-52021 |
NCP2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52030 |
NCP2#..RHD |
1 | ||
| 88712-52030 |
NCP2#..RHD |
1 | ||
| 88712-52160 |
NCP20,22..RHD DEALER OPTION |
1 | ||
| 88712-52160 |
NCP20,22..RHD DEALER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52110 |
NCP2#,NLP2#..RHD DEALER OPTION |
1 | ||
| 88706-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 88716-52040 |
NCP2#,NLP2#..RHD MAKER OPTION |
1 | ||
| 88706-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52110 |
NCP2#,NLP2#..RHD DEALER OPTION |
1 | ||
| 88706-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 88716-52040 |
NCP2#,NLP2#..RHD MAKER OPTION |
1 | ||
| 88706-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-52360 |
NCP2#..RHD |
1 | ||
| 88716-52120 |
NCP2#,NLP2#..RHD |
1 | ||
| 88716-52360 |
NCP2#..RHD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-33100 | ||||
| 88569-12190 | ||||
| 88688-52030 | ||||
| 88718-52040 | ||||
| 88718-52050 | ||||
| 88899-52050 | ||||
| 88899-52060 | ||||
| 90041-19354 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90119-06173 | ||||
| 91633-B0620 | ||||
| 91633-B0628 | ||||
| 93381-15008 | ||||
| 93385-56020 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

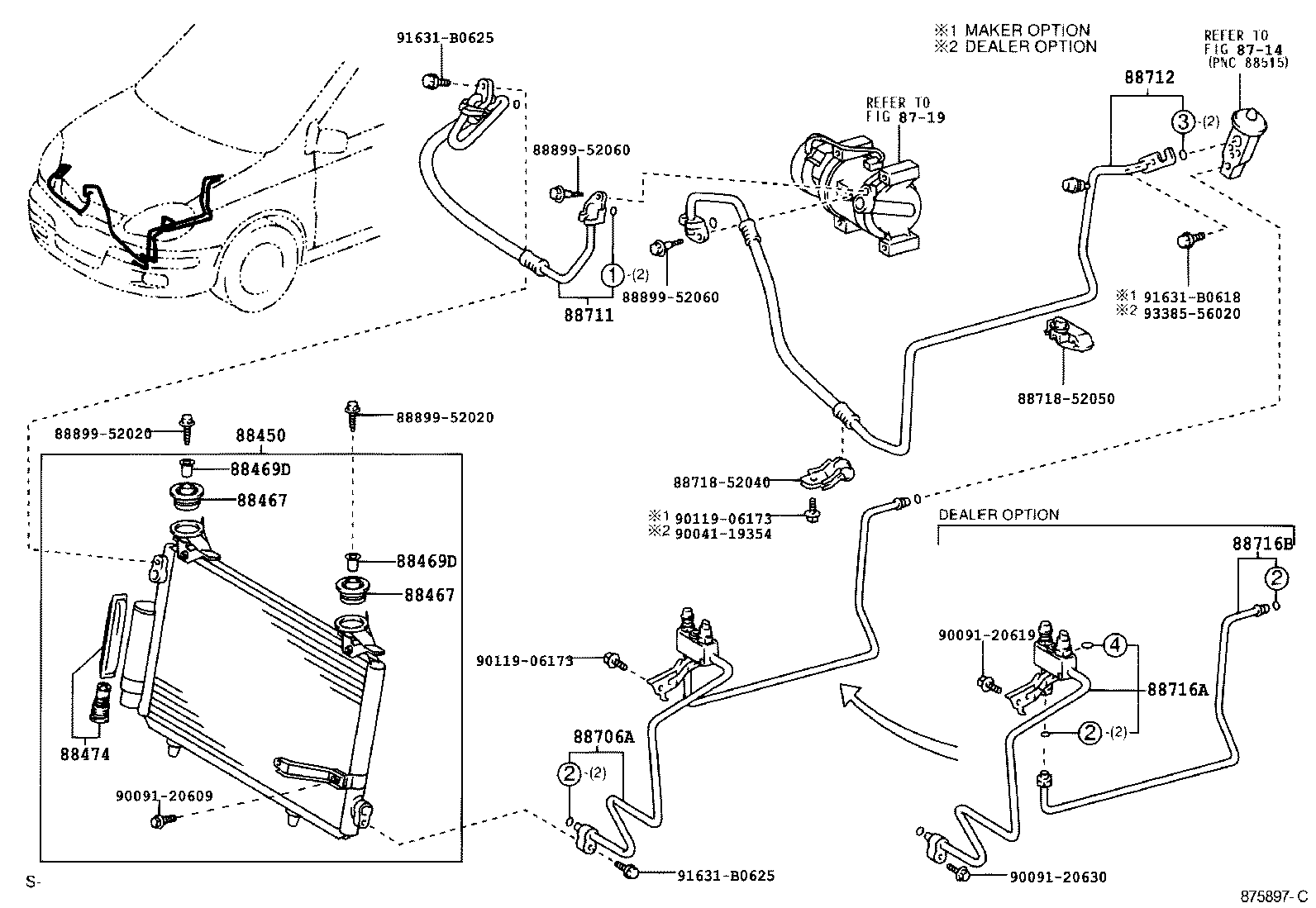

ILLUST NO. 1 OF 2(0211- )NCP2#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-52181 |
NCP2#,NLP2#..RHD |
1 | ||
| 88450-52181 |
NCP2#,NLP2#..RHD DEALER OPTION |
1 | ||
| 88450-52180 |
NCP2#,NLP2#..RHD |
1 | ||
| 88450-52161 |
NCP2#,NLP2#..RHD DEALER OPTION |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP2#,NLP2#..RHD |
2 | ||
| 88467-52010 |
NCP2#,NLP2# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
NCP2#,NLP2#..RHD |
2 | ||
| 88467-52010 |
NCP2#,NLP2# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP2#,NLP2#..RHD |
2 | ||
| 88469-52010 |
NCP2#,NLP2# |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
NCP2#,NLP2#..RHD |
2 | ||
| 88469-52010 |
NCP2#,NLP2# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
NCP2#,NLP2# DEALER OPTION |
1 | ||
| 88474-47010 |
NCP2#,NLP2# |
1 | ||
| 88474-17010 |
NCP2#,NLP2#..RHD |
1 | ||
| 88474-17010 |
NCP2#,NLP2# MAKER OPTION |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-52040 |
NCP2#,NLP2#..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52021 |
NCP2#..RHD MAKER OPTION |
1 | ||
| 88711-52020 |
NCP2# |
1 | ||
| 88711-52020 |
NCP2#..RHD DEALER OPTION |
1 | ||
| 88711-52021 |
NCP2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52030 |
NCP2#..RHD |
1 | ||
| 88712-52030 |
NCP2#..RHD |
1 | ||
| 88712-52160 |
NCP20,22..RHD DEALER OPTION |
1 | ||
| 88712-52160 |
NCP20,22..RHD DEALER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52110 |
NCP2#,NLP2#..RHD DEALER OPTION |
1 | ||
| 88706-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 88716-52040 |
NCP2#,NLP2#..RHD MAKER OPTION |
1 | ||
| 88706-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-52360 |
NCP2#..RHD |
1 | ||
| 88716-52120 |
NCP2#,NLP2#..RHD |
1 | ||
| 88716-52360 |
NCP2#..RHD |
1 | ||
| Common parts | ||||
| 88718-52040 | ||||
| 88718-52050 | ||||
| 88899-52020 | ||||
| 88899-52060 | ||||
| 90041-19354 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20630 | ||||
| 90119-06173 | ||||
| 91631-B0618 | ||||
| 91631-B0625 | ||||
| 93385-56020 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
