NCP20R-CHMGKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9908- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

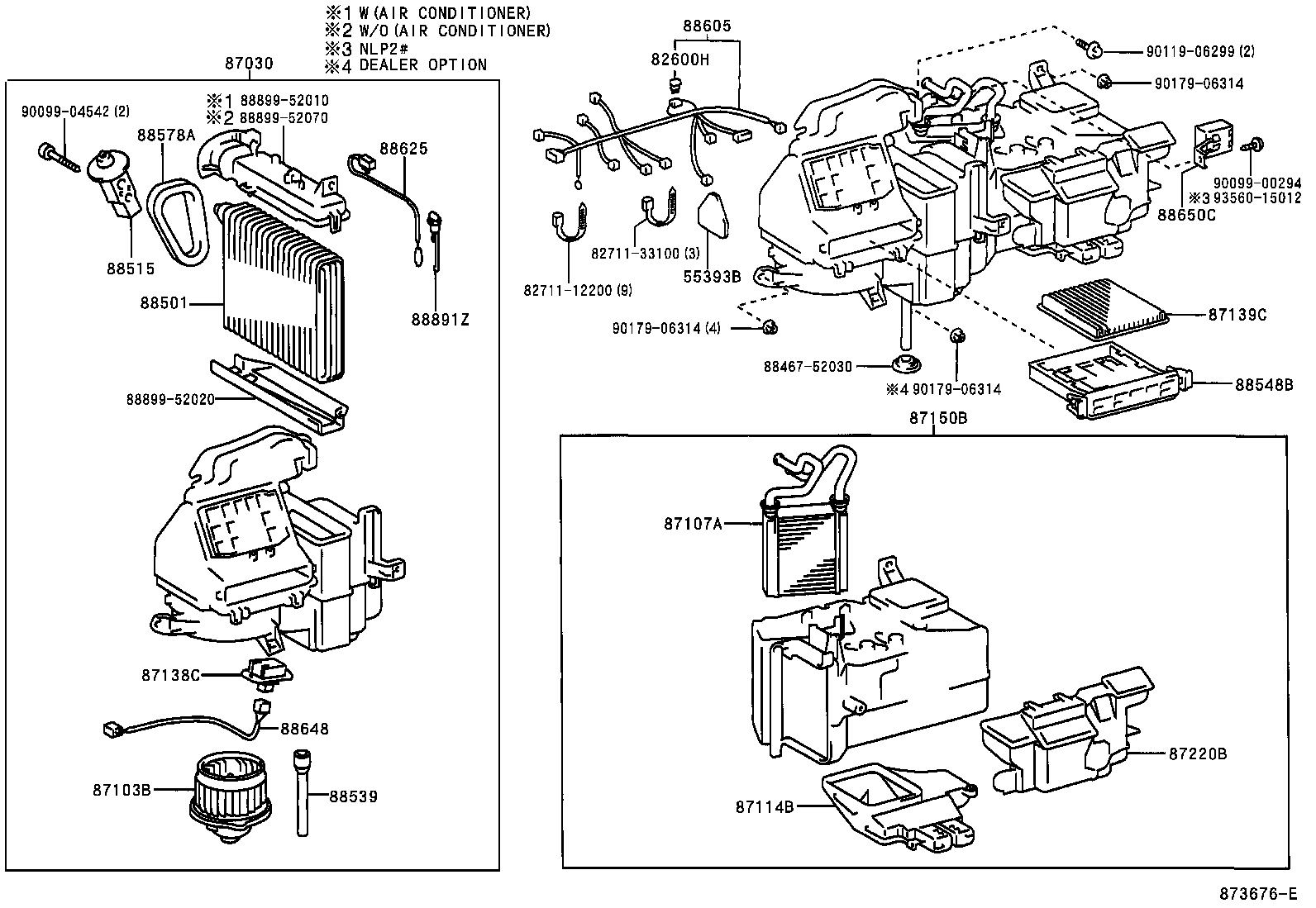

ILLUST NO. 1 OF 2(9908-0211)RHD

Click highlighted areas on diagram

diagram 55393B 82600H 8271112200 8271133100 87030 87103B 87107A 87114B 87138C 87139C 87150B 87220B 8846752030 88501 88515 88539 88548B 88578A 88605 88625 88648 88650C 88891Z 8889952010 8889952020 8889952070 9009900294 9009904542 9011906299 9017906314 9017906314 9017906314 9356015012
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09005

NCP2#..RHD

7.5A

 1
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52010

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87030-52030

NCP2#,NLP2#..RHD

 1
87030-52030

NCP2#,NLP2#..RHD

 1
87030-52010

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87030-52011

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52010

NCP2#,NLP2#..RHD

 1
87103-52010

NCP2#,NLP2#..RHD

 1
87103-52050

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87103-52110

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52010

NCP2#,NLP2#..RHD

 1
87107-52010

NCP2#,NLP2#..RHD

 1
87114B - COVER, HEATER
87114-52010

NCP2#,NLP2#..RHD

 1
87114-52010

NCP2#,NLP2#..RHD

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP2#,NLP2#..RHD

 1
87138-52010

NCP2#,NLP2#

 1
87139C - FILTER, CLEAN AIR
88568-52010

NCP2#,NLP2#

 1
88568-52010

NCP2#,NLP2#

 1
87150B - RADIATOR ASSY, HEATER
87150-52010

NCP2#,NLP2#..RHD

 1
87150-52010

NCP2#,NLP2#..RHD

 1
87220B - DUCT ASSY, AIR
87220-52010

NCP2#,NLP2#..RHD

 1
87220-52010

NCP2#,NLP2#..RHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52070

NCP2#,NLP2#..RHD

 1
88501-52010

NCP2#..RHD

 1
88501-52010

NCP2#,NLP2#..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-52010

NCP2#,NLP2#

 1
88515-52010

NCP2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP2#,NLP2#

 1
88539-52010

NCP2#,NLP2#

 1
88548B - CASE, AIR FILTER
88548-52010

NCP2#,NLP2#

 1
88548-52010

NCP2#,NLP2#

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-52010

NCP2#,NLP2#..RHD

 1
88578-52010

NCP2#,NLP2#..RHD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-52050

NCP20

 1
88605-52130

NCP2#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-52020

NCP2#,NLP2#

 1
88625-52020

NCP2#..RHD

 1
88625-52070

NCP2#,NLP2#..RHD

MAKER OPTION

 1
88625-52090

NCP2#,NLP2#..RHD

MAKER OPTION

 1
88625-52100

NCP2#,NLP2#..RHD

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP2#,NLP2#..RHD

 1
88648-52020

NCP2#,NLP2#

 1
88648-52240

NCP2#,NLP2#..RHD

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-52110

NCP2#

 1
88650-52110

NCP2#

 1
88891Z - BRACKET, COOLER THERMISTOR
88891-20240

NCP2#,NLP2#

 1
88891-20240

NCP2#,NLP2#..RHD

 1
Common parts
82711-12200
82711-33100
88467-52030
88899-52010
88899-52020
88899-52070
90099-00294
90099-04542
90119-06299
90179-06314
93560-15012

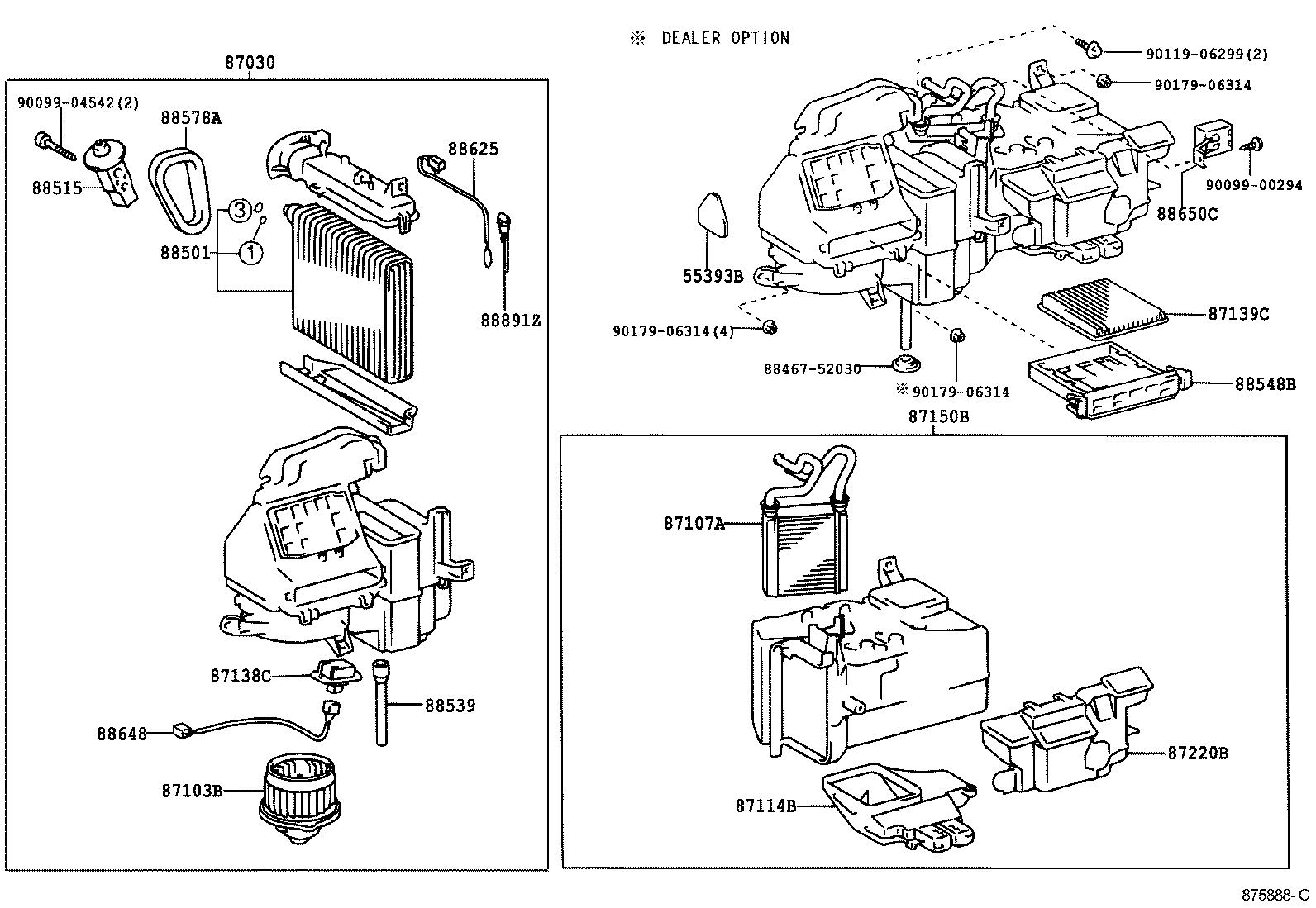

ILLUST NO. 1 OF 2(0211- )RHD

Click highlighted areas on diagram

diagram 55393B 87030 87103B 87107A 87114B 87138C 87139C 87150B 87220B 8846752030 88501 88515 88539 88548B 88578A 88625 88648 88650C 88891Z 9009900294 9009904542 9011906299 9017906314 9017906314 9017906314
Part # Description Qty Price
87030 - BLOWER ASSY, AIR CONDITIONER
87030-52010

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87030-52030

NCP2#,NLP2#..RHD

 1
87030-52030

NCP2#,NLP2#..RHD

 1
87030-52010

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87030-52011

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52010

NCP2#,NLP2#..RHD

 1
87103-52010

NCP2#,NLP2#..RHD

 1
87103-52050

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87103-52110

NCP2#,NLP2#..RHD

W(AIR CONDITIONER)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52010

NCP2#,NLP2#..RHD

 1
87107-52010

NCP2#,NLP2#..RHD

 1
87114B - COVER, HEATER
87114-52010

NCP2#,NLP2#..RHD

 1
87114-52010

NCP2#,NLP2#..RHD

 1
87138C - RESISTOR, BLOWER
87138-52010

NCP2#,NLP2#..RHD

 1
87138-52010

NCP2#,NLP2#

 1
87139C - FILTER, CLEAN AIR
88568-52010

NCP2#,NLP2#

 1
88568-52010

NCP2#,NLP2#

 1
87150B - RADIATOR ASSY, HEATER
87150-52010

NCP2#,NLP2#..RHD

 1
87150-52010

NCP2#,NLP2#..RHD

 1
87220B - DUCT ASSY, AIR
87220-52010

NCP2#,NLP2#..RHD

 1
87220-52010

NCP2#,NLP2#..RHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52070

NCP2#,NLP2#..RHD

 1
88501-52010

NCP2#..RHD

 1
88501-52010

NCP2#,NLP2#..RHD

 1
88515 - VALVE, COOLER EXPANSION
88515-52010

NCP2#,NLP2#

 1
88515-52010

NCP2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-52010

NCP2#,NLP2#

 1
88539-52010

NCP2#,NLP2#

 1
88548B - CASE, AIR FILTER
88548-52010

NCP2#,NLP2#

 1
88548-52010

NCP2#,NLP2#

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-52010

NCP2#,NLP2#..RHD

 1
88578-52010

NCP2#,NLP2#..RHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-52020

NCP2#,NLP2#

 1
88625-52020

NCP2#..RHD

 1
88625-52070

NCP2#,NLP2#..RHD

MAKER OPTION

 1
88625-52090

NCP2#,NLP2#..RHD

MAKER OPTION

 1
88625-52100

NCP2#,NLP2#..RHD

 1
88648 - WIRING, COOLER, NO.1
88648-52020

NCP2#,NLP2#..RHD

 1
88648-52020

NCP2#,NLP2#

 1
88648-52240

NCP2#,NLP2#..RHD

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-52110

NCP2#

 1
88650-52110

NCP2#

 1
88891Z - BRACKET, COOLER THERMISTOR
88891-20240

NCP2#,NLP2#

 1
88891-20240

NCP2#,NLP2#..RHD

 1
Common parts
88467-52030
90099-00294
90099-04542
90119-06299
90179-06314
