NCP20R-CHMGKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0211)

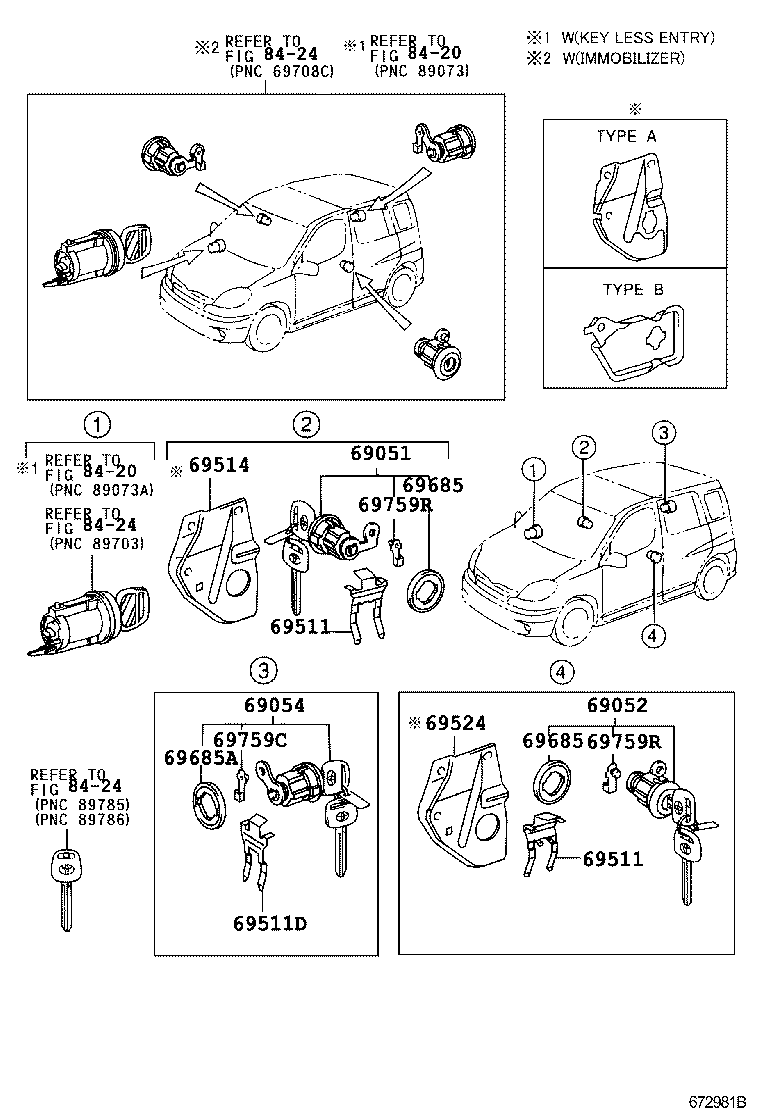

Click highlighted areas on diagram

diagram 69051 69052 69054 69057A 69503 69503A 69511 69511 69511D 69514 69524 69685 69685 69685A 69759C 69759R 69759R 8420 8420
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-52260

NCP2#,NLP2#

 1
69051-52100

NCP2#,NLP2#

W(IMMOBILIZER)

 1
69051-52140

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69051-52270

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-52100

NCP2#,NLP2#

W(IMMOBILIZER)

 1
69052-52220

NCP2#,NLP2#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-52310

NCP2#,NLP2#

 1
69055-52150

NCP2#,NLP2#

W(IMMOBILIZER)

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-16030

NCP2#,NLP2#

 2
69511-16030

NCP2#,NLP2#

 2
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 2
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-16030

NCP2#,NLP2#

 2
69511-16030

NCP2#,NLP2#

 2
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 2
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 2
69511D - RETAINER, BACK DOOR LOCK CYLINDER
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69511-16030

NCP2#,NLP2#

 1
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69511-16030

NCP2#,NLP2#

 1
69514 - SUPPORT, FRONT DOOR LOCK CYLINDER, RH
69514-52030

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER ILLUST.

 1
69514-52030

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER TO ILLUSTRATION

 1
69514-52022

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER ILLUST.

 1
69514-52030

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER TO ILLUSTRATION

 1
69514-52020

NCP20..RHD

TYPE A:REFER TO ILLUSTRATION

 1
69514-52022

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER TO ILLUSTRATION

 1
69514-52021

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER TO ILLUSTRATION

 1
69524 - SUPPORT, FRONT DOOR LOCK CYLINDER, LH
69524-52011

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER TO ILLUSTRATION

 1
69524-52010

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER TO ILLUSTRATION

 1
69524-52020

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER TO ILLUSTRATION

 1
69524-52020

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER ILLUST.

 1
69524-52011

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER ILLUST.

 1
69685 - PAD, LOCK CYLINDER
69563-10020

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69563-10020

NCP2#,NLP2#

 2
69563-10020

NCP2#,NLP2#

W/O(DOUBLE-LOCK)

 2
69685 - PAD, LOCK CYLINDER
69563-10020

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69563-10020

NCP2#,NLP2#

 2
69563-10020

NCP2#,NLP2#

W/O(DOUBLE-LOCK)

 2
69685A - PAD, LOCK CYLINDER
69563-10020

NCP2#,NLP2#

 1
69563-10020

NCP2#,NLP2#

 1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24080

NCP2#,NLP2#

 1
69759-24080

NCP2#,NLP2#

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-32090

NCP2#,NLP2#

RH

 1
69759-32090

NCP2#,NLP2#

RH

 1
69759-32100

NCP2#,NLP2#

LH

 1
69759-32100

NCP2#,NLP2#

LH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-32090

NCP2#,NLP2#

RH

 1
69759-32090

NCP2#,NLP2#

RH

 1
69759-32100

NCP2#,NLP2#

LH

 1
69759-32100

NCP2#,NLP2#

LH

 1
Linked diagrams
8420

(0211- )

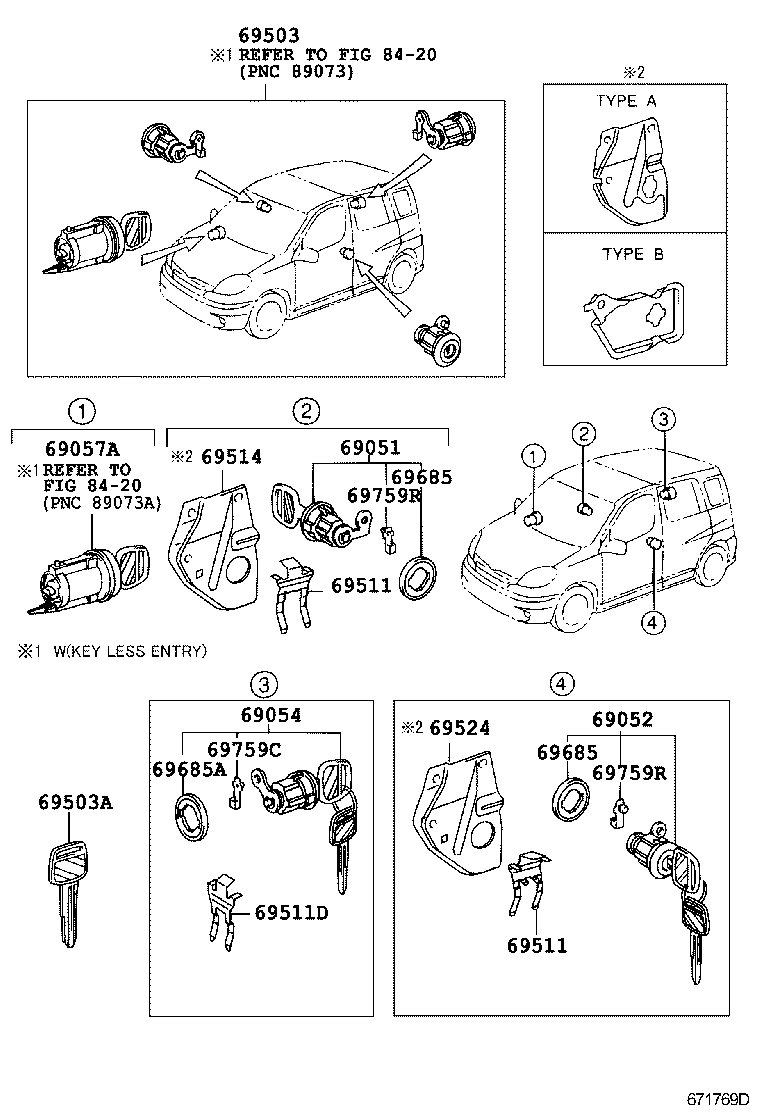

Click highlighted areas on diagram

diagram 69051 69052 69054 69511 69511 69511D 69514 69524 69685 69685 69685A 69759C 69759R 69759R 8420 8420 8424 8424 8424
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-52260

NCP2#,NLP2#

 1
69051-52100

NCP2#,NLP2#

W(IMMOBILIZER)

 1
69051-52140

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69051-52270

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-52100

NCP2#,NLP2#

W(IMMOBILIZER)

 1
69052-52220

NCP2#,NLP2#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-52310

NCP2#,NLP2#

 1
69055-52150

NCP2#,NLP2#

W(IMMOBILIZER)

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-16030

NCP2#,NLP2#

 2
69511-16030

NCP2#,NLP2#

 2
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 2
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-16030

NCP2#,NLP2#

 2
69511-16030

NCP2#,NLP2#

 2
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 2
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 2
69511D - RETAINER, BACK DOOR LOCK CYLINDER
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69511-16030

NCP2#,NLP2#

 1
69511-52010

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69511-16030

NCP2#,NLP2#

 1
69514 - SUPPORT, FRONT DOOR LOCK CYLINDER, RH
69514-52030

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER ILLUST.

 1
69514-52030

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER TO ILLUSTRATION

 1
69514-52022

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER ILLUST.

 1
69514-52030

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER TO ILLUSTRATION

 1
69514-52020

NCP20..RHD

TYPE A:REFER TO ILLUSTRATION

 1
69514-52022

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER TO ILLUSTRATION

 1
69514-52021

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER TO ILLUSTRATION

 1
69524 - SUPPORT, FRONT DOOR LOCK CYLINDER, LH
69524-52011

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER TO ILLUSTRATION

 1
69524-52010

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER TO ILLUSTRATION

 1
69524-52020

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER TO ILLUSTRATION

 1
69524-52020

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE B:REFER ILLUST.

 1
69524-52011

NCP2#,NLP2#..RHD..(4FC,5F)

TYPE A:REFER ILLUST.

 1
69685 - PAD, LOCK CYLINDER
69563-10020

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69563-10020

NCP2#,NLP2#

 2
69563-10020

NCP2#,NLP2#

W/O(DOUBLE-LOCK)

 2
69685 - PAD, LOCK CYLINDER
69563-10020

NCP2#,NLP2#..RHD..(4FC,5F)

W(DOUBLE-LOCK)

 1
69563-10020

NCP2#,NLP2#

 2
69563-10020

NCP2#,NLP2#

W/O(DOUBLE-LOCK)

 2
69685A - PAD, LOCK CYLINDER
69563-10020

NCP2#,NLP2#

 1
69563-10020

NCP2#,NLP2#

 1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24080

NCP2#,NLP2#

 1
69759-24080

NCP2#,NLP2#

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-32090

NCP2#,NLP2#

RH

 1
69759-32090

NCP2#,NLP2#

RH

 1
69759-32100

NCP2#,NLP2#

LH

 1
69759-32100

NCP2#,NLP2#

LH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-32090

NCP2#,NLP2#

RH

 1
69759-32090

NCP2#,NLP2#

RH

 1
69759-32100

NCP2#,NLP2#

LH

 1
69759-32100

NCP2#,NLP2#

LH

 1
