NCP20R-CHMGKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

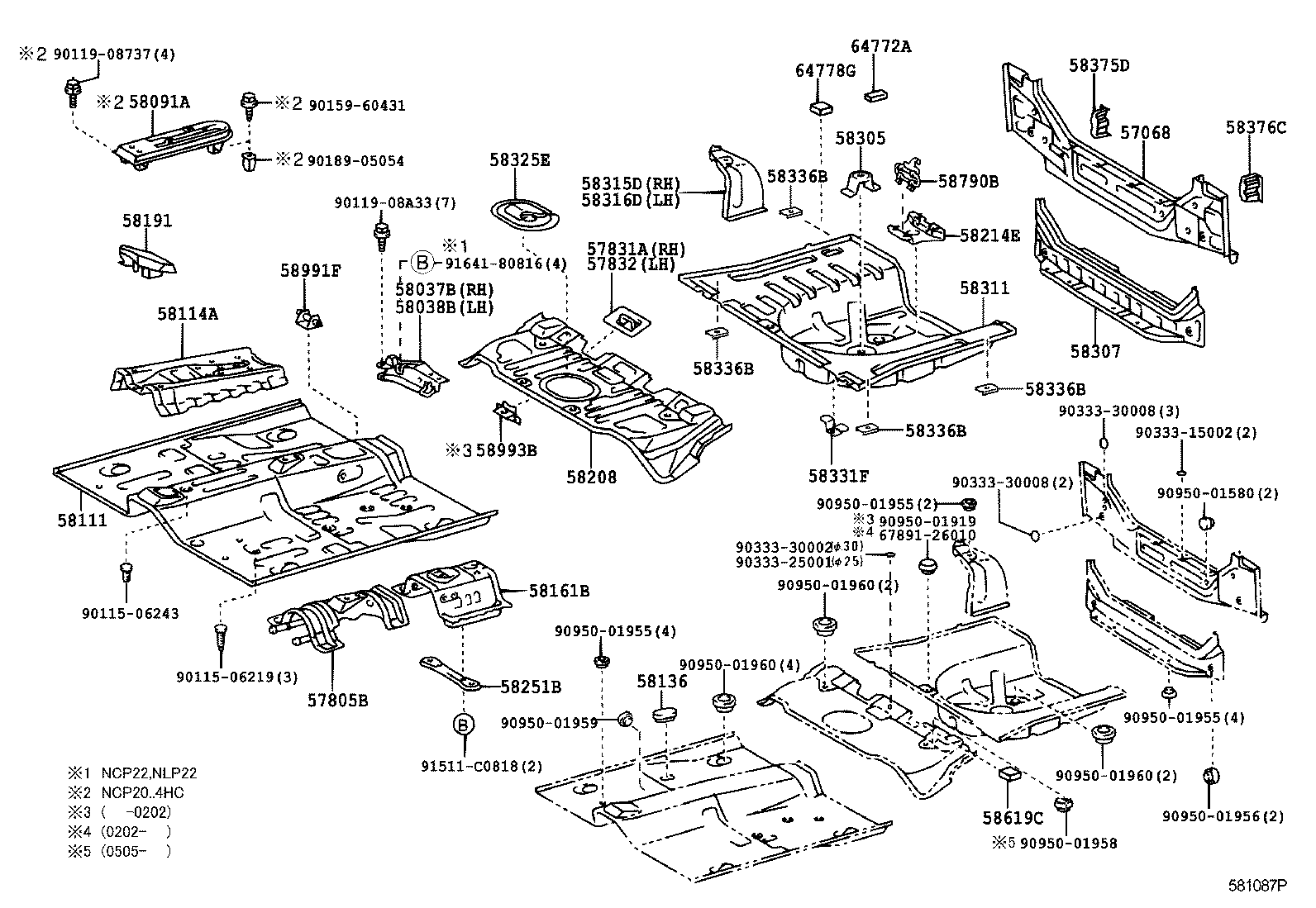

Click highlighted areas on diagram

diagram 57068 57805B 57831A 57832 58037B 58038B 58091A 58111 58114A 58136 58161B 58191 58208 58214E 58251B 58305 58307 58311 58315D 58316D 58325E 58331F 58336B 58336B 58336B 58336B 58375D 58376C 58619C 58790B 58991F 58993B 64772A 64778G 6789126010 9011506219 9011506243 9011908737 9011908A33 9015960431 9018905054 9033315002 9033325001 9033330002 9033330008 9033330008 9095001580 9095001919 9095001955 9095001955 9095001955 9095001956 9095001958 9095001959 9095001960 9095001960 9095001960 91511C0818 9164180816
Part # Description Qty Price
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57659-52020

NCP2#,NLP2#

 1
57659-52020

NCP2#,NLP2#

 1
57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57805-52021

NCP2#

 1
57805-52022

NCP2#,NLP2#

 1
57805-52022

NCP2#,NLP2#

 1
57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-52010

NCP2#,NLP2#

 1
57831-52010

NCP2#,NLP2#

 1
57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57832-52030

NCP2#,NLP2#

 1
57832-52030

NCP2#,NLP2#

 1
58037B - REINFORCE, CENTER PILLAR TO FLOOR, RH
58037-52030

NCP2#,NLP2#

 1
58037-52030

NCP2#,NLP2#

 1
58038B - REINFORCE, CENTER PILLAR TO FLOOR, LH
58038-52030

NCP2#,NLP2#

 1
58038-52030

NCP2#,NLP2#

 1
58111 - PAN, FRONT FLOOR
58111-52908

NCP2#,NLP2#..4FC,5F

 1
58111-52903

NCP2#

 1
58111-52908

NCP2#,NLP2#..4FC,5F

 1
58111-52916

NCP2#,NLP2#..4FC,5F

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58103-52010

NCP2#,NLP2#

 1
58114-52010

NCP2#,NLP2#

 1
58103-52011

NCP2#,NLP2#

 1
58136 - COVER, FRONT FLOOR HOLE
58136-52010

NCP2#,NLP2#

 2
58136-52010

NCP2#,NLP2#

 2
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58161-52030

NCP2#,NLP2#

 1
58161-52030

NCP2#,NLP2#

 1
58208 - PAN, CENTER FLOOR
58211-52031

NCP2#

 1
58211-52032

NCP2#,NLP2#

 1
58211-52032

NCP2#,NLP2#

 1
58211-52033

NCP2#,NLP2#

 1
58214E - BRACKET, JACK SUPPORT
58214-52010

NCP2#,NLP2#

 1
58214-52010

NCP2#,NLP2#

 1
58251B - BRACE, FLOOR PANEL, FRONT
58251-52010

NCP2#,NLP2#

 1
58251-52010

NCP2#,NLP2#

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-32010

NCP2#

 1
58351-33010

NCP2#,NLP2#

 1
58351-33010

NCP2#,NLP2#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-52050

NCP2#,NLP2#

 1
58307-52050

NCP2#,NLP2#

 1
58311 - PAN, REAR FLOOR
58311-52033

NCP2#,NLP2#

 1
58311-52031

NCP2#,NLP2#

 1
58311-52030

NCP2#,NLP2#

 1
58311-52032

NCP2#,NLP2#

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-52030

NCP2#,NLP2#

 1
58315-52030

NCP2#,NLP2#

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-52030

NCP2#,NLP2#

 1
58316-52030

NCP2#,NLP2#

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-52010

NCP2#,NLP2#

 1
58325-52010

NCP2#,NLP2#

 1
58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58331-10010

NCP2#,NLP2#

 2
58331-10010

NCP2#,NLP2#

 2
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-12060

NCP2#,NLP2#

 4
58336-12060

NCP2#,NLP2#

 4
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-12060

NCP2#,NLP2#

 4
58336-12060

NCP2#,NLP2#

 4
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-12060

NCP2#,NLP2#

 4
58336-12060

NCP2#,NLP2#

 4
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-12060

NCP2#,NLP2#

 4
58336-12060

NCP2#,NLP2#

 4
58375D - REINFORCEMENT, BODY LOWER BACK PANEL, RH
58303-52010

NCP2#,NLP2#

 1
58375-52040

NCP20

 1
58303-52010

NCP2#,NLP2#

 1
58376C - BRACKET, LOWER BACK PANEL WEIGHT
58304-52060

NCP2#,NLP2#

 1
58376-52020

NCP20

 1
58304-52060

NCP2#,NLP2#

 1
58619C - SHEET, CENTER FLOOR SILENCER SUB
58619-52010

NCP2#,NLP2#

 2
58619-52010

NCP2#,NLP2#

 2
58790B - CARRIER ASSY, JACK
58790-52010

NCP2#,NLP2#

 1
58790-52010

NCP2#,NLP2#

 1
58991F - BRACKET, CONSOLE BOX MOUNTING, FRONT
58991-52010

NCP2#,NLP2#

 1
58991-52010

NCP2#,NLP2#

 1
58993B - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-52010

NCP20..4FC,5F

 1
64772A - PAD, SPARE WHEEL COVER
64772-16100

NCP2#,NLP2#

 2
64772-16100

NCP2#,NLP2#

 2
64778G - PROTECTOR, SPARE WHEEL
64778-52050

NCP2#,NLP2#

 3
64778-52050

NCP2#,NLP2#

 3
Common parts
67891-26010
90115-06219
90115-06243
90119-08737
90119-08A33
90159-60431
90189-05054
90333-15002
90333-25001
90333-30002
90333-30008
90950-01580
90950-01919
90950-01955
90950-01956
90950-01958
90950-01959
90950-01960
91511-C0818
91641-80816
