NCP20L-CHPNKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0509)

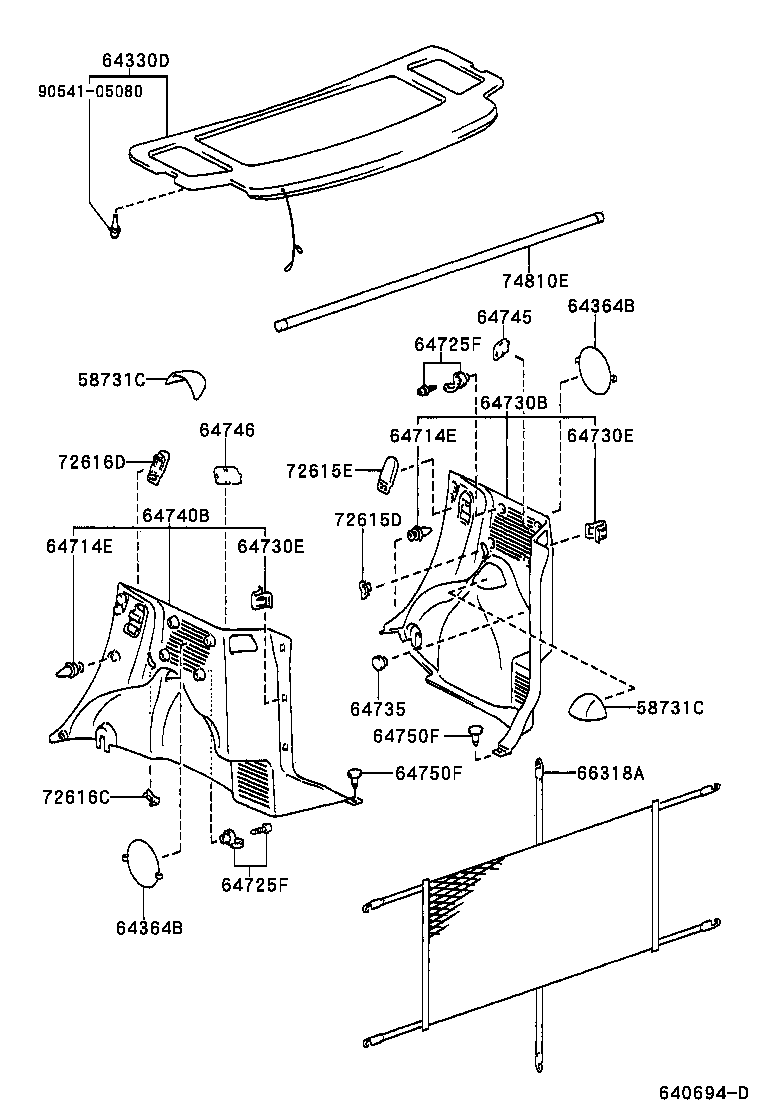

Click highlighted areas on diagram

diagram 58731C 58731C 64330D 64364B 64364B 64714E 64714E 64725F 64725F 64730B 64730E 64730E 64735 64740B 64745 64746 64750F 64750F 66318A 72615D 72615E 72616C 72616D 74810E 9054105080
Part # Description Qty Price
58731C - CAP, REAR ABSORBER
58731-52040G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 2
58731-52040B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 2
58731-52040B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 2
58731C - CAP, REAR ABSORBER
58731-52040G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 2
58731-52040B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 2
58731-52040B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 2
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-52031B1

NCP20,21,NLP20

MEDIUM GRAY,TRIM9#

 1
64330-52030G1

NCP20,21,NLP20

MIST GREEN,TRIM7#

 1
64330-52220B0

NCP2#,NLP2#

DARK GRAY,TRIM1#

 1
64330-52030B1

NCP20,21,NLP20

MEDIUM GRAY,TRIM9#

 1
64330-52200B1

NCP2#,NLP2#

DARK GRAY,TRIM7#,9#

 1
64330-52031G1

NCP20,21,NLP20

MIST GREEN,TRIM7#

 1
64364B - COVER, REAR SPEAKER GRILLE, NO.1
64364-52010

NCP2#,NLP2#

 2
64364-52010

NCP2#,NLP2#

 2
64364B - COVER, REAR SPEAKER GRILLE, NO.1
64364-52010

NCP2#,NLP2#

 2
64364-52010

NCP2#,NLP2#

 2
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-10161

NCP2#,NLP2#

 4
90467-10161

NCP2#,NLP2#

 4
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-10161

NCP2#,NLP2#

 4
90467-10161

NCP2#,NLP2#

 4
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-52010G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 8
64725-52010B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 8
64725-52010B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 8
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-52010G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 8
64725-52010B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 8
64725-52010B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 8
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-52130B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
64730-52130G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 1
64730-52130B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 1
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90468-05084

NCP2#,NLP2#

 6
90468-05084

NCP2#,NLP2#

 6
64730E - CLIP(FOR DECK TRIM SIDE BOARD)
90468-05084

NCP2#,NLP2#

 6
90468-05084

NCP2#,NLP2#

 6
64735 - COVER, DECK TRIM SIDE SERVICE HOLE
64735-13050B2

NCP2#,NLP2#..LUNA,STD

DK.GRAY,TRIM1#

 1
64735-13050G0

NCP2#,NLP2#..LUNA,STD

MIST GREEN,TRIM7#

 1
64735-13050B1

NCP2#,NLP2#..LUNA,STD

MD.GRAY,TRIM9#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64740-52130B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 1
64740-52130G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 1
64740-52130B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-52020B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
64745-52020B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 1
64745-52020G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-52020B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 1
64746-52020B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
64746-52020G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-06017B6

NCP2#,NLP2#

MD.GRAY,TRIM7#,9#

 2
90467-06017B7

NCP2#,NLP2#

DK.GRAY,TRIM1#

 2
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-06017B6

NCP2#,NLP2#

MD.GRAY,TRIM7#,9#

 2
90467-06017B7

NCP2#,NLP2#

DK.GRAY,TRIM1#

 2
66318A - BAND, ROPE HOOK
66318-52010C0

NCP2#,NLP2#

BLACK,TRIM1#

 1
66318-52010C0

NCP2#,NLP2#

BLACK,TRIM7#,9#

 1
72615D - COVER, REAR SEAT BACK LOCK STRIKER, RH
72615-52020B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
72615-52020G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 1
72615-52020B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 1
72615E - COVER, REAR SEAT BACK LOCK STRIKER, RH
72615-52030G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 1
72615-52030B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 1
72615-52030B1

NCP20,21,NLP20

DK.GRAY,TRIM1#

 1
72616C - COVER, REAR SEAT BACK LOCK STRIKER, LH
72616-52010B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 1
72616-52010G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 1
72616-52010B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 1
72616D - COVER, REAR SEAT BACK LOCK STRIKER, LH
72615-52030G0

NCP2#,NLP2#

MIST GREEN,TRIM7#

 1
72615-52030B0

NCP2#,NLP2#

MD.GRAY,TRIM9#

 1
72615-52030B1

NCP20,21,NLP20

DK.GRAY,TRIM1#

 1
74810E - BAR ASSY, SEPARATOR
74810-52010B1

NCP2#,NLP2#

DK.GRAY,TRIM1#

 2
74810-52010B0

NCP20,21,NLP20

MD.GRAY,TRIM7#,9#

 2
Common parts
90541-05080
