NCP20L-CHPGKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

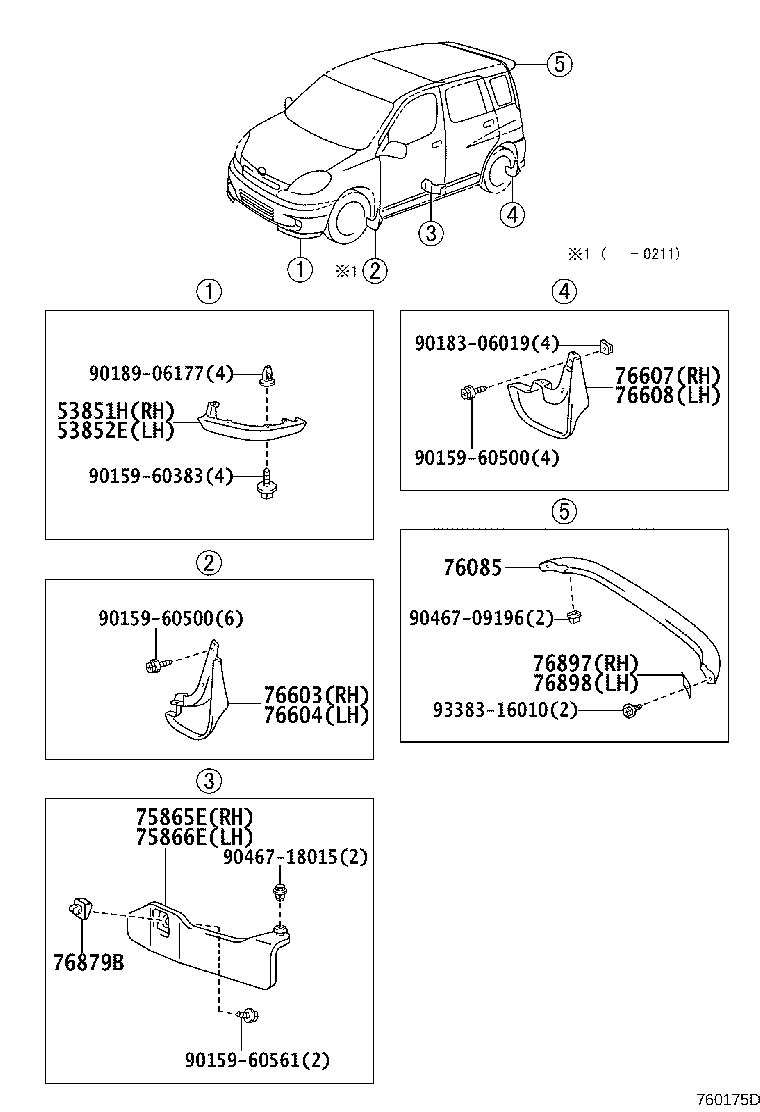

Click highlighted areas on diagram

diagram 53851H 53852E 75865E 75866E 76085 76603 76604 76607 76608 76879B 76897 76898 9015960383 9015960500 9015960500 9015960561 9018306019 9018906177 9046709196 9046718015 9338316010
Part # Description Qty Price
53851H - PAD, FRONT SPOILER, RH
53851-52020

NCP2#,NLP2#

 1
53851-52070

NCP2#,NLP2#

 1
53852E - PAD, FRONT SPOILER, LH
53852-52070

NCP2#,NLP2#

 1
53852-52020

NCP2#,NLP2#

 1
75865E - PROTECTOR, ROCKER PANEL MOULDING, RH
75865-52010

NCP2#,NLP2#

 1
75865-52010

NCP2#,NLP2#

 1
75866E - PROTECTOR, ROCKER PANEL MOULDING, LH
75866-52010

NCP2#,NLP2#

 1
75866-52010

NCP2#,NLP2#

 1
76085 - SPOILER SUB-ASSY, REAR
76871-52020B0

NCP2#,NLP2#

SILVER ME,199

 1
76871-52020A0

NCP2#

SUPER WHITE 2,040

 1
76871-52020A1

NCP2#,NLP2#

WHITE,068

 1
76871-52020F1

NCP2#,NLP2#

CHAMPAGNE ME.,583

 1
76871-52020J0

NCP2#,NLP2#

BLUE MC.,8M6

 1
76871-52020D0

NCP2#,NLP2#

RED M.M.,3N8

 1
76871-52020C0

NCP2#,NLP2#

BLACK MC.,209

 1
76871-52020G0

NCP2#,NLP2#

DK.GREEN MC.,6R4

 1
76871-52020B1

NCP2#,NLP2#

GRAY ME.,1D2

 1
76871-52020A1

NCP2#,NLP2#

WHITE,068

 1
76871-52020D1

NCP2#,NLP2#

SUPER RED 5,3P0

 1
76871-52020B2

NCP2#,NLP2#

SILVER M.M.,1E7

 1
76871-52020D1

NCP2#,NLP2#

SUPER RED 5,3P0

 1
76871-52020F1

NCP2#,NLP2#

CHAMPAGNE ME.,583

 1
76871-52020C0

NCP2#,NLP2#

BLACK MC.,209

 1
76871-52020J0

NCP2#,NLP2#

BLUE MC.,8M6

 1
76871-52020G1

NCP2#,NLP2#

GREEN PM.,6S2

 1
76871-52020G0

NCP2#,NLP2#

DK.GREEN MC.,6R4

 1
76871-52020H1

NCP2#,NLP2#

AQUA M.M.,774

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-52020

NCP2#,NLP2#

 1
76625-52020

NCP2#,NLP2#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-52020

NCP2#,NLP2#

 1
76626-52020

NCP2#,NLP2#

 1
76879B - CLIP, REAR SPOILER, NO.2
76879-52010

NCP2#,NLP2#

 2
76879-52010

NCP2#,NLP2#

 2
76897 - PROTECTOR, REAR SPOILER, SIDE RH
76897-52010

NCP2#,NLP2#

 1
76897-52010

NCP2#,NLP2#

 1
76898 - PROTECTOR, REAR SPOILER, SIDE LH
76898-52010

NCP2#,NLP2#

 1
76898-52010

NCP2#,NLP2#

 1
Common parts
90159-60383
90159-60500
90159-60561
90183-06019
90189-06177
90467-09196
90467-18015
93383-16010
