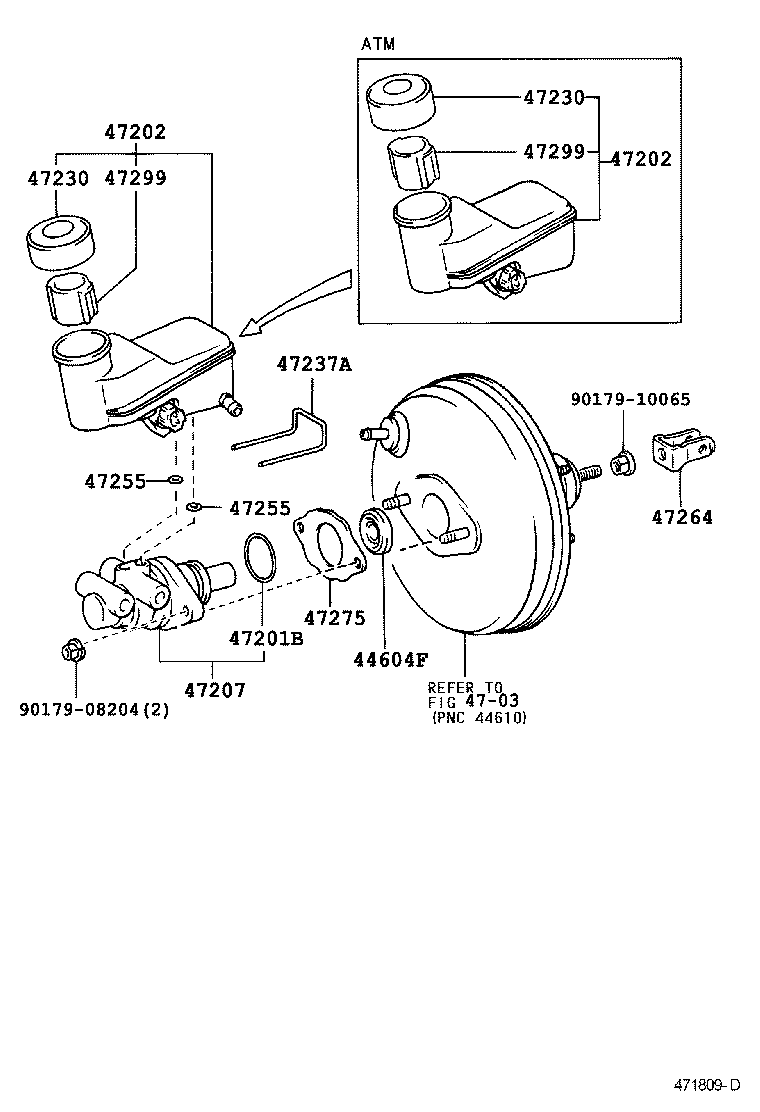

NCP20L-CHMNKW (1999)
Toyota Yaris/Echo Verso
(9908-0509)NCP2# ; (0110-0509)NLP2#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44604F - SEAL, BRAKE BOOSTER BODY | ||||
| 44604-52070 |
NCP2#;NLP2#..LHD |
1 | ||
| 44604-52070 |
NCP2#;NLP2#..LHD |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-EH001 |
NCP2#;NLP2#..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52030 |
NCP2#,NLP2#..LHD..5F |
1 | ||
| 47220-52030 |
NCP2#,NLP2#..LHD..5F |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52030 |
NCP2#,NLP2#..LHD..5F |
1 | ||
| 47220-52030 |
NCP2#,NLP2#..LHD..5F |
1 | ||
| 47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK | ||||
| 47207-52021 |
NCP2#,NLP2#..LHD |
1 | ||
| 47207-52011 |
NCP2#,NLP2#..LHD W(ABS) |
1 | ||
| 47207-52021 |
NCP2#,NLP2#..LHD |
1 | ||
| 47207-52011 |
NCP2#,NLP2#..LHD W(ABS) |
1 | ||
| 47207-52012 |
NCP2#,NLP2#..LHD W(ABS) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-52030 |
NCP2#;NLP2#..LHD |
1 | ||
| 47230-52030 |
NCP2#;NLP2#..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-52030 |
NCP2#;NLP2#..LHD |
1 | ||
| 47230-52030 |
NCP2#;NLP2#..LHD |
1 | ||
| 47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK | ||||
| 47237-52010 |
NCP2#;NLP2#..LHD |
1 | ||
| 47237-52010 |
NCP2#;NLP2#..LHD |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
NCP2#;NLP2#..LHD |
2 | ||
| 47255-52010 |
NCP2#;NLP2#..LHD |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
NCP2#;NLP2#..LHD |
2 | ||
| 47255-52010 |
NCP2#;NLP2#..LHD |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-52020 |
NCP2#;NLP2#..LHD |
1 | ||
| 47264-52020 |
NCP2#;NLP2#..LHD |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-52010 |
NCP2#;NLP2#..LHD |
1 | ||
| 47275-52010 |
NCP20,22;NCP21..RHD;NLP2#..LHD |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-52010 |
NCP2#;NLP2#..LHD |
1 | ||
| 47299-52010 |
NCP2#;NLP2#..LHD |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-52010 |
NCP2#;NLP2#..LHD |
1 | ||
| 47299-52010 |
NCP2#;NLP2#..LHD |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 4703 | ||||
