NCP20L-CHMNKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

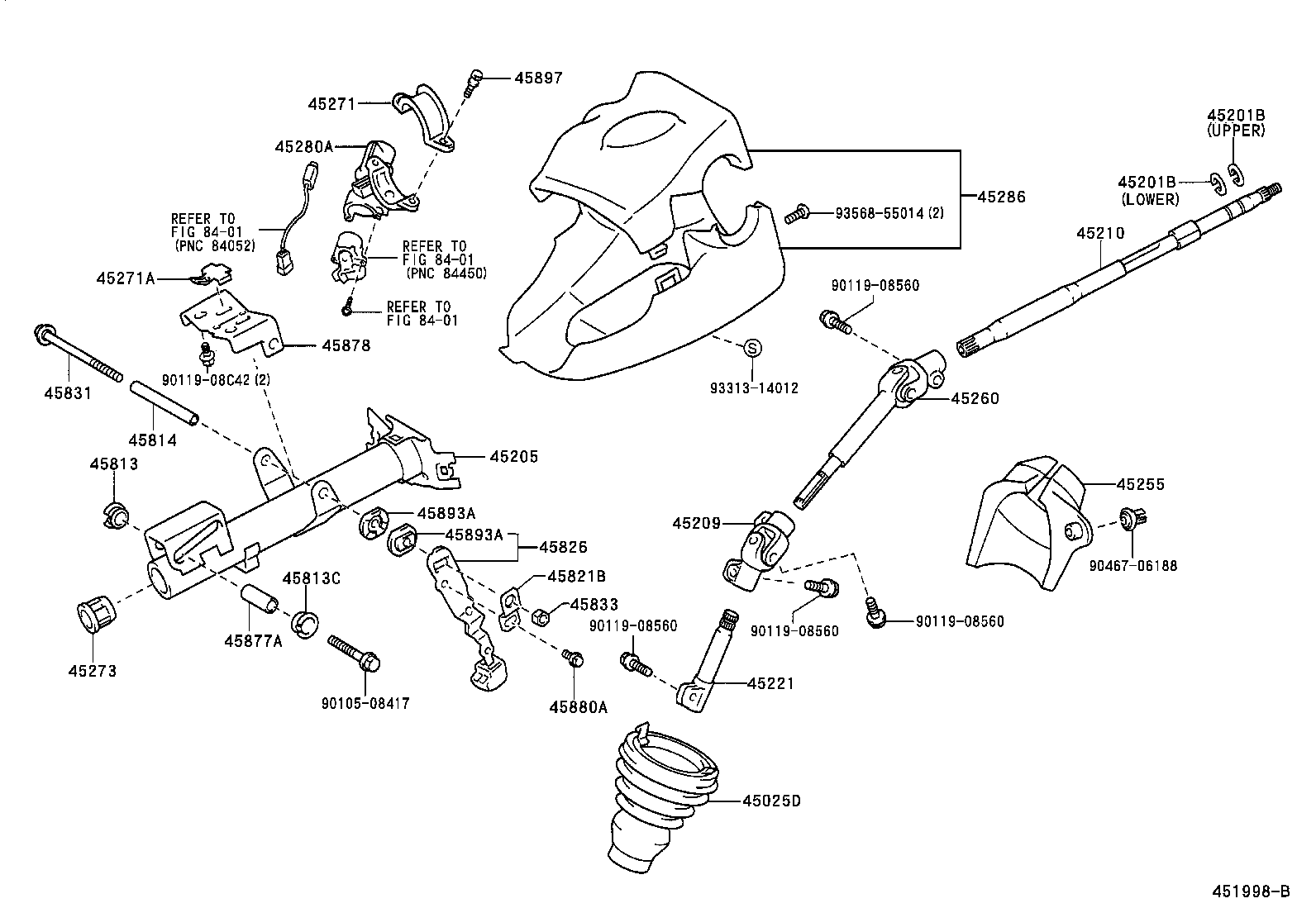

(9908-0211)LHD

Click highlighted areas on diagram

diagram 45025D 45201B 45201B 45205 45209 45210 45221 45255 45260 45271 45271A 45273 45280A 45286 45813 45813C 45814 45821B 45826 45831 45833 45877A 45878 45880A 45893A 45893A 45897 8401 8401 8401 9010508417 9011908560 9011908560 9011908560 9011908560 9011908C42 9046706188 9331314012 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52040

NCP2#..LHD..(LUNA,STD)

W(MANUAL STEERING)

 1
45025-52030

NCP2#..LHD

W(POWER STEERING)

 1
45025-52030

NCP2#..LHD

W(POWER STEERING)

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

NCP2#,NLP2#

T=1.20,LOWER

 1
90520-17042

NCP2#,NLP2#

T=1.20,LOWER

 1
90520-17269

NCP2#,NLP2#

T=1.20,UPPER

 1
90520-17269

NCP2#,NLP2#

T=1.20,UPPER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

NCP2#,NLP2#

T=1.20,LOWER

 1
90520-17042

NCP2#,NLP2#

T=1.20,LOWER

 1
90520-17269

NCP2#,NLP2#

T=1.20,UPPER

 1
90520-17269

NCP2#,NLP2#

T=1.20,UPPER

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-52010

NCP2#,NLP2#..4FC,5F

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52020

NCP2#,NLP2#

 1
45209-52020

NCP2#,NLP2#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-52010

NCP2#,NLP2#

 1
45210-52010

NCP2#,NLP2#

 1
45221 - SHAFT, STEERING INTERMEDIATE
45297-52020

NCP2#..LUNA,STD

W(MANUAL STEERING)

 1
45297-52010

NCP2#

W(POWER STEERING)

 1
45297-52010

NCP2#

W(POWER STEERING)

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-52020

NCP2#,NLP2#..LHD

 1
45255-52060

NCP2#,NLP2#..LHD

 1
45255-52020

NCP2#,NLP2#..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52050

NCP2#,NLP2#..LHD

 1
45260-52050

NCP2#,NLP2#..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

NCP2#,NLP2#..4FC,5F

 1
45271-16020

NCP2#,NLP2#..4FC,5F

 1
45271A - CLAMP, STEERING COLUMN, UPPER NO.2
45271-52010

NCP2#,NLP2#

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-33030

NCP2#,NLP2#

 1
45273-33030

NCP2#,NLP2#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-52020

NCP2#,NLP2#..5F

 1
45280-52020

NCP2#,NLP2#..5F

 1
45286 - COVER, STEERING COLUMN
45286-52905B2

NCP2#,NLP2#..LHD

SHADOW GRAY,TRIM9#

 1
45286-52905B3

NCP2#,NLP2#..LHD

DK.GRAY,TRIM1#

 1
45286-52905H0

NCP2#,NLP2#..LHD

FRENCH TURQUOISE,TRIM7#

 1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-52010

NCP2#,NLP2#

OD=24

 1
45813C - COLLAR, TILT STEERING SUPPORT, NO.1
45813-52020

NCP2#,NLP2#

 1
45814 - COLLAR, TILT STEERING SUPPORT, NO.2
45814-52010

NCP2#,NLP2#

OD=8

 1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-52010

NCP2#,NLP2#

 1
45826 - LEVER, STEERING TILT
45826-52011

NCP2#,NLP2#..4FC,5F

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-52010

NCP2#,NLP2#

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-52010

NCP2#,NLP2#

 1
45877A - SPACER, STEERING COLUMN BRACKET
45877-52010

NCP2#,NLP2#

 1
45878 - BRACKET, STEERING COLUMN UPPER SUPPORT
45878-52010

NCP2#,NLP2#

 1
45880A - BOLT(FOR STEERING TILT LEVER)
45832-12010

NCP2#,NLP2#

 1
45893A - STOPPER, TILT STEERING PAWL
45893-52010

NCP2#,NLP2#

 2
45893A - STOPPER, TILT STEERING PAWL
45893-52010

NCP2#,NLP2#

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

NCP2#,NLP2#..4FC,5F

 2
45897-12020

NCP2#,NLP2#..4FC,5F

 2
Common parts
90105-08417
90119-08560
90119-08C42
90467-06188
93313-14012
93568-55014
Linked diagrams
8401

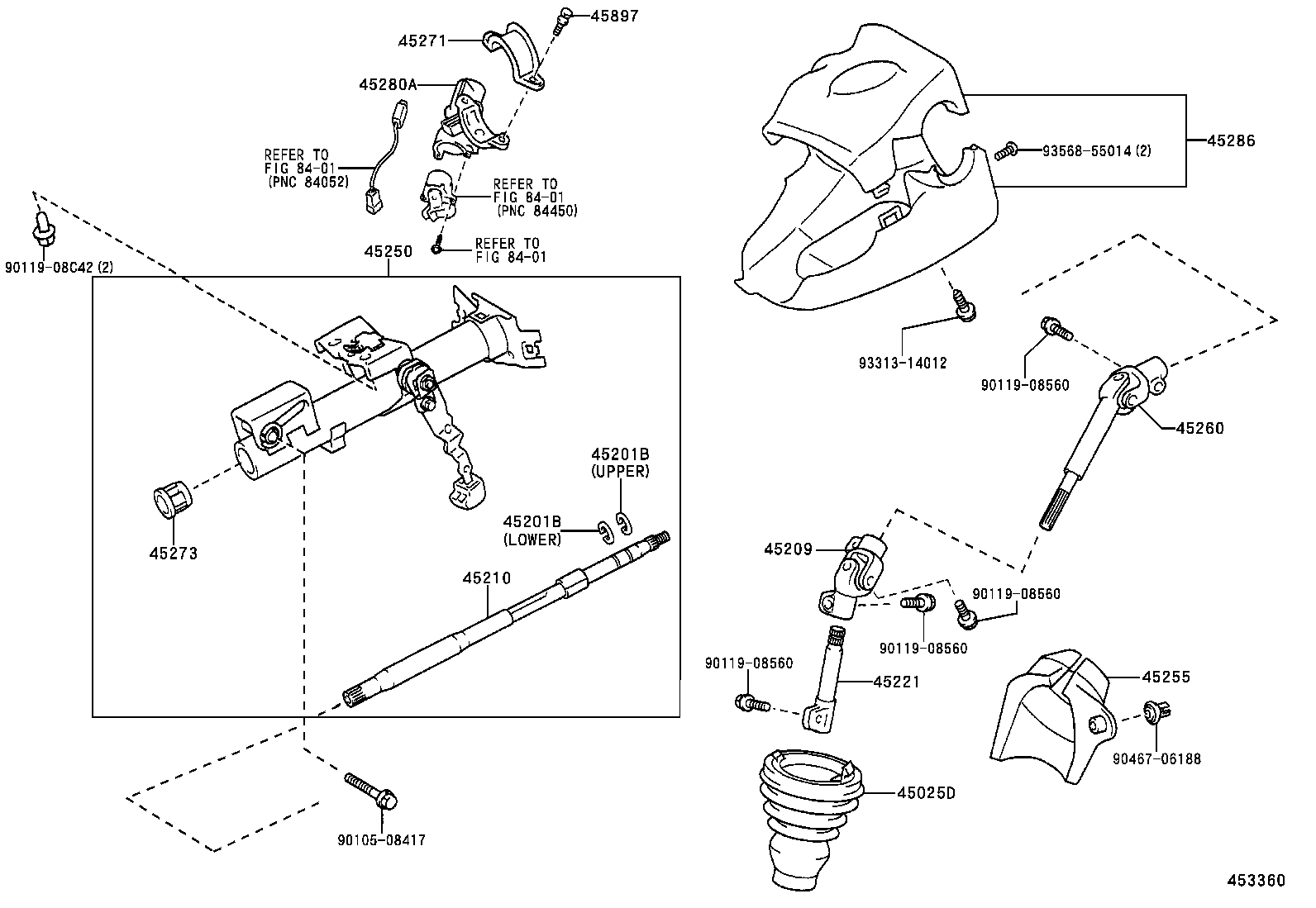

(0211-0509)LHD

Click highlighted areas on diagram

diagram 45025D 45201B 45201B 45209 45210 45221 45250 45255 45260 45271 45273 45280A 45286 45897 8401 8401 8401 9010508417 9011908560 9011908560 9011908560 9011908560 9011908C42 9046706188 9331314012 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-52040

NCP2#..LHD..(LUNA,STD)

W(MANUAL STEERING)

 1
45025-52030

NCP2#..LHD

W(POWER STEERING)

 1
45025-52030

NCP2#..LHD

W(POWER STEERING)

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

NCP2#,NLP2#

T=1.20,LOWER

 1
90520-17042

NCP2#,NLP2#

T=1.20,LOWER

 1
90520-17269

NCP2#,NLP2#

T=1.20,UPPER

 1
90520-17269

NCP2#,NLP2#

T=1.20,UPPER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

NCP2#,NLP2#

T=1.20,LOWER

 1
90520-17042

NCP2#,NLP2#

T=1.20,LOWER

 1
90520-17269

NCP2#,NLP2#

T=1.20,UPPER

 1
90520-17269

NCP2#,NLP2#

T=1.20,UPPER

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-52020

NCP2#,NLP2#

 1
45209-52020

NCP2#,NLP2#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-52010

NCP2#,NLP2#

 1
45210-52010

NCP2#,NLP2#

 1
45221 - SHAFT, STEERING INTERMEDIATE
45297-52020

NCP2#..LUNA,STD

W(MANUAL STEERING)

 1
45297-52010

NCP2#

W(POWER STEERING)

 1
45297-52010

NCP2#

W(POWER STEERING)

 1
45250 - COLUMN ASSY, STEERING
45250-52010

NCP2#,NLP2#..4FC,5F

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-52020

NCP2#,NLP2#..LHD

 1
45255-52060

NCP2#,NLP2#..LHD

 1
45255-52020

NCP2#,NLP2#..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-52050

NCP2#,NLP2#..LHD

 1
45260-52050

NCP2#,NLP2#..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

NCP2#,NLP2#..4FC,5F

 1
45271-16020

NCP2#,NLP2#..4FC,5F

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-33030

NCP2#,NLP2#

 1
45273-33030

NCP2#,NLP2#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-52020

NCP2#,NLP2#..5F

 1
45280-52020

NCP2#,NLP2#..5F

 1
45286 - COVER, STEERING COLUMN
45286-52905B2

NCP2#,NLP2#..LHD

SHADOW GRAY,TRIM9#

 1
45286-52905B3

NCP2#,NLP2#..LHD

DK.GRAY,TRIM1#

 1
45286-52905H0

NCP2#,NLP2#..LHD

FRENCH TURQUOISE,TRIM7#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NCP2#,NLP2#..4FC,5F

 2
45897-12020

NCP2#,NLP2#..4FC,5F

 2
Common parts
90105-08417
90119-08560
90119-08C42
90467-06188
93313-14012
93568-55014
Linked diagrams
8401
