NCP20L-CHMNKW (1999)
Toyota Yaris/Echo Verso
(9908- )5F
C53,C54,C154

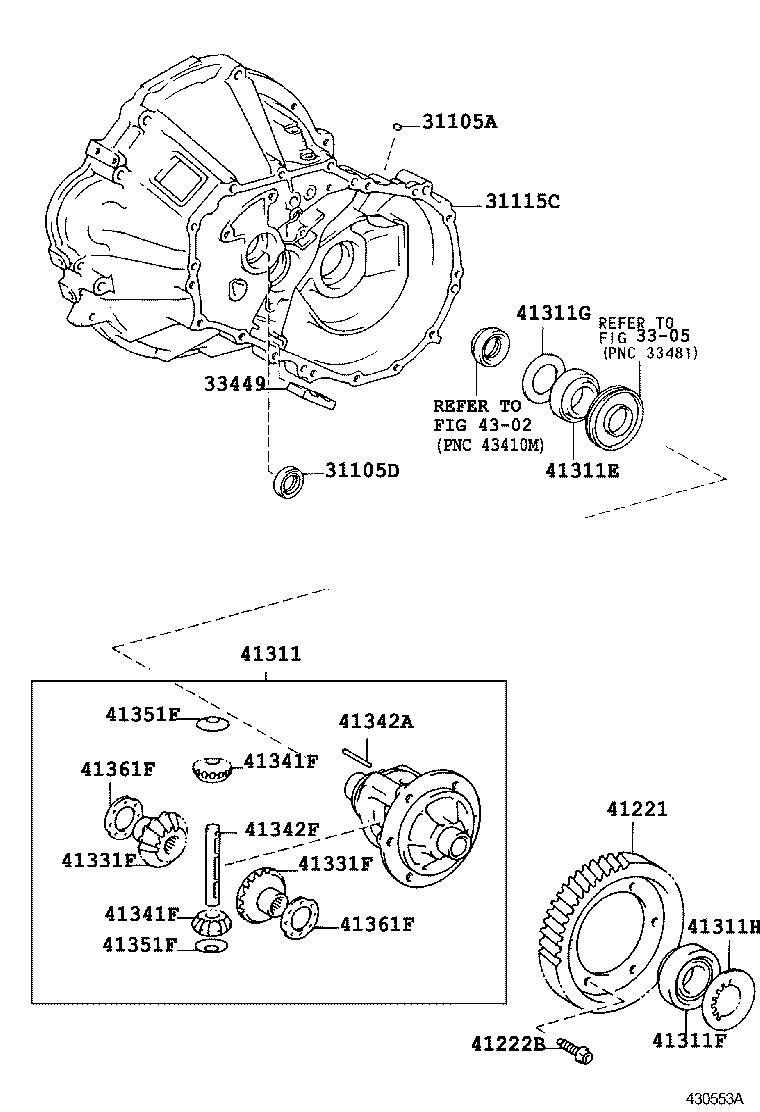

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-08002 |
NCP2#,NLP2#..5F |
1 | ||
| 90331-08002 |
NCP2#,NLP2#..5F |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25011 |
NCP2#,NLP2#..5F |
1 | ||
| 90311-25011 |
NCP2#,NLP2#..5F |
1 | ||
| 90311-25016 |
NCP2#,NLP2#..5F |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-52010 |
NCP2#,NLP2#..5F |
1 | ||
| 31115-52011 |
NCP2#,NLP2#..5F |
1 | ||
| 31115-52010 |
NCP2#,NLP2#..5F |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-12020 |
NCP2#,NLP2#..5F |
1 | ||
| 33449-12020 |
NCP2#,NLP2#..5F |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-10221 |
NCP20,22..5F |
1 | ||
| 41221-10221 |
NCP20,22..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12100 |
NCP20,22..5F |
6 | ||
| 90105-12100 |
NCP20,22..5F |
6 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-10061 |
NCP20,22..5F |
1 | ||
| 41301-10061 |
NCP20,22..5F |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38004 |
NCP2#,NLP2#..5F T=18.5,(J) |
1 | ||
| 90366-38004 |
NCP2#,NLP2#..5F T=18.5 |
1 | ||
| 90366-A0002 |
NCP2#,NLP2#..5F T=18.5,(L) |
1 | ||
| 90080-36101 |
NCP2#,NLP2#..5F T=19.4 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-38010 |
NCP2#,NLP2#..5F |
1 | ||
| 90368-38010 |
NCP2#,NLP2#..5F |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41002 |
NCP2#,NLP2#..5F T=1.2 |
1 | ||
| 90560-41003 |
NCP2#,NLP2#..5F T=2.1 |
1 | ||
| 90560-41003 |
NCP2#,NLP2#..5F T=2.1 |
1 | ||
| 90560-41002 |
NCP2#,NLP2#..5F T=1.2 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-41020 |
NCP2#,NLP2#..5F T=2.40,MARK GG |
1 | ||
| 90564-41017 |
NCP2#,NLP2#..5F T=2.25,MARK DD |
1 | ||
| 90564-41016 |
NCP2#,NLP2#..5F T=2.20,MARK CC |
1 | ||
| 90564-41022 |
NCP2#,NLP2#..5F T=2.50,MARK JJ |
1 | ||
| 90564-41015 |
NCP2#,NLP2#..5F T=2.15,MARK BB |
1 | ||
| 90564-41014 |
NCP2#,NLP2#..5F T=2.10,MARK AA |
1 | ||
| 90564-41024 |
NCP2#,NLP2#..5F T=2.60,MARK LL |
1 | ||
| 90564-41021 |
NCP2#,NLP2#..5F T=2.45,MARK HH |
1 | ||
| 90564-41029 |
NCP2#,NLP2#..5F T=2.85,MARK RR |
1 | ||
| 90564-41026 |
NCP2#,NLP2#..5F T=2.70,MARK NN |
1 | ||
| 90564-41018 |
NCP2#,NLP2#..5F T=2.30,MARK EE |
1 | ||
| 90564-41027 |
NCP2#,NLP2#..5F T=2.75,MARK PP |
1 | ||
| 90564-41028 |
NCP2#,NLP2#..5F T=2.80,MARK QQ |
1 | ||
| 90564-41031 |
NCP2#,NLP2#..5F T=2.95,MARK TT |
1 | ||
| 90564-41030 |
NCP2#,NLP2#..5F T=2.90,MARK SS |
1 | ||
| 90564-41023 |
NCP2#,NLP2#..5F T=2.55,MARK KK |
1 | ||
| 90564-41025 |
NCP2#,NLP2#..5F T=2.65,MARK MM |
1 | ||
| 90564-41019 |
NCP2#,NLP2#..5F T=2.35,MARK FF |
1 | ||
| 90564-41032 |
NCP2#,NLP2#..5F T=3.00,MARK UU |
1 | ||
| 90564-41018 |
NCP2#,NLP2#..5F T=2.30,MARK EE |
1 | ||
| 90564-41016 |
NCP2#,NLP2#..5F T=2.20,MARK CC |
1 | ||
| 90564-41017 |
NCP2#,NLP2#..5F T=2.25,MARK DD |
1 | ||
| 90564-41015 |
NCP2#,NLP2#..5F T=2.15,MARK BB |
1 | ||
| 90564-41014 |
NCP2#,NLP2#..5F T=2.10,MARK AA |
1 | ||
| 90564-41023 |
NCP2#,NLP2#..5F T=2.55,MARK KK |
1 | ||
| 90564-41020 |
NCP2#,NLP2#..5F T=2.40,MARK GG |
1 | ||
| 90564-41028 |
NCP2#,NLP2#..5F T=2.80,MARK QQ |
1 | ||
| 90564-41032 |
NCP2#,NLP2#..5F T=3.00,MARK UU |
1 | ||
| 90564-41030 |
NCP2#,NLP2#..5F T=2.90,MARK SS |
1 | ||
| 90564-41027 |
NCP2#,NLP2#..5F T=2.75,MARK PP |
1 | ||
| 90564-41021 |
NCP2#,NLP2#..5F T=2.45,MARK HH |
1 | ||
| 90564-41026 |
NCP2#,NLP2#..5F T=2.70,MARK NN |
1 | ||
| 90564-41019 |
NCP2#,NLP2#..5F T=2.35,MARK FF |
1 | ||
| 90564-41024 |
NCP2#,NLP2#..5F T=2.60,MARK LL |
1 | ||
| 90564-41025 |
NCP2#,NLP2#..5F T=2.65,MARK MM |
1 | ||
| 90564-41022 |
NCP2#,NLP2#..5F T=2.50,MARK JJ |
1 | ||
| 90564-41031 |
NCP2#,NLP2#..5F T=2.95,MARK TT |
1 | ||
| 90564-41029 |
NCP2#,NLP2#..5F T=2.85,MARK RR |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-10042 |
NCP20,22 |
2 | ||
| 41331-10042 |
NCP20,22..5F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-10042 |
NCP20,22 |
2 | ||
| 41331-10042 |
NCP20,22..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-10030 |
NCP20,22 |
2 | ||
| 41341-10030 |
NCP20,22..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-10030 |
NCP20,22 |
2 | ||
| 41341-10030 |
NCP20,22..5F |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04053 |
NCP20,22 |
1 | ||
| 90250-04053 |
NCP20,22 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-10041 |
NCP20,22 |
1 | ||
| 41342-10041 |
NCP20,22 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
NCP20,22..5F |
2 | ||
| 41351-10030 |
NCP20,22..5F |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
NCP20,22..5F |
2 | ||
| 41351-10030 |
NCP20,22..5F |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10090 |
NCP20,22..5F T=1.60 |
2 | ||
| 41361-10100 |
NCP20,22..5F T=1.65 |
2 | ||
| 41361-10110 |
NCP20,22..5F T=1.70 |
2 | ||
| 41361-10120 |
NCP20,22..5F T=1.75 |
2 | ||
| 41361-10090 |
NCP20,22..5F T=1.60 |
2 | ||
| 41361-10070 |
NCP20,22..5F T=1.50 |
2 | ||
| 41361-10110 |
NCP20,22..5F T=1.70 |
2 | ||
| 41361-10070 |
NCP20,22..5F T=1.50 |
2 | ||
| 41361-10080 |
NCP20,22..5F T=1.55 |
2 | ||
| 41361-10080 |
NCP20,22..5F T=1.55 |
2 | ||
| 41361-10120 |
NCP20,22..5F T=1.75 |
2 | ||
| 41361-10100 |
NCP20,22..5F T=1.65 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10090 |
NCP20,22..5F T=1.60 |
2 | ||
| 41361-10100 |
NCP20,22..5F T=1.65 |
2 | ||
| 41361-10110 |
NCP20,22..5F T=1.70 |
2 | ||
| 41361-10120 |
NCP20,22..5F T=1.75 |
2 | ||
| 41361-10090 |
NCP20,22..5F T=1.60 |
2 | ||
| 41361-10070 |
NCP20,22..5F T=1.50 |
2 | ||
| 41361-10110 |
NCP20,22..5F T=1.70 |
2 | ||
| 41361-10070 |
NCP20,22..5F T=1.50 |
2 | ||
| 41361-10080 |
NCP20,22..5F T=1.55 |
2 | ||
| 41361-10080 |
NCP20,22..5F T=1.55 |
2 | ||
| 41361-10120 |
NCP20,22..5F T=1.75 |
2 | ||
| 41361-10100 |
NCP20,22..5F T=1.65 |
2 | ||
| Linked diagrams | ||||
| 3305 | ||||
| 4302 | ||||
