NCP20L-CHMNKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0509)1NZFE,2NZFE

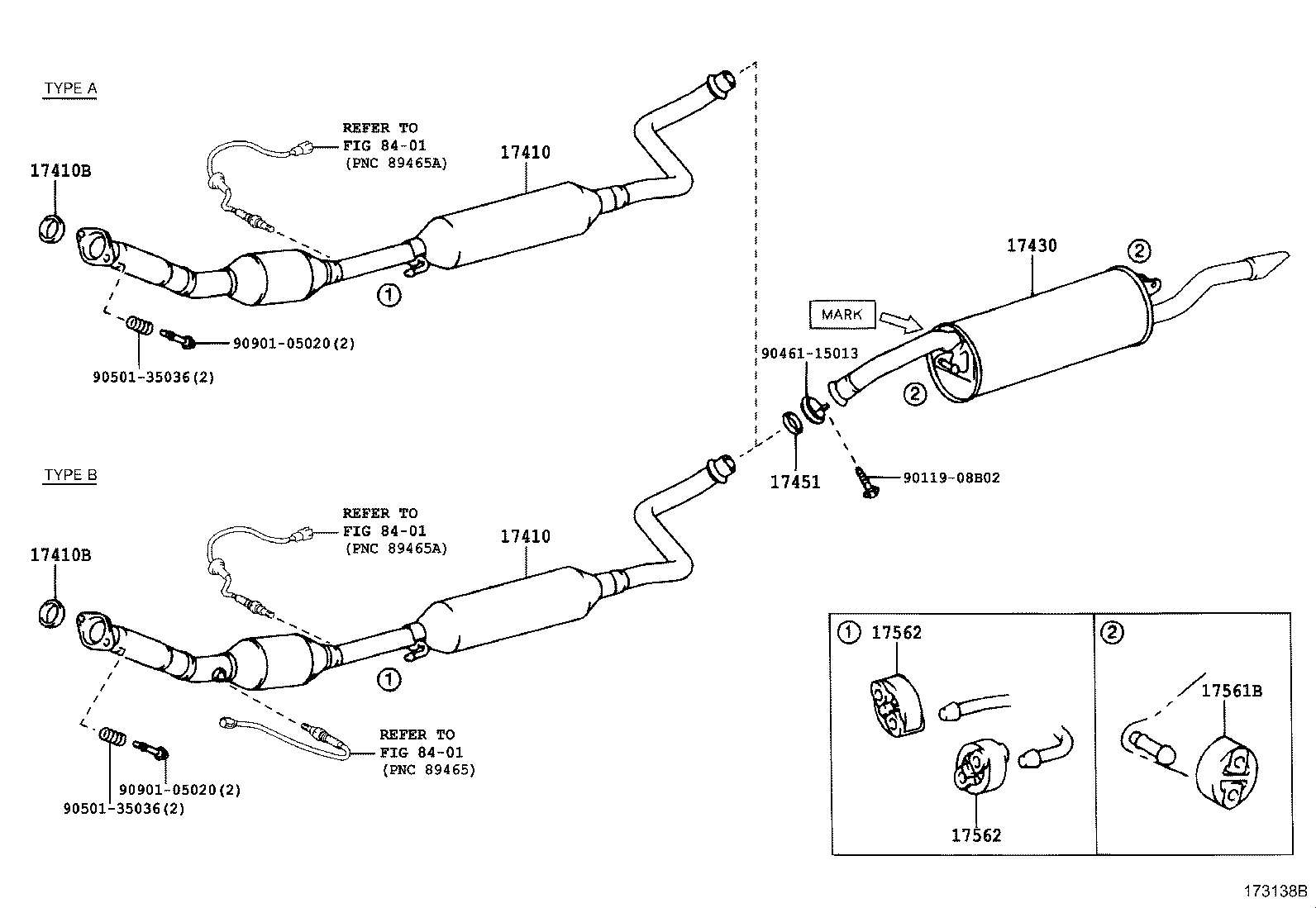

Click highlighted areas on diagram

diagram 17410 17410 17410B 17410B 17430 17451 17561B 17562 17562 8401 8401 8401 9011908B02 9046115013 9050135036 9050135036 9090105020 9090105020
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21100

2NZFE..NCP20,22..5F

*115=TOYOTA/99-02/Y,TYPE B:REFER ILLUST.

 1
17410-21570

1NZFE,2NZFE..NCP2#

*115=TOYOTA/02-/Y,TYPE B:REFER ILLUST.

 1
17410-21560

1NZFE,2NZFE..NCP2#

*115=TOYOTA/02-/Y,TYPE A:REFER ILLUST.

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21100

2NZFE..NCP20,22..5F

*115=TOYOTA/99-02/Y,TYPE B:REFER ILLUST.

 1
17410-21570

1NZFE,2NZFE..NCP2#

*115=TOYOTA/02-/Y,TYPE B:REFER ILLUST.

 1
17410-21560

1NZFE,2NZFE..NCP2#

*115=TOYOTA/02-/Y,TYPE A:REFER ILLUST.

 1
17410B - GASKET, EXHAUST PIPE
17451-21030

1N#,2NZFE..NCP2#,NLP2#

 1
17451-21030

1N#,2NZFE..NCP2#,NLP2#

 1
17410B - GASKET, EXHAUST PIPE
17451-21030

1N#,2NZFE..NCP2#,NLP2#

 1
17451-21030

1N#,2NZFE..NCP2#,NLP2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21040

2NZFE..NCP20,22

 1
17430-21051

1NZFE,2NZFE..NCP2#

MARK H:REFER TO ILLUSTRATION

 1
17430-21420

1NZFE,2NZFE..NCP2#

MARK R:REFER TO ILLUSTRATION

 1
17451 - GASKET, EXHAUST PIPE
90917-06082

1N#,2NZFE..NCP2#,NLP2#

 1
90917-06082

1N#,2NZFE..NCP2#,NLP2#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-74280

1N#,2NZFE..NCP2#,NLP2#

 2
17565-74280

1N#,2NZFE..NCP2#,NLP2#

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-23040

1N#,2NZFE..NCP2#,NLP2#

 2
17562-23040

1N#,2NZFE..NCP2#,NLP2#

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-23040

1N#,2NZFE..NCP2#,NLP2#

 2
17562-23040

1N#,2NZFE..NCP2#,NLP2#

 2
Common parts
90119-08B02
90461-15013
90501-35036
90901-05020
Linked diagrams
8401
