NCP20L-CHMGKW (1999)
Toyota Yaris/Echo Verso
ILLUST NO. 1 OF 3(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-52110K0 |
NCP20,21,NLP20..4FC,5F DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 67630-52110H0 |
NCP20,21,NLP20..4FC,5F DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67630-52090H0 |
NCP20,21,NLP20 DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67630-52090K0 |
NCP20,21,NLP20 DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM9# |
1 | ||
| 67630-52590B0 |
NCP20,21,NLP20..SOL W(POWER WINDOW),DARK GRAY,TRIM1# |
1 | ||
| 67630-52610B0 |
NCP20,21,NLP20..SOL DARK GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
NCP2#,NLP2# TYPE A:REFER TO ILLUSTRATION |
8 | ||
| 67771-12050 |
NCP20..SOL |
16 | ||
| 67771-28020 |
NCP2#,NLP2# TYPE B:REFER ILLUST. |
8 | ||
| 67771-12050 |
NCP2#,NLP2# TYPE A:REFER ILLUST. |
8 | ||
| 67771-28020 |
NCP2#,NLP2# TYPE B:REFER TO ILLUSTRATION |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-52090H0 |
NCP20,21,NLP20 DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67640-52110K0 |
NCP20,21,NLP20..4FC,5F DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 67640-52090K0 |
NCP20,21,NLP20 DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM9# |
1 | ||
| 67640-52600B1 |
NCP20,21,NLP20..SOL W(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67640-52110H0 |
NCP20,21,NLP20..4FC,5F DOOR TRIM=TYPE D-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 67640-52620B0 |
NCP20,21,NLP20..SOL DARK GRAY,TRIM1# |
1 | ||
| 67626C - BRACKET, REAR DOOR TRIM, NO.2 | ||||
| 67626-52010 |
NCP2#,NLP2# |
2 | ||
| 67626-52010 |
NCP2#,NLP2# |
2 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-52010 |
NCP2#,NLP2# |
1 | ||
| 67673-52010 |
NCP2#,NLP2# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-52010 |
NCP2#,NLP2# |
1 | ||
| 67674-52010 |
NCP2#,NLP2# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-52030 |
NCP2#,NLP2# |
1 | ||
| 68173-52030 |
NCP2#,NLP2# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-52020 |
NCP2#,NLP2# |
1 | ||
| 68174-52020 |
NCP2#,NLP2# |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-50032 | ||||
| 90189-06018 | ||||
| 90901-89029 | ||||

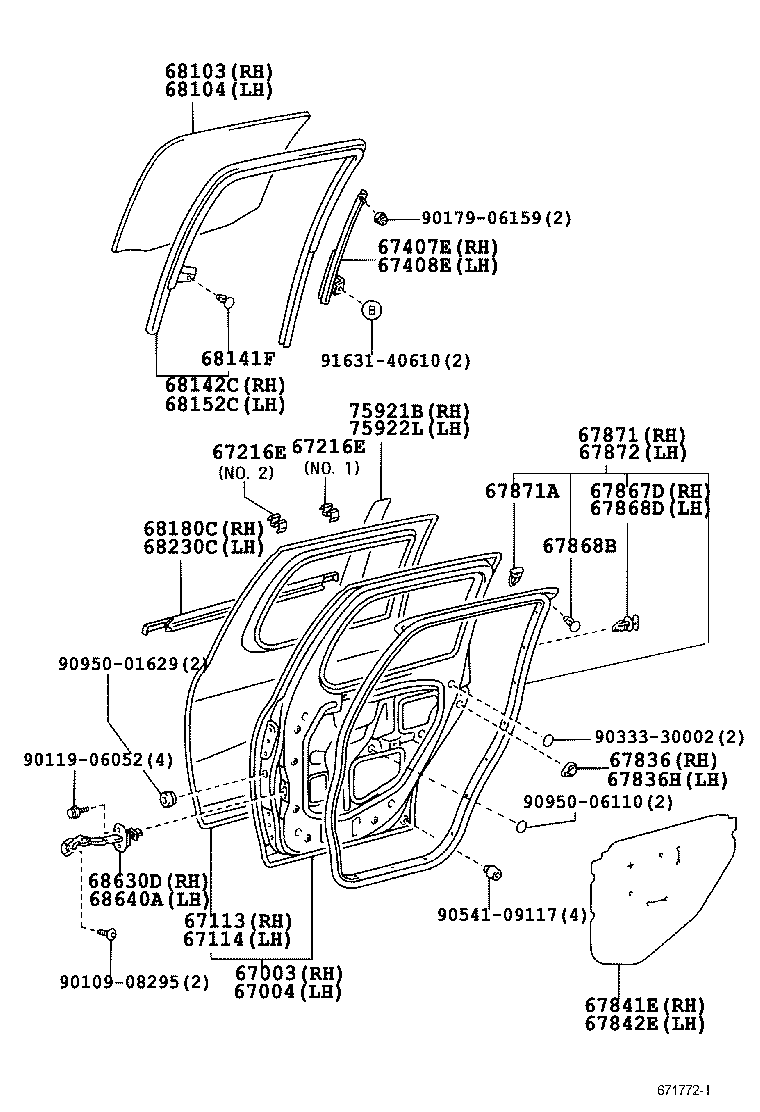

ILLUST NO. 2 OF 3(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-52040 |
NCP2#,NLP2# |
1 | ||
| 67003-52040 |
NCP2#,NLP2# |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-52040 |
NCP2#,NLP2# |
1 | ||
| 67004-52040 |
NCP2#,NLP2# |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-52030 |
NCP2#,NLP2# |
1 | ||
| 67113-52030 |
NCP2#,NLP2# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-52030 |
NCP2#,NLP2# |
1 | ||
| 67114-52030 |
NCP2#,NLP2# |
1 | ||
| 67216E - STOPPER, REAR DOOR GLASS, UPPER NO.2 | ||||
| 67217-52010 |
NCP20 |
2 | ||
| 67217-52011 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67215-52010 |
NCP2#,NLP2# NO.1 |
2 | ||
| 67217-52010 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67217-52011 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67217-52012 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67215-52010 |
NCP2#,NLP2# NO.1 |
2 | ||
| 67217-52010 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67216E - STOPPER, REAR DOOR GLASS, UPPER NO.2 | ||||
| 67217-52010 |
NCP20 |
2 | ||
| 67217-52011 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67215-52010 |
NCP2#,NLP2# NO.1 |
2 | ||
| 67217-52010 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67217-52011 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67217-52012 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67215-52010 |
NCP2#,NLP2# NO.1 |
2 | ||
| 67217-52010 |
NCP2#,NLP2# NO.2 |
2 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-52020 |
NCP2#,NLP2# |
1 | ||
| 67407-52020 |
NCP2#,NLP2# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-52020 |
NCP2#,NLP2# |
1 | ||
| 67408-52020 |
NCP2#,NLP2# |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-52010 |
NCP2#,NLP2# |
1 | ||
| 67836-52010 |
NCP2#,NLP2# |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67846-52010 |
NCP2#,NLP2# |
1 | ||
| 67846-52010 |
NCP2#,NLP2# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-52020 |
NCP2#,NLP2# |
1 | ||
| 67841-52020 |
NCP2#,NLP2# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-52020 |
NCP2#,NLP2# |
1 | ||
| 67841-52020 |
NCP2#,NLP2# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP2#,NLP2# |
26 | ||
| 67867-12150 |
NCP2#,NLP2# |
26 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-06084 |
NCP2#,NLP2# |
2 | ||
| 90467-06084 |
NCP2#,NLP2# |
2 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP2#,NLP2# |
26 | ||
| 67867-12150 |
NCP2#,NLP2# |
26 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-52020 |
NCP2#,NLP2# |
1 | ||
| 67871-52020 |
NCP2#,NLP2# |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-52010 |
NCP2#,NLP2# RH |
6 | ||
| 67867-52040 |
NCP2#,NLP2# LH |
6 | ||
| 67867-52040 |
NCP2#,NLP2# LH |
6 | ||
| 67867-52010 |
NCP2#,NLP2# RH |
6 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-52020 |
NCP2#,NLP2# |
1 | ||
| 67872-52020 |
NCP2#,NLP2# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-52030 |
NCP20 *TEM,T=3.1,GREEN |
1 | ||
| 68130-52120 |
NCP2#,NLP2# *UVCT,T=3.1,GREEN |
1 | ||
| 68130-52110 |
NCP2#,NLP2# *TEM,T=3.1,GREEN |
1 | ||
| 68130-52110 |
NCP2#,NLP2# *TEM,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-52120 |
NCP2#,NLP2# *UVCT,T=3.1,GREEN |
1 | ||
| 68140-52110 |
NCP2#,NLP2# *TEM,T=3.1,GREEN |
1 | ||
| 68140-52030 |
NCP20 *TEM,T=3.1,GREEN |
1 | ||
| 68140-52110 |
NCP2#,NLP2# *TEM,T=3.1,GREEN |
1 | ||
| 68141F - CLIP, REAR DOOR GLASS RUN | ||||
| 90467-06084 |
NCP2#,NLP2# |
2 | ||
| 90467-06084 |
NCP2#,NLP2# |
2 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-52022 |
NCP2#,NLP2# |
1 | ||
| 68142-52020 |
NCP20 |
1 | ||
| 68142-52021 |
NCP2#,NLP2# |
1 | ||
| 68142-52021 |
NCP2#,NLP2# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-52021 |
NCP2#,NLP2# |
1 | ||
| 68152-52020 |
NCP20 |
1 | ||
| 68152-52022 |
NCP2#,NLP2# |
1 | ||
| 68152-52021 |
NCP2#,NLP2# |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-52020 |
NCP2#,NLP2# |
1 | ||
| 68180-52020 |
NCP2#,NLP2# |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-52020 |
NCP2#,NLP2# |
1 | ||
| 68230-52020 |
NCP2#,NLP2# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-52020 |
NCP2#,NLP2# |
1 | ||
| 68630-52020 |
NCP2#,NLP2# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-52020 |
NCP2#,NLP2# |
1 | ||
| 68640-52020 |
NCP2#,NLP2# |
1 | ||
| 75921B - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-52010 |
NCP2#,NLP2# |
1 | ||
| 75921-52010 |
NCP2#,NLP2# |
1 | ||
| 75922L - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-52010 |
NCP2#,NLP2# |
1 | ||
| 75922-52010 |
NCP2#,NLP2# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06052 | ||||
| 90179-06159 | ||||
| 90333-30002 | ||||
| 90541-09117 | ||||
| 90950-01629 | ||||
| 90950-06110 | ||||
| 91631-40610 | ||||
ILLUST NO. 3 OF 3(9908-0211)
| Part # | Description | Qty | Price |
|---|
