NCP20L-CHMGKW (1999)

Toyota Yaris/Echo Verso

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

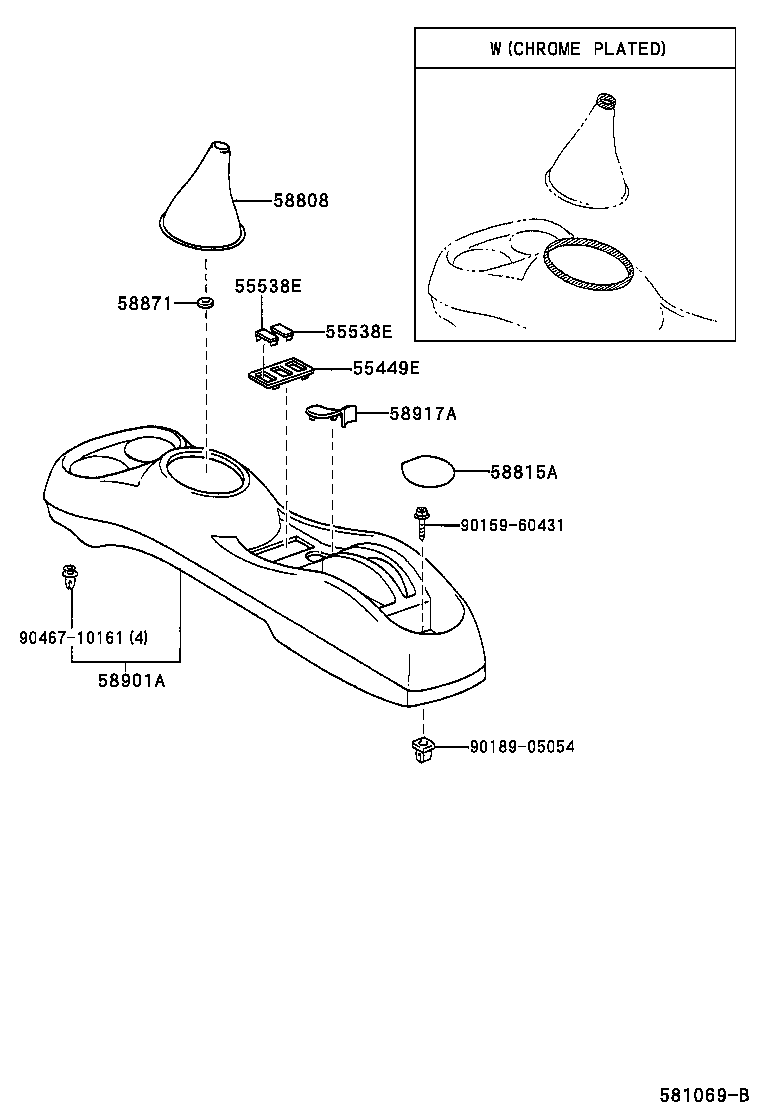

Click highlighted areas on diagram

diagram 55449E 55538E 55538E 58808 58815A 58871 58901A 58917A 9015960431 9018905054 9046710161
Part # Description Qty Price
55449E - BASE, SWITCH
55449-52010B0

NCP2#,NLP2#..4FC,5F

MD.GRAY,TRIM9#

 1
55449-52010G0

NCP2#,NLP2#..4FC,5F

MIST GREEN,TRIM7#

 1
55538E - COVER, SPARE SWITCH HOLE
55539-32010B7

NCP2#,NLP2#..4FC,5F

MD.GRAY,TRIM9#

 1
55539-32010G3

NCP2#,NLP2#..4FC,5F

MIST GREEN,TRIM7#

 1
55538E - COVER, SPARE SWITCH HOLE
55539-32010B7

NCP2#,NLP2#..4FC,5F

MD.GRAY,TRIM9#

 1
55539-32010G3

NCP2#,NLP2#..4FC,5F

MIST GREEN,TRIM7#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-52020G0

NCP2#,NLP2#..5F

MIST GREEN,TRIM7#

 1
58808-52020B0

NCP2#,NLP2#..5F

BLUE GRAY,TRIM9#

 1
58808-52050B0

NCP20,21,NLP20..5F

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-52010

NCP2#,NLP2#..4FC,5F

 1
58815-52010

NCP2#,NLP2#..4FC,5F

 1
58871 - CUSHION, CONSOLE BOX
58871-20060

NCP20,21,NLP20..5F

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-52010G0

NCP2#,NLP2#..4FC,5F

MIST GREEN,TRIM7#

 1
58911-52020B2

NCP20,21,NLP20..4FC,5F

REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM1#

 1
58911-52010B0

NCP2#,NLP2#..4FC,5F

MD.GRAY,TRIM9#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-52010G0

NCP2#,NLP2#..4FC,5F

MIST GREEN,TRIM7#

 1
58917-52010B3

NCP2#,NLP2#..4FC,5F

DK.GRAY,TRIM1#

 1
58917-52010B0

NCP2#,NLP2#..4FC,5F

MD.GRAY,TRIM9#

 1
Common parts
90159-60431
90189-05054
90467-10161
