MXPH11R-BHXSBW (2020)
Toyota Yaris(Frp)
Production
Jul 2020
-
Sep 9999
Engine
M15AFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )
Click highlighted areas on diagram

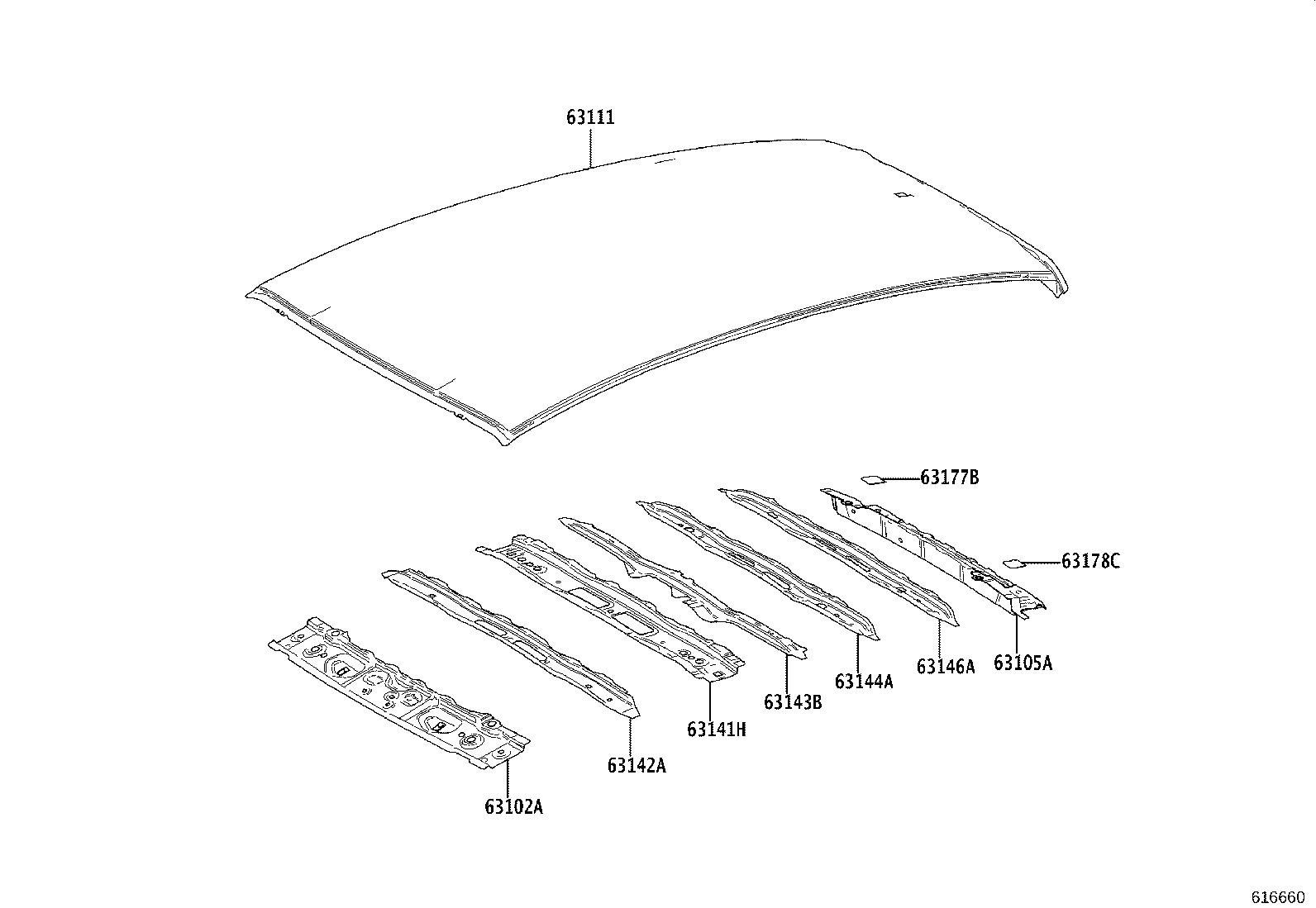

NORMAL ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-K0050 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-K0170 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-0D030 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1 | ||||
| 63146-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63177B - RETAINER, BACK DOOR HINGE FEMALE, RH | ||||
| 63177-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63178C - RETAINER, BACK DOOR HINGE FEMALE, LH | ||||
| 63178-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
(2007- )
Click highlighted areas on diagram

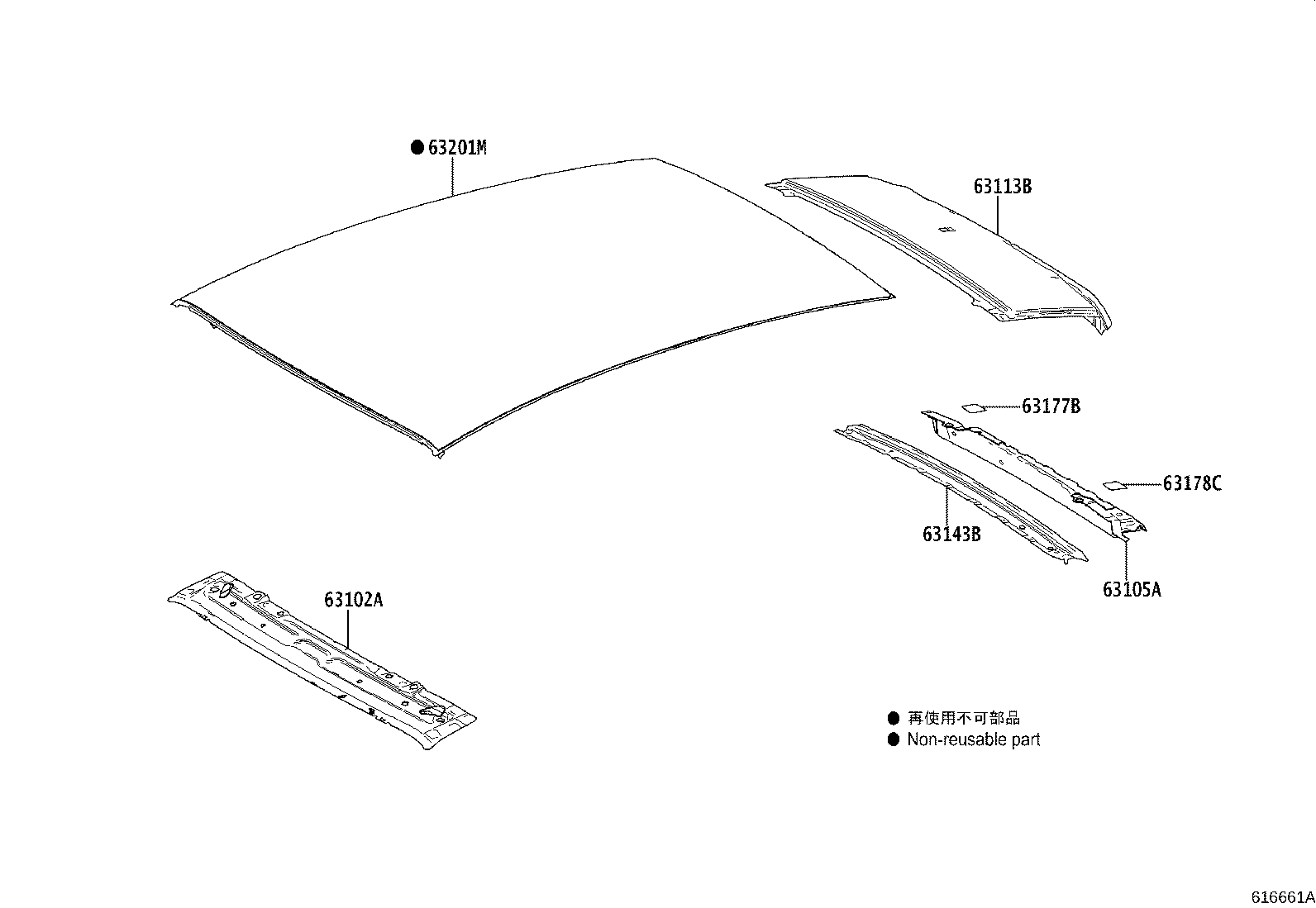

PANORAMIC ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-K0050 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63177B - RETAINER, BACK DOOR HINGE FEMALE, RH | ||||
| 63177-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 63178C - RETAINER, BACK DOOR HINGE FEMALE, LH | ||||
| 63178-K0010 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
