MXPH11R-BHXRBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

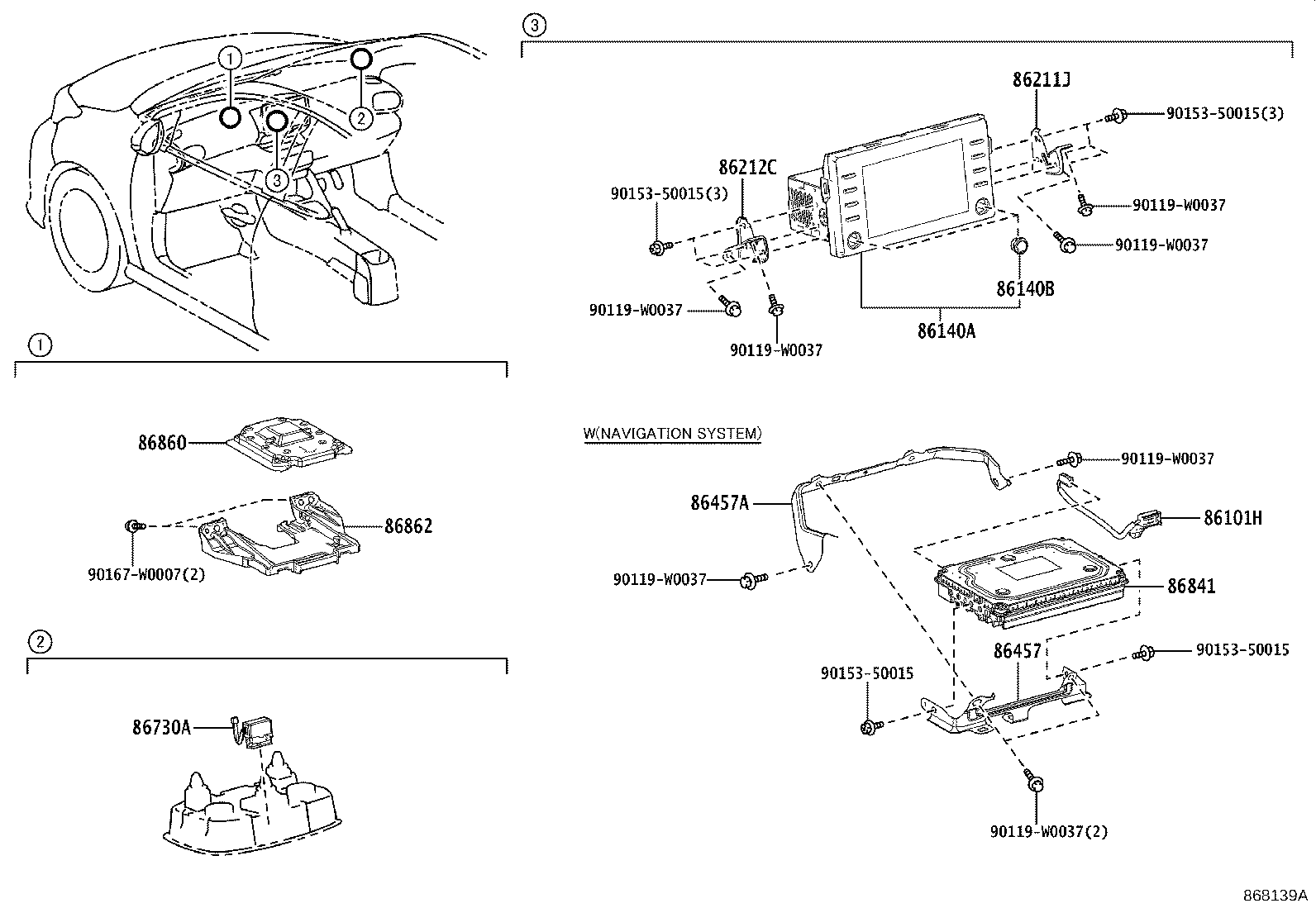

Click highlighted areas on diagram

7 OR 8 INCH DISPLAY

diagram 86101H 86140A 86140B 86211J 86212C 86457 86457A 86730A 86841 86860 86862 90119W0037 90119W0037 90119W0037 90119W0037 90119W0037 90119W0037 90119W0037 9015350015 9015350015 9015350015 9015350015 90167W0007
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-K0040

KSP211,MXPH11..RHD..R

DENSO TEN,LW PACKAGE&AUDIO-WITHOUT

 1
86140-K0040

KSP211,MXPA11,MXPH11..RHD..(N,R)

DENSO TEN

 1
86140-K0040

KSP211,MXPH11..RHD..R

DENSO TEN,IRELAND, CYPRUS SPEC&LW PACKAGE

 1
86140-K0050

KSP211,MXPA11,MXPH11..RHD..(N,R)

DENSO TEN,AUDIO-7INCH *DA & WITH(DAB)

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25305

MXPA11..N;KSP211,MXPH11..RHD..(N,R);KSP211,MXPH11..LHD..N..FRP

 2
90011-25305

KSP211,MXPH11..RHD..R

LW PACKAGE&AUDIO-WITHOUT

 2
90011-25305

KSP211,MXPH11..RHD..R

IRELAND, CYPRUS SPEC&LW PACKAGE

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-K0010

MXPA11..G,N,S;KSP211..RHD..(N,R);KSP211..LHD..N..FRP;MXPH11..RHD..(G,N,R,S);MXPH11..LHD..(G,N,S)..FRP

 1
86211-K0010

KSP211..LHD..G;MXPH11..RHD..R;KSP211..RHD..(G,R)

AUDIO-WITHOUT

 1
86211-K0010

KSP211,MXPH11..RHD..R

IRELAND, CYPRUS SPEC&LW PACKAGE

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-K0010

KSP211,MXPH11..RHD..R

IRELAND, CYPRUS SPEC&LW PACKAGE

 1
86212-K0010

MXPA11..G,N,S;KSP211..RHD..(N,R);KSP211..LHD..N..FRP;MXPH11..RHD..(G,N,R,S);MXPH11..LHD..(G,N,S)..FRP

 1
86212-K0010

KSP211..LHD..G;MXPH11..RHD..R;KSP211..RHD..(G,R)

AUDIO-WITHOUT

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-F4020

KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S)

 1
Common parts
90119-W0037
90153-50015
90167-W0007
