MXPH11R-BHXRBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )MXPH11..RHD

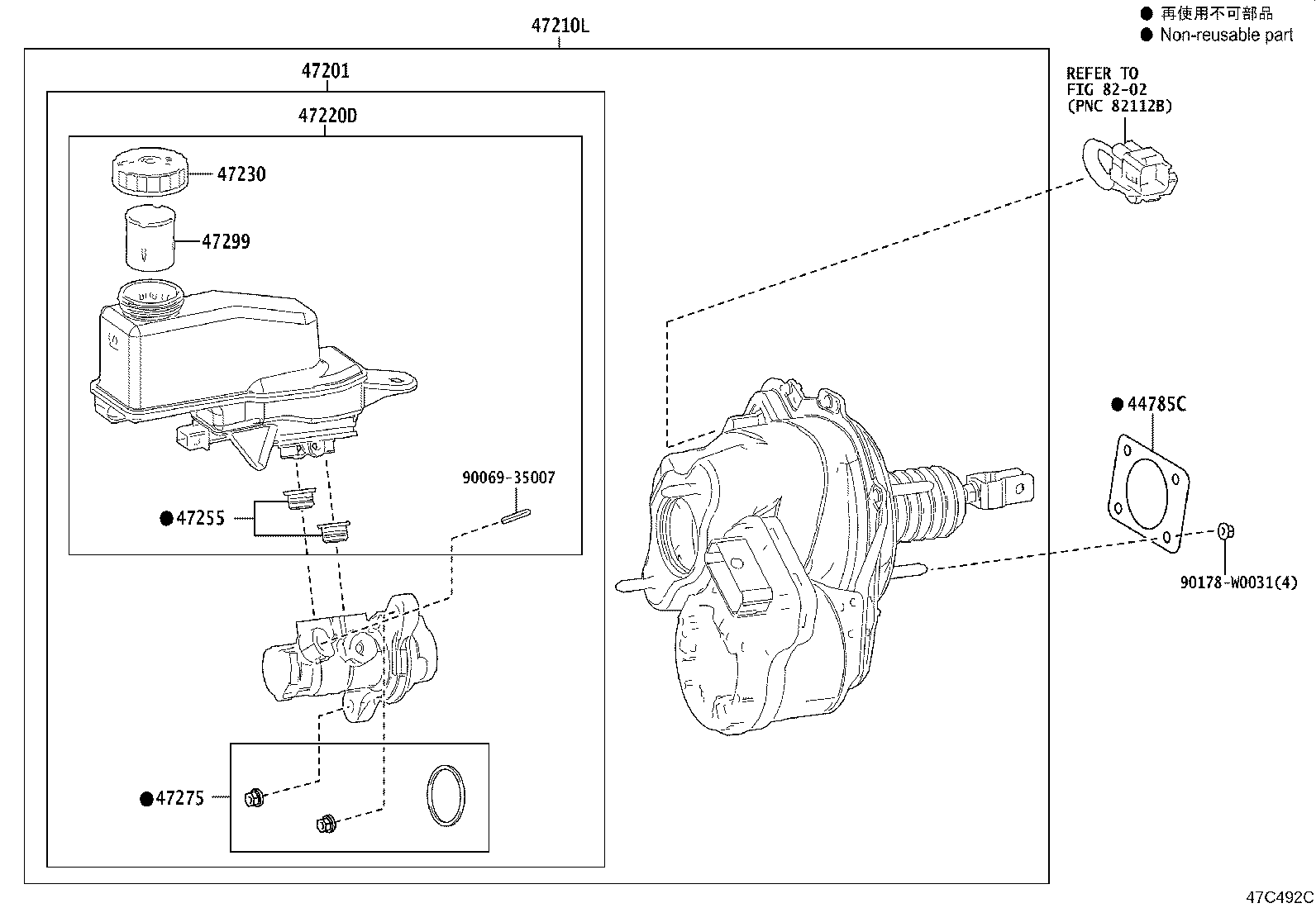

Click highlighted areas on diagram

diagram 44785C 47201 47210L 47220D 47230 47255 47275 47299 8202 9006935007 90178W0031
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-K9015

MXPH11..RHD..(G,N,R,S)

 1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47210-K0020

MXPH11..RHD..(G,N,R,S)

*614

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-K9015

MXPH11..RHD..(G,N,R,S)

 1
Common parts
90069-35007
90178-W0031
Linked diagrams
8202
