MXPH11R-BHXGBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

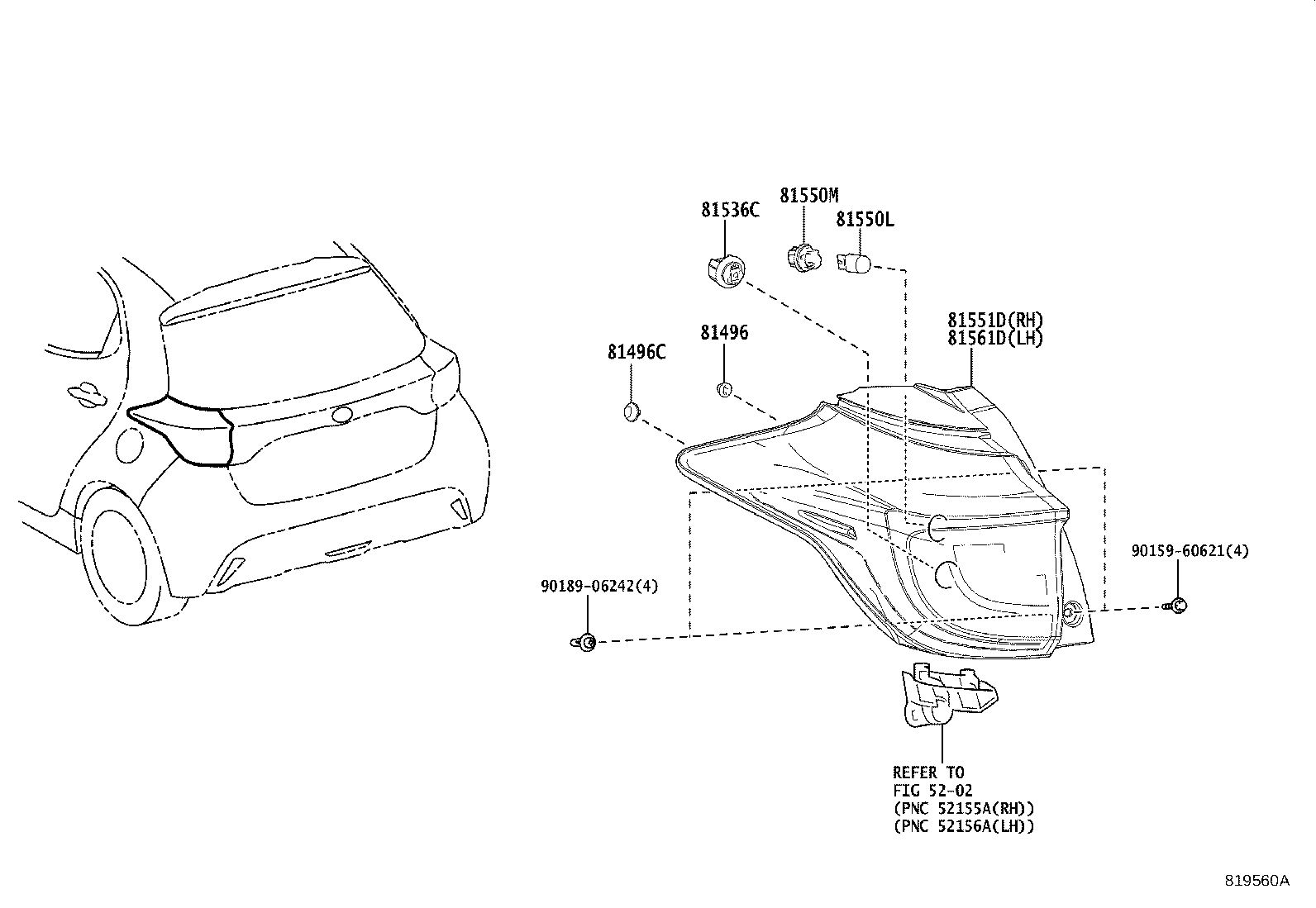

Click highlighted areas on diagram

TURN LAMP = BULB

diagram 5202 81496 81496C 81536C 81550L 81550M 81551D 81561D 9015960621 9018906242
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

KSP211..N,R;MXPA11,MXPH11

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

KSP211..N,R;MXPA11,MXPH11

 2
81536C - LED, TAIL & STOP LAMP
81536-15120

MXPH11..G,S

HEADLAMP-HALOGEN & WITH(*AHB)

 2
81536-15120

KSP211,MXPA11,MXPH11..N,R

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

KSP211,MXPA11,MXPH11..N,R

12V 21W,AMBER

 2
90981-15021

MXPH11..G,S

12V 21W,AMBER,HEADLAMP-HALOGEN & WITH(*AHB)

 2
81550M - SOCKET, REAR TURN SIGNAL LAMP
90075-60028

MXPH11..G,S

HEADLAMP-HALOGEN & WITH(*AHB)

 2
90075-60028

KSP211,MXPA11,MXPH11..N,R

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-K0040

MXPA11,MXPH11..G,S

 1
81551-K0030

MXPH11..G,S

HEADLAMP-HALOGEN & WITH(*AHB)

 1
81551-K0030

KSP211,MXPA11,MXPH11..N,R

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-K0030

KSP211,MXPA11,MXPH11..N,R

 1
81561-K0040

MXPA11,MXPH11..G,S

 1
81561-K0030

MXPH11..G,S

HEADLAMP-HALOGEN & WITH(*AHB)

 1
Common parts
90159-60621
90189-06242
Linked diagrams
5202

(2007- )

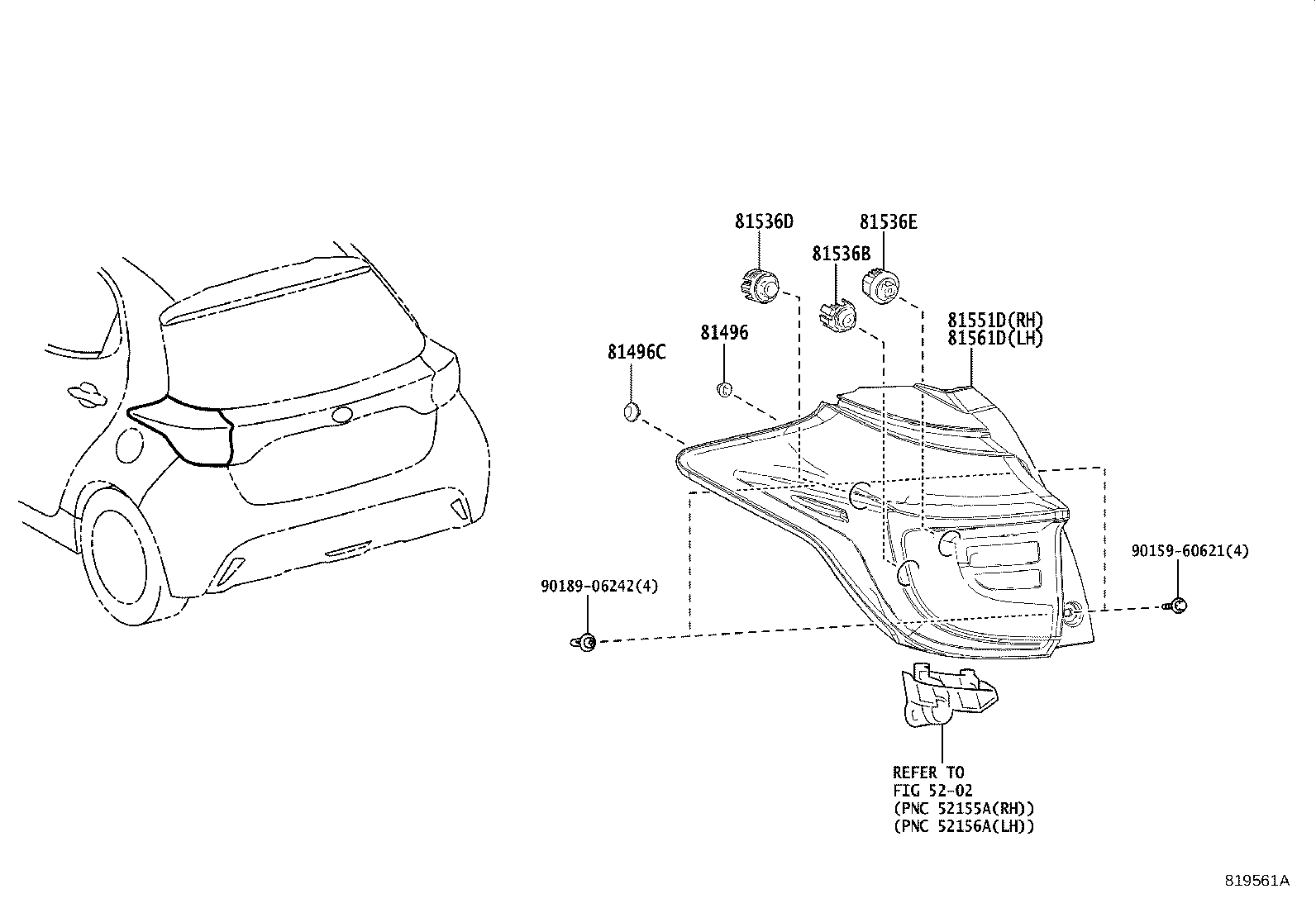

Click highlighted areas on diagram

TURN LAMP = LED

diagram 5202 81496 81496C 81536B 81536D 81536E 81551D 81561D 9015960621 9018906242
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

KSP211..N,R;MXPA11,MXPH11

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010

KSP211..N,R;MXPA11,MXPH11

 2
81536B - LED, REAR TURN SIGNAL LAMP
81536-12D30

MXPA11,MXPH11..G,S

 2
81536D - LED, TAIL LAMP
8158A-0D610

MXPA11,MXPH11..G,S

 2
81536E - LED, STOP LAMP
81536-15120

MXPA11,MXPH11..G,S

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-K0040

MXPA11,MXPH11..G,S

 1
81551-K0030

MXPH11..G,S

HEADLAMP-HALOGEN & WITH(*AHB)

 1
81551-K0030

KSP211,MXPA11,MXPH11..N,R

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-K0030

KSP211,MXPA11,MXPH11..N,R

 1
81561-K0040

MXPA11,MXPH11..G,S

 1
81561-K0030

MXPH11..G,S

HEADLAMP-HALOGEN & WITH(*AHB)

 1
Common parts
90159-60621
90189-06242
Linked diagrams
5202
