MXPH11L-BHXNBW (2020)
Toyota Yaris(Frp)

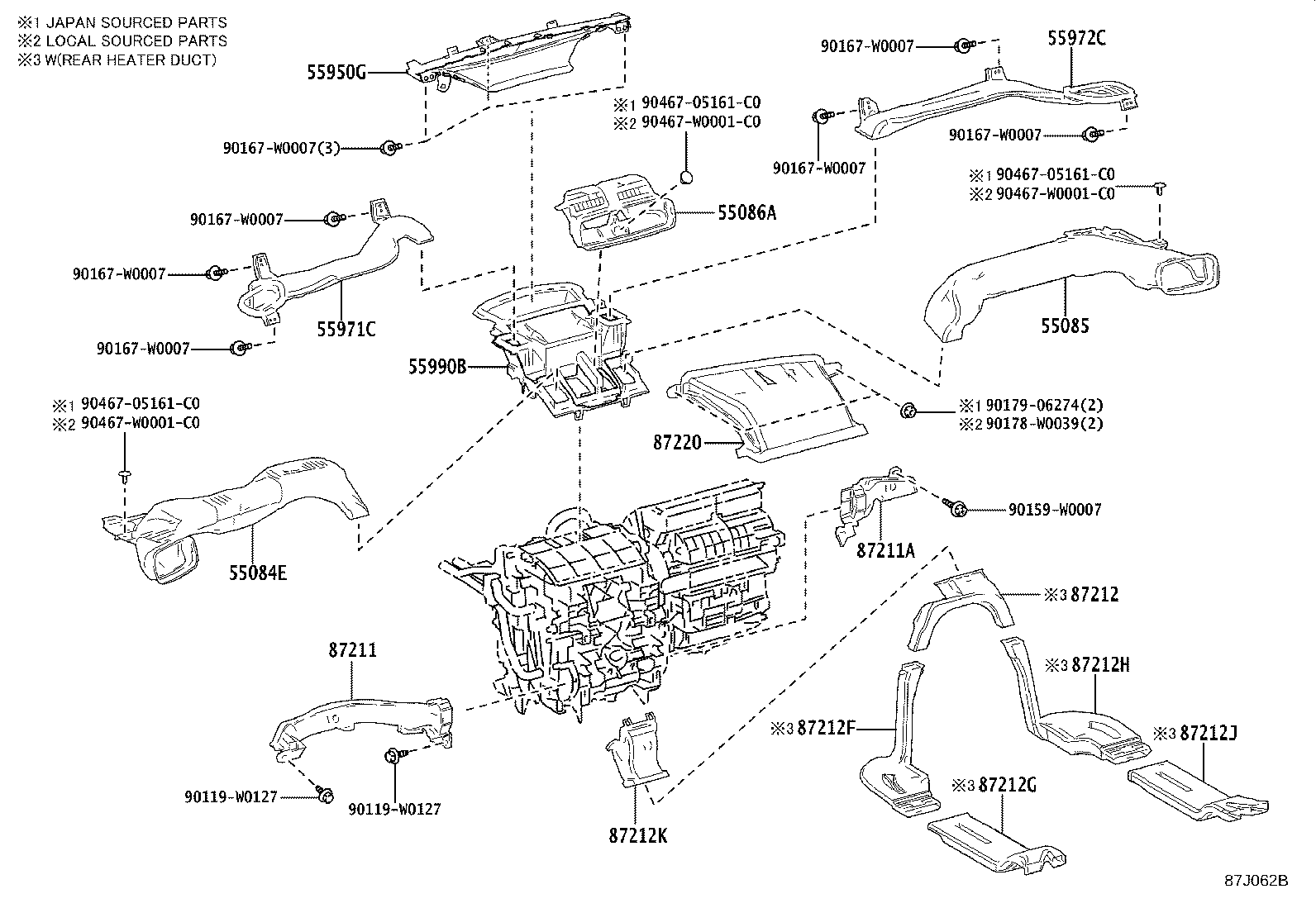

ILLUST NO. 2 OF 3(2007- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-K0030 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-K0030 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) |
1 | ||
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-K0040 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-K0030 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-K0030 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-K0030 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-K0020 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-K0030 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-K0040 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE A RANK) |
1 | ||
| 87215-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE S RANK) |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87213-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE S RANK) |
1 | ||
| 87213-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE A RANK) |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87217-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE S RANK) |
1 | ||
| 87217-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE A RANK) |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87212-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE S RANK) |
1 | ||
| 87212-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE A RANK) |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87216-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE A RANK) |
1 | ||
| 87216-K0010 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE S RANK) |
1 | ||
| 87212K - DUCT, AIR, REAR NO.6 | ||||
| 87114-K0050 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE A RANK) |
1 | ||
| 87114-K0050 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) COLD AREA SPEC-WITH(EUROPE S RANK) |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-K0020 |
MXPA11,MXPH11..LHD;KSP211..LHD..(N,R) |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90159-W0007 | ||||
| 90167-W0007 | ||||
| 90178-W0039 | ||||
| 90179-06274 | ||||
| 90467-05161C0 | ||||
| 90467-W0001C0 | ||||

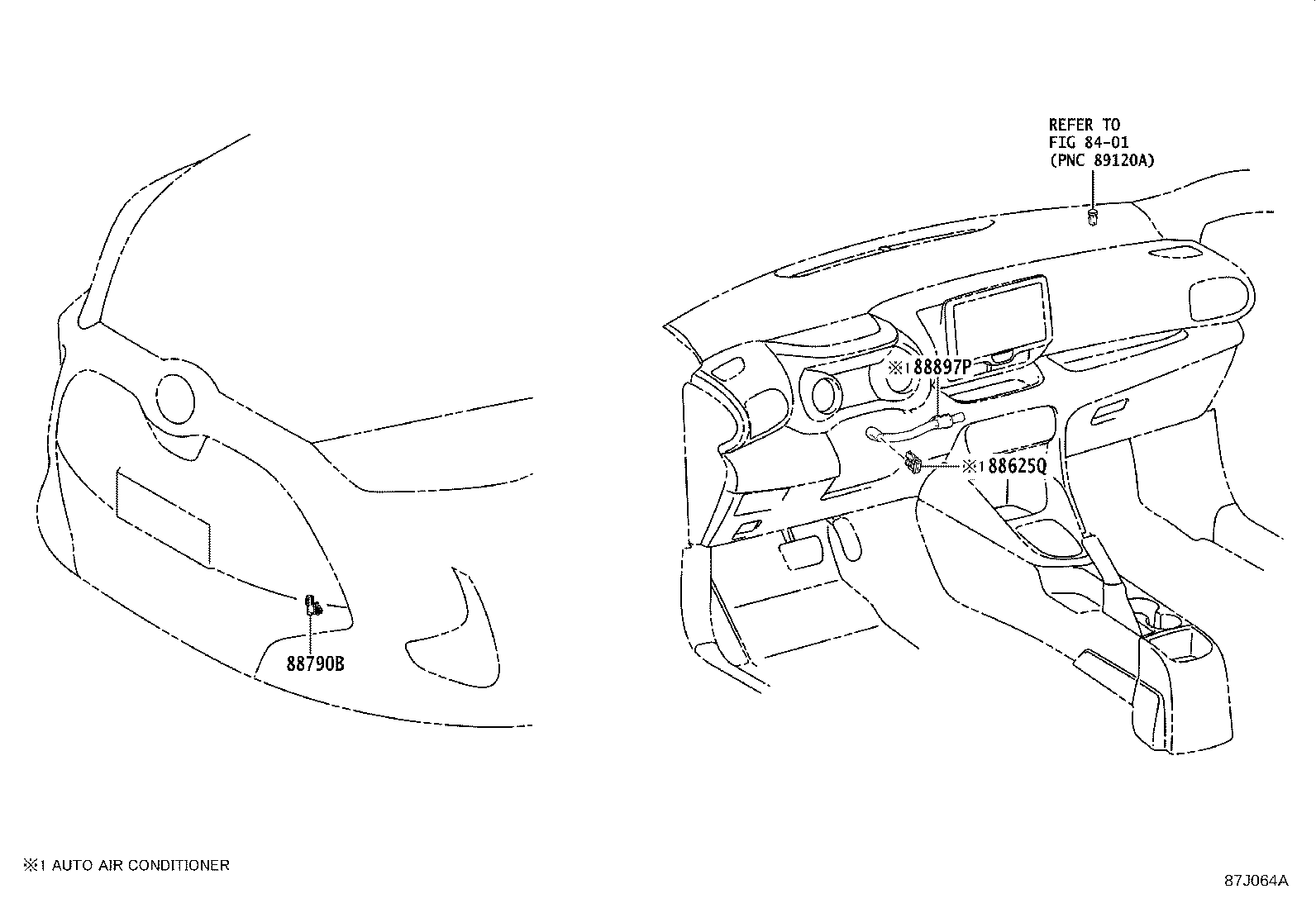

ILLUST NO. 3 OF 3(2007- )LHD
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
MXPH11;MXPA11..G |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
KSP211..N,R;MXPA11,MXPH11 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-K0010 |
MXPH11;MXPA11..G |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

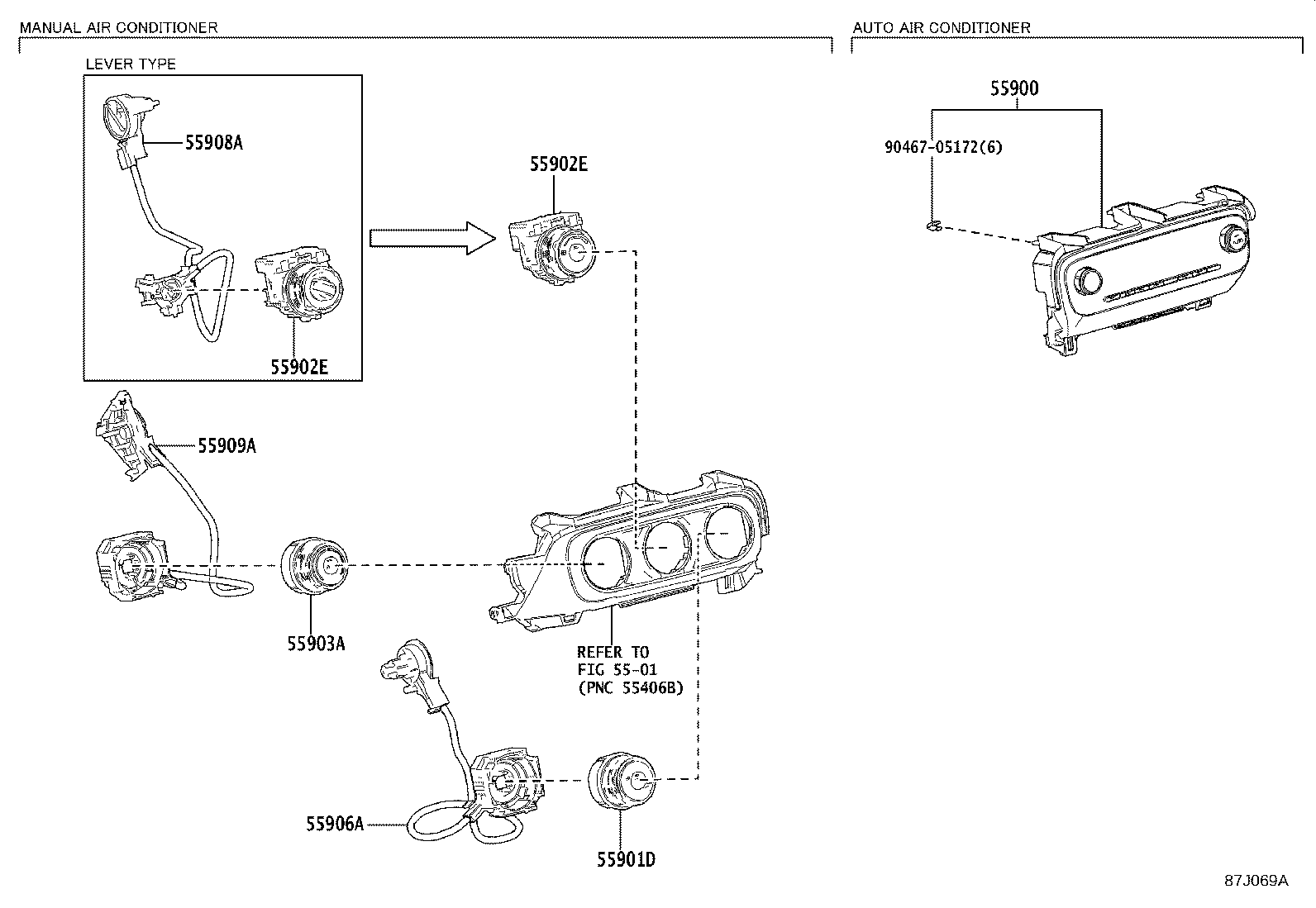

ILLUST NO. 1 OF 3(2007- )LHD
HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-K0280 |
MXPH11..LHD..N COLD AREA SPEC-WITH(EUROPE A RANK)&BLIND SPOT MONITOR-WITH |
1 | ||
| 55900-K0280 |
MXPH11..LHD..N BLIND SPOT MONITOR-WITH |
1 | ||
| 55900-K0280 |
MXPH11..LHD..N COLD AREA SPEC-WITH(EUROPE S RANK) |
1 | ||
| 55900-K0280 |
MXPH11..LHD..N COLD AREA SPEC-WITH(EUROPE A RANK) |
1 | ||
| 55900-K0270 |
MXPH11..LHD..N |
1 | ||
| 55900-K0280 |
MXPH11..LHD..N COLD AREA SPEC-WITH(EUROPE S RANK)&BLIND SPOT MONITOR-WITH |
1 | ||
| Common parts | ||||
| 90467-05172 | ||||
| Linked diagrams | ||||
| 5501 | ||||
