MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )MXPH11

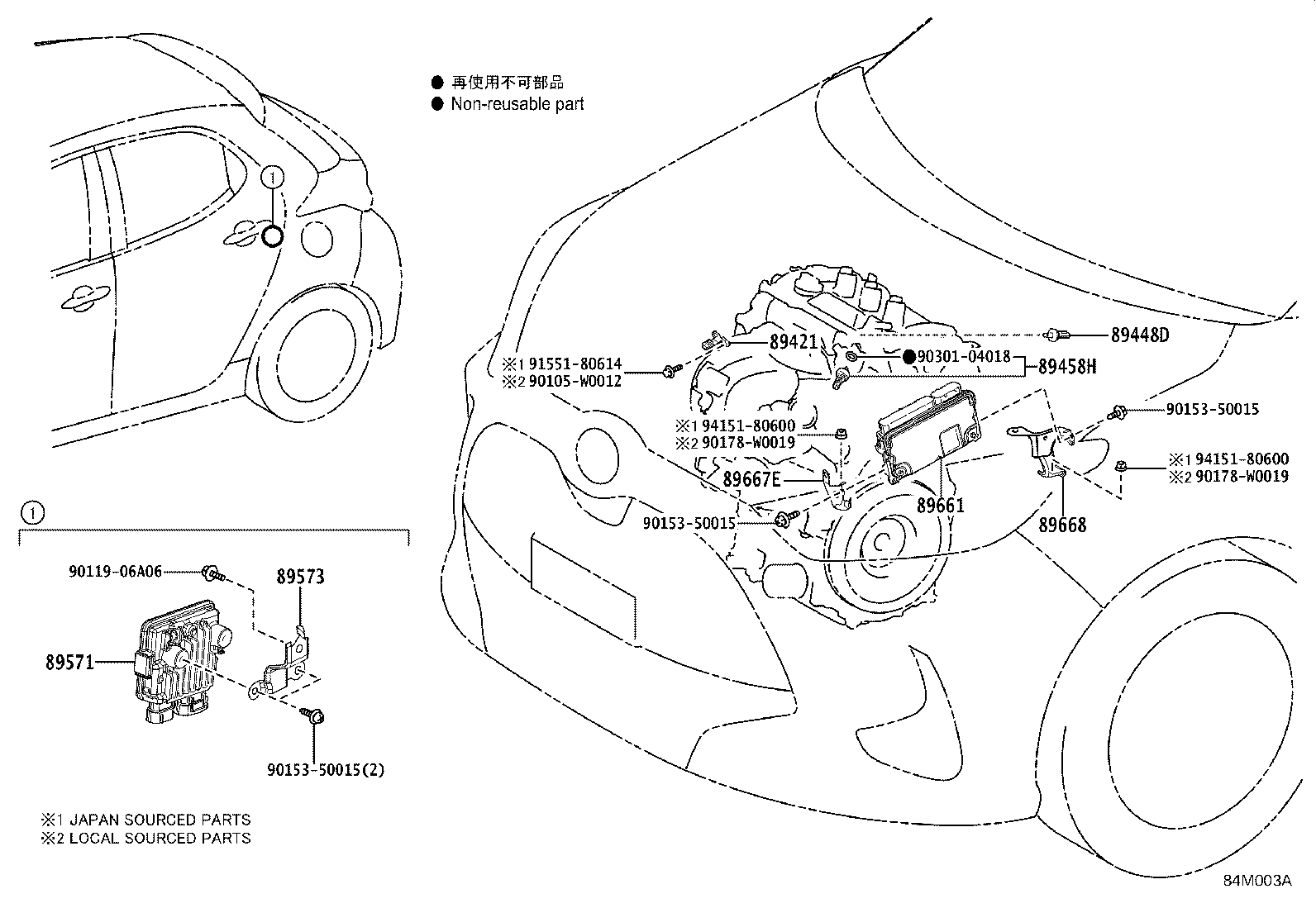

Click highlighted areas on diagram

diagram 89421 89448D 89458H 89571 89573 89661 89667E 89668 90105W0012 9011906A06 9015350015 9015350015 9015350015 90178W0019 90178W0019 9030104018 9155180614 9415180600 9415180600
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-33010

MXPA11,MXPH11

 1
89448D - SENSOR, OIL PRESSURE & TEMPERATURE
89448-33010

MXPA11,MXPH11

 1
89458H - SENSOR, FUEL PRESSURE, NO.2
89458-33041

MXPA11,MXPH11

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-K0010

MXPA11,MXPH11

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-K0010

MXPA11,MXPH11

 1
89661 - COMPUTER, ENGINE CONTROL
89661-K0080

MXPH11

DENSO,*614

 1
89661-0UB20

MXPH11..LHD

DENSO,WITHOUT(DESTINATION PACKAGE(EUROPE))&MARTINIQUE SPEC&COOLING FAN MOTOR-WITH(CONTROLLER),*614

 1
89661-K0510

MXPH11..LHD

DENSO,WITHOUT(DESTINATION PACKAGE(EUROPE))&NEW CALEDONIA, TAHITI SPEC&COOLING FANMOTOR-WITH(CONTROLLER),*614

 1
89661-K0510

MXPH11..LHD

DENSO,WITHOUT(DESTINATION PACKAGE(EUROPE))&EGYPT SPEC&COOLING FAN MOTOR-WITH(CONTROLLER),*614

 1
89661-0UB20

MXPH11..LHD

DENSO,WITHOUT(DESTINATION PACKAGE(EUROPE))&GUADELOUPE SPEC&COOLING FAN MOTOR-WITH(CONTROLLER),*614

 1
89661-K0081

MXPH11

DENSO,*614

 1
89661-K0510

MXPH11..LHD

DENSO,WITHOUT(DESTINATION PACKAGE(EUROPE))&MOROCCO SPEC&COOLING FAN MOTOR-WITH(CONTROLLER),*614

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-K0020

MXPH11

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-K0020

MXPH11

 1
Common parts
90105-W0012
90119-06A06
90153-50015
90178-W0019
90301-04018
91551-80614
94151-80600
