Toyota Yaris(frp) MXPH11 HEADLAMP

MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999

Engine M15AFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(2007- )

Click highlighted areas on diagram

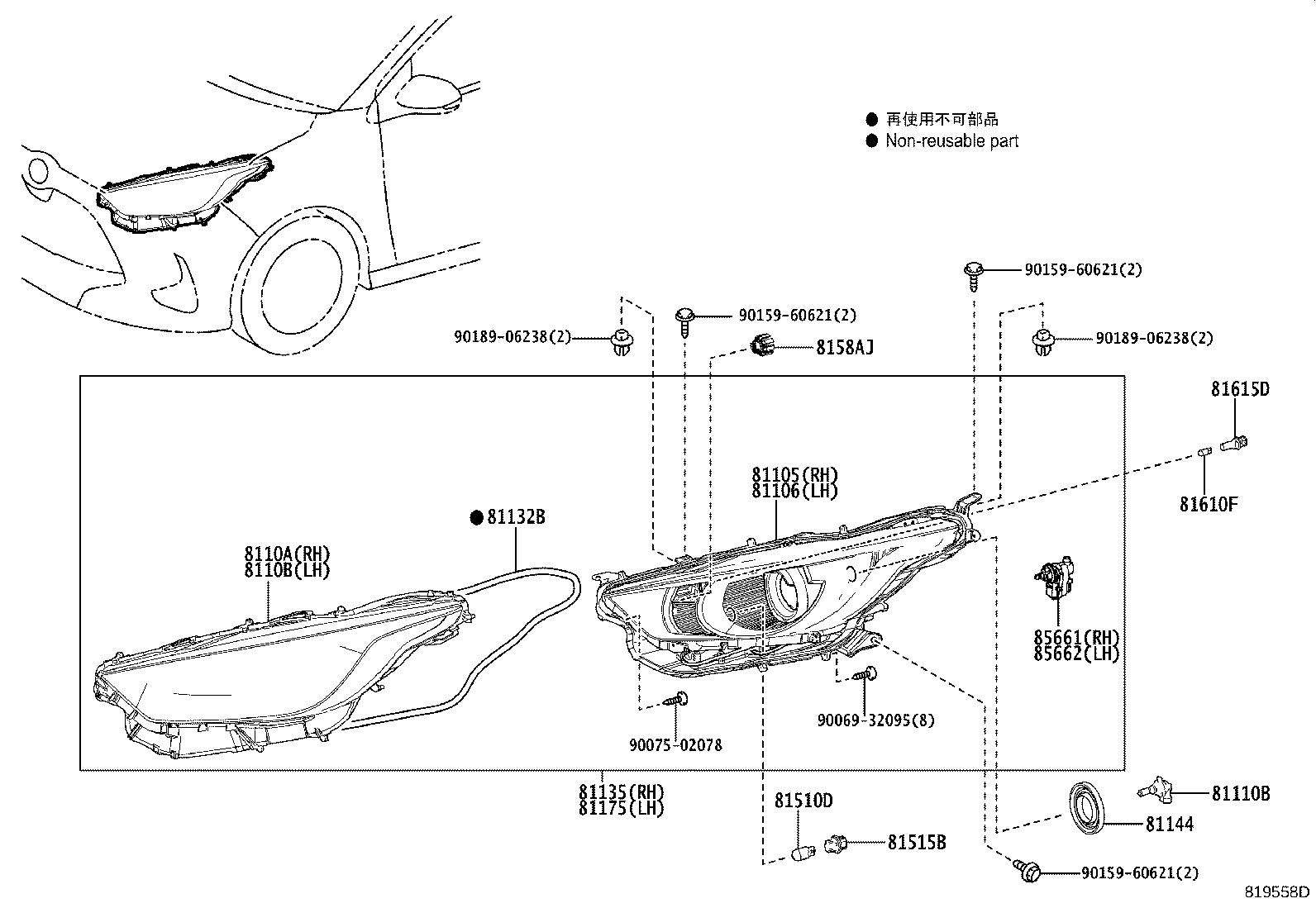

HALOGEN HEADLAMP

Part #	Description	Period	Qty
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-K0060	KSP211,MXPA11,MXPH11..LHD..(N,R)	07/2020 - 12/2999	1
81105-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-K0060	KSP211,MXPA11,MXPH11..LHD..(N,R)	07/2020 - 12/2999	1
81106-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
8110A - LENS SUB-ASSY, HEADLAMP, RH
8110A-K0060	KSP211,MXPA11,MXPH11..N,R	07/2020 - 12/2999	1
8110A-K0080	KSP211,MXPA11,MXPH11..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
8110B - LENS SUB-ASSY, HEADLAMP, LH
8110B-K0060	KSP211,MXPA11,MXPH11..N,R	07/2020 - 12/2999	1
8110B-K0080	KSP211,MXPA11,MXPH11..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13091	KSP211,MXPA11,MXPH11..N,R 12V 55W,HALOGEN	07/2020 - 12/2999	2
81132B - GASKET, HEADLAMP LENS
81132-50590	KSP211..N,R;MXPA11,MXPH11	07/2020 - 12/2999	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-K0060	KSP211,MXPA11,MXPH11..LHD..(N,R)	07/2020 - 12/2999	1
81130-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
81144 - COVER, HEADLAMP, NO.1
90075-65006	KSP211,MXPA11,MXPH11..N,R	07/2020 - 12/2999	2
90075-66016	KSP211,MXPA11,MXPH11..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-K0060	KSP211,MXPA11,MXPH11..LHD..(N,R)	07/2020 - 12/2999	1
81170-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	KSP211,MXPA11,MXPH11..N,R 12V 21W,AMBER	07/2020 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028	KSP211,MXPA11,MXPH11..N,R	07/2020 - 12/2999	2
8158AJ - LED, DAYTIME RUNNING LAMP
8158A-12260	KSP211,MXPA11,MXPH11..N,R	07/2020 - 12/2999	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11070	KSP211,MXPA11,MXPH11..N,R 12V 5W	07/2020 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60089	KSP211,MXPA11,MXPH11..N,R	07/2020 - 12/2999	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-0D050	KSP211..N,R;MXPA11,MXPH11	07/2020 - 12/2999	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-0D050	KSP211..N,R;MXPA11,MXPH11	07/2020 - 12/2999	1
Common parts
90069-32095
90075-02078
90159-60621
90189-06238

(2007- )

Click highlighted areas on diagram

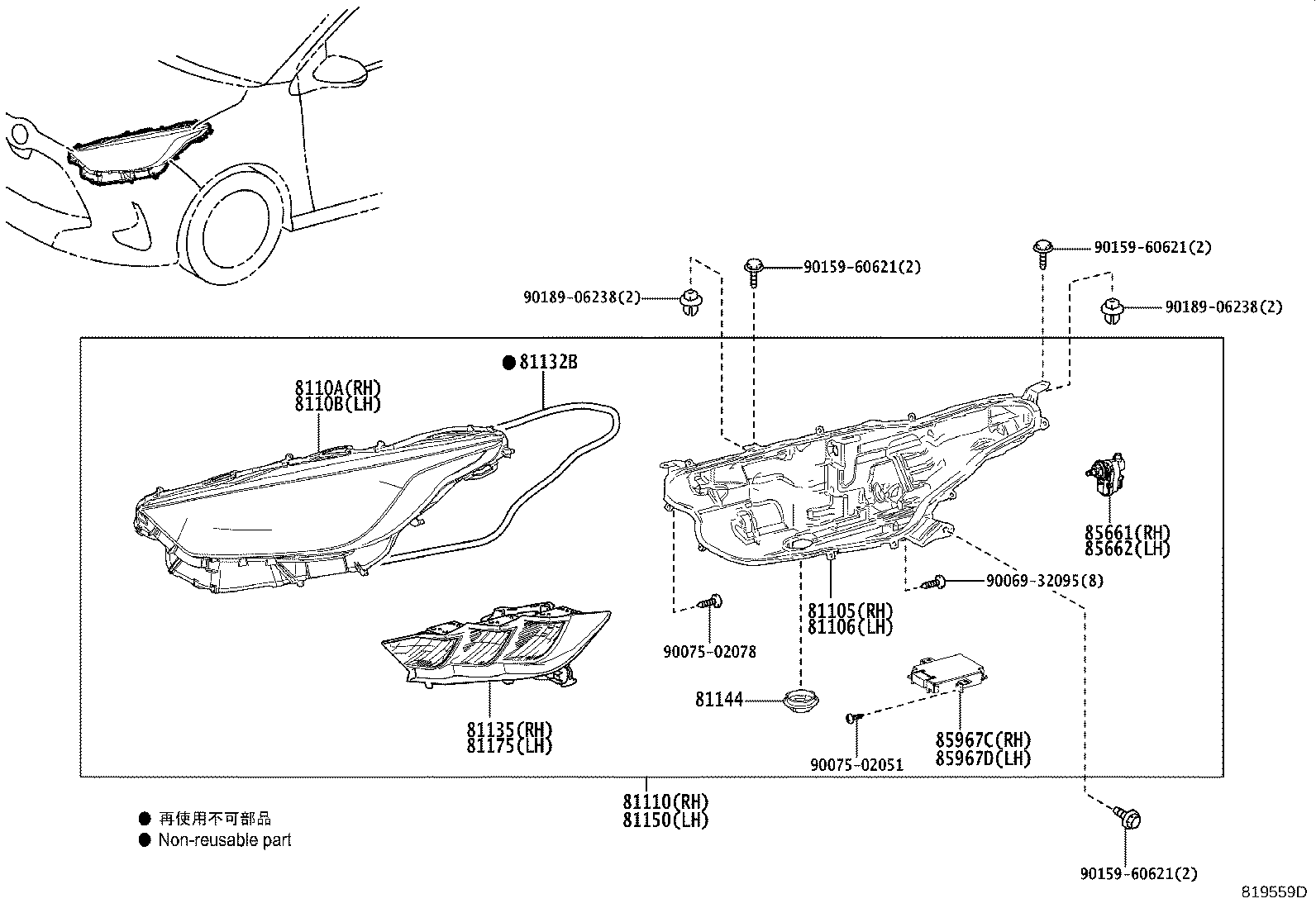

LED HEADLAMP

Part #	Description	Period	Qty
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-K0060	KSP211,MXPA11,MXPH11..LHD..(N,R)	07/2020 - 12/2999	1
81105-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-K0060	KSP211,MXPA11,MXPH11..LHD..(N,R)	07/2020 - 12/2999	1
81106-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
8110A - LENS SUB-ASSY, HEADLAMP, RH
8110A-K0060	KSP211,MXPA11,MXPH11..N,R	07/2020 - 12/2999	1
8110A-K0080	KSP211,MXPA11,MXPH11..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
8110B - LENS SUB-ASSY, HEADLAMP, LH
8110B-K0060	KSP211,MXPA11,MXPH11..N,R	07/2020 - 12/2999	1
8110B-K0080	KSP211,MXPA11,MXPH11..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
81110 - HEADLAMP ASSY, RH
81110-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
81132B - GASKET, HEADLAMP LENS
81132-50590	KSP211..N,R;MXPA11,MXPH11	07/2020 - 12/2999	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-K0060	KSP211,MXPA11,MXPH11..LHD..(N,R)	07/2020 - 12/2999	1
81130-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
81144 - COVER, HEADLAMP, NO.1
90075-65006	KSP211,MXPA11,MXPH11..N,R	07/2020 - 12/2999	2
90075-66016	KSP211,MXPA11,MXPH11..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	2
81150 - HEADLAMP ASSY, LH
81150-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-K0060	KSP211,MXPA11,MXPH11..LHD..(N,R)	07/2020 - 12/2999	1
81170-K0080	KSP211,MXPA11,MXPH11..LHD..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-0D050	KSP211..N,R;MXPA11,MXPH11	07/2020 - 12/2999	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-0D050	KSP211..N,R;MXPA11,MXPH11	07/2020 - 12/2999	1
85967C - COMPUTER, LIGHT CONTROL LED, RH
8596A-K0020	KSP211,MXPA11,MXPH11..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
85967D - COMPUTER, LIGHT CONTROL LED, LH
8596A-K0010	KSP211,MXPA11,MXPH11..N HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)	07/2020 - 12/2999	1
Common parts
90069-32095
90075-02051
90075-02078
90159-60621
90189-06238
