MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2007- )MXPH11

Click highlighted areas on diagram

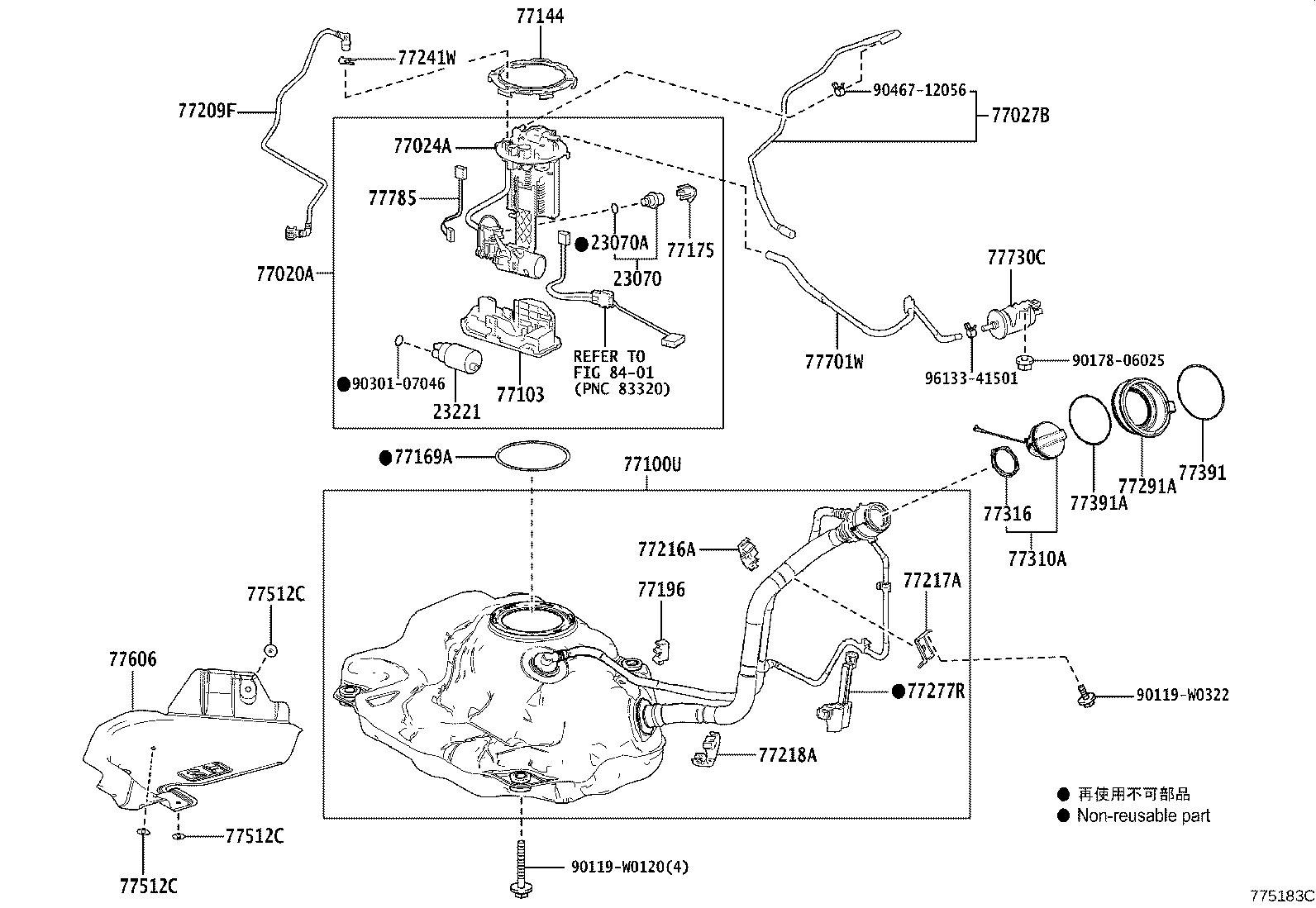

FUEL TANK

diagram 23070 23070A 23221 77020A 77024A 77027B 77100U 77103 77144 77169A 77175 77196 77209F 77216A 77217A 77218A 77241W 77277R 77291A 77310A 77316 77391 77391A 77512C 77512C 77512C 77606 77701W 77730C 77785 8401 90119W0120 90119W0322 9017806025 9030107046 9046712056 9613341501
Part # Description Qty Price
Common parts
90119-W0120
90119-W0322
90178-06025
90301-07046
90467-12056
96133-41501
Linked diagrams
8401

ILLUST NO. 2 OF 3(2007- )MXPH11

Click highlighted areas on diagram

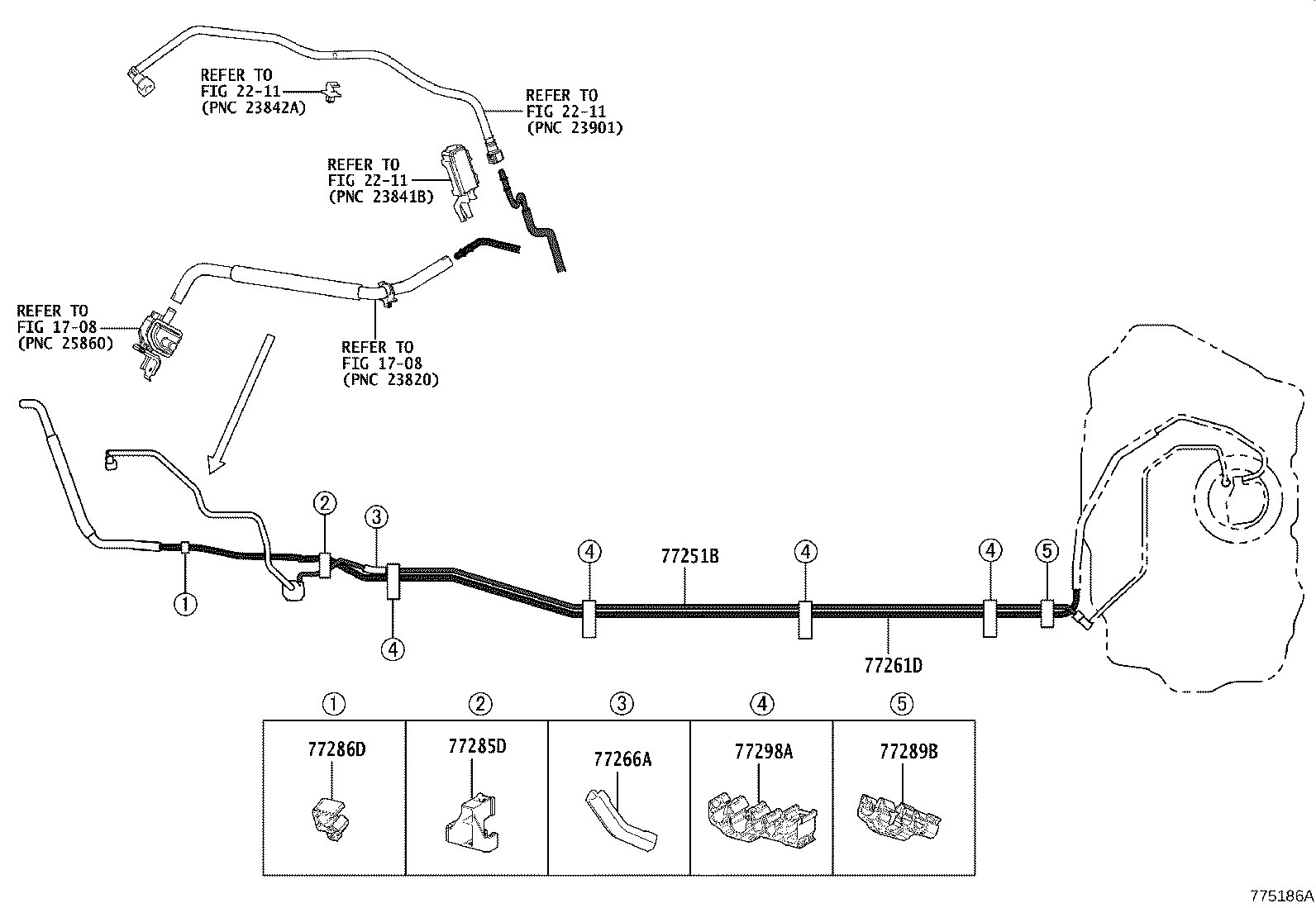

FUEL TUBE

diagram 1708 1708 2211 2211 2211 77251B 77261D 77266A 77285D 77286D 77289B 77298A
Part # Description Qty Price
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(2007- )LHD

Click highlighted areas on diagram

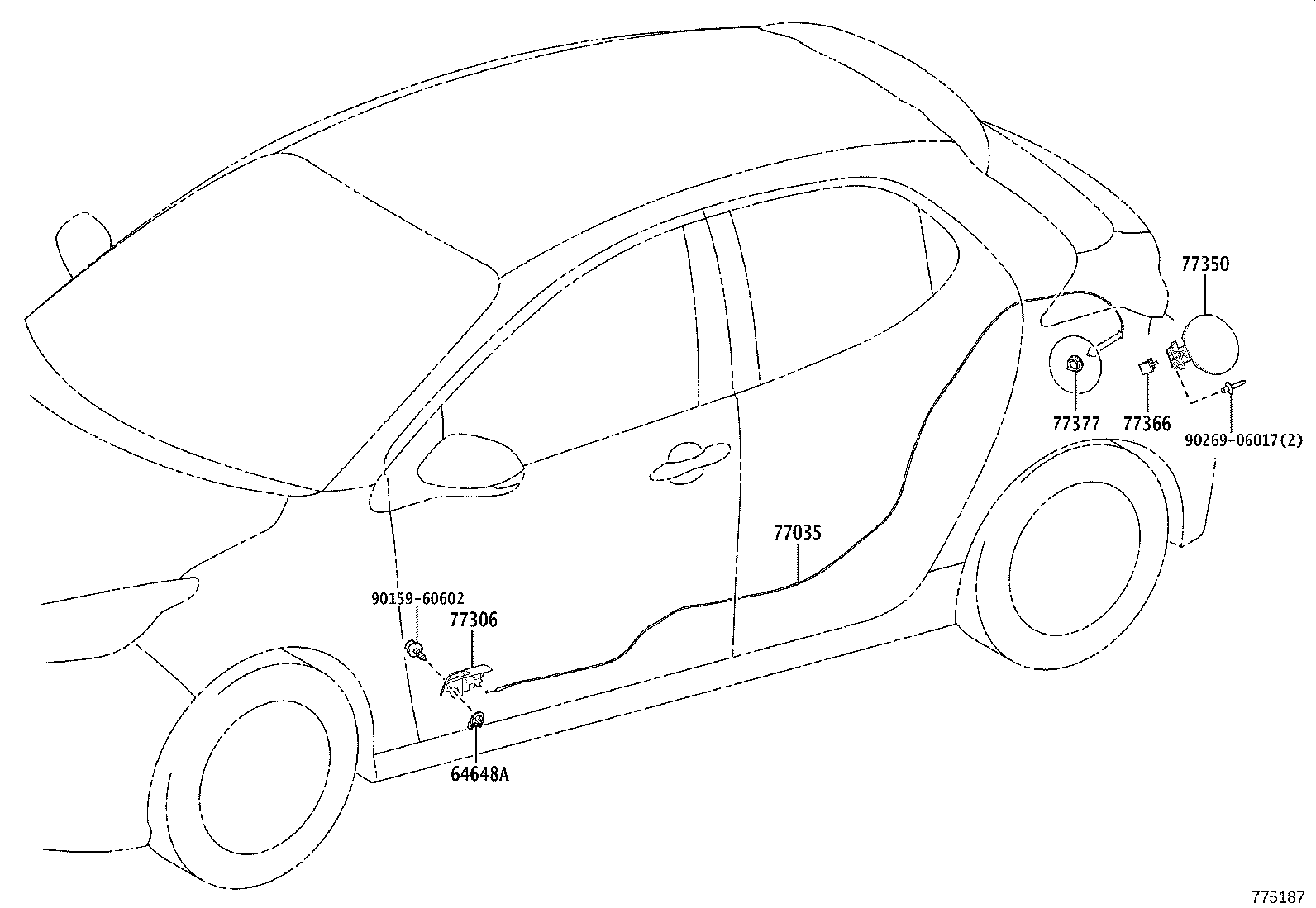

FUEL LID OPENER

diagram 64648A 77035 77306 77350 77366 77377 9015960602 9026906017
Part # Description Qty Price
Common parts
90159-60602
90269-06017
