MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

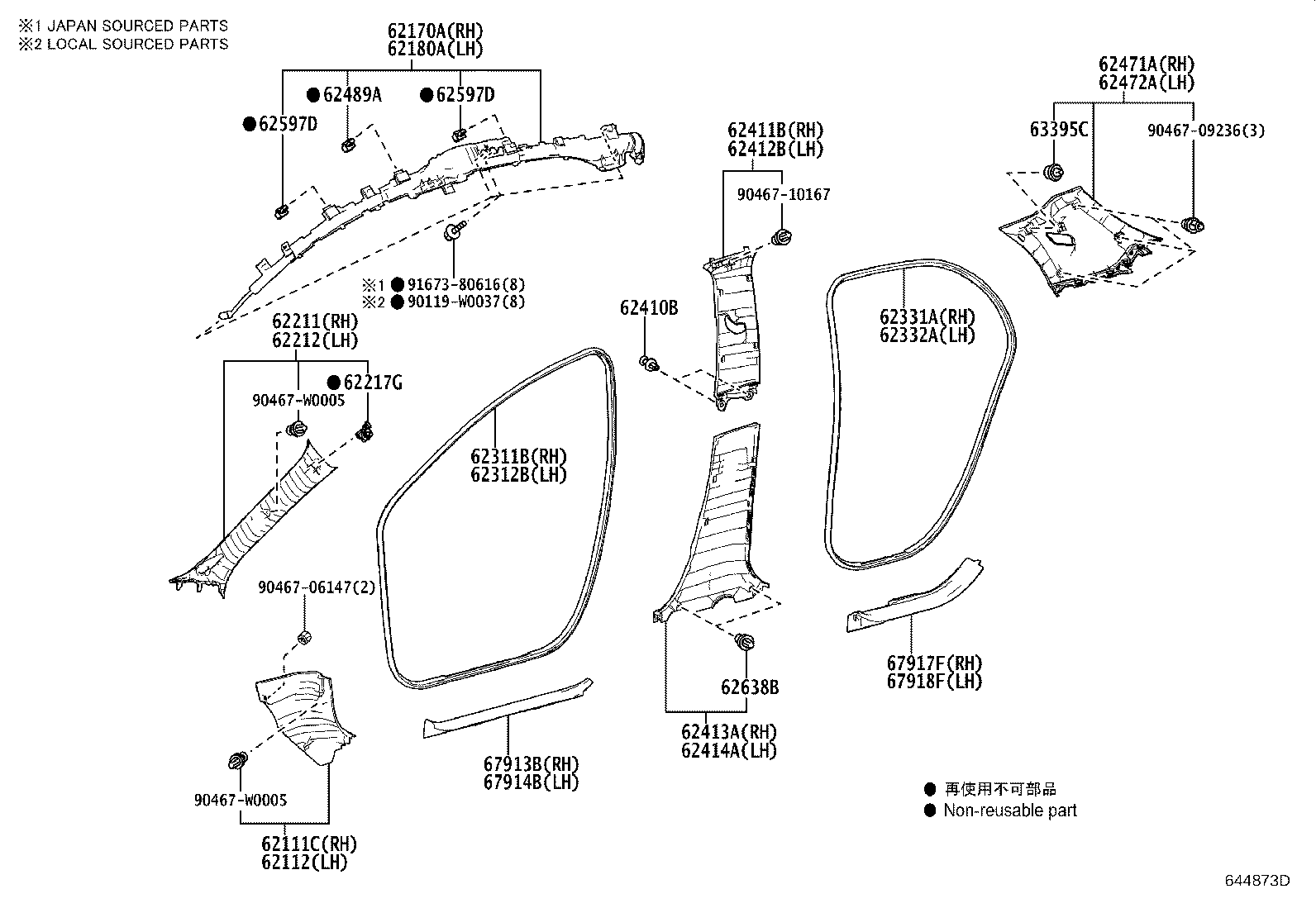

Click highlighted areas on diagram

diagram 62111C 62112 62170A 62180A 62211 62212 62217G 62311B 62312B 62331A 62332A 62410B 62411B 62412B 62413A 62414A 62471A 62472A 62489A 62597D 62597D 62638B 63395C 67913B 67914B 67917F 67918F 90119W0037 9046706147 9046709236 9046710167 90467W0005 90467W0005 9167380616
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-K0030C1

KSP211,MXPA11,MXPH11..LHD..N

BLACK,TRIM1#,2#,4#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-K0050C1

KSP211,MXPA11,MXPH11..LHD..N

BLACK,TRIM1#,2#,4#

 1
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-K0020

KSP211..N,R;MXPA11,MXPH11

 1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-K0020

KSP211..N,R;MXPA11,MXPH11

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-K0030B0

KSP211,MXPA11,MXPH11..N

LT.GRAY,TRIM20

 1
62211-K0040C0

KSP211,MXPA11,MXPH11..N

SPEAKER-6SPEAKER,BLACK,TRIM1#,20,4#

 1
62211-K0030C0

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,20,4#

 1
62211-K0110B0

MXPA11,MXPH11..N

SPEAKER-PREMIUM 8SPEAKER,LT.GRAY,TRIM20

 1
62211-K0040B0

KSP211,MXPA11,MXPH11..N

SPEAKER-6SPEAKER,LT.GRAY,TRIM20

 1
62211-K0110C0

MXPA11,MXPH11..N

SPEAKER-PREMIUM 8SPEAKER,BLACK,TRIM1#,20,4#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-K0030B0

KSP211,MXPA11,MXPH11..N

LT.GRAY,TRIM20

 1
62212-K0110B0

MXPA11,MXPH11..N

SPEAKER-PREMIUM 8SPEAKER,LT.GRAY,TRIM20

 1
62212-K0040C0

KSP211,MXPA11,MXPH11..N

SPEAKER-6SPEAKER,BLACK,TRIM1#,20,4#

 1
62212-K0110C0

MXPA11,MXPH11..N

SPEAKER-PREMIUM 8SPEAKER,BLACK,TRIM1#,20,4#

 1
62212-K0030C0

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,20,4#

 1
62212-K0040B0

KSP211,MXPA11,MXPH11..N

SPEAKER-6SPEAKER,LT.GRAY,TRIM20

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-42050

KSP211..N,R;MXPA11,MXPH11

 2
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-K0010

KSP211..N,R;MXPA11,MXPH11

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-K0010

KSP211..N,R;MXPA11,MXPH11

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-K0010

KSP211..N,R;MXPA11,MXPH11

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-K0010

KSP211..N,R;MXPA11,MXPH11

 1
62410B - CLIP
90467-10216

KSP211..N,R;MXPA11,MXPH11

 4
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-K0020C0

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,20,4#

 1
62411-K0020B0

KSP211,MXPA11,MXPH11..N,S

LT.GRAY,TRIM20

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-K0020B0

KSP211,MXPA11,MXPH11..N,S

LT.GRAY,TRIM20

 1
62412-K0020C0

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,20,4#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-K0020C1

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,2#,4#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-K0020C1

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,2#,4#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-K0020B0

KSP211,MXPA11,MXPH11..N,S

LT.GRAY,TRIM20

 1
62471-K0020C0

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,20,4#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-K0020B0

KSP211,MXPA11,MXPH11..N,S

LT.GRAY,TRIM20

 1
62472-K0020C0

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,20,4#

 1
62489A - CLIP, ROOF SIDE INNER GARNISH
62489-52010

KSP211..N,R;MXPA11,MXPH11

 2
62597D - CLIP
90467-18017

KSP211..N,R;MXPA11,MXPH11

 4
62597D - CLIP
90467-18017

KSP211..N,R;MXPA11,MXPH11

 4
62638B - CLIP
90467-W0005

KSP211..N,R;MXPA11,MXPH11

 4
63395C - CLIP(FOR ROOF SIDE INNER GARNISH)
63395-12150

KSP211..N,R;MXPA11,MXPH11

 2
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-K0020C1

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,2#,4#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-K0020C1

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,2#,4#

 1
67917F - PLATE, REAR DOOR SCUFF, INSIDE RH
67917-K0040C1

MXPH11..N

BLACK,TRIM1#,2#,4#

 1
67918F - PLATE, REAR DOOR SCUFF, INSIDE LH
67918-K0040C1

MXPH11..N

BLACK,TRIM1#,2#,4#

 1
Common parts
90119-W0037
90467-06147
90467-09236
90467-10167
90467-W0005
91673-80616
