MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

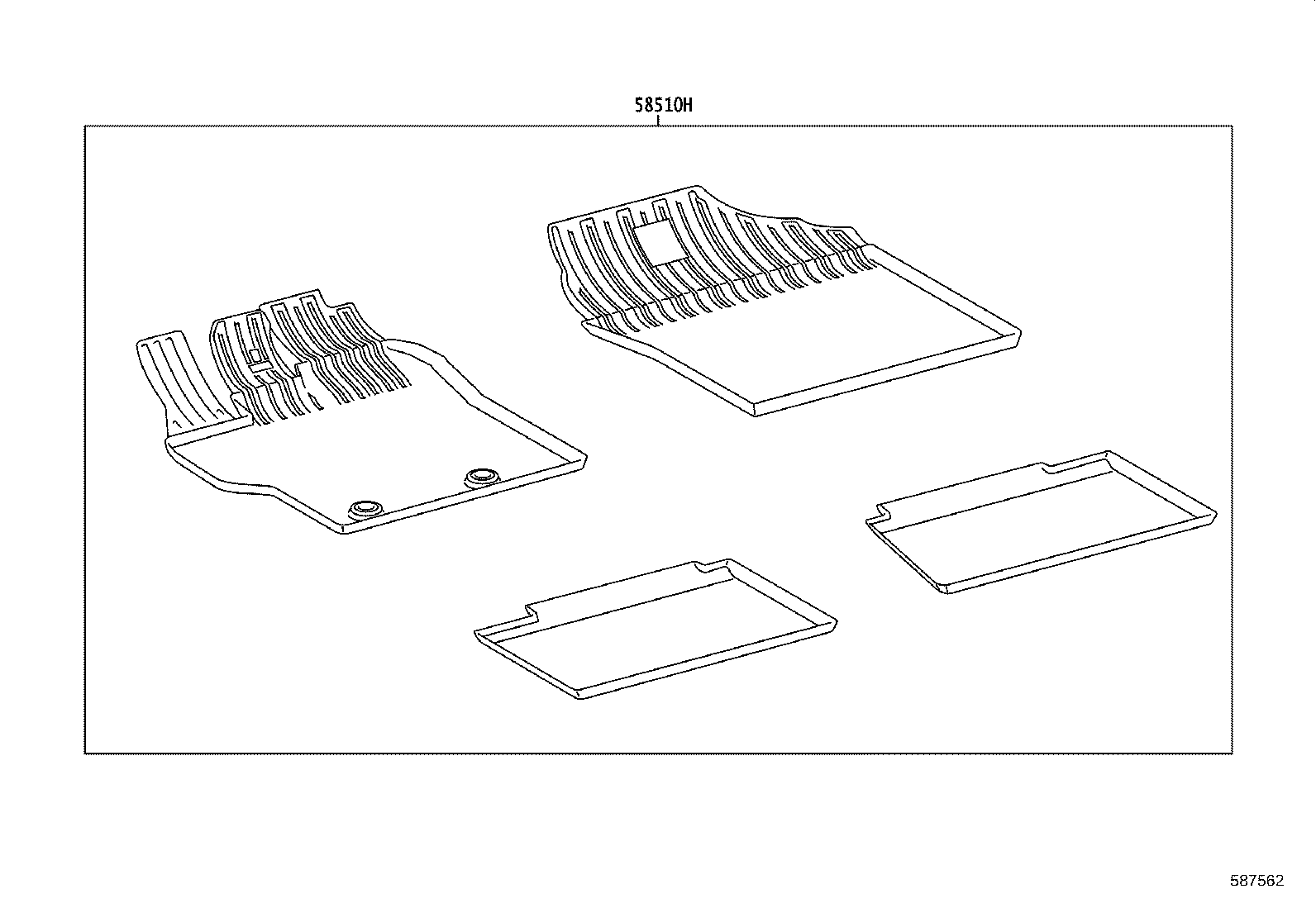

ILLUST NO. 2 OF 2(2007- )LHD

Click highlighted areas on diagram

FLOOR MAT

diagram 58510H
Part # Description Qty Price
58510H - MAT ASSY, FLOOR
58500-YY210C0

KSP211,MXPA11,MXPH11..LHD..N

FLOOR MAT-TEXTILE(MIDDLE GRADE),BLACK,TRIM1#,2#,4#

 1
58510-YYE10C0

KSP211,MXPA11,MXPH11..LHD..N

FLOOR MAT-TEXTILE(HIGH GRADE),BLACK,TRIM1#,2#,4#

 1
58510-YYD90C0

KSP211,MXPA11,MXPH11..LHD..N

FLOOR MAT-RUBBER TYPE,BLACK,TRIM1#,2#,4#

 1

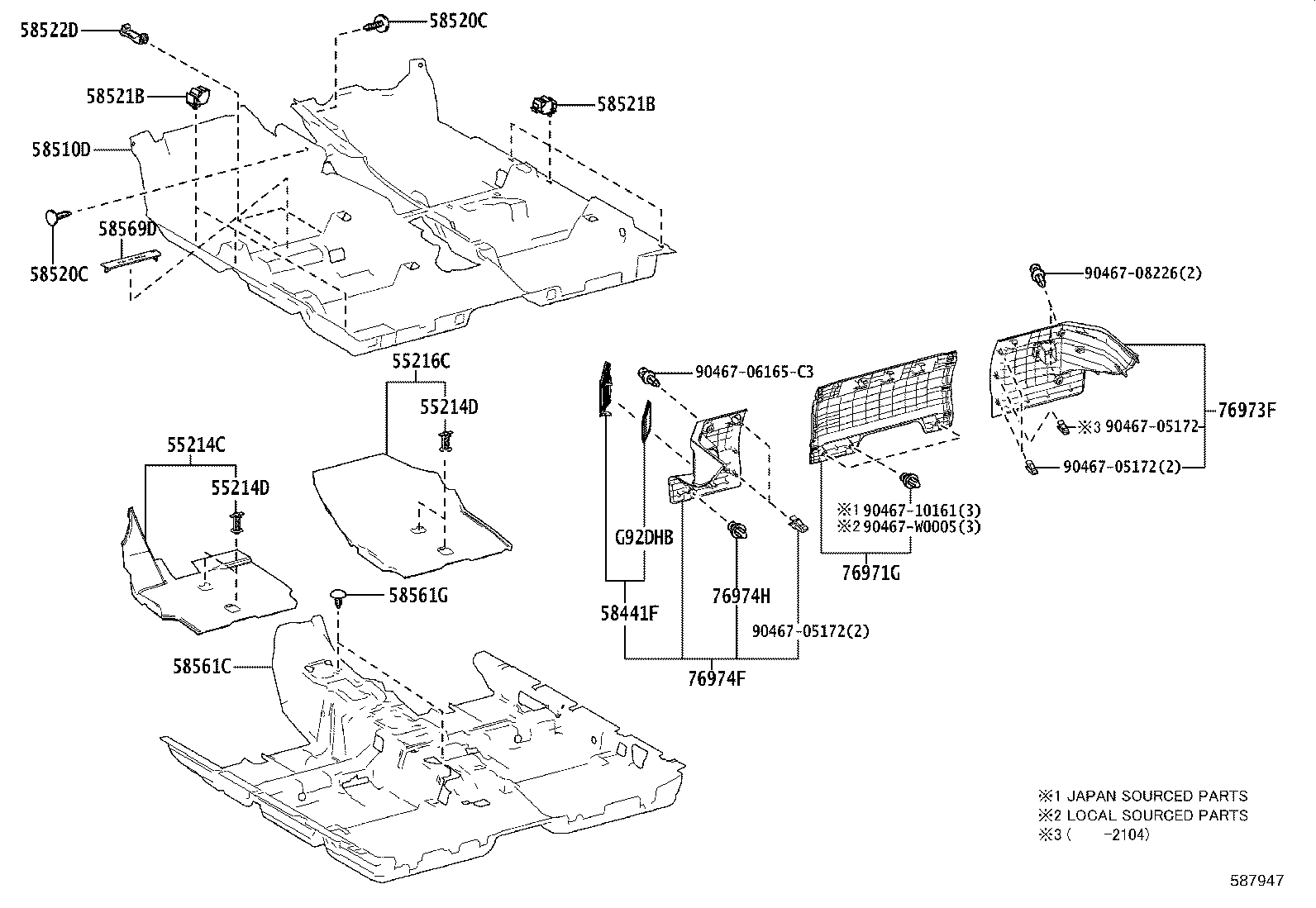

ILLUST NO. 1 OF 2(2007- )MXPH11..LHD

Click highlighted areas on diagram

FLOOR CARPET

diagram 55214C 55214D 55214D 55216C 58441F 58510D 58520C 58520C 58521B 58521B 58522D 58561C 58561G 58569D 76971G 76973F 76974F 76974H 9046705172 9046705172 9046705172 9046706165C3 9046708226 9046710161 90467W0005 G92DHB
Part # Description Qty Price
55214D - CLIP(FOR DASH PANEL INSULATOR PAD)
58198-52020

KSP211..N,R;MXPA11,MXPH11

 4
55214D - CLIP(FOR DASH PANEL INSULATOR PAD)
58198-52020

KSP211..N,R;MXPA11,MXPH11

 4
58441F - COVER, BATTERY SERVICE HOLE
58441-K0020

MXPH11

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-K0060C2

MXPH11..LHD..N

BLACK,TRIM1#,2#,4#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

MXPH11..N

BLACK,TRIM1#,2#,4#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

MXPH11..N

BLACK,TRIM1#,2#,4#

 2
58521B - HOOK, FLOOR CARPET
58521-02160

KSP211..N,R;MXPA11,MXPH11

 6
58521B - HOOK, FLOOR CARPET
58521-02160

KSP211..N,R;MXPA11,MXPH11

 6
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

KSP211..N,R;MXPA11,MXPH11

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-K0160

MXPH11..LHD

 1
58561-K0140

MXPH11..LHD

COLD AREA SPEC-WITH(EUROPE A RANK)

 1
58561-K0140

MXPH11..LHD

COLD AREA SPEC-WITH(EUROPE S RANK)

 1
58561-K0160

MXPH11..LHD

LW PACKAGE

 1
58561G - CLIP(FOR FRONT FLOOR SILENCER)
90467-07042C4

KSP211..N,R;MXPA11,MXPH11

BLACK

 2
90467-07042C4

MXPH11;KSP211..N,R

LW PACKAGE,BLACK

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-02110C0

KSP211,MXPA11,MXPH11..N

BLACK,TRIM1#,2#,4#

 1
76971G - COVER, REAR UNDER
76971-K0020C1

MXPH11..N

BLACK,TRIM1#,2#,4#

 1
76973F - COVER, REAR UNDER SIDE, RH
76973-K0020C1

MXPH11..N

BLACK,TRIM1#,2#,4#

 1
76974F - COVER, REAR UNDER SIDE, LH
76974-K0020C1

MXPH11..N

BLACK,TRIM1#,2#,4#

 1
76974H - CLIP, REAR UNDER SIDE COVER, LH
90467-W0010

MXPH11

(L)

 1
90467-W0005

MXPH11

(L)

 1
90467-09206

MXPH11

(J)

 1
90467-10161

MXPH11

(J)

 1
G92DHB - FILTER, HV BATTERY INTAKE, NO.1
G92DH-K0010

MXPH11

 1
Common parts
90467-05172
90467-06165C3
90467-08226
90467-10161
90467-W0005
