MXPH11L-BHXNBW (2020)
Toyota Yaris(Frp)
Production
Jul 2020
-
Sep 9999
Engine
M15AFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )MXPH11

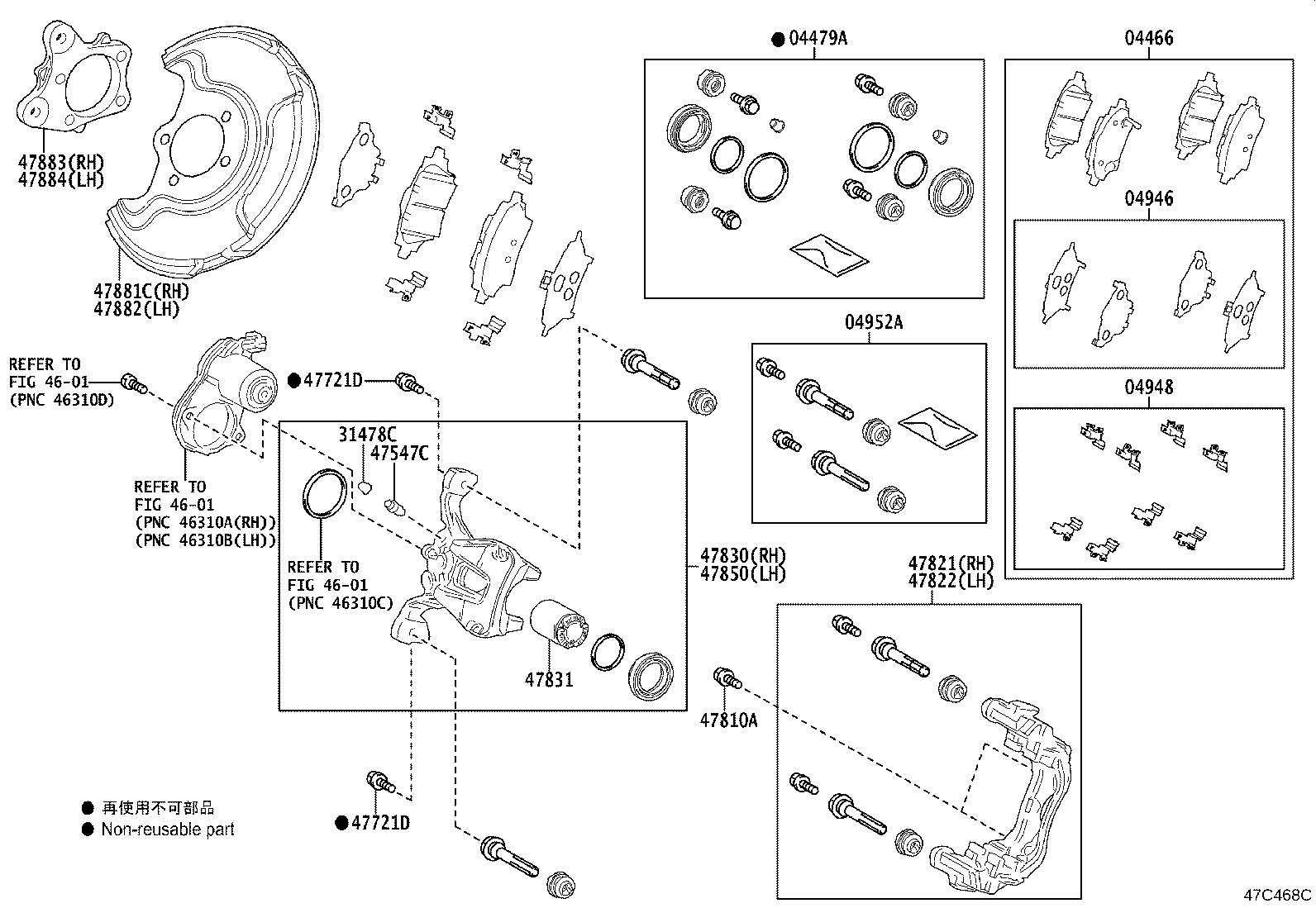

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-K0000 |
MXPH11 MARK NBK D6361 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-F4010 |
MXPH11 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-F4010 |
MXPH11 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-F4010 |
MXPH11 |
1 | ||
| 04952A - PIN KIT, REAR DISC BRAKE CYLINDER SLIDE | ||||
| 04952-F4020 |
MXPH11 |
2 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 90069-39027 |
MXPH11 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-F4030 |
MXPH11 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90069-31417 |
MXPH11 *8-1.00PX22-10 |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90069-31417 |
MXPH11 *8-1.00PX22-10 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
MXPH11 |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-K9000 |
MXPH11 |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-K9000 |
MXPH11 |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-K0010 |
MXPH11 |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-F4030 |
MXPH11 |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-K0010 |
MXPH11 |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-K0010 |
MXPH11 |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-K0010 |
MXPH11 |
1 | ||
| 47883 - BRACKET, CALIPER SUPPORT, REAR RH | ||||
| 47883-K0010 |
MXPH11 |
1 | ||
| 47884 - BRACKET, CALIPER SUPPORT, REAR LH | ||||
| 47884-K0010 |
MXPH11 |
1 | ||
| Linked diagrams | ||||
| 4601 | ||||
