MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )MXPH11..LHD

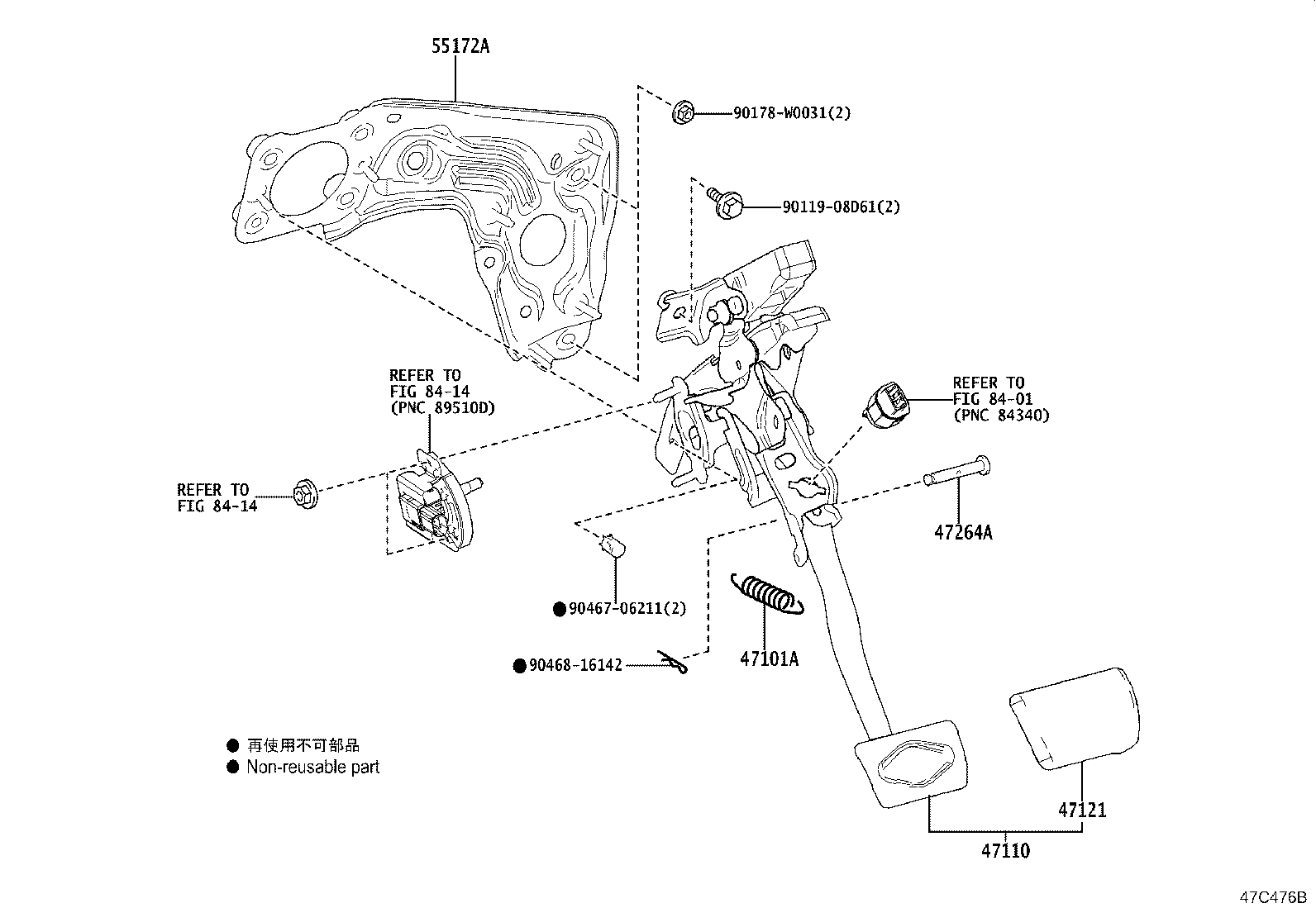

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 55172A 8401 8414 8414 9011908D61 90178W0031 9046706211 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-17003

KSP211..N,R;MXPA11,MXPH11

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-K0030

MXPH11..LHD

 1
47121 - PAD, BRAKE PEDAL
47121-F4010

MXPA11,MXPH11..LHD..CVT

 1
47264A - PIN(FOR PUSH ROD)
90249-08221

MXPA11,MXPH11..LHD;KSP211..LHD..(N,R)

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-K0020

MXPA11,MXPH11..LHD;KSP211..LHD..(N,R)

 1
Common parts
90119-08D61
90178-W0031
90467-06211
90468-16142
Linked diagrams
8401
8414
