MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )MXPH11

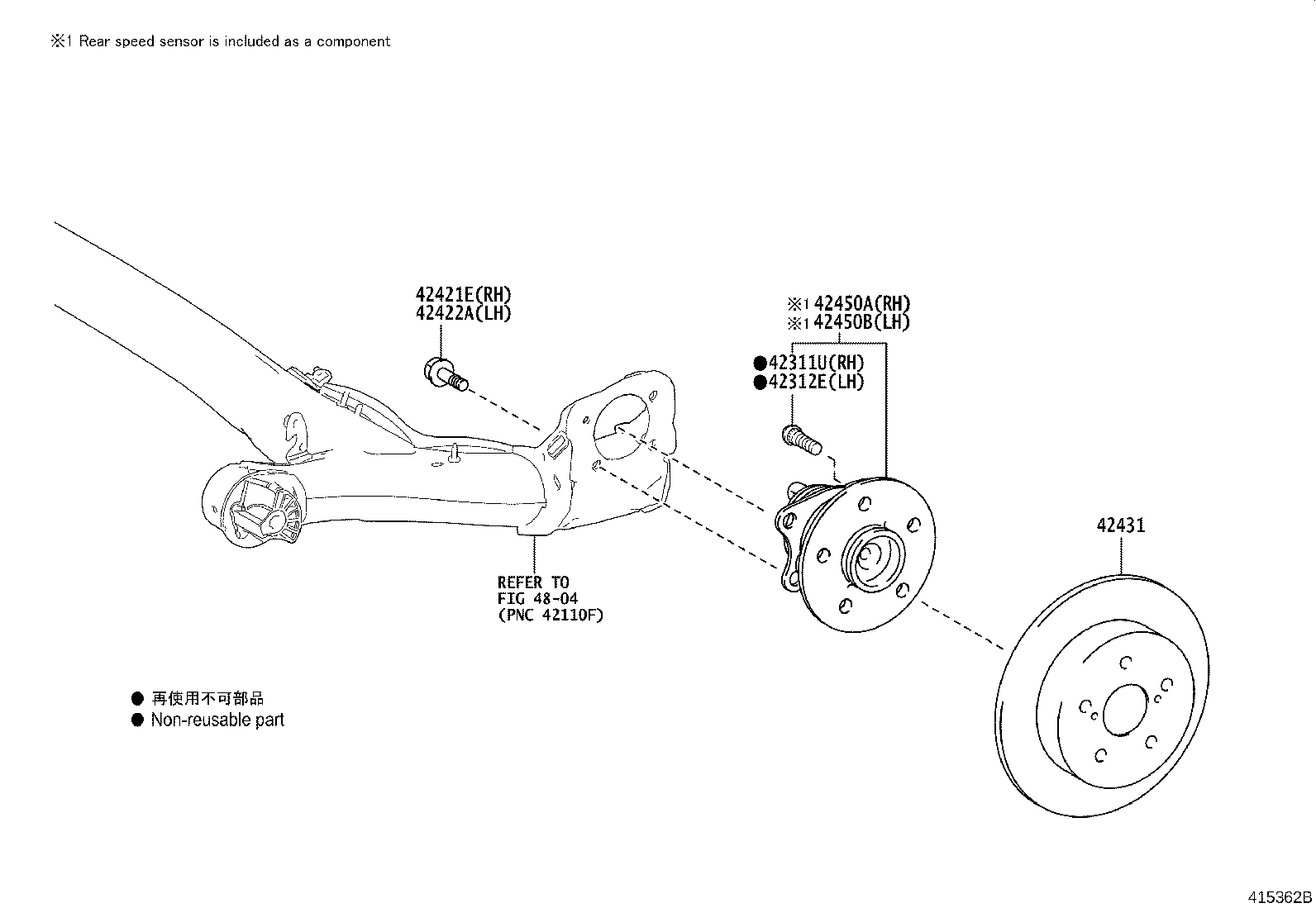

Click highlighted areas on diagram

diagram 42311U 42312E 42421E 42422A 42431 42450A 42450B 4804
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

KSP211..N,R;MXPA11,MXPH11

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

KSP211..N,R;MXPA11,MXPH11

 5
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-12408

MXPH11

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-12408

MXPH11

 4
42431 - DISC, REAR
42431-K0010

MXPH11

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-K0020

KSP211..N,R;MXPA11,MXPH11

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-K0020

KSP211..N,R;MXPA11,MXPH11

 1
Linked diagrams
4804
