MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )M15AFXE

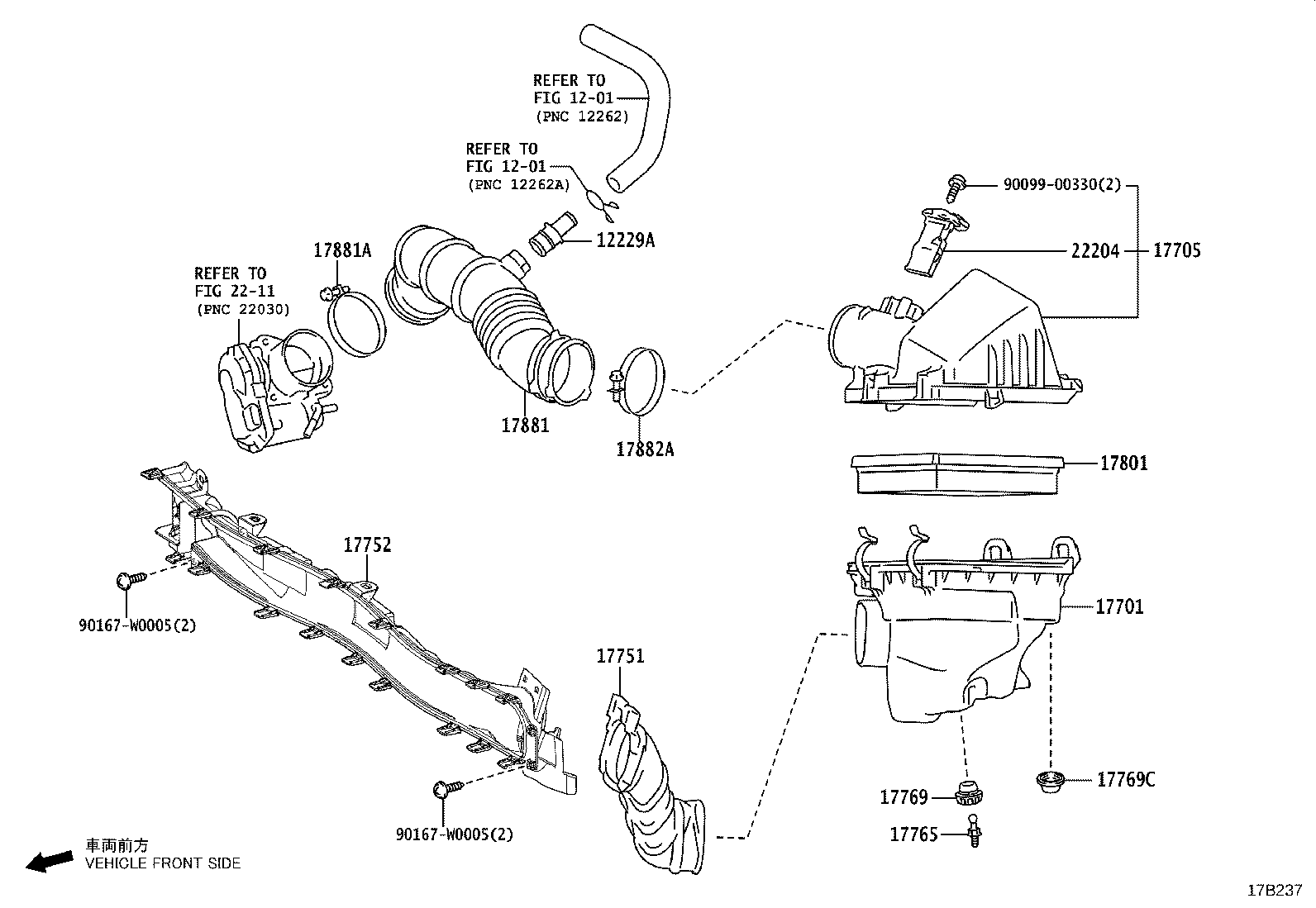

Click highlighted areas on diagram

diagram 1201 1201 12229A 17701 17705 17751 17752 17765 17769 17769C 17801 17881 17881A 17882A 2211 22204 9009900330 90167W0005 90167W0005
Part # Description Qty Price
Common parts
90099-00330
90167-W0005
Linked diagrams
1201
2211
