MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )M15AFXE

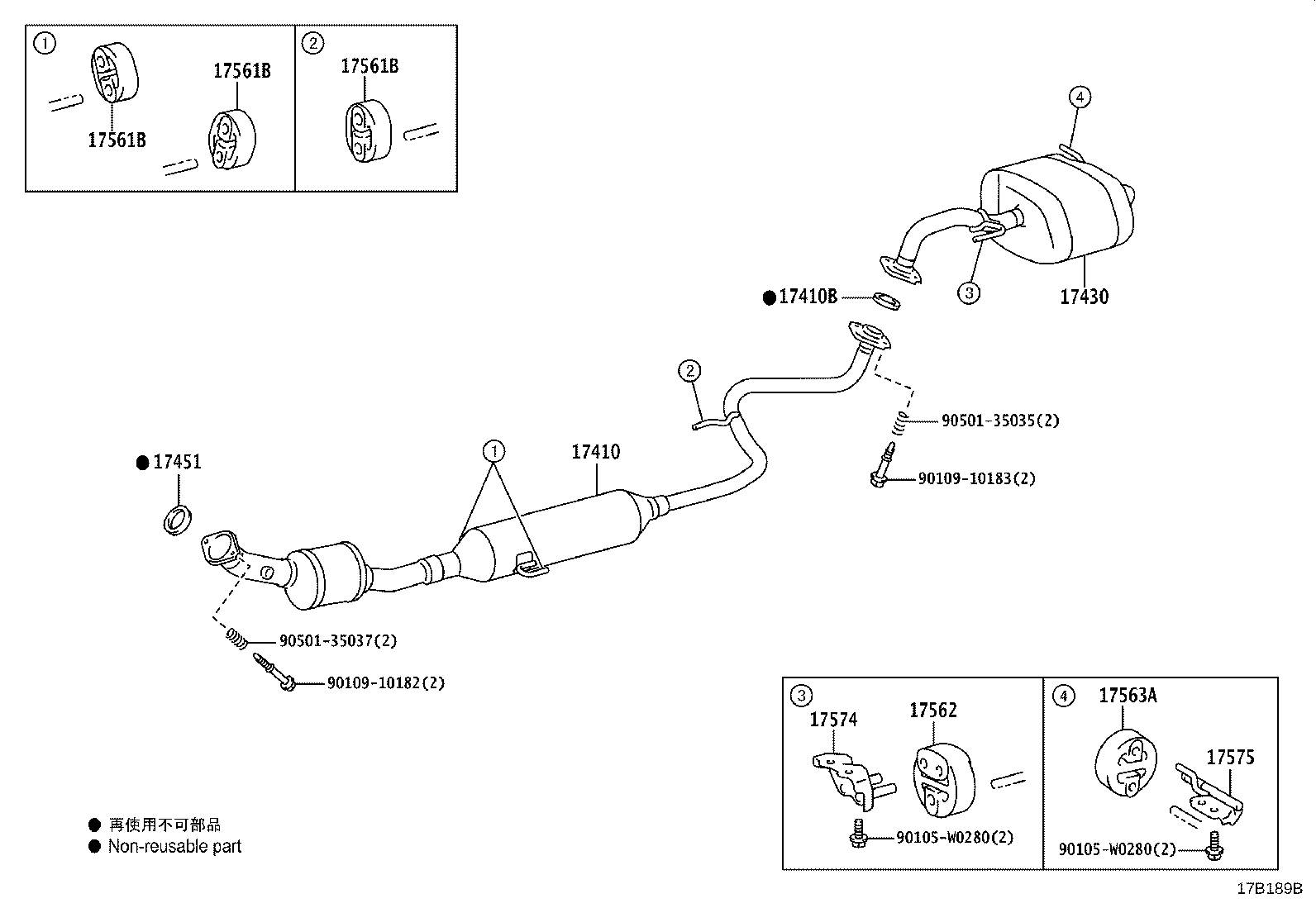

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17561B 17561B 17561B 17562 17563A 17574 17575 90105W0280 90105W0280 9010910182 9010910183 9050135035 9050135037
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-K0100

M15AFXE..MXPH11

*114=TOYOTA/A65/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-0J022

1KRFE..KSP211..N,R;M15#..MXPA11,MXPH11

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-K0050

M15#..MXPA11,MXPH11

 1
17451 - GASKET, EXHAUST PIPE
17451-0J030

M15#..MXPA11,MXPH11

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0Q030

1KRFE..KSP211..N,R;M15#..MXPA11,MXPH11

 3
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0Q030

1KRFE..KSP211..N,R;M15#..MXPA11,MXPH11

 3
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-0Q030

1KRFE..KSP211..N,R;M15#..MXPA11,MXPH11

 3
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-74320

1KRFE..KSP211..N,R;M15#..MXPA11,MXPH11

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0T040

1KRFE..KSP211..N,R;M15#..MXPA11,MXPH11

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-K0030

1KRFE..KSP211..N,R;M15#..MXPA11,MXPH11

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-K0030

1KRFE..KSP211..N,R;M15#..MXPA11,MXPH11

 1
Common parts
90105-W0280
90109-10182
90109-10183
90501-35035
90501-35037
