MXPH11L-BHXNBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

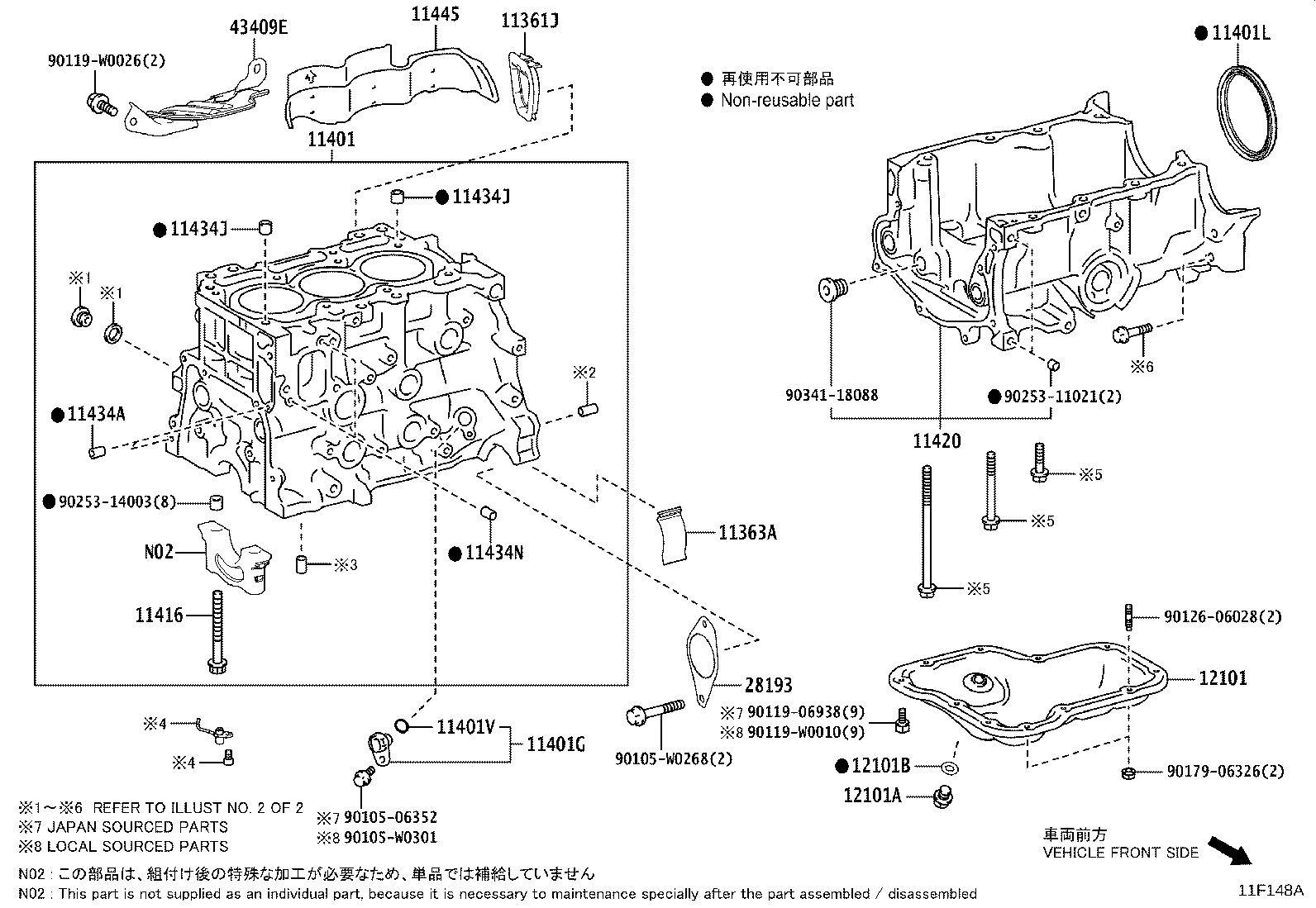

ILLUST NO. 1 OF 2(2007- )M15AFXE

Click highlighted areas on diagram

CYLINDER BLOCK

diagram 11361J 11363A 11401 11401G 11401L 11401V 11416 11420 11434A 11434J 11434J 11434N 11445 12101 12101A 12101B 28193 43409E 9010506352 90105W0268 90105W0301 9011906938 90119W0010 90119W0026 9012606028 9017906326 9025311021 9025314003 9034118088
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-25010

M15#..MXPA11,MXPH11

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-F3040

M15#..MXPA11,MXPH11

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-F9110

M15#..MXPA11,MXPH11

*613

 1
11410-19005

M15AFXE..MXPH11

*119

 1
11401G - SENSOR, CRANK POSITION
90919-05095

M15AFXE..MXPH11

*613,*119

 1
11401L - SEAL, ENGINE REAR OIL
90311-W0022

M15#..MXPA11,MXPH11

*613

 1
90311-90010

M15AFXE..MXPH11

*119

 1
11401V - O-RING, CRANK POSITION SENSOR
90301-11039

M15AFXE..MXPH11

*613,*119

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02197

M15AFXE..MXPH11

*119

 8
90910-02197

M15#..MXPA11,MXPH11

*613

 8
11420 - CRANKCASE ASSY, STIFFENING
11420-F3020

M15AFXE..MXPH11

*613

 1
11420-15020

M15AFXE..MXPH11

*119

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

M15AFXE..MXPH11

L=14,OD=6,*119

 2
90250-06003

M15#..MXPA11,MXPH11

L=14,OD=6,*613

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

M15AFXE..MXPH11

*119

 2
90253-13017

M15#..MXPA11,MXPH11

*613

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

M15AFXE..MXPH11

*119

 2
90253-13017

M15#..MXPA11,MXPH11

*613

 2
11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING)
90250-06003

M15#..MXPA11,MXPH11

*613

 2
90250-06003

M15AFXE..MXPH11

*119

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-F3010

M15#..MXPA11,MXPH11

*613

 1
11445-15010

M15AFXE..MXPH11

*119

 1
12101 - PAN SUB-ASSY, OIL
12102-15010

M15AFXE..MXPH11

*119

 1
12102-F3010

M15AFXE..MXPH11

*613

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

M15AFXE..MXPH11

*613,*119

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

M15AFXE..MXPH11

*613,*119

 1
28193 - INSULATOR, STARTER HOLE
28193-K0010

M15AFXE..MXPH11

 1
43409E - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-K0020

MXPH11

 1
Common parts
90105-06352
90105-W0268
90105-W0301
90119-06938
90119-W0010
90119-W0026
90126-06028
90179-06326
90253-11021
90253-14003
90341-18088

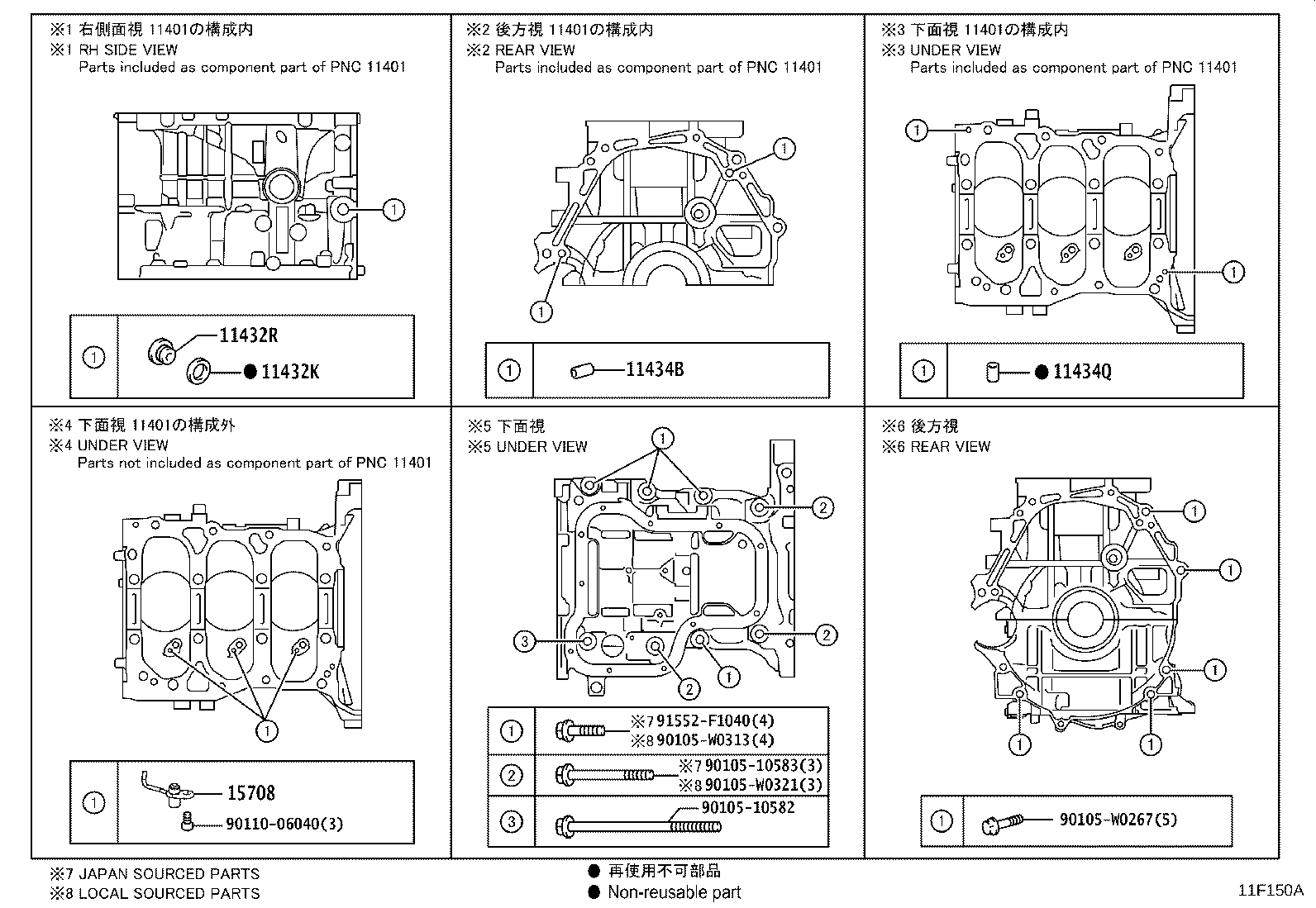

ILLUST NO. 2 OF 2(2007- )M15AFXE

Click highlighted areas on diagram

FITTING PARTS

diagram 11432K 11432R 11434B 11434Q 15708 9010510582 9010510583 90105W0267 90105W0313 90105W0321 9011006040 91552F1040
Part # Description Qty Price
11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-18008

M15#..MXPA11,MXPH11

*613

 1
90430-18008

M15AFXE..MXPH11

*119

 1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-18023

M15AFXE..MXPH11

*119

 1
90341-18023

M15#..MXPA11,MXPH11

*613

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

M15#..MXPA11,MXPH11

L=22,OD=10,*613

 2
90250-10113

M15AFXE..MXPH11

L=22,OD=10,*119

 2
11434Q - PIN, STRAIGHT(FOR CRANKCASE)
90250-06003

M15#..MXPA11,MXPH11

L=14,OD=6,*613

 2
90250-06003

M15AFXE..MXPH11

L=14,OD=6,*119

 2
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-15010

M15#..MXPA11,MXPH11

*613

 3
15708-15010

M15AFXE..MXPH11

*119

 3
Common parts
90105-10582
90105-10583
90105-W0267
90105-W0313
90105-W0321
90110-06040
91552-F1040
