MXPH11L-BHXNBW (2020)
Toyota Yaris(Frp)

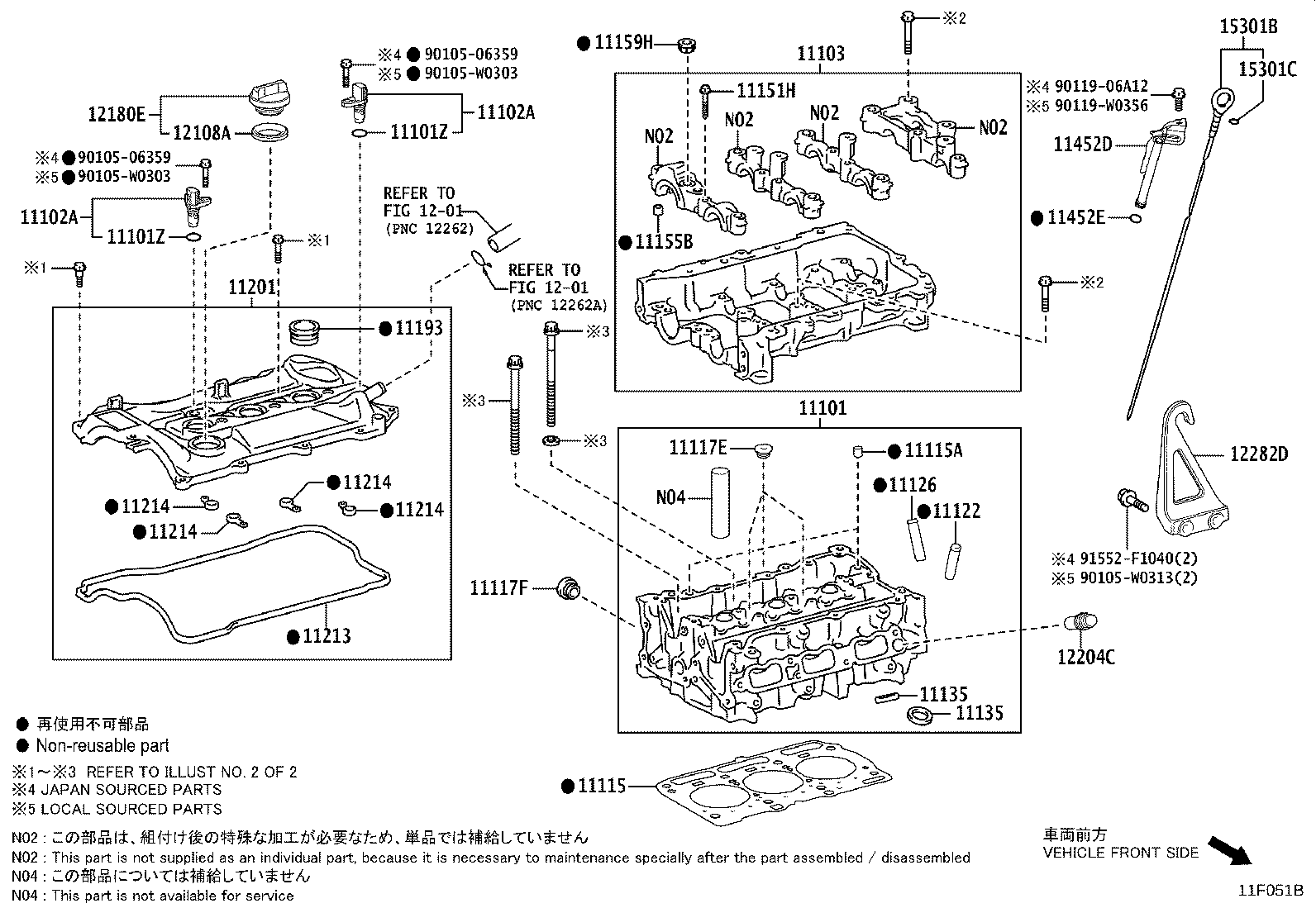

ILLUST NO. 1 OF 2(2007- )M15AFXE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-19545 |
M15AFXE..MXPH11 *119 |
1 | ||
| 11101-F9080 |
M15AFXE..MXPH11 *613 |
1 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 90301-11038 |
M15AFXE..MXPH11 *613,*119 |
2 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 90301-11038 |
M15AFXE..MXPH11 *613,*119 |
2 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05096 |
M15AFXE..MXPH11 *613,*119 |
2 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05096 |
M15AFXE..MXPH11 *613,*119 |
2 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-15020 |
M15AFXE..MXPH11 *119 |
1 | ||
| 11103-F3020 |
M15AFXE..MXPH11 *613 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-15100 |
M15AFXE..MXPH11 *119 |
1 | ||
| 11115-15100 |
M15#..MXPA11,MXPH11 *613 |
1 | ||
| 11115A - PIN, RING | ||||
| 90253-12002 |
M15#..MXPA11,MXPH11 *613 |
2 | ||
| 90253-12002 |
M15AFXE..MXPH11 *119 |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-14015 |
M15AFXE..MXPH11 *613,*119 |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-20012 |
M15AFXE..MXPH11 *613,*119 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-31090 |
M15AFXE..MXPH11 O/S 0.05,*119 |
6 | ||
| 11122-31090 |
M15AFXE..MXPH11 STD,*119 |
6 | ||
| 11123-31070 |
M15AFXE..MXPH11 O/S 0.05,*613 |
6 | ||
| 11122-31070 |
M15AFXE..MXPH11 STD,*613 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-31041 |
M15AFXE..MXPH11 STD,*613,*119 |
6 | ||
| 11123-31041 |
M15AFXE..MXPH11 O/S 0.05,*613,*119 |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-24020 |
M15AFXE..MXPH11 STD,*119 |
6 | ||
| 11135-F2020 |
M15AFXE..MXPH11 STD,*613 |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-24020 |
M15AFXE..MXPH11 STD,*119 |
6 | ||
| 11135-F2020 |
M15AFXE..MXPH11 STD,*613 |
6 | ||
| 11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
M15AFXE..MXPH11 *613,*119 |
7 | ||
| 11155B - PIN, RING | ||||
| 90253-13005 |
M15AFXE..MXPH11 *613,*119 |
8 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-31040 |
M15AFXE..MXPH11 *613,*119 |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-37030 |
M15AFXE..MXPH11 *613,*119 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-F3020 |
M15AFXE..MXPH11 *613 |
1 | ||
| 11201-15040 |
M15AFXE..MXPH11 *119 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-15100 |
M15AFXE..MXPH11 *119 |
1 | ||
| 11213-F3010 |
M15AFXE..MXPH11 *613 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11213-31080 |
M15AFXE..MXPH11 *613,*119 |
4 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11213-31080 |
M15AFXE..MXPH11 *613,*119 |
4 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11213-31080 |
M15AFXE..MXPH11 *613,*119 |
4 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11213-31080 |
M15AFXE..MXPH11 *613,*119 |
4 | ||
| 11452D - GUIDE, OIL LEVEL GAGE | ||||
| 11452-24020 |
M15AFXE..MXPH11 *613,*119 |
1 | ||
| 11452E - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96741-19010 |
M15AFXE..MXPH11 *613,*119 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
M15AFXE..MXPH11 *119 |
1 | ||
| 90430-35001 |
M15#..MXPA11,MXPH11 *613 |
1 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-38010 |
M15#..MXPA11,MXPH11 *613 |
1 | ||
| 12180-38010 |
M15AFXE..MXPH11 *119 |
1 | ||
| 12204C - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-25010 |
M15AFXE..MXPH11 *119 |
1 | ||
| 12204-25010 |
M15#..MXPA11,MXPH11 *613 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-25010 |
M15#..MXPA11,MXPH11 *613 |
1 | ||
| 12282-25010 |
M15AFXE..MXPH11 *119 |
1 | ||
| 15301B - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-15070 |
M15AFXE..MXPH11 *119 |
1 | ||
| 15301-F3020 |
M15AFXE..MXPH11 *613 |
1 | ||
| 15301C - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
M15AFXE..MXPH11 *119 |
1 | ||
| Common parts | ||||
| 90105-06359 | ||||
| 90105-W0303 | ||||
| 90105-W0313 | ||||
| 90119-06A12 | ||||
| 90119-W0356 | ||||
| 91552-F1040 | ||||
| Linked diagrams | ||||
| 1201 | ||||

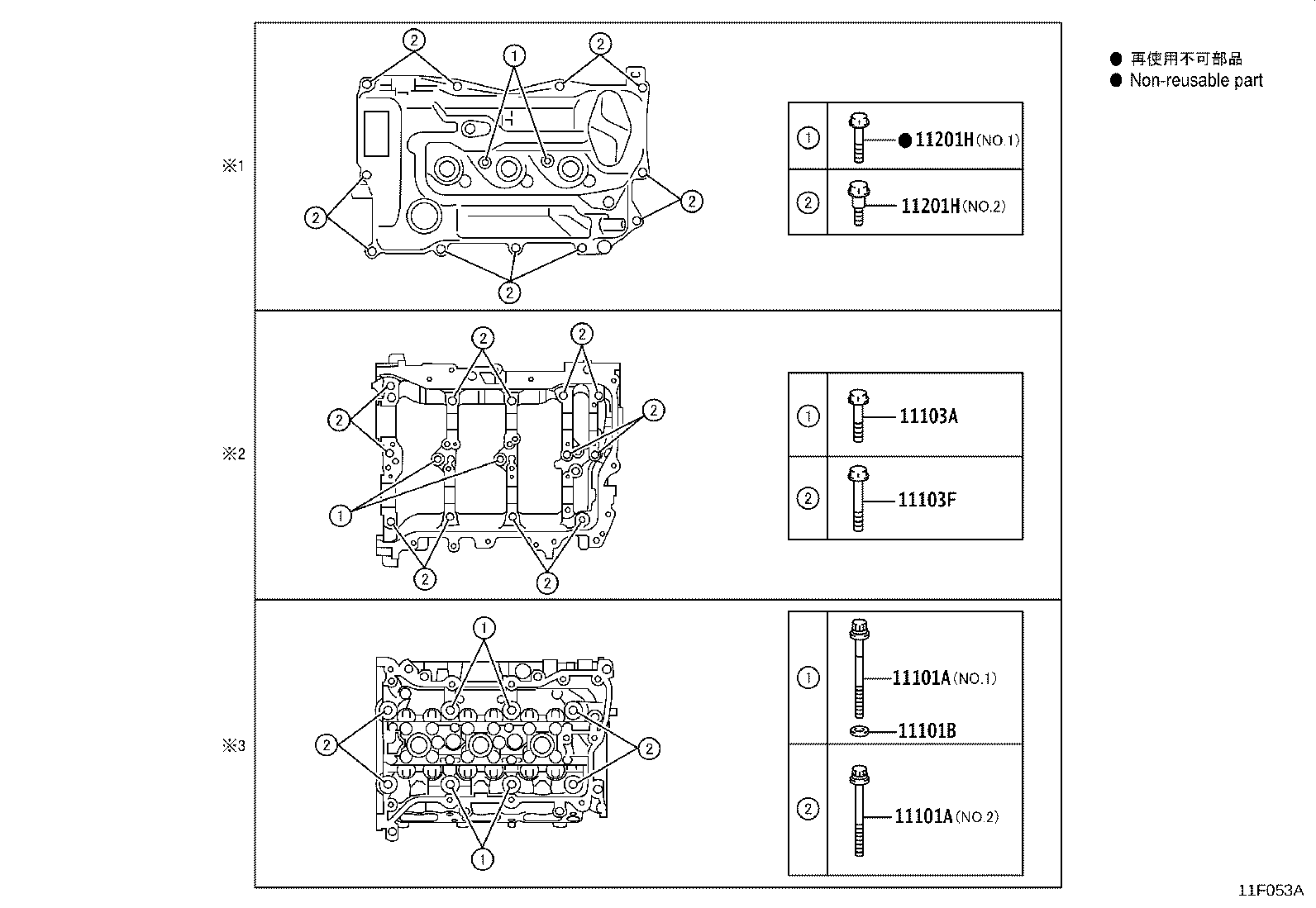

ILLUST NO. 2 OF 2(2007- )M15AFXE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02205 |
M15AFXE..MXPH11 *119,NO.2:REFER ILL. |
4 | ||
| 90910-02202 |
M15AFXE..MXPH11 *119,NO.1:REFER ILL. |
4 | ||
| 90910-02202 |
M15#..MXPA11,MXPH11 *613,NO.1:REFER ILL. |
4 | ||
| 90910-02205 |
M15#..MXPA11,MXPH11 *613,NO.2:REFER ILL. |
4 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02205 |
M15AFXE..MXPH11 *119,NO.2:REFER ILL. |
4 | ||
| 90910-02202 |
M15AFXE..MXPH11 *119,NO.1:REFER ILL. |
4 | ||
| 90910-02202 |
M15#..MXPA11,MXPH11 *613,NO.1:REFER ILL. |
4 | ||
| 90910-02205 |
M15#..MXPA11,MXPH11 *613,NO.2:REFER ILL. |
4 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12079 |
M15#..MXPA11,MXPH11 *613 |
4 | ||
| 90201-12079 |
M15AFXE..MXPH11 *119 |
4 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 91551-G0840 |
M15AFXE..MXPH11 (J),*613,*119 |
2 | ||
| 90105-W0307 |
M15AFXE..MXPH11 (L),*613 |
2 | ||
| 11103F - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 91551-G0865 |
M15AFXE..MXPH11 (J),*613,*119 |
12 | ||
| 90105-W0309 |
M15AFXE..MXPH11 (L),*613 |
12 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90105-W0303 |
M15AFXE..MXPH11 (L),*613,NO.1:SEE |
2 | ||
| 90109-06384 |
M15AFXE..MXPH11 (J),*613,NO.2:SEE,*119,NO.2:REFER ILL. |
11 | ||
| 90105-06359 |
M15AFXE..MXPH11 (J),*613,NO.1:SEE,*119,NO.1:REFER ILL. |
2 | ||
| 90109-W0019 |
M15AFXE..MXPH11 (L),*613,NO.2:SEE |
11 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90105-W0303 |
M15AFXE..MXPH11 (L),*613,NO.1:SEE |
2 | ||
| 90109-06384 |
M15AFXE..MXPH11 (J),*613,NO.2:SEE,*119,NO.2:REFER ILL. |
11 | ||
| 90105-06359 |
M15AFXE..MXPH11 (J),*613,NO.1:SEE,*119,NO.1:REFER ILL. |
2 | ||
| 90109-W0019 |
M15AFXE..MXPH11 (L),*613,NO.2:SEE |
11 | ||
