MXPA11R-BHXSBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

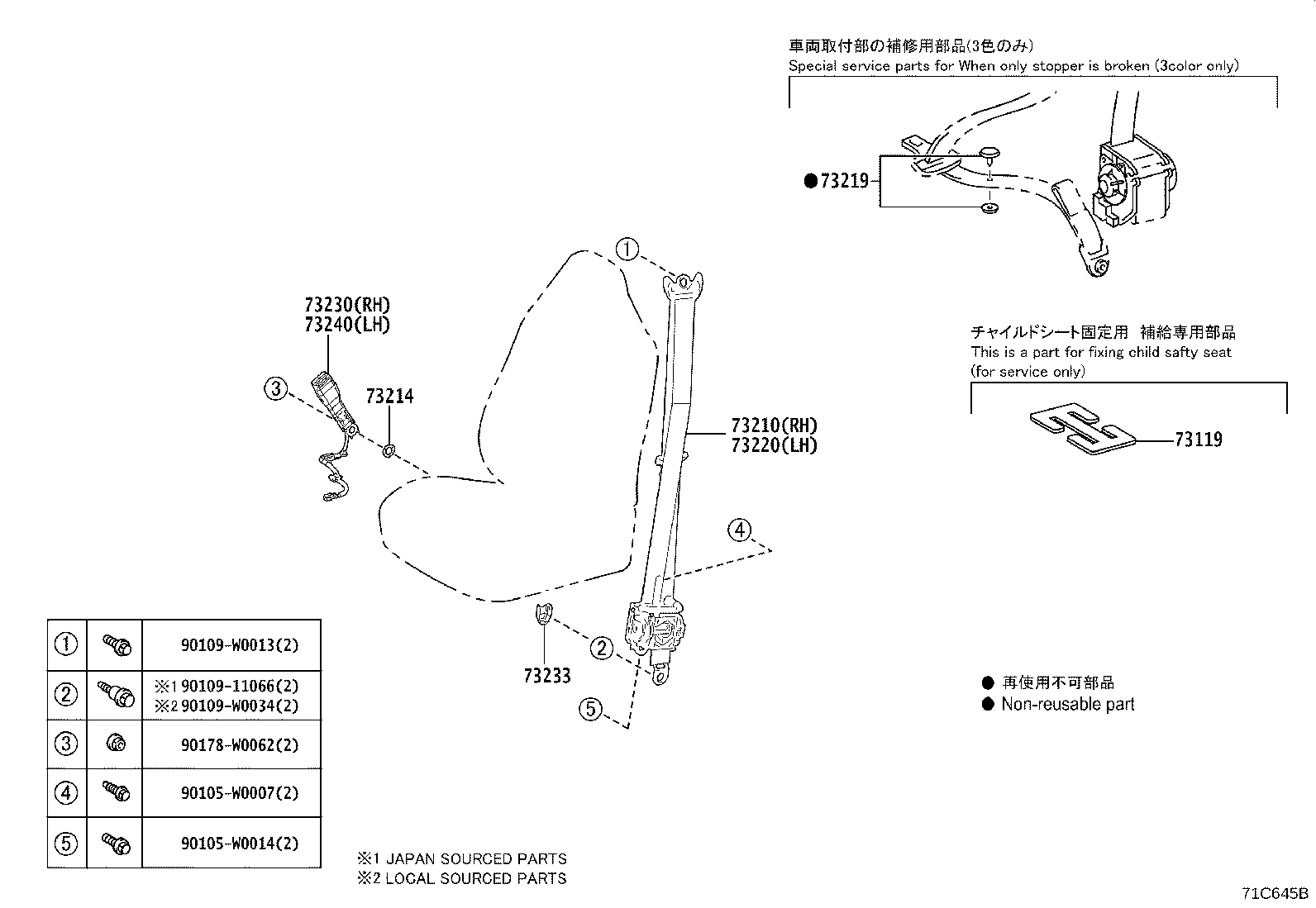

FRONT SEAT BELT

diagram 73119 73210 73214 73219 73220 73230 73233 73240 90105W0007 90105W0014 9010911066 90109W0013 90109W0034 90178W0062
Part # Description Qty Price
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-K0010C0

KSP211,MXPA11,MXPH11..RHD..(R,S)

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-K0090C0

MXPA11,MXPH11..RHD..S

BLACK,TRIM2#

 1
Common parts
90105-W0007
90105-W0014
90109-11066
90109-W0013
90109-W0034
90178-W0062

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

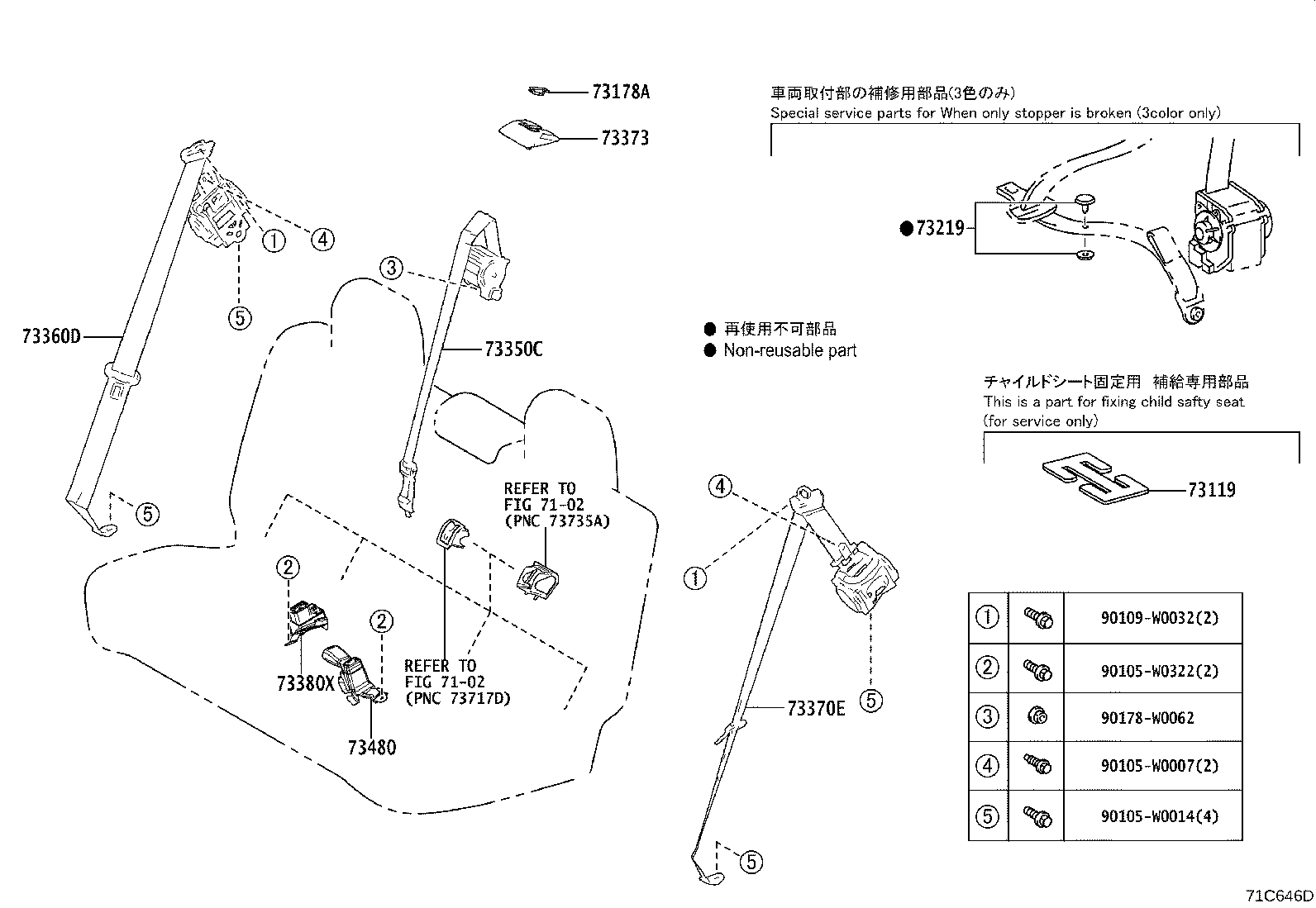

REAR SEAT BELT

diagram 7102 7102 73119 73178A 73219 73350C 73360D 73370E 73373 73380X 73480 90105W0007 90105W0014 90105W0322 90109W0032 90178W0062
Part # Description Qty Price
Common parts
90105-W0007
90105-W0014
90105-W0322
90109-W0032
90178-W0062
Linked diagrams
7102
