MXPA11R-BHXGBW (2020)
Toyota Yaris(Frp)
ILLUST NO. 6 OF 9(2007- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-K0040C5 |
MXPA11..G BLACK,TRIM1# |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-11010 |
MXPA11..CVT |
1 | ||
| 84610G - SWITCH ASSY, TRANSMISSION SHIFT, NO.1 | ||||
| 84610-33011 |
MXPA11..CVT |
1 | ||
| 84610H - SWITCH ASSY, TRANSMISSION SHIFT, NO.2 | ||||
| 84610-33021 |
MXPA11..CVT |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-06040 |
MXPA11,MXPH11..RHD..CVT..(N,R) MALTA SPEC |
1 | ||
| 85432-06040 |
MXPA11,MXPH11..RHD..CVT..(N,R) IRELAND, CYPRUS SPEC |
1 | ||
| Common parts | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 5 OF 9(2007- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-K0010 |
MXPA11..CVT WITH(STOP & START SYSTEM) |
1 | ||
| 84970-K0030 |
MXPA11..CVT |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-K0010 |
MXPA11..CVT WITH(STOP & START SYSTEM) |
1 | ||
| 84970-K0030 |
MXPA11..CVT |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02170 |
MXPA11..G,S |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02170 |
MXPA11..G,S |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
ILLUST NO. 7 OF 9(2007- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-K0020 |
KSP211,MXPA11,MXPH11..RHD..(N,R) |
1 | ||
| 84040-0D030 |
MXPA11,MXPH11..RHD..(G,S) |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-K0020 |
KSP211,MXPA11,MXPH11..RHD..(N,R) |
1 | ||
| 84040-0D030 |
MXPA11,MXPH11..RHD..(G,S) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02310 |
MXPA11,MXPH11..RHD..(G,N,S) BLIND SPOT MONITOR-WITH |
1 | ||
| 84872-02450 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02310 |
MXPA11,MXPH11..RHD..(G,N,S) BLIND SPOT MONITOR-WITH |
1 | ||
| 84872-02450 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||

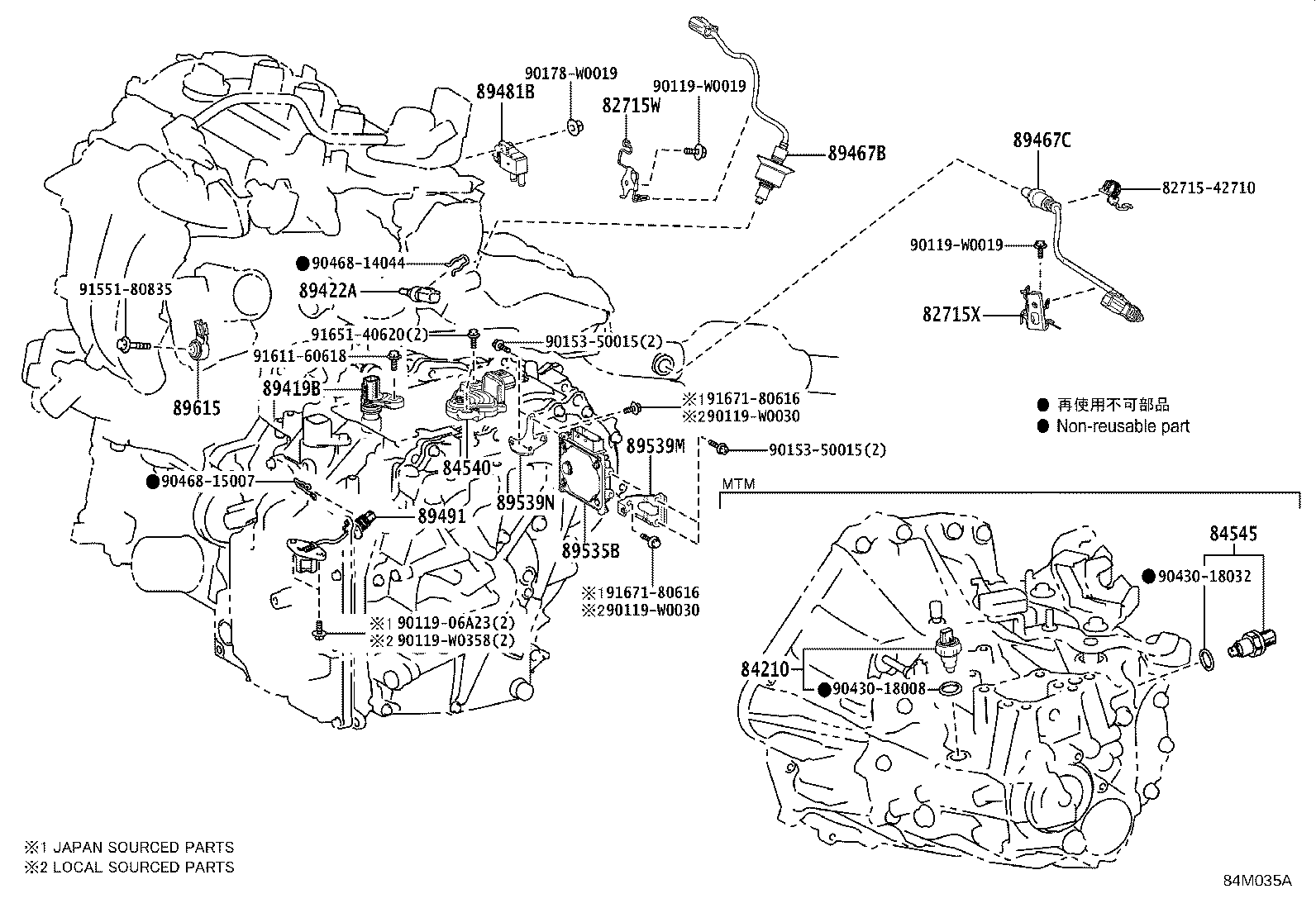

ILLUST NO. 1 OF 9(2007- )MXPA11
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-K0010 |
MXPA11..CVT |
1 | ||
| 89419B - SENSOR, SHIFT STROKE | ||||
| 89419-K2010 |
MXPA11..CVT |
1 | ||
| 89535B - COMPUTER, TRANSMISSION CONTROL | ||||
| 89535-52151 |
MXPA11..CVT *614 |
1 | ||
| 89535-52140 |
MXPA11..CVT WITH(STOP & START SYSTEM),*614 |
1 | ||
| 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | ||||
| 89539-K0010 |
MXPA11..CVT |
1 | ||
| 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | ||||
| 89539-K0020 |
MXPA11..CVT |
1 | ||
| Common parts | ||||
| 82715-42710 | ||||
| 90119-06A23 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0358 | ||||
| 90153-50015 | ||||
| 90178-W0019 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80835 | ||||
| 91611-60618 | ||||
| 91651-40620 | ||||
| 91671-80616 | ||||
ILLUST NO. 9 OF 9(2007- )
FLOOR & BACK DOOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-K0010 |
M15AFKS..MXPA11..G,N,S;1KRFE..KSP211..(N,R)..FRP WITH(STOP & START SYSTEM) |
1 | ||
| Common parts | ||||
| 90178-W0024 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 8 OF 9(2007- )
FLOOR & BACK DOOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-K0020 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-K0020 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-K0010 |
MXPA11,MXPH11..RHD..(G,N,S);MXPA11,MXPH11..LHD..(G,S)..FRP BLIND SPOT MONITOR-WITH |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-K0010 |
MXPA11,MXPH11..RHD..(G,N,S);MXPA11,MXPH11..LHD..(G,S)..FRP BLIND SPOT MONITOR-WITH |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
ILLUST NO. 4 OF 9(2007- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52200 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| 82673-K0020 |
KSP211,MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| 82730G - BOX ASSY, POWER DISTRIBUTION | ||||
| 82730-K0100 |
MXPA11..RHD..S AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82730-K0090 |
MXPA11..S |
1 | ||
| 82730-K0100 |
MXPA11..RHD..S AIR CONDITIONER-AUTO (DUAL&COLD STORAGE EVAPORATOR TYPE) |
1 | ||
| 82730-K0100 |
MXPA11..G |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) IRELAND, CYPRUS SPEC |
1 | ||
| 85970-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) MALTA SPEC |
1 | ||
| 85970-K0010 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0DK10 |
MXPA11,MXPH11..RHD..CVT..(N,R) |
1 | ||
| 89220-0DK00 |
MXPA11,MXPH11..RHD..CVT..(G,S) IRELAND, CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 89220-0DJ70 |
MXPA11,MXPH11..RHD..CVT..(N,R) IRELAND, CYPRUS SPEC |
1 | ||
| 89220-0DK30 |
MXPA11,MXPH11..RHD..CVT..(G,S) |
1 | ||
| 89220-0DK20 |
MXPA11,MXPH11..RHD..CVT..(N,R) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 89220-0DK80 |
MXPA11,MXPH11..RHD..CVT..(G,S) MALTA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 89220-0DK60 |
MXPA11,MXPH11..RHD..CVT..(N,R) MALTA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 89220-0DK40 |
MXPA11,MXPH11..RHD..CVT..(G,S) ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 89220-0DJ90 |
MXPA11,MXPH11..RHD..CVT..(G,S) IRELAND, CYPRUS SPEC |
1 | ||
| 89220-0DK50 |
MXPA11,MXPH11..RHD..CVT..(N,R) MALTA SPEC |
1 | ||
| 89220-0DJ80 |
MXPA11,MXPH11..RHD..CVT..(N,R) IRELAND, CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 89220-0DK70 |
MXPA11,MXPH11..RHD..CVT..(G,S) MALTA SPEC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52J00 |
KSP211..RHD..(N,R);MXPA11,MXPH11..RHD..(G,N,R,S) JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90119-W0333 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 93315-54010 | ||||
| 94120-41000 | ||||

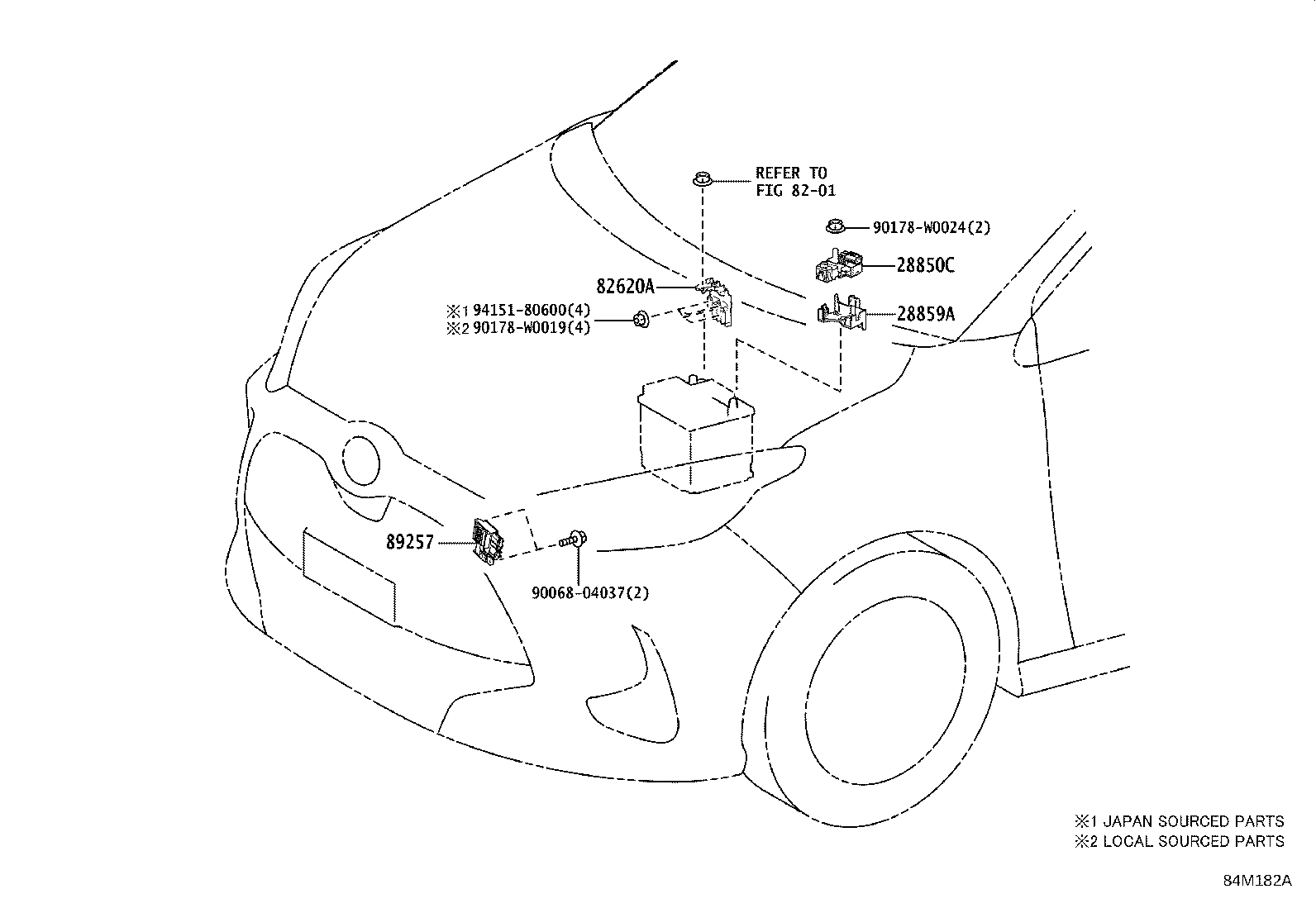

ILLUST NO. 2 OF 9(2007- )MXPA11
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-K0010 |
M15AFKS..MXPA11..G,N,S;1KRFE..KSP211..(N,R)..FRP WITH(STOP & START SYSTEM) |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-K0020 |
M15AFKS..MXPA11..G,N,S;1KRFE..KSP211..(N,R)..FRP WITH(STOP & START SYSTEM) |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-K0030 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-K0010 |
MXPA11..G,N,S |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90178-W0019 | ||||
| 90178-W0024 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8201 | ||||

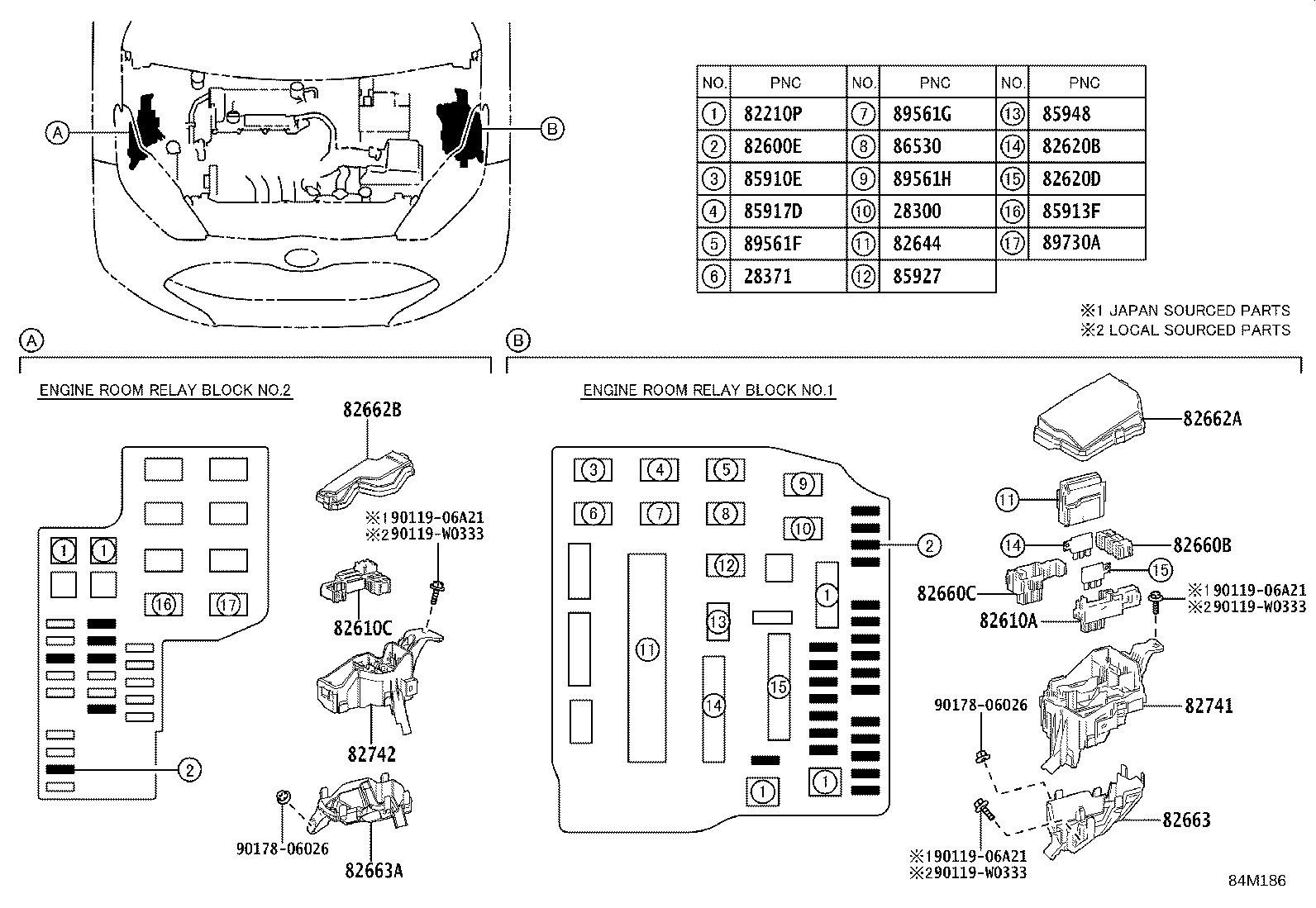

ILLUST NO. 3 OF 9(2007- )MXPA11
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
M15AFKS..MXPA11..G,N,S;1KRFE..KSP211..(N,R)..FRP |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-K0010 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-K0030 |
MXPH11..RHD..R;MXPA11..LHD..(G,S);KSP211..RHD..(N,R);MXPA11..LHD..CVT..N;MXPA11..RHD..(G,N,S) |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-K0050 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-K0060 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-K0030 |
MXPA11..G,N,S;KSP211,MXPH11..(N,R)..FRP |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-K0020 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D750 |
MXPA11..G,N,S |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0D720 |
KSP211..RHD..(N,R);MXPA11..LHD..(G,S);MXPA11..LHD..CVT..N;MXPA11..RHD..(G,N,S) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-K0060 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-K0070 |
MXPH11..RHD..R;MXPA11..LHD..(G,S);KSP211..RHD..(N,R);MXPA11..LHD..CVT..N;MXPA11..RHD..(G,N,S) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-K0050 |
MXPA11..G,N,S;KSP211..(N,R)..FRP |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-K0060 |
MXPH11..RHD..R;MXPA11..LHD..(G,S);KSP211..RHD..(N,R);MXPA11..LHD..CVT..N;MXPA11..RHD..(G,N,S) |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-02027 |
MXPA11..G,N,S |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 90119-W0333 | ||||
| 90178-06026 | ||||
