MXPA11R-BHFSBW (2020)

Toyota Yaris(Frp)

Production Jul 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )KSP211,MXPA11..RHD

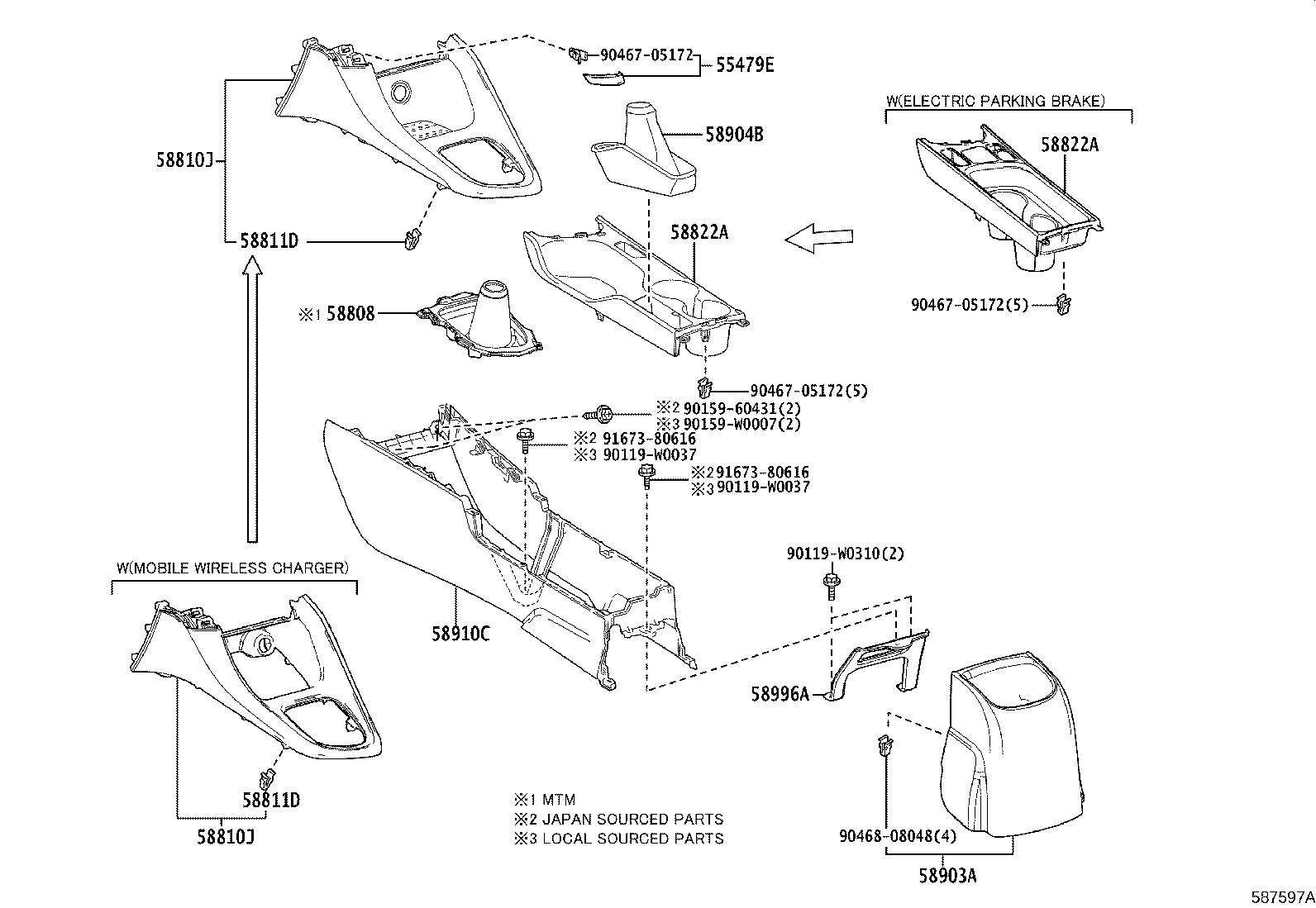

Click highlighted areas on diagram

diagram 55479E 58808 58810J 58810J 58811D 58811D 58822A 58822A 58903A 58904B 58910C 58996A 90119W0037 90119W0037 90119W0310 9015960431 90159W0007 9046705172 9046705172 9046705172 9046808048 9167380616 9167380616
Part # Description Qty Price
55479E - COVER, INSTRUMENT, LOWER CENTER
55479-K0020C0

KSP211,MXPA11,MXPH11..RHD..(R,S)

BLACK,TRIM2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-K0030C1

MXPA11..6F..S

BLACK,TRIM2#

 1
58810J - BOX ASSY, CONSOLE
58810-0D250C2

MXPA11,MXPH11..RHD..S

WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM20,21,22

 1
58810-0D250C3

MXPA11,MXPH11..RHD..S

WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM21

 1
58810-K0080C1

MXPA11,MXPH11..RHD..S

BLACK/BLACK,TRIM20,21,22

 1
58810-K0080C2

MXPA11,MXPH11..RHD..S

BLACK/SILVER,TRIM21

 1
58810-0D251C2

MXPA11,MXPH11..RHD..S

WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM2#

 1
58810-K0081C1

MXPA11..RHD..S

BLACK/BLACK,TRIM2#

 1
58810J - BOX ASSY, CONSOLE
58810-0D250C2

MXPA11,MXPH11..RHD..S

WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM20,21,22

 1
58810-0D250C3

MXPA11,MXPH11..RHD..S

WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM21

 1
58810-K0080C1

MXPA11,MXPH11..RHD..S

BLACK/BLACK,TRIM20,21,22

 1
58810-K0080C2

MXPA11,MXPH11..RHD..S

BLACK/SILVER,TRIM21

 1
58810-0D251C2

MXPA11,MXPH11..RHD..S

WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM2#

 1
58810-K0081C1

MXPA11..RHD..S

BLACK/BLACK,TRIM2#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-K0030

MXPA11..G,N,S;KSP211..(N,R)..FRP

 1
Common parts
90119-W0037
90119-W0310
90159-60431
90159-W0007
90467-05172
90468-08048
91673-80616
